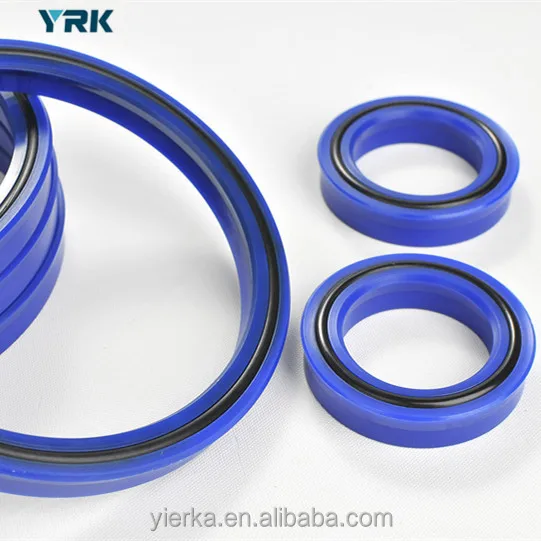

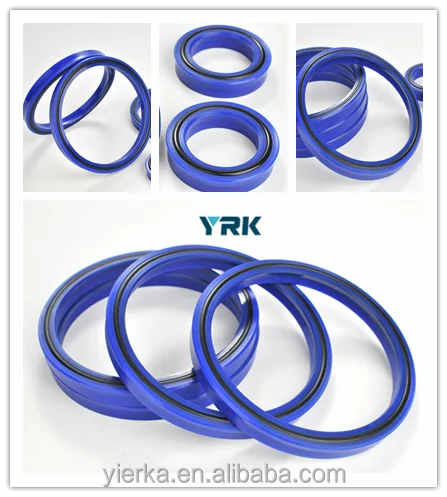

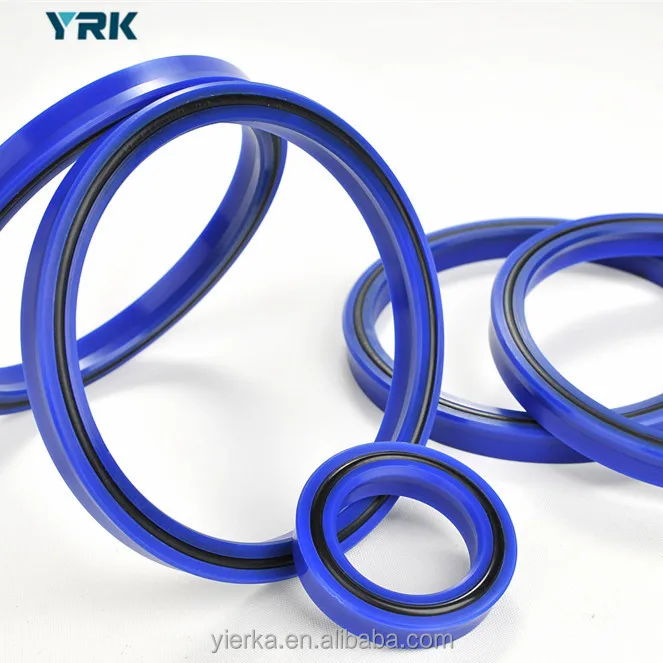

BA Hydraulic Piston Rod Compact Seal

Product Overview

Description

Discription:

    BA rod seal consist of  lip seal and high elastic O-Ring.It's mainly used of in telescopic cylinder,air drill,presses and so on.



Adavantages:

   Unusually high wear resistance.

    Insensibility agaist shock loads and pressure peaks.

    High resistance agaist extrusion.

    Low compression set.

    Suitable for hardest working conditions.

    Perfect sealing performance under low pressure even 0-pressure.

    Easy installation.



Technical Data:

    Material: lip seal:TPU  o-ring:NBR

    Pressure:≤31.5MPa

    Temperature:-35+80℃

    Speed: ≤0.5m/s

    (mineral oil-based)

    Media: Hydraulic oil

    Hardness: 90 Shore A

    Color:Blue





Specifications:





Item No.	d	D	h
BA-8.00-16.00-6.00	8.00	16.00	6.00
BA-9.53-15.88-6.35	9.53	15.88	6.35
BA-12.00-21.00-5.00	12.00	21.00	5.00
BA-12.70-19.05-6.35	12.70	19.05	6.35
BA-12.70-19.05-4.76	12.70	19.05	4.76
BA-13.00-19.00-4.00	13.00	19.00	4.00
BA-14.29-20.64-3.18	14.29	20.64	3.18
BA-15.88-22.23-3.18	15.88	22.23	3.18
BA-19.05-25.40-6.35	19.05	25.40	6.35
BA-19.05-25.40-3.18	19.05	25.40	3.18
BA-19.05-25.40-4.46	19.05	25.40	4.76
BA-22.00-32.00-8.00	22.00	32.00	8.00
BA-22.23-28.58-6.35	22.23	28.58	6.35
BA-25.40-34.93-7.95	25.40	34.93	7.95
BA-25.40-38.10-6.35	25.40	38.10	6.35
BA-25.40-38.10-9.53	25.40	38.10	9.53
BA-25.40-31.75-6.35	25.40	31.75	6.35
BA-25.40-31.75-3.18	25.40	31.75	3.18
BA-25.40-34.93-4.76	25.40	34.93	4.76





     We only show the part of all the specifications and the parameters.If you're interested in our products, we'll provide all the details for your reference.
