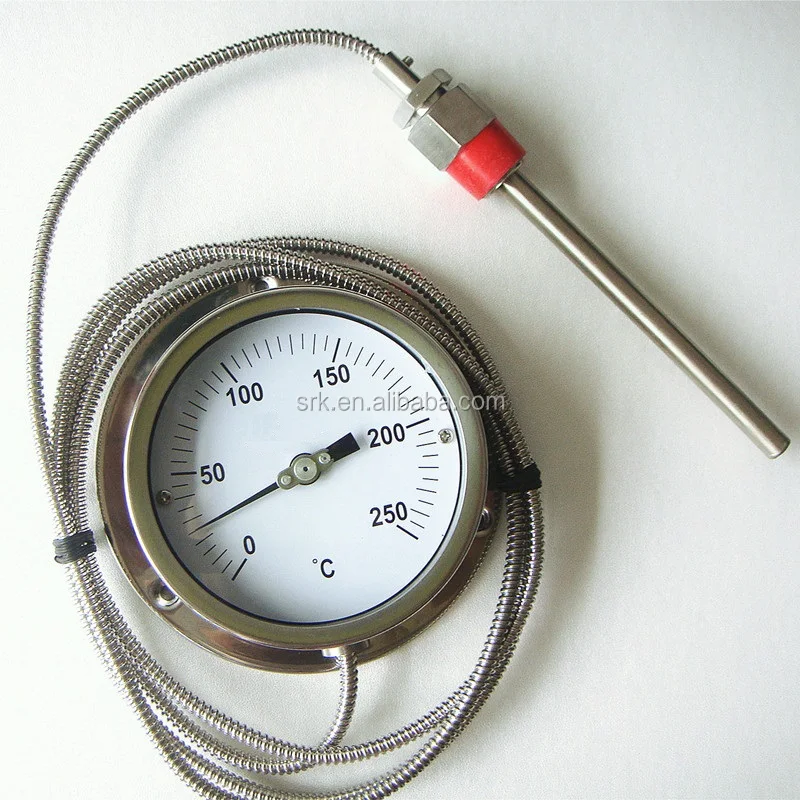

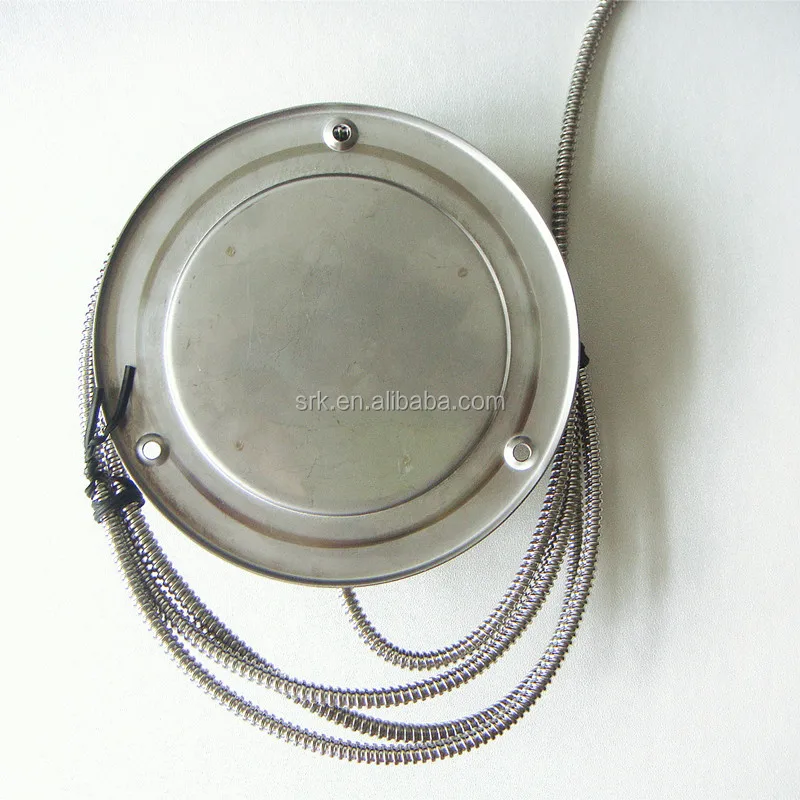

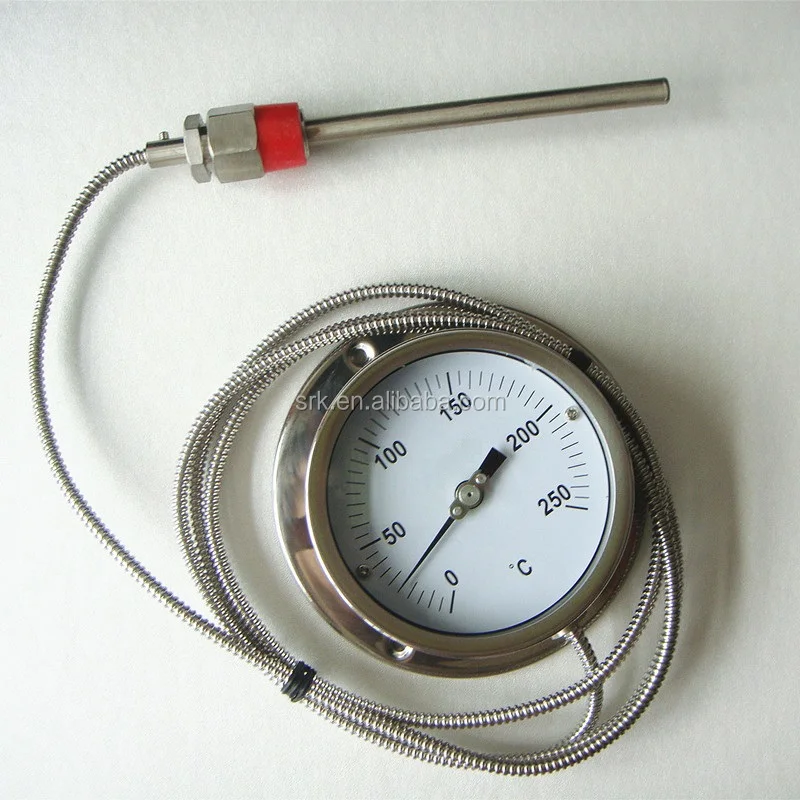

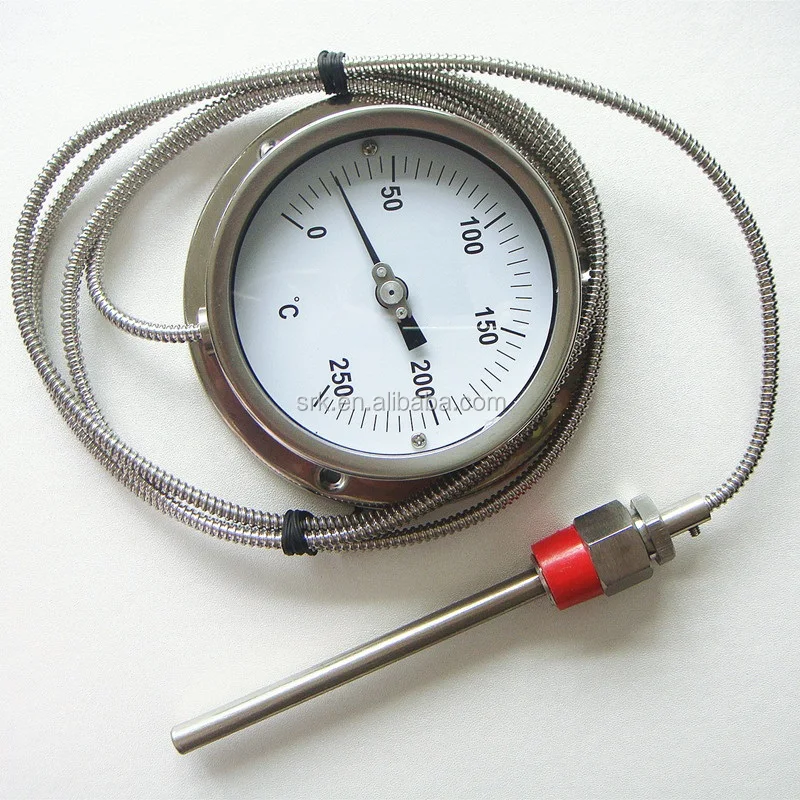

Remote reading Capillary thermometer

Product Overview

Description

 Name:Remote reading Capillary thermometer



Beijing ShengRuiKe offer a complete range of made to order, high quality mechanical dial capillary thermometers available with a wide range of options to meet the requirements of most industrial applications





I. Capillary Remote reading thermometer



Dial Size:	3", 4" 5", 6"
Stem diameter:	Φ6.3, Φ8, Φ10
Temperature probe :	Φ14 x 60,100,150, 200, 250, 300mm
Connection:	Bottom, and back connection
Capillary length :	≤ 20 m
Connection thread:	1/4", 3/8", 1/2" BSP, BSPT, NPT
Case ring:	304 stainless steel
Window (lens):	Polycarbonate lens, tempered glass available
Accuracy:	1.6% full scale
Option Info:	Other materials, ranges, connections are available upon request





II.Capillary Remote reading thermometer



1. Dial Size?



2. Temperature Range?



3. Back or Bottom or Adjustable Type?



4. What is the thread size?



5. Display C&F or only C?



6.Capillary Length?



 III. Capillary Remote reading thermometer









Remote Reading Thermometer
