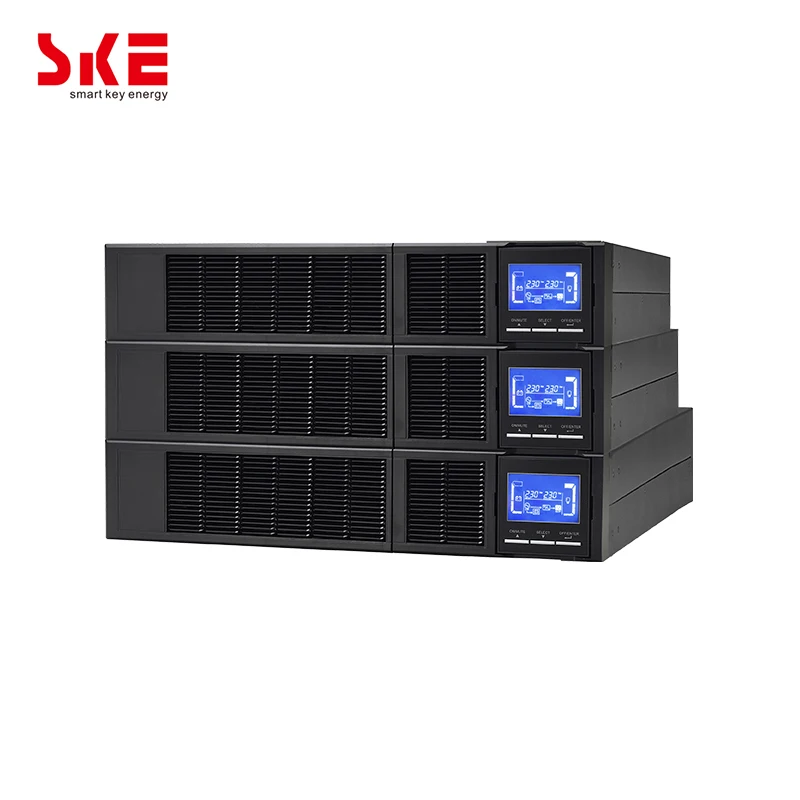

Online UPS Power 220V Rack Mount UPS Pure Sine Wave 1KVA UPS 36V DC
- Category: >>>
- Supplier: Shenzhen Smartkey Power Co. Ltd.
Share on (60629319104):
Product Overview
Description
Online UPS Power 220V Rack Mount UPS Pure Sine Wave 1KVA UPS 36V DC
Product Description
- True double-conversion
- Microprocessor control optimizes reliability
- Output power factor correction
- Wide input voltage range(110-300VAC)
- Converter mode available
- ECO mode for energy saving only available for 1-3KVA models
- Generator compatible
- Adjustable charging current via LCD or software(1A-6A)
- Emergency power off function(EPO) only available for 6K/10K models

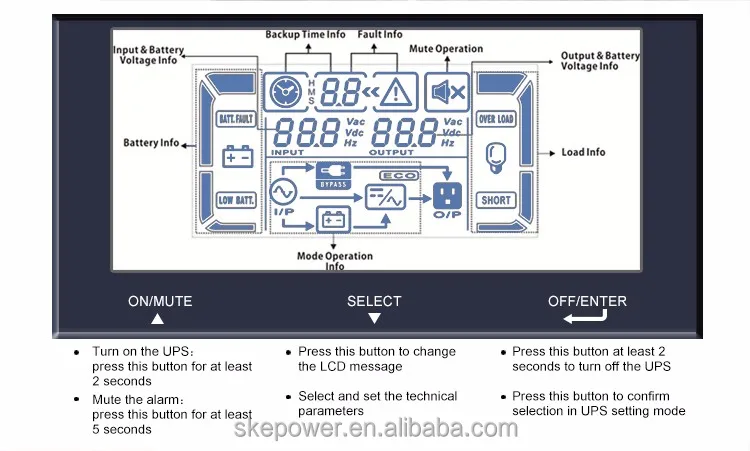

- Comprehensive display allows easy monitoring access of UPS status
| Model | 1KR | 2KR | 3KR | |
| Capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | |
| Input | Nominal Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC | ||
| Voltage Range | 55-145VAC or 110-300VAC at 50% load 85-140VAC or 160-280VAC at 100% load | |||
| Frequency | 40-60Hz / 50-70Hz | |||
| Power Factor | 0.99 | |||
| Output | Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC | ||
| Voltage Regulation | ±1% | |||
| Frequency Range (Synchronized Range) | 47-53HZ or 57-63HZ | |||
Frequency Range (Batt. Mode) | 50HZ±0.25HZ or 60HZ±0.3HZ | |||
| Current Crest Ratio | 3:1 | |||
| Harmonic Distortion | ≤3% THD(Linear load) ≤6% THD(Non-linear load) | |||
| Transfer Time | 0ms | |||
| WaveForm | Pure Sinewave | |||
| Efficiency | AC Mode | 88% | 89% | 90% |
| Battery Mode | 83% | 87% | 88% | |
| Battery (Standard Model) | Battery Type | 12V9AH | 12V9AH | 12V9AH |
| Numbers | 2PCS | 4PCS | 6PCS | |
| Typical Recharge Time | 4 hours recover to 90% capacity | |||
| Charging Current | 1A | |||
| Charging Voltage | 27.4VDC ± 1% | 54.7 VDC ±1% | 82.1 VDC ±1% | |
Battery (Long-run Model) | Battery Type | Depending on the capacity of external batteries | ||
| Numbers | 3 | 6 | 6 | |
| Charging Current | 1.0A/2.0A/4.0A/6.0 A | |||
| Charging Voltage | 41.0VDC ± 1% | 82.1 VDC ±1% | 82.1 VDC ±1% | |
| Indicators | LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions | ||
| Alarm | Battery Mode | Sounding every 4 seconds | ||
| Low Battery | Sounding every second | |||
| Overload | Sounding twice every second | |||
| Fault | Continously sounding | |||
| Physical (Standatd Model) | Dimension, D*W*H(mm) | 310*438*88(2U) | 410*438*88(2U) | 630*438*88(2U) |
| Net Weight(kgs) | 12 | 19 | 29.3 | |
| Physical (Long-run Model) | Dimension, D*W*H(mm) | 310*438*88 | 410*438*88 | |
| Net Weight(kgs) | 9 | 12 | 14.2 | |
| Environment | Humidity | 20-90 % RH @ 0- 40°C (non-condensing) | ||
| Noise Level | Less than 50dBA @ 1 Meter | |||
| Management | Smart RS232/USB | Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC | ||
| Optional SNMP | Power management from SNMP manager and web browser | |||
| *Long-run model is only available in 200/208/220/230/240VAC systems. | ||||
| * Product specifications are subject to change without further notice | ||||
Our Services
1. OEM&ODM services acceptable.
2. Lots of cooperated agent for shipping by sea or by air.
3. 1year warrenty , if it is quality problem , we will provide the parts for free .
Little hint:
1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare parts at a cost price.
3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine.
Detailed Images
Exhibitions
Trade Shows
Packaging & Shipping
1,The product manuals, technical documents, CE, ROHS and other certificates (if necessary) will be issued with the goods.
2,invoices, bills of lading, certificate of origin, fumigation certificate (if needed) will confirm with you, through DHL or other means to send.
FAQ
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,and so on
Our products could pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 10-30days.
