Product Overview

Description

aluminum wire 10% copper coated

Trade Assruance: our trade assurance limit: US$174,000. 2mm hdpe pond liner

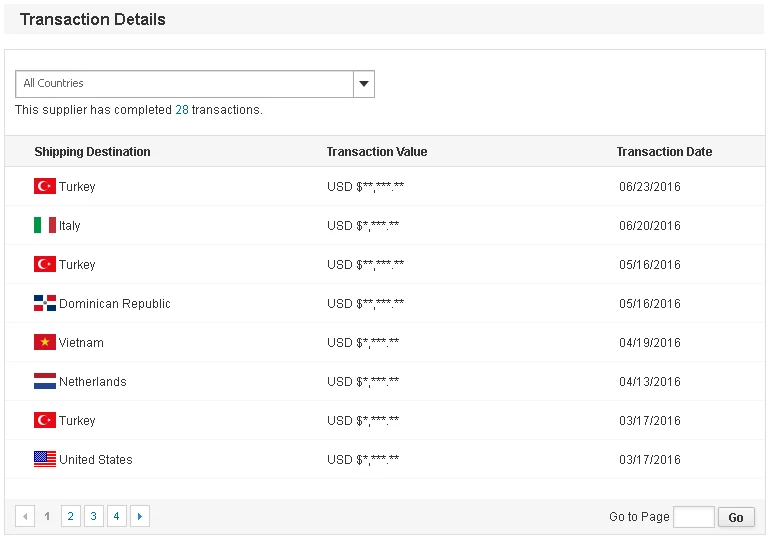

Transaction History

Below is the information about our transactions conducted via Alibaba.com. If you require further details regarding the transaction data, please contact us directly.

aluminum wire 10% copper coated

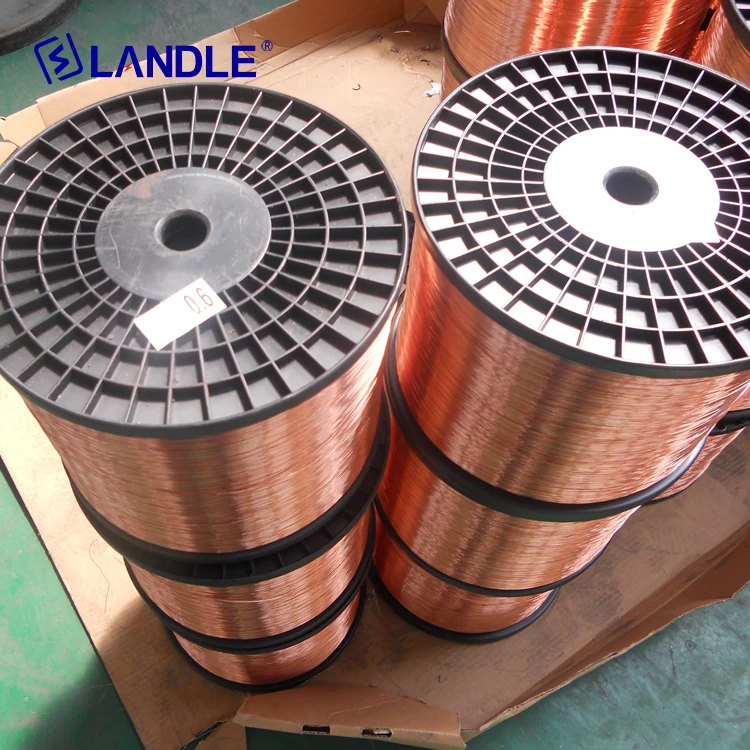

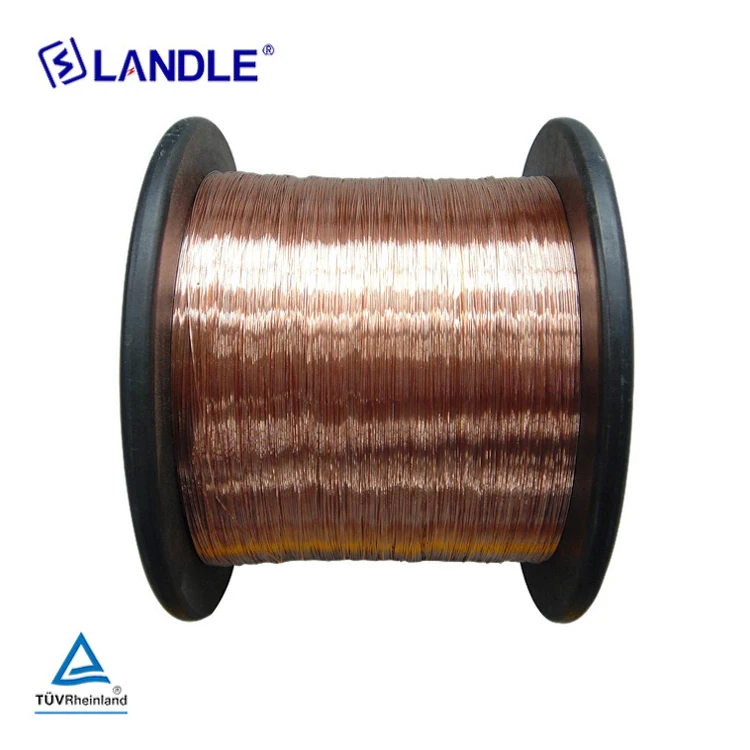

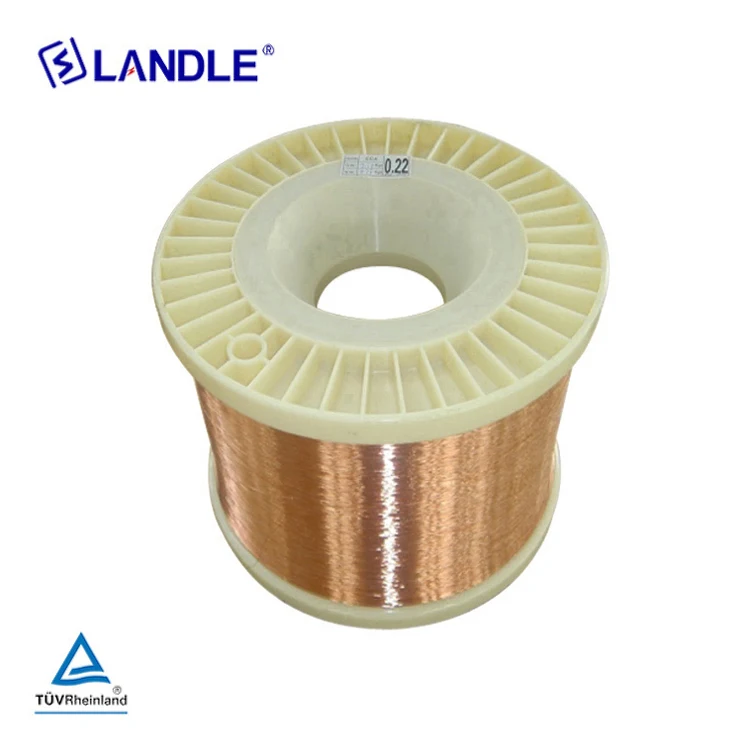

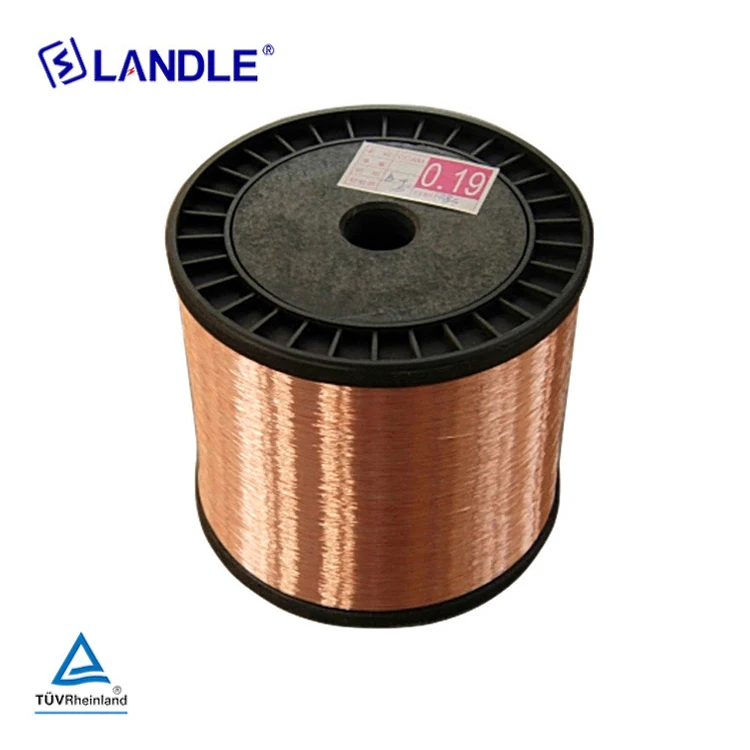

1. Copper clad aluminum wire
2. Copper content: 10~40%
3. High conductivity
4. Light weight



ADVANCED TECHNIQUE AND TESTING EQUIPMENT

1. Advantage of Bimetallic wire  aluminum wire 10% copper coated

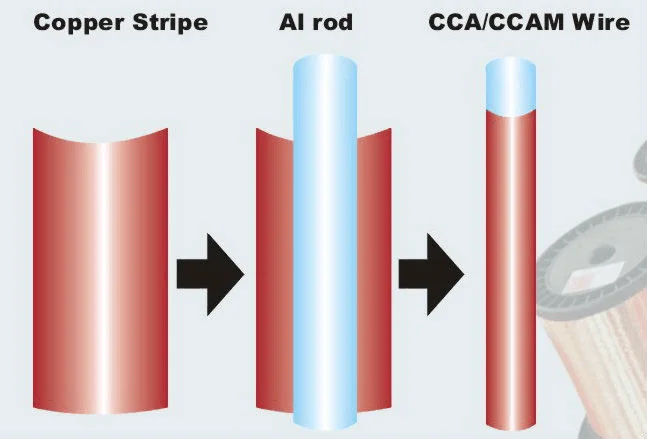

1. With composite characteristics: the bimetallic wire combines different beneficial properties in a single wire. Copper Clad Aluminm CCA/CCAM wire integrates the beneficial properties of the wonderful conductivity of copper and the light-weight of aluminum; Tinned CCA/CCAM wire is good at anti-vulcanization.

2. With wonderful plasticity and easy to process further: CCA/CCAM wire can be done in the same way as with copper wire. CCA/CCAM wire is easy to be processed to fine wire or flat wire, and CCA/CCAM wire can be tinned.

3. Economical effect: the density of CCA is about 32~40% of the copper, its length is 2.45~3.00 times of copper in same weight and diameter. All of these contribute to reduce production cost for cable manufacturers.

4. Social and environmental effect: It is helpful to save copper resource by using copper-clad wire. The finished cable will be easy to transport and install because of light weight, and there is no pollution discharged during the production with clad-welding technique.





CCA-Copper Clad Aluminum wire



CCAM-Copper Clad Aluminum & Magnesium alloy wire



TCCA-Tinned CCA wire





2. Characteristic   aluminum wire 10% copper coated

Specification	Copper in Volume(%)	Copper in Mass(%)	Length comparison	Density (g/cm3)	Max.DC. Resistivity (ohms.mm2/m(20oC)	Min.conductivity (%IACS)
CCA-10% copper	8~13	27	2.65:1	3.32	0.02743	63
CCA-15% copper	13~17	37	2.45:1	3.63	0.02676	65
Copper 100%	100	100	1:01	8.89	0.017241	100

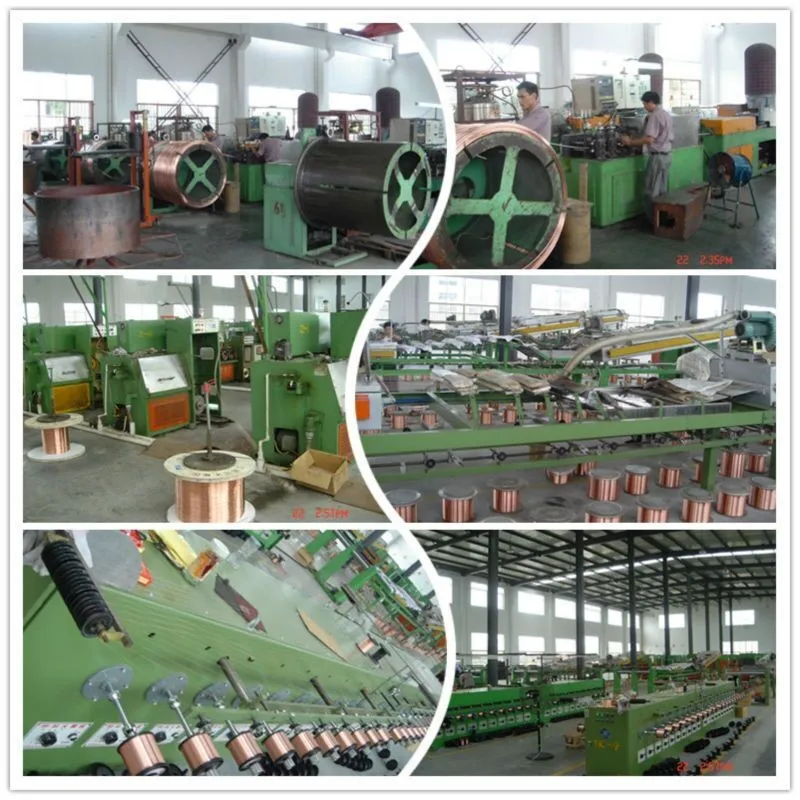

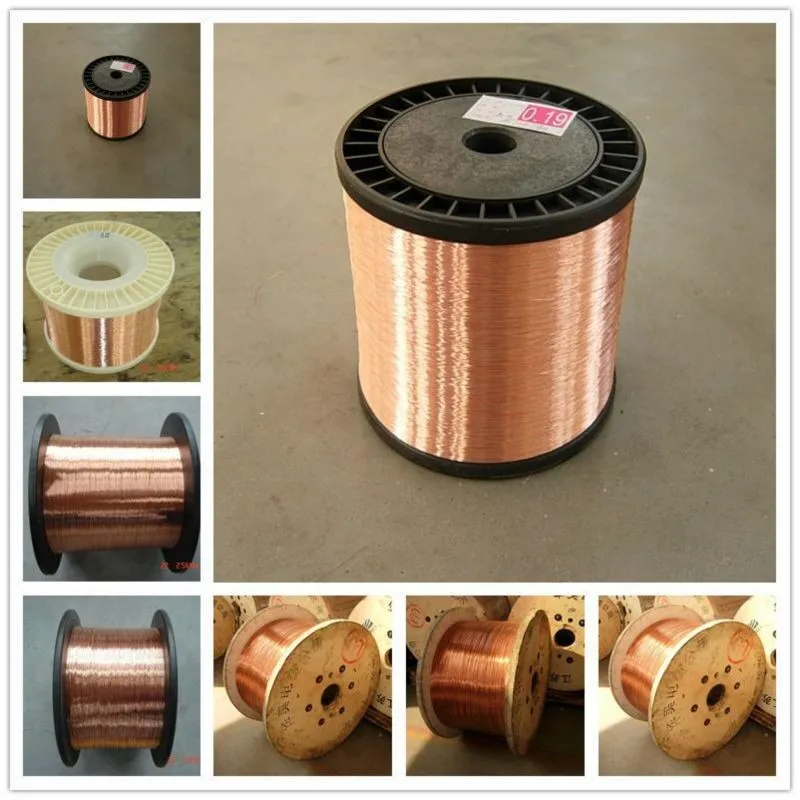

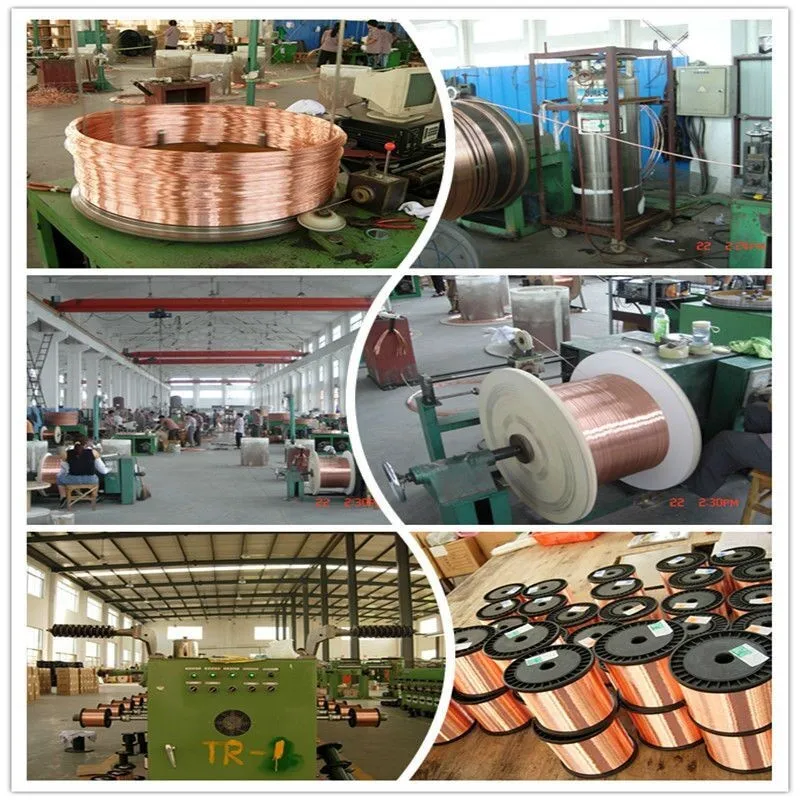

3. More pictures of the production      aluminum wire 10% copper coated

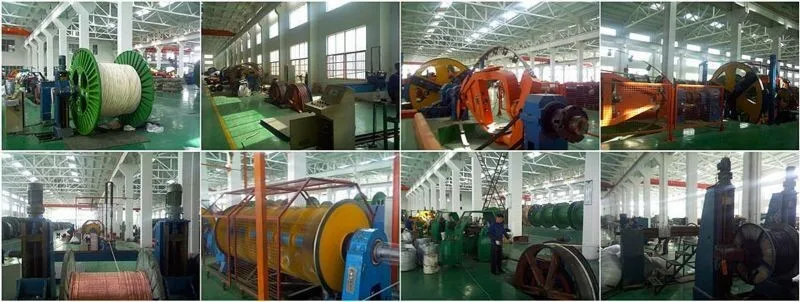

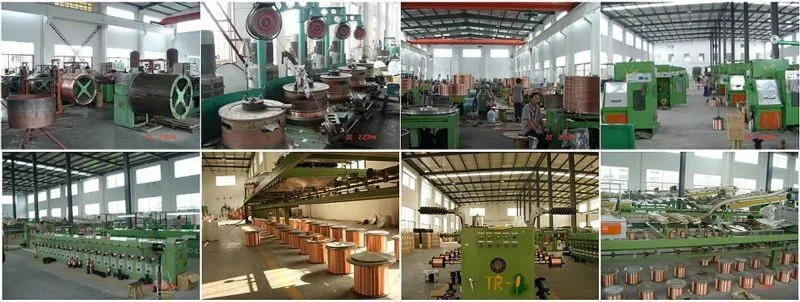

4. Production workshop

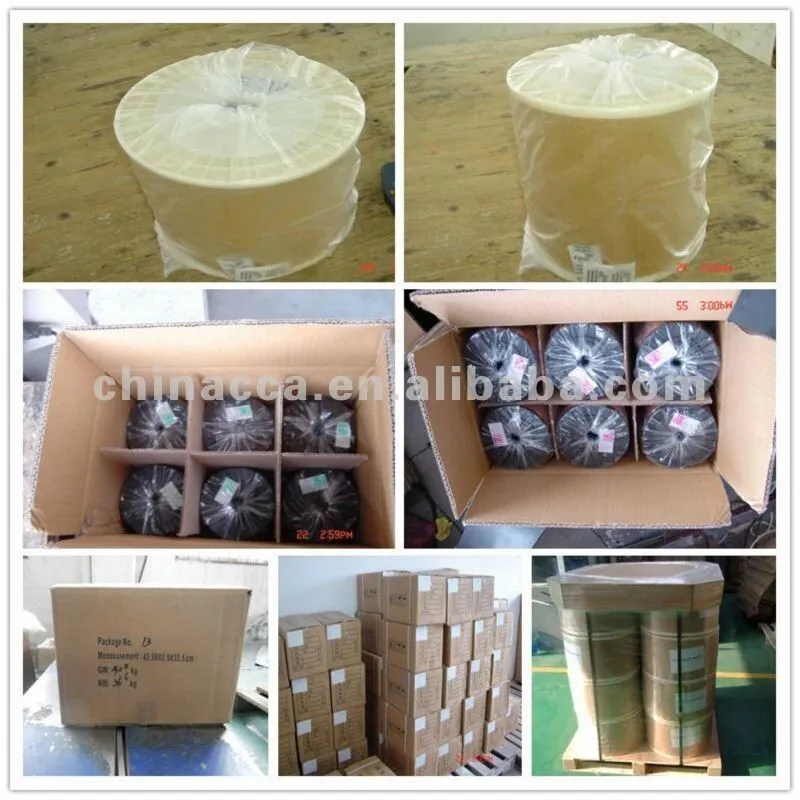

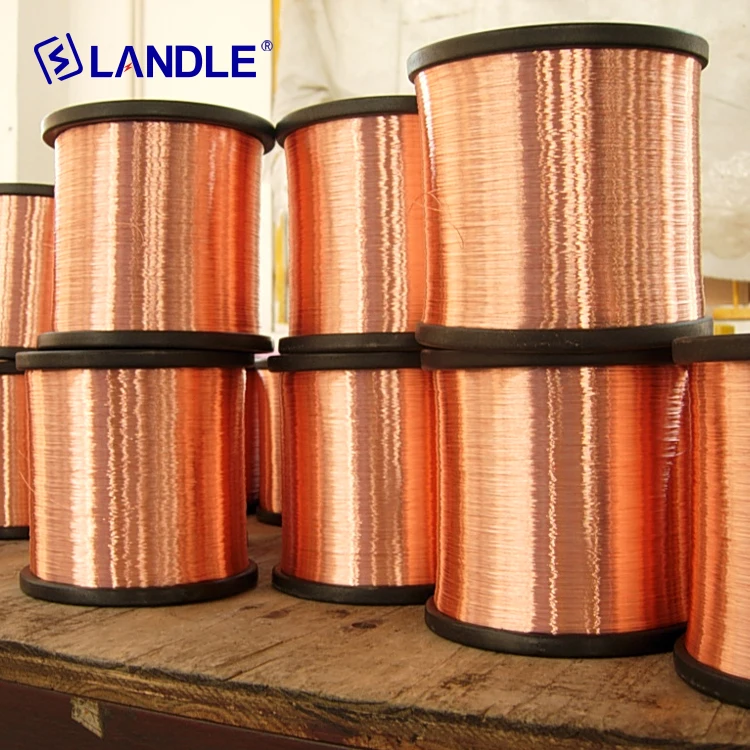

5. Pictures of the packing



6. Certification

 ISO 9001:2000





CE Certificate for cable

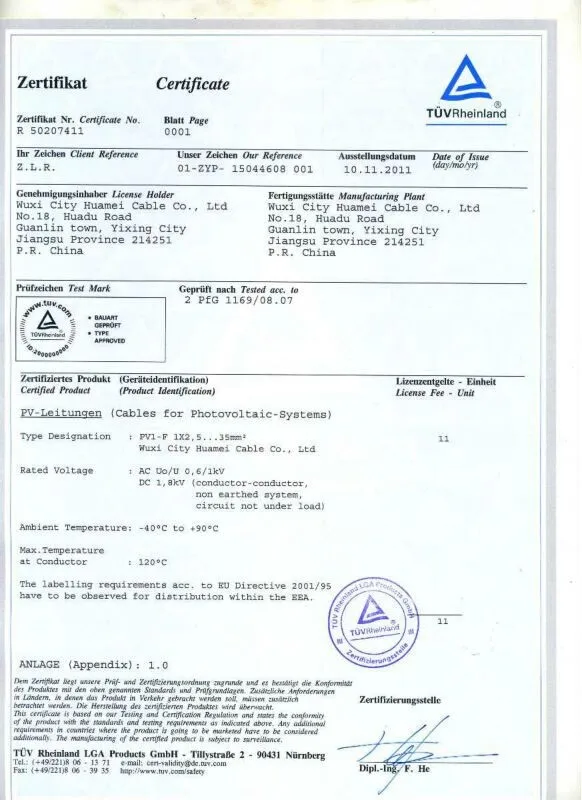

TUV Certificate for solar cable

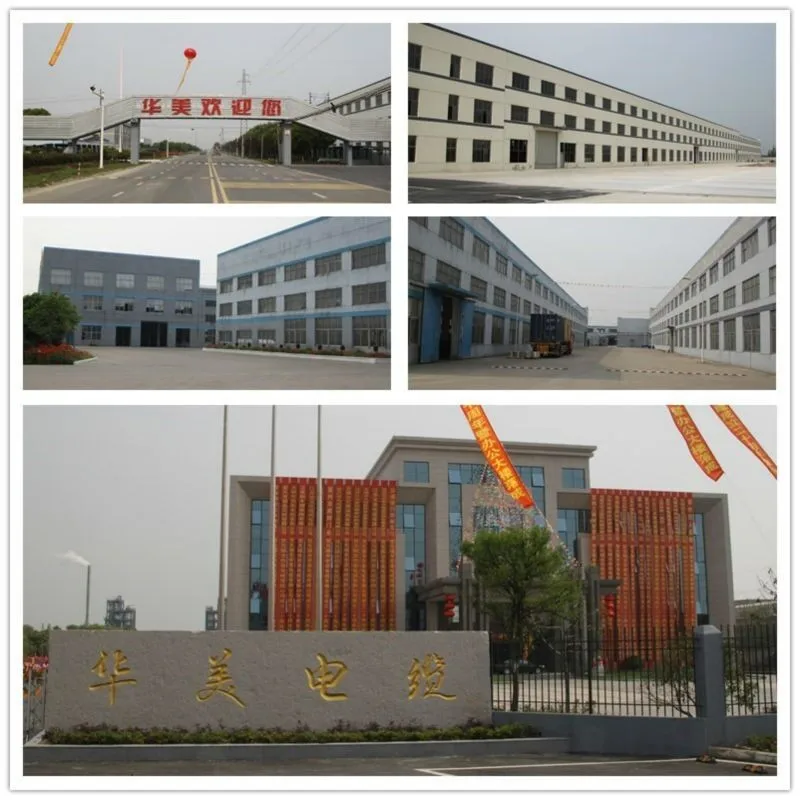

7. Pictures of the company:    aluminum wire 10% copper coated



   HUAMEI is one of biggest manufacturers of copper clad aluminum wire in China. We produce all kinds of copper clad aluminum wires and many kinds of cables. One of our main product is CCA wire. We supply Tin plate CCA, CCS, Enameled Al & CCA wire also.

    Established in 1998, situated in Wuxi City, about 3 hours from Shanghai City, our factory covers a building area of 50,000 square meters, and we have more than 500 employees and 20 senior engineers and technicians. With registered capital of USD2,000,000, our annual turnover now stands in the excess of USD50,000,000.

    We passed the ISO9001 quality certification, and we have good management system and good quality products. We are looking forward to cooperate with both domestic and international friends and establishing win-win relationships in the promising future.
