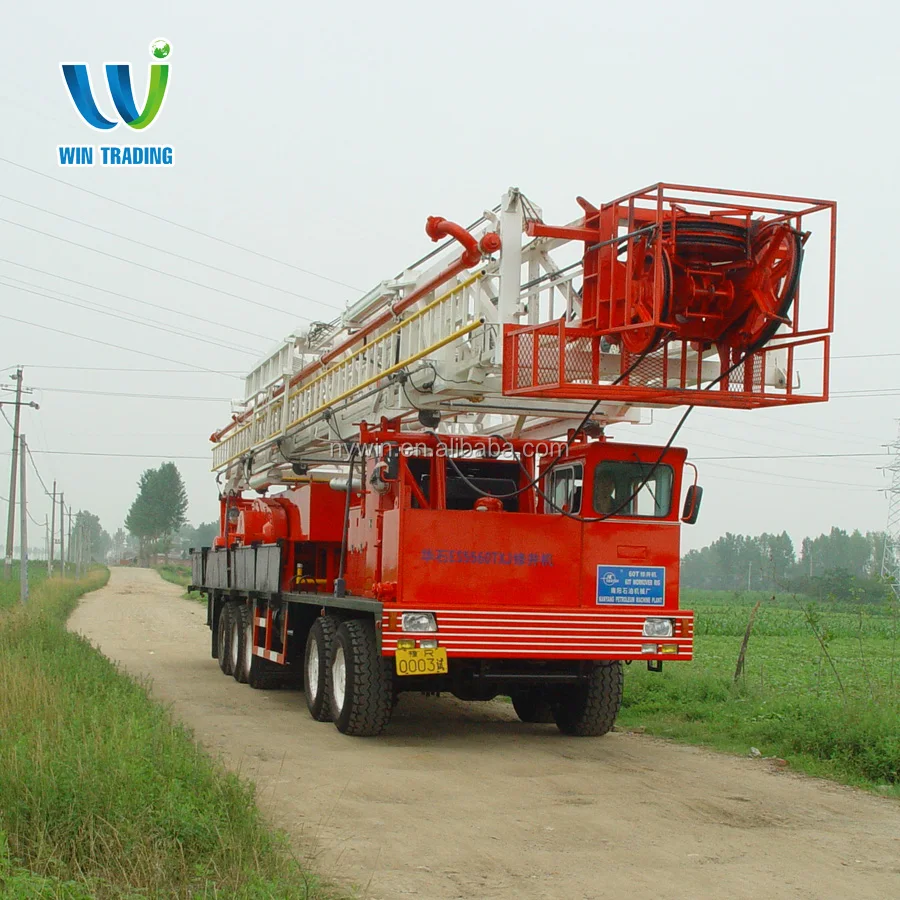

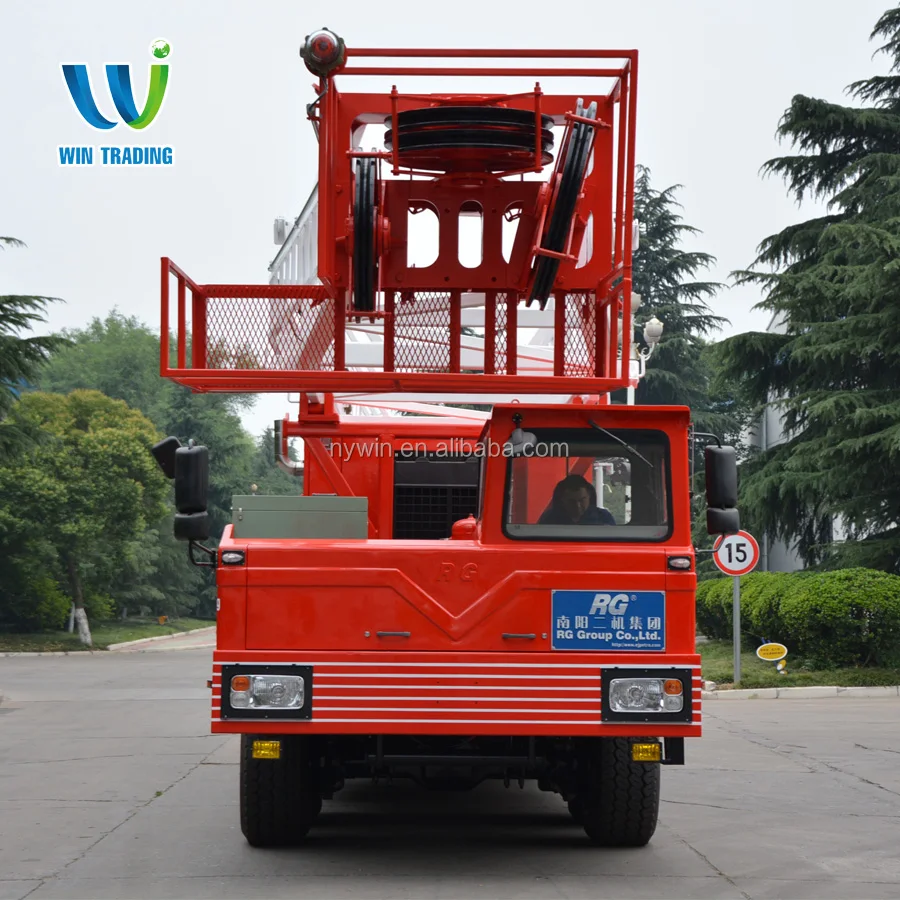

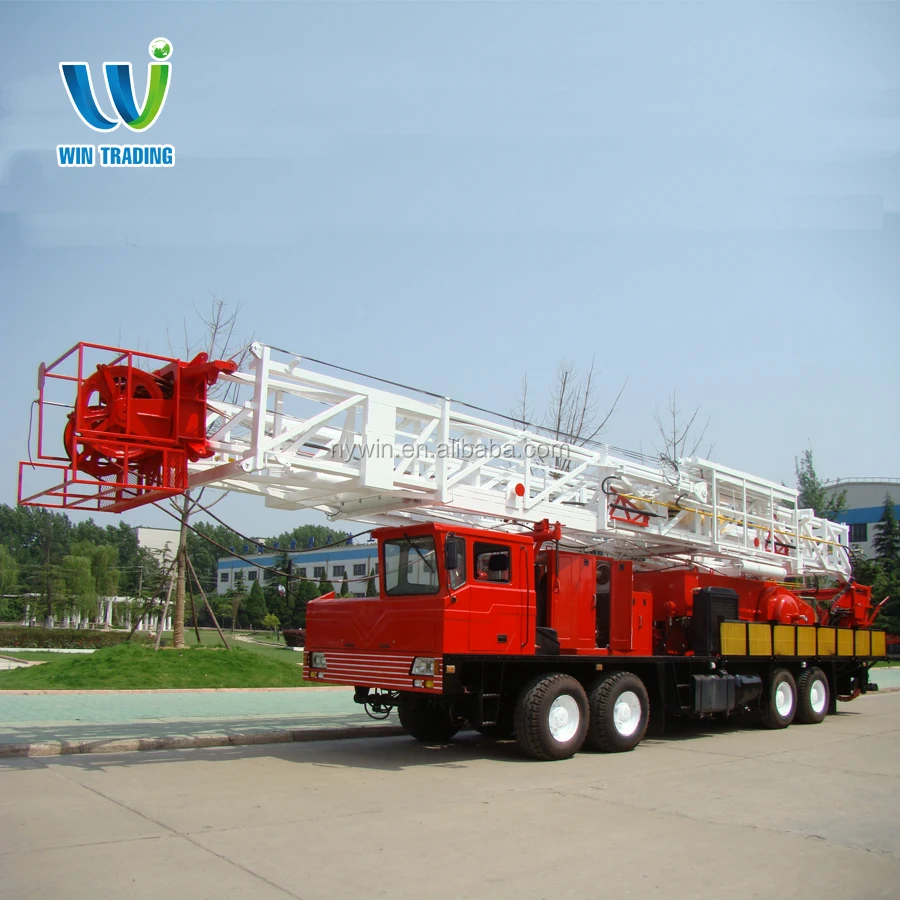

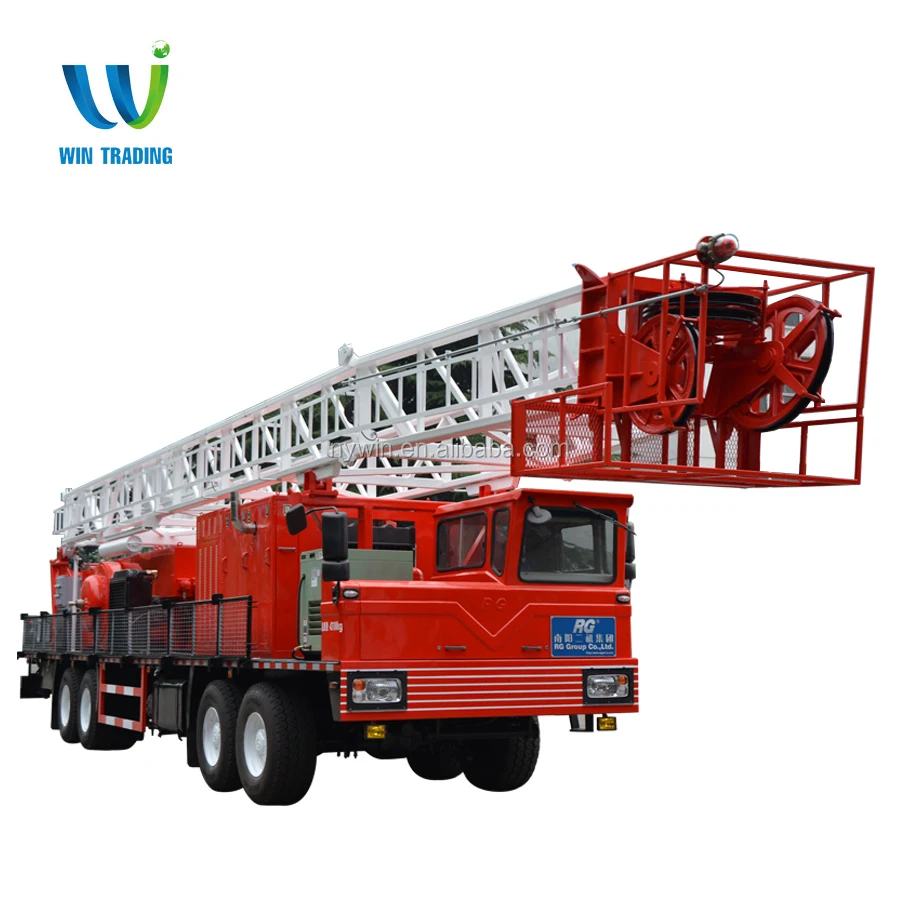

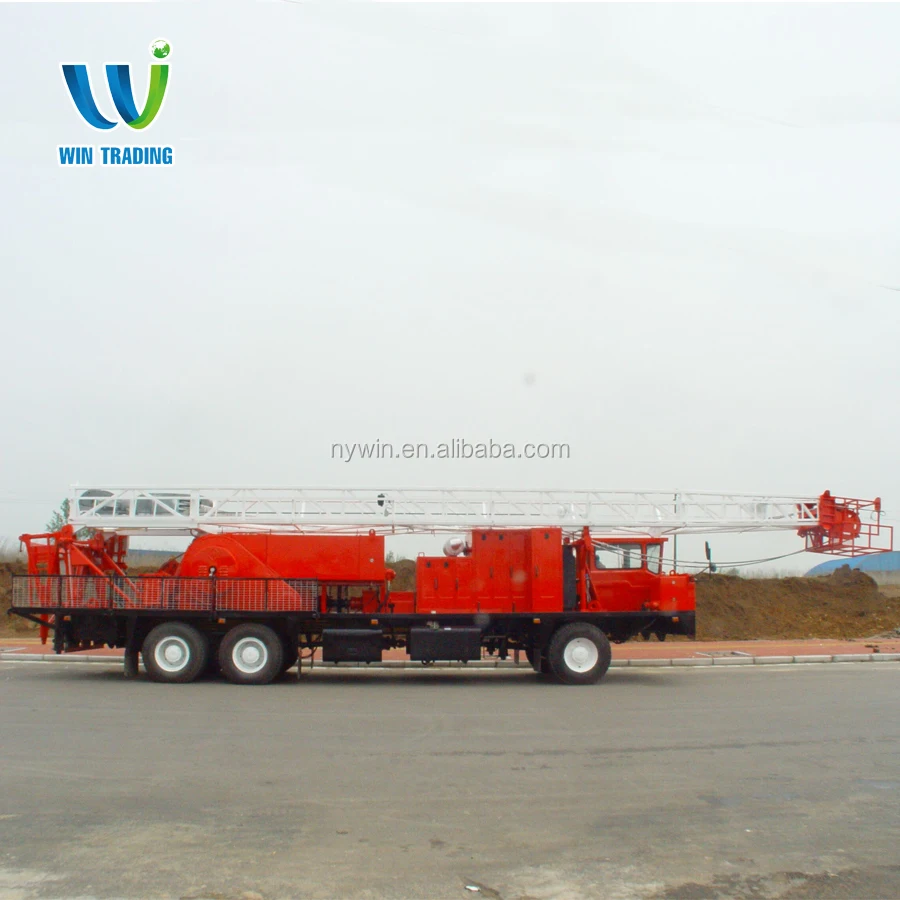

RG API Standard Oil Field Oil and Gas Well Bore Hole Truck Mounted Mobile 350hp XJ60 Drilling and Workover rig

Max. hook load:                               900KN
Nominal drilling depth:                    3300ft(4-1/2""DP)
Nominal service depth:                   4000m(13123ft), 2-7/8""EUE tubing"
Nominal workover depth:                3200m(10498ft), 2-7/8" DP
Rated engine power:                       350HP/2100rpm
Drive type:                                         hydraulic and mechanism
Mast height:                                   32M(105ft)
Travelling system:                            3×4
Quantity of wireline:                       6
Diametter of wireline:                      φ26mm(1")
Carrier drive type:                            XD50/10X8
Overall dimension of movement:   17*2.85*4.1m
Highest speed:                                45Km/h
Total weight :                                    44T
