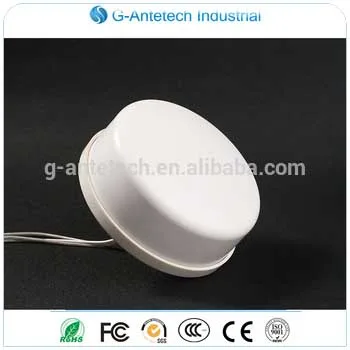

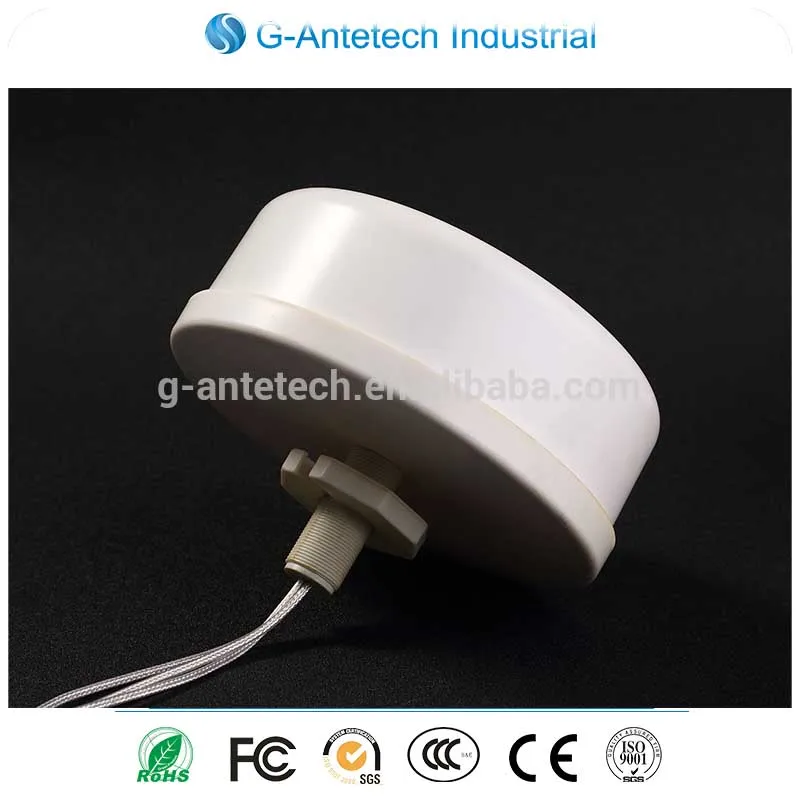

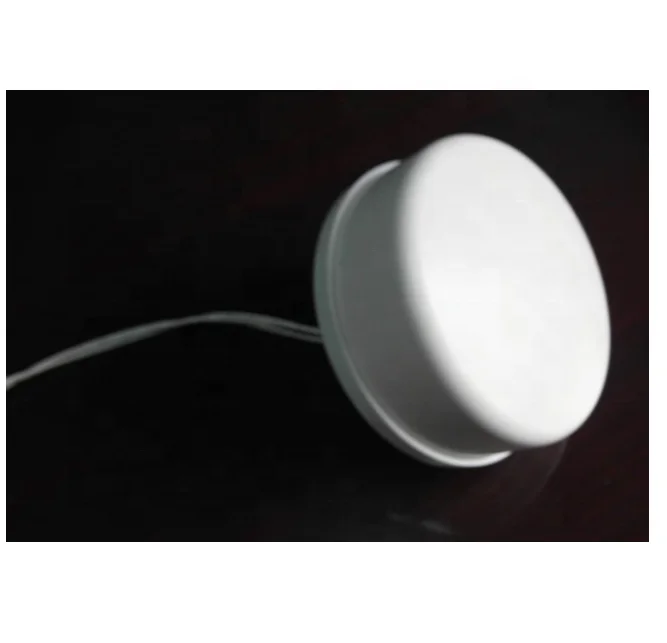

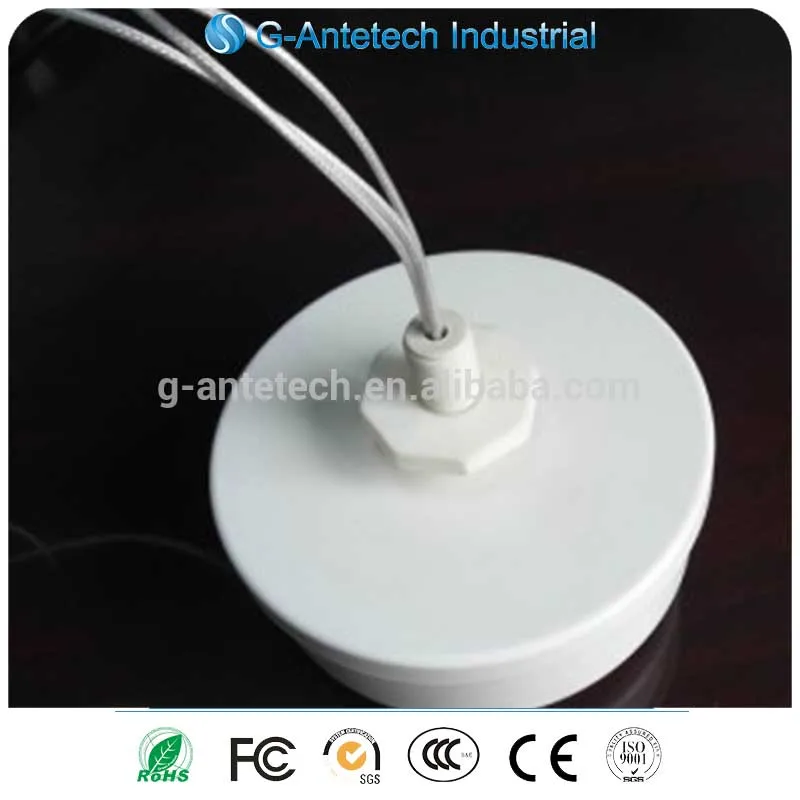

China factory production 698 2700mhz mimo 4g lte omni directional ceiling antenna

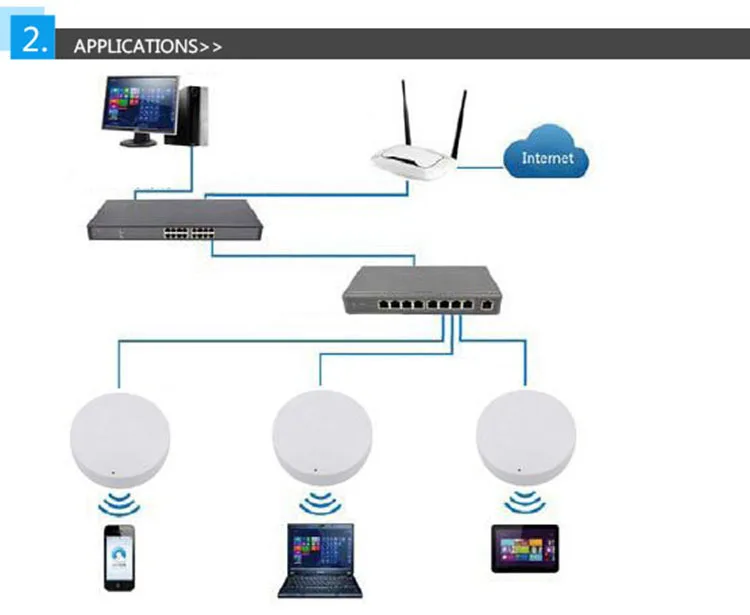

Applications:

Features:

Indoor coverage system
     Distributed antenna system (DAS)
     Wireless communication system
     Wireless data transmission
   TDD/FDD-LTE,MIMO

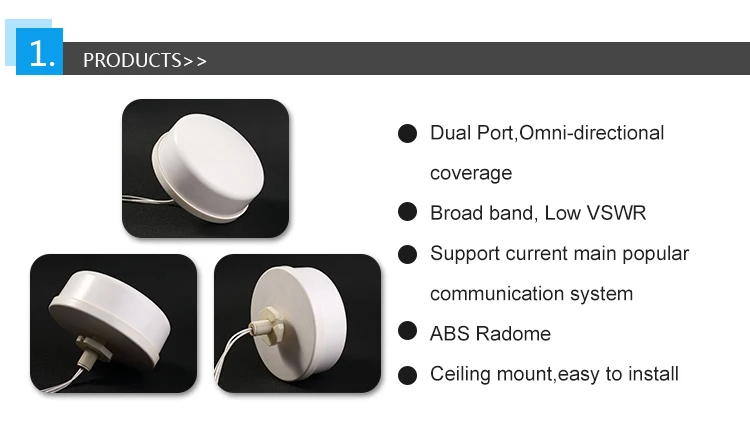

Dual Port,Omni-directional coverage
     Broad band, Low VSWR
     Support current main popular communication system
     ABS Radome
   Ceiling mount,easy to install

Specification

Model

TQJ-0727X2

Frequency range-MHz

690-960/1710-2700

690-960/1710-2700

VSWR

≤1.5

Gain-dBi

2/4

Polarization

1: Vertical    2: horizontal

Radiation

Omni

Impedance-Ω

50

Maximum Power-W

50

IM3-dBm(33dBm)

≤-107

Connector

2×N Female or customized

Lighting protection

Grounding

Cable

600mm RG316

Antenna size-mm

(φ139×55)

Isolation Between Ports(dB)

>25

Waterproof

IP67

Weight-kg

0.4
