Gas Cylinder Fueling Station Liquid Argon Cryogenic Filling Pump
- Category: >>>
- Supplier: Xinxiang Chengde Global Trading Co. Ltd.
Share on (60629474461):
Product Overview
Description
pump

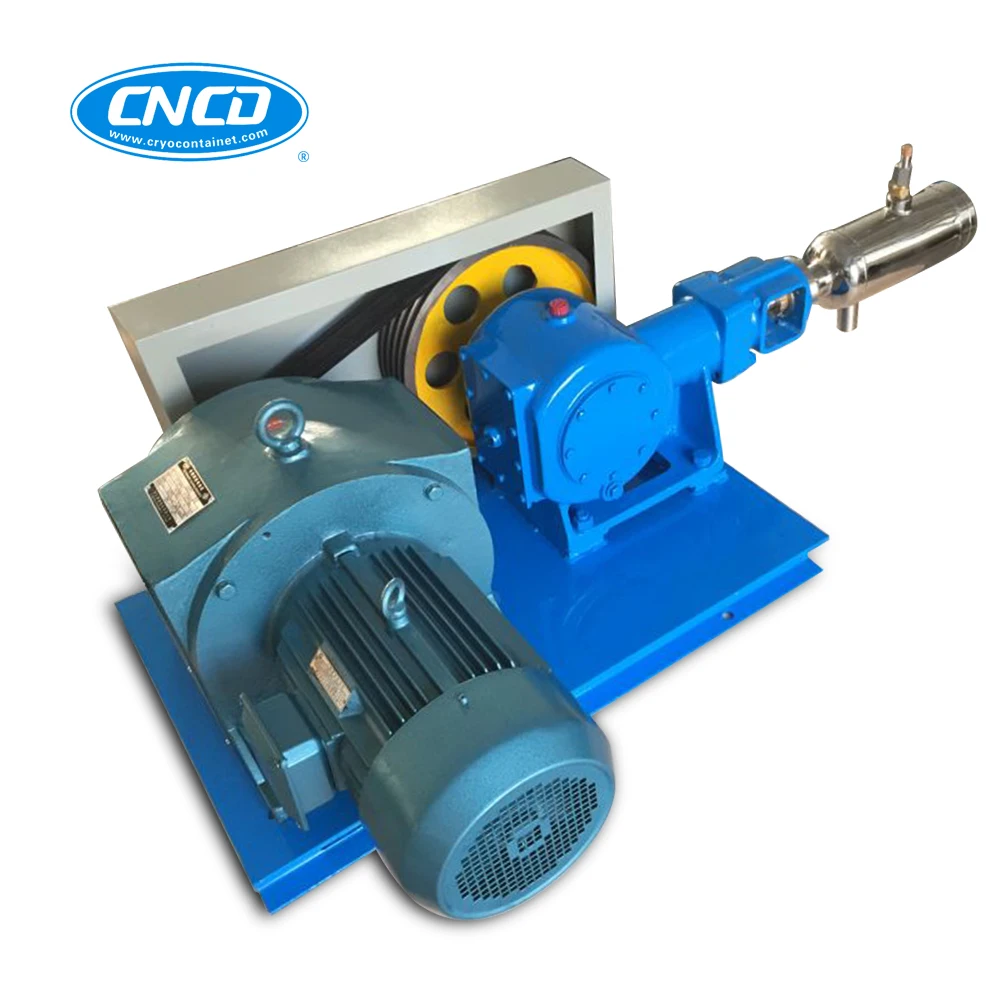

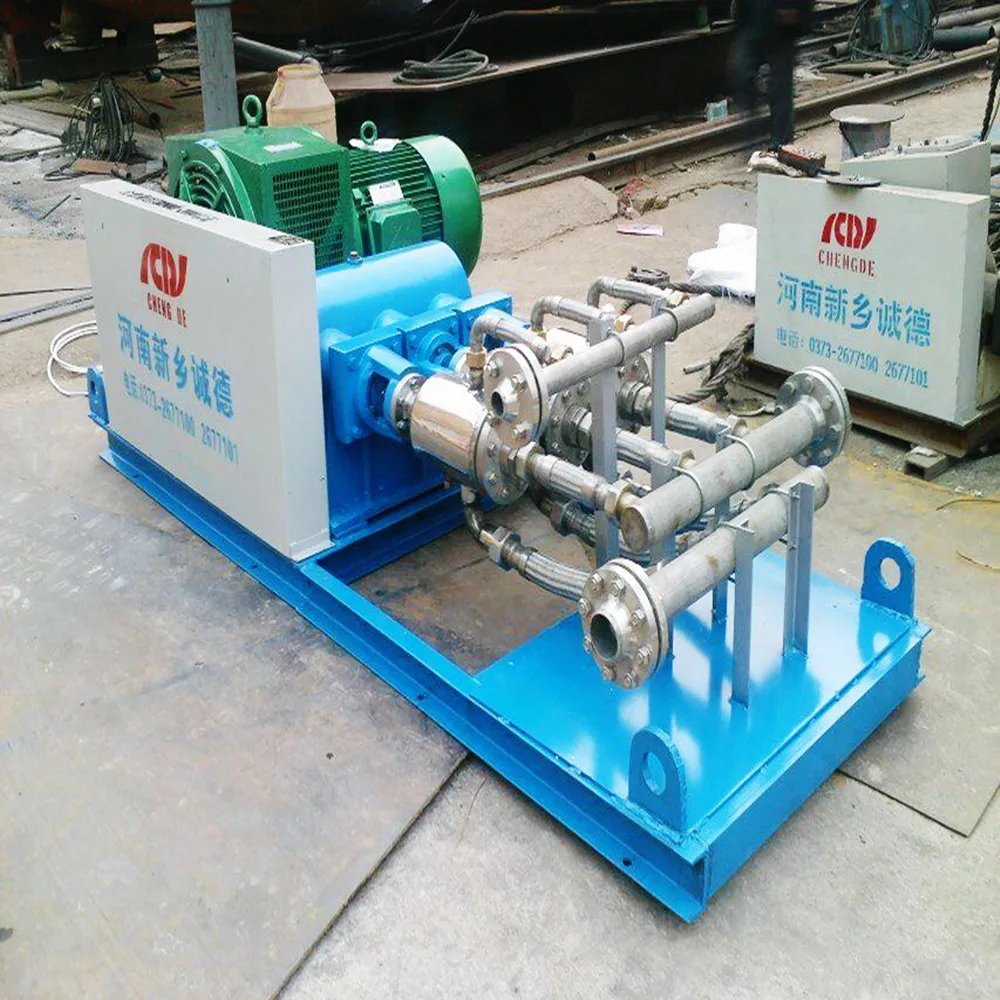

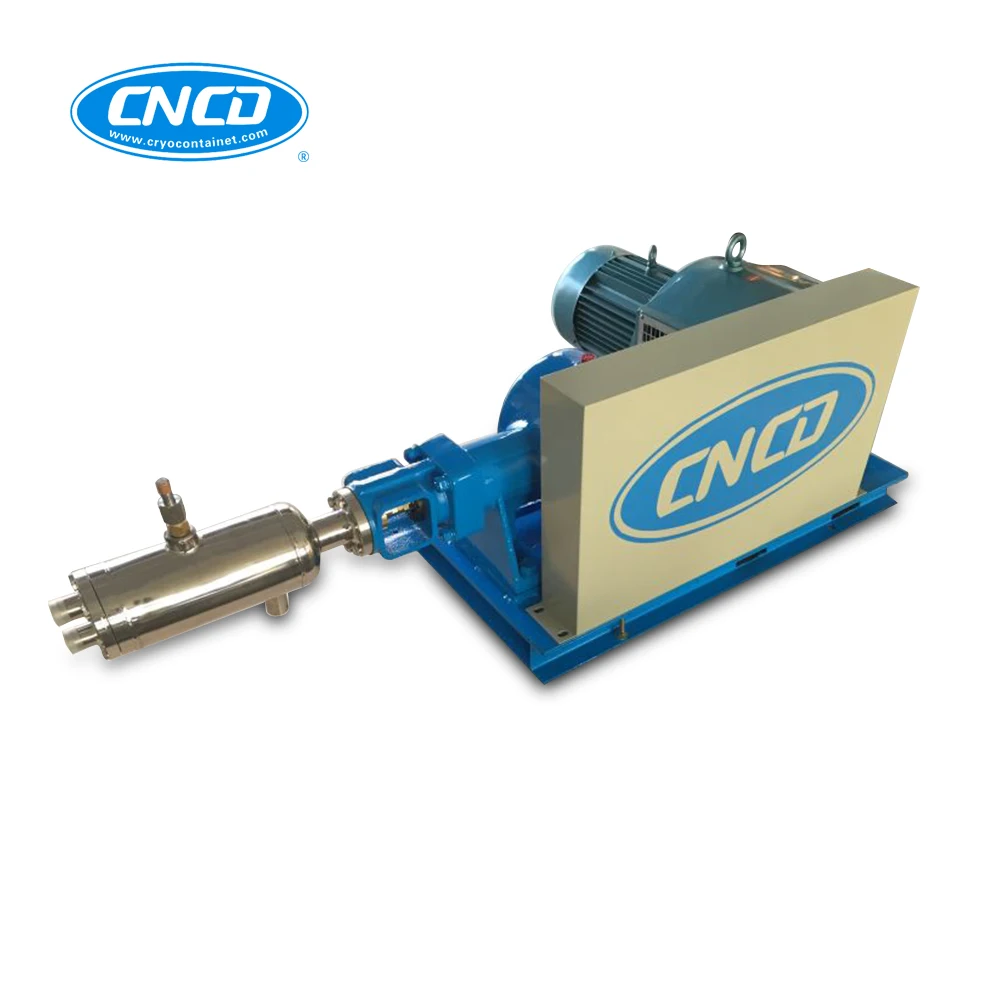

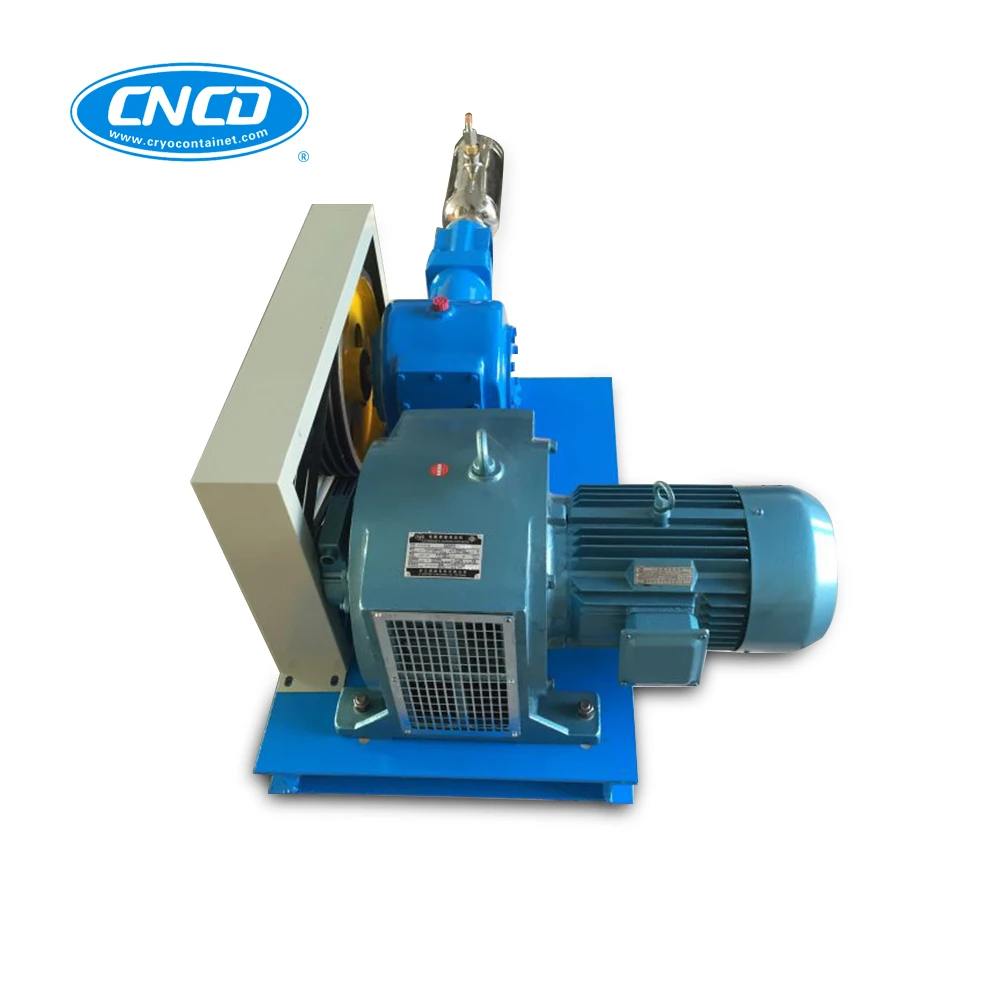

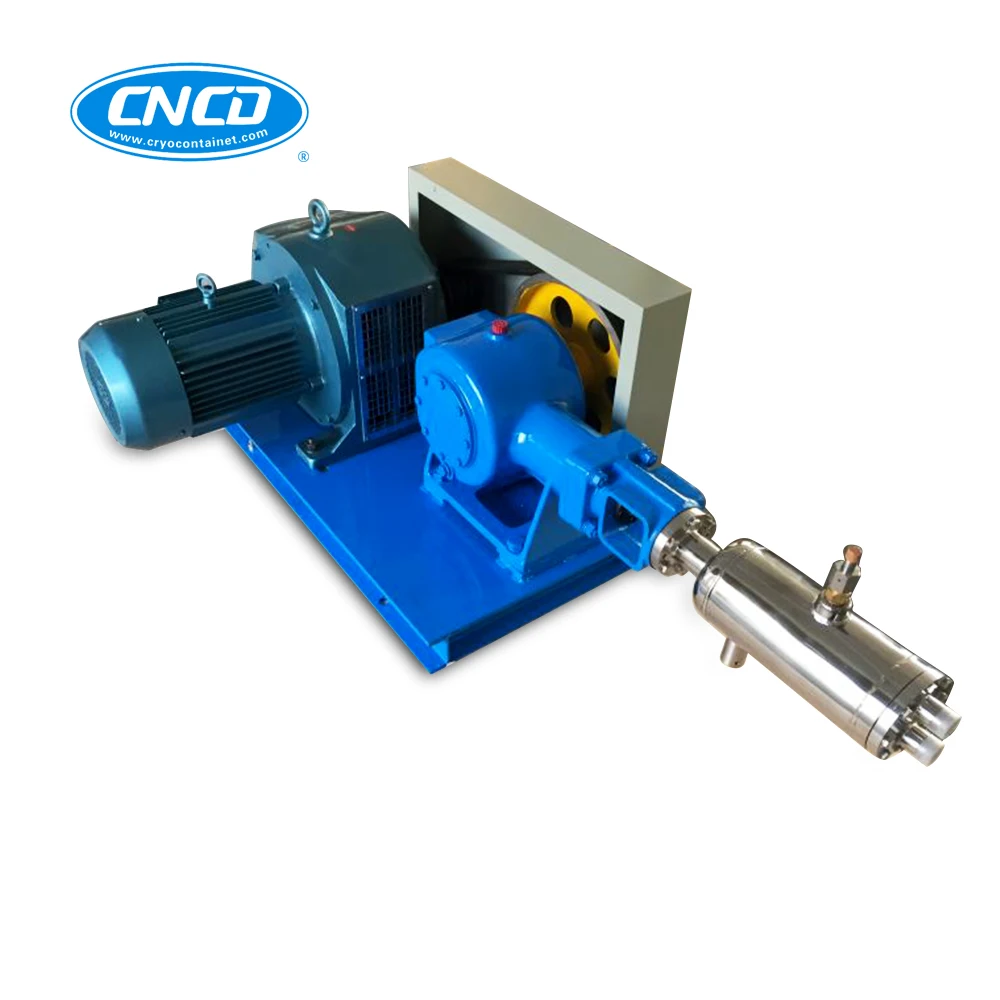

Gas Cylinder Fueling Station Liquid Argon Cryogenic Filling Pump

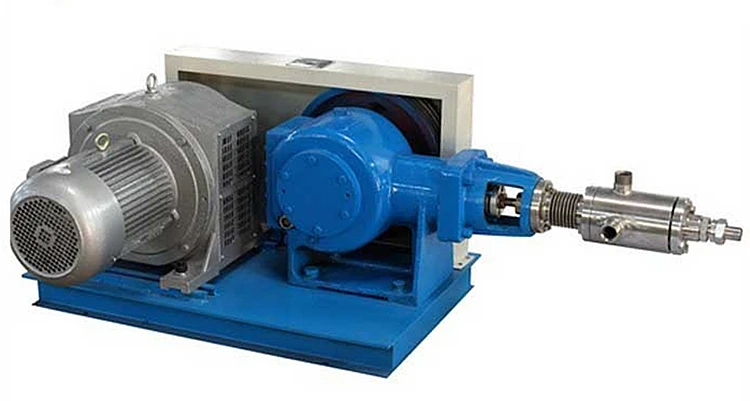

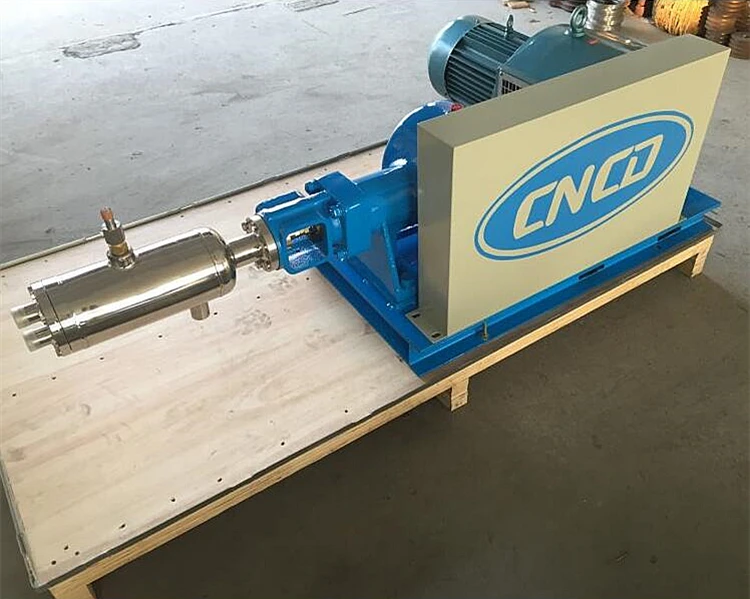

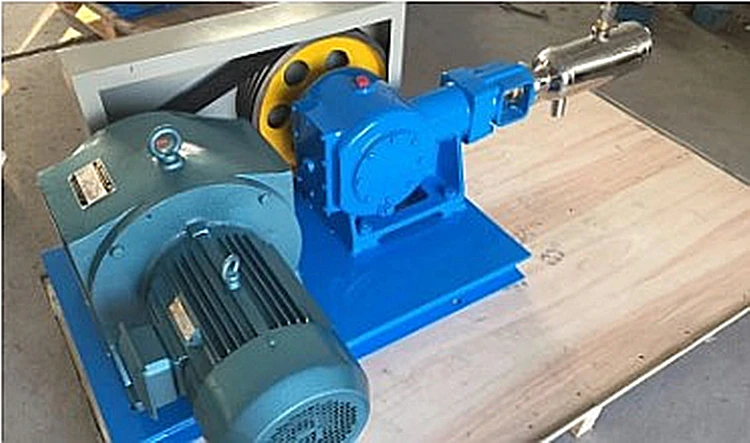

Product Show
Product Parameter
| Product Name | Cylinder Filling Pump |
| Model Number | BH300-600/165 |
| Working Medium | liquid oxygen,liquid nitrogen,liquid argon act |
| Flow(L/h) | 300-600 |
| Type | Single,Horizontal,Piston |
| Inlet pressure(Mpa) | 0.02-0.8 |
| Max pressure(Mpa) | 16.5 |
| Power(Kw) | 15 |
Products Description
1,suitable media:LO2,LN2,LAr,LNG,LNH3,LC2H4,LN2O
2,scope of application:high pressure cylinder filling
cylinder with diffent types
air supply/air distribution systems
3,Optional Configuration:
Frequency converter
Overpressure interlocking device safety valve/Cryogenic check valve
Temperature interlocking device of outlet
Temperature interlocking device of inside pump
Products Catalogue
| Model | Type | Flow(L/h) | Inlet pressure(Mpa) | Max pressure(Mpa) |
| BH50-150/165 | Single Horizontal Piston | 50-150 | 0.02-0.8 | 16.5 |
| BH100-450/165 | 100-450 | |||
| BH300-600/165 | 300-600 | |||
| BH400-800/165 | 400-800 | |||
| BH800-1600/165 | 800-1600 | |||
| BH100-450/200 | Single Horizontal Piston | 100-450 | 0.02-0.8 | 20.0 |
| BH300-600/200 | 300-600 | |||
| BH200-450/250 | 200-450 | 25.0 | ||
| BH300-600/250 | 300-600 | |||
| BH300-600/350 | 300-600 | 35.0 |
Products Featuring
1. Classic design, stable performance, service life of product can last as long as 20 years.
2. Vacuum jacketed pump head with 10’’ torr vacuum degree and low cold loss.
3. Reliable sealing effect, filling service life is as many as 150.000 cylinder times. Service life of piston ring is as many as 300.000 cylinder times.
4. Convenient reparation, regularly Only 2 hours will be enough.
5. Can be kept functioning continuously for 24 hours

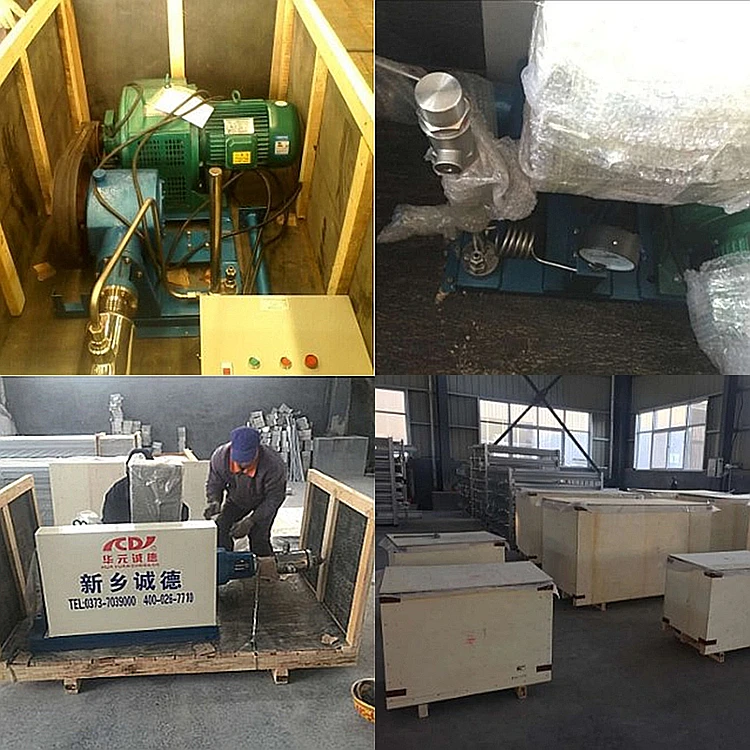

Packaging and shipment
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
In order to open more international market, we have got all domestic pressure vessel certification, We will get our ASME certification soon.
