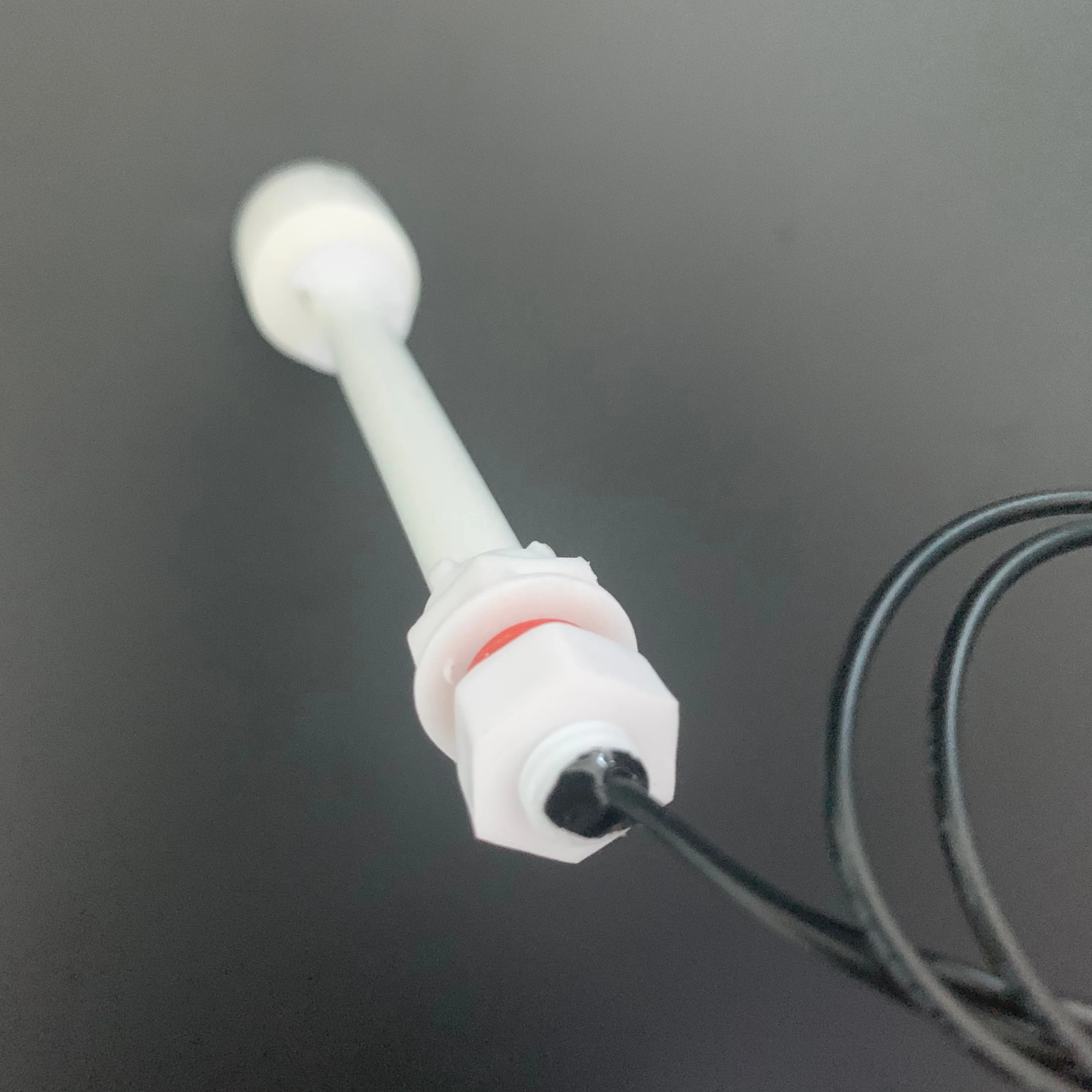

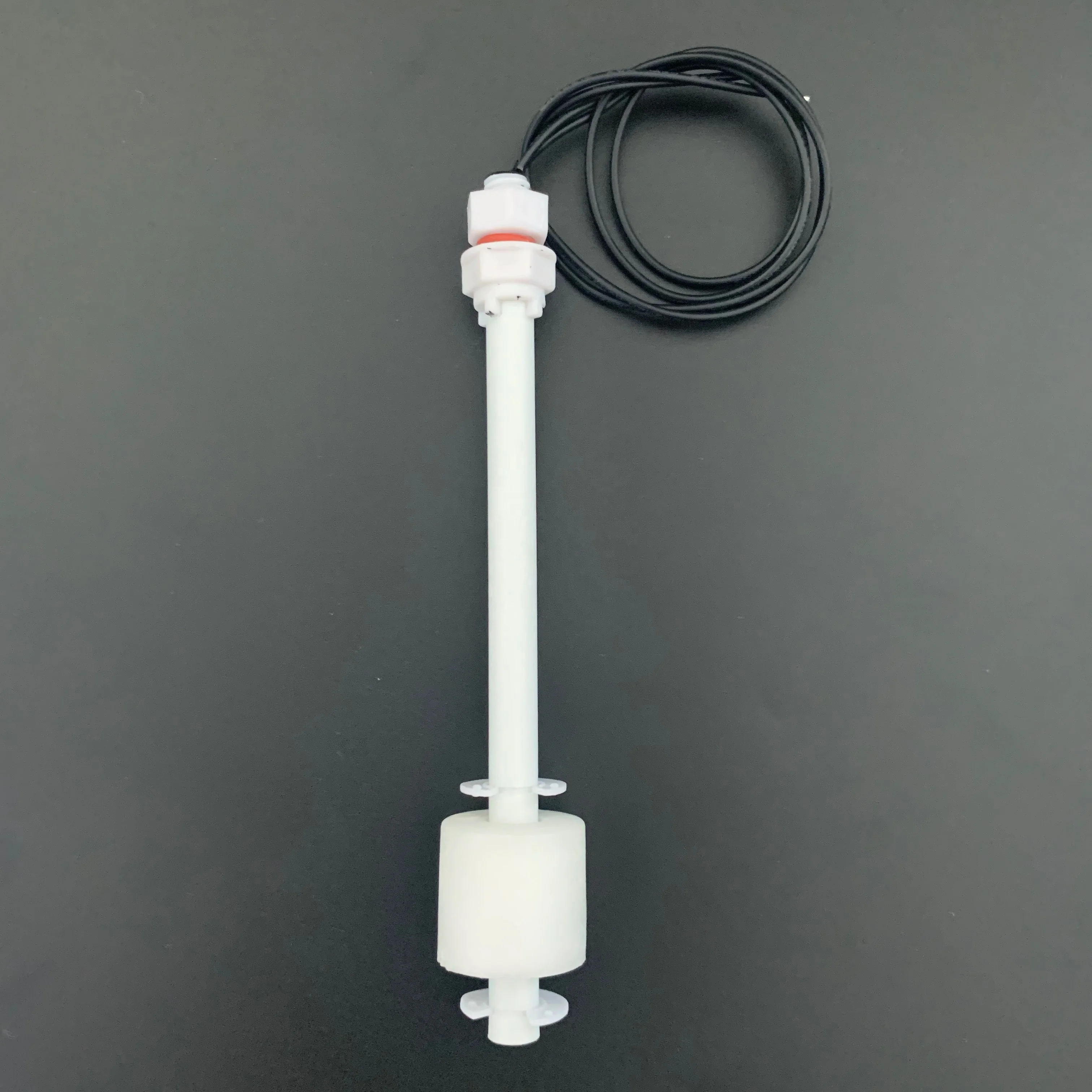

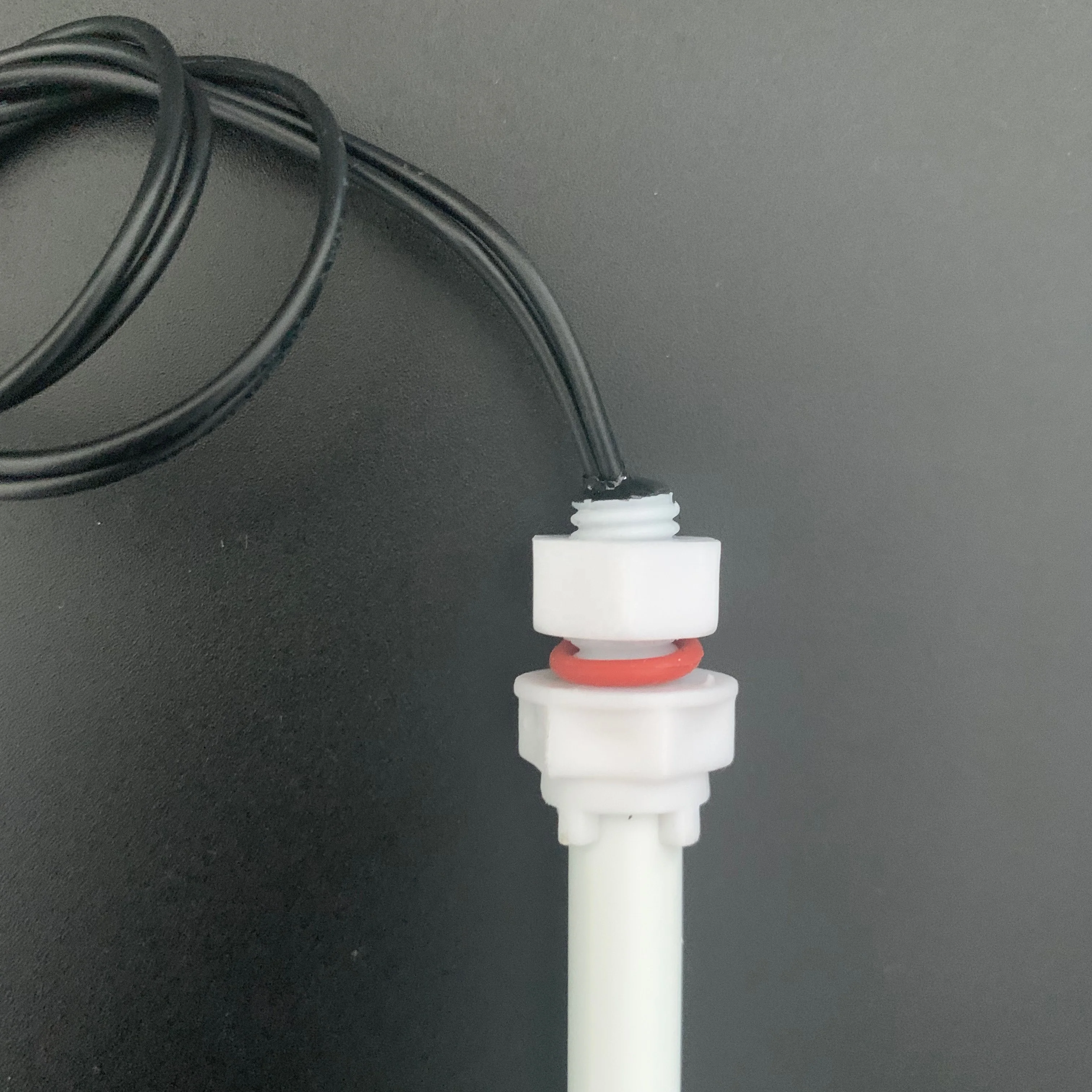

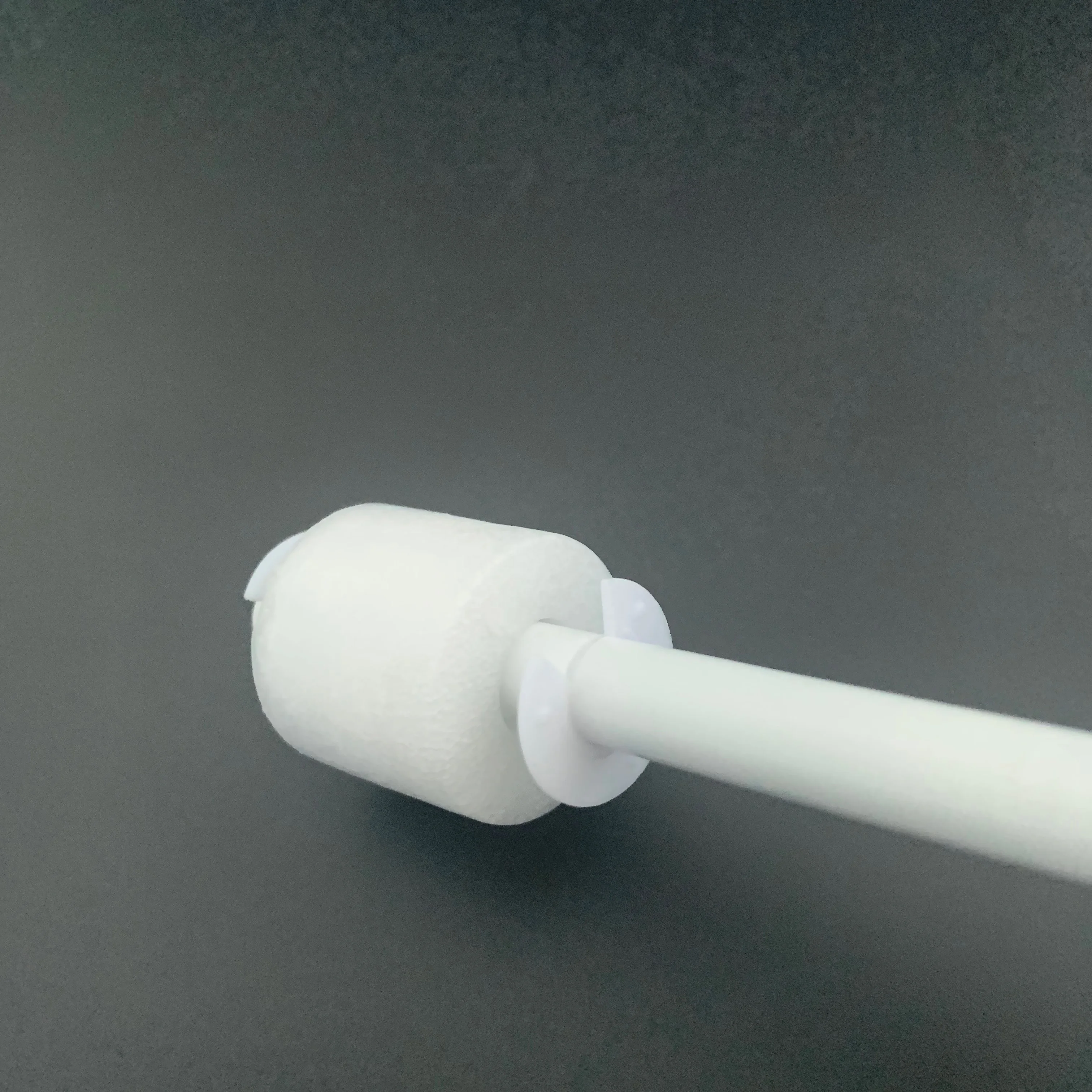

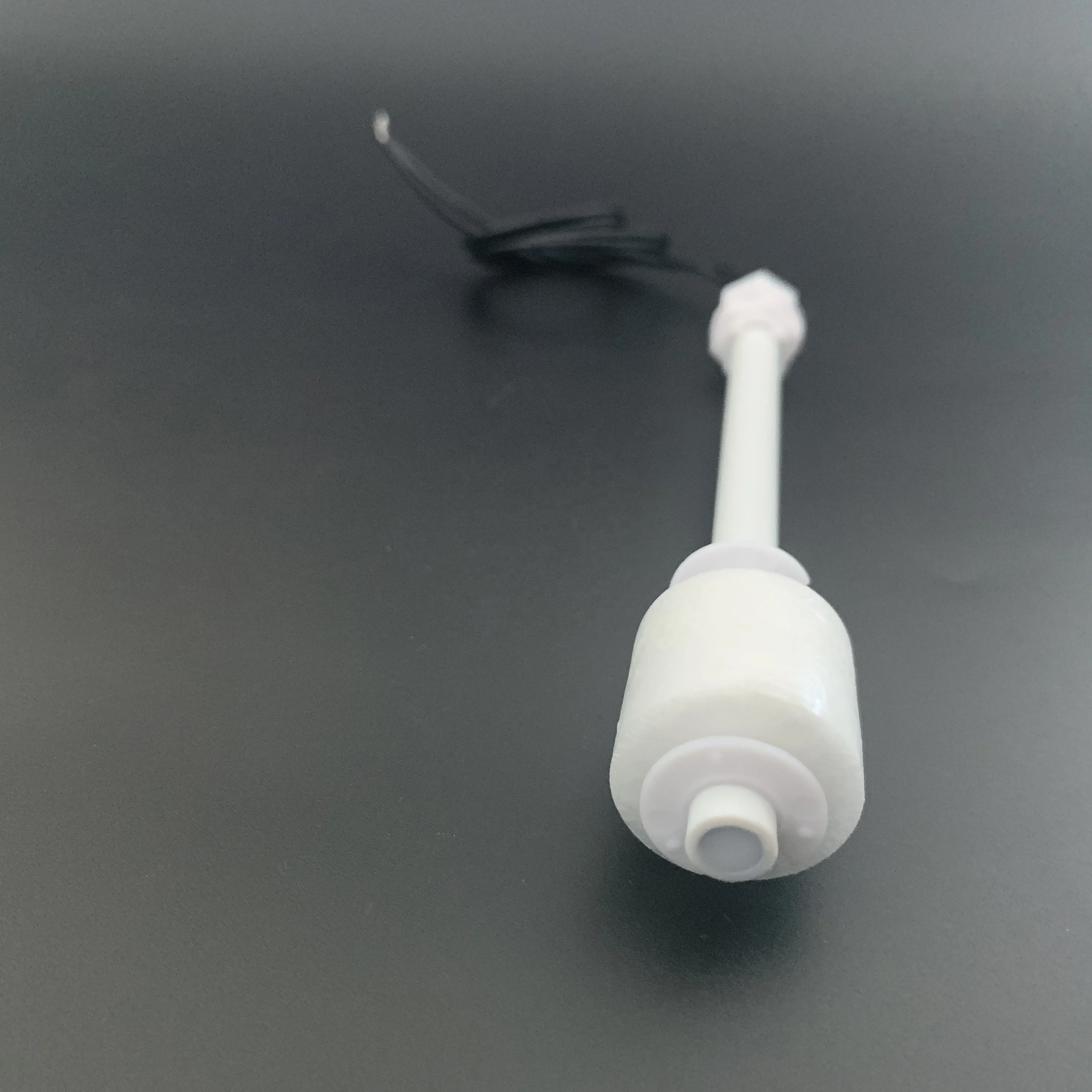

125mm PP Water Level Sensor magnetic float switch
- Category: >>>
- Supplier: Shenzhen Sunwoald Electronics Co. Ltd.
Share on (60629507205):
Product Overview
Description
Magnetic Reed Switch Level Sensor
Product Description |
Working theory:
Product Application
The magnetic float switch can be used to monitor liquid level in watering machine, water heater, solar energy, air conditioner, vending machine,BSD-P, water dispenser, Humidifier, dehumidifier, fluid control, a pump, alarm device, moisturizing machine , bathroom utensil , oil tank , water tower and chemical industrial ,etc. And widely applied in motor vehicles, industrial equipment, agricultural equipment and household electrical appliances in the future.
Product Specification--Magnetic Float Switch FS-3501
Switch Characteristic | Physic Characteristic | ||
Contact Form | A | Min Shock | 30G |
Max Contact Rating | 10W|70W | Min Vibration | 30G(10-50Hz) |
Max Switch Voltage | 100V|300V | Temp. Rating | -10~+60°C |
Max Switch Current | 0.5A|1.0A | Heat Shock | -20~+70°C |
Max Contact Resistance | 100m Ohm | Name | Float Switch/Level Sensor |
Max Insluation Resistance | 100M Ohm |
|
|
Electronic Life | 1x 107(5Vdc,10mA) |
|
|
Product Image-
Related Products |
| FS-3101 | FS-3101mini Float | FS-4030 Horizontal Mounted |
 |  |  |
Certifications |
FAQ |
1.Question: What are your main products?
Answer: We mainly focus on water float switch, flow sensor and door contact switch. We ensure a reasonable price and high quality products.
2.Question: Where is your company?
Answer: We are a factory based in Shenzhen, Guangdong, China. All of our products are safely manufactured according to UL, ISO9001 and RoHs principles, and carefully checked before packed.
3.Question: What are the available materials for magnetic float switch?
Answer: We have plastic PP, Stainless steel for the magnetic float switches.
4.Question: Are these materials safe for drinking water?
Answer: Sure! All of our materials are made according the RoHs principles, they are nontoxic and environmental friendly.
5.. Question: Is the magnetic float switch made normally open or closed?
Answer: Most clients take our normally open model, but no worries we can make normally closed one if you need. To save from trouble, please read our datasheet before ordering.
6. Question: There is no float switch in the list suitable for me, can you OEM a new model according to our desire?
Answer: Yes, we can! Please send us your requirement and basic data or pattern of the product you want, our engineers will take care and OEM the model for you!
