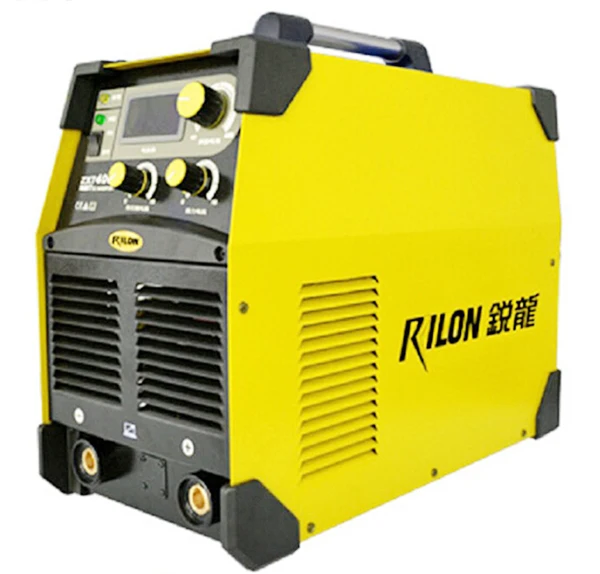

Small Welding Machine 400amp ARC Welder Inverter Welding Machine
- Category: >>>
- Supplier: Nanning Chuanjun Welding Hardware Co. Ltd.
Share on (60629568119):
Product Overview
Description
Small Arc Welding Machine 400amp ARC Welder Inverter Welding Machine
Product Description
inverter welding machine
Specifications
inverter welding machine
| Model No.: ZX7-400GT | Thrust Regulation(A): 0~100 |
| Rated Input Voltage(V): Three phase AC380V±15% | No-Load Loss(W): 80 |
| Input Frequency(Hz): 50/60 | No-Load Voltage(V): 68 |
| Rated Input Current(KVA): 18.2 | Efficiency(%): 85 |
| Current Adjustment Scope(A): 40-380 | Power Factor: 0.93 |
| 40℃60%Rated output Of Loading(A/V): 327 | Insulation Grade: F |
| 40℃100%Rated output Of Loading(A/V): 253 | Housing Protection Grade: IP21 |
| Weight(KG): 22 | Dimension(MM): 485*234*425 |
Features
inverter welding machine
*Smaller volume, easy to carry, suitable for various mobile occasion.
*High protection grage, new appearance design of the angle bead; elegant appearance; more reliable.
*Human intuitive panel design, slope design accord with human body function, functional area.
*The set is direct and concise, reliable operation swicth knob;
*Automatically adjust the output voltage to compensate for the loss of the line. The extension cord is greater than 100 meters;
Packaging & Shipping
1: Each inverter welding machine will be packed into carton box after quality testing.
2: Or according to your request.
3: Dlivery:7~15 working days.We can arrange the shipping by Courier (DHL, UPS, Fedex, TNT etc.) by air or by sea for you.
Company Information
About us:
Nanning ChuanJun Welding Hardware Co., Ltd.founded in 2004,has been focused on welding equipment and accessory for more than 10 years. ChuanJun is member of the China Welding Association. Providing system services for enterprises needed.Our company mainly produce welding equipment, hardware and electrical equipment, building decoration materials, welding equipment leasing, and so on.
Our products below:
Welding machines: mma, mig, tig welders
Cutting machines: air plasma cutter, flame cutting machine, and CNC cutters.
Welding & cutting accessories: welding torch, cutting torch, cutting nozzle, conductive nozzle, protective cover, diverter, earth cable, gas regulator, pipe, gas bottle, electrode oven, welding rod drying box, welding helmet, protection gloves and glasses.
Welding material: kinds of welding wires and welding rod
Industrial tools: Bosch power tools, beveling machines, other hand tools.
Certificate
FAQ
Q: I knew nothing about this machine, what kind of machine i should choose?
A:Very easy to choose. Just tell us what you want to do by using cnc router/laser machine, then let us give you perfect solutions and suggestions
Q: When i got this machine, but i did not know how to use it.What should i do?
A:We will send video and english manual with the machine.If you still have some doubts, we can talk by telephone or skype(bettymo330)
Q: Does this machine can be used both flame and plasma ?
A: The standard is a flame but there are plasma interface, if you want to use plasma cutting need to buy additional arc voltage regulator and plasma host
Q: If do not install the torch height control, can be used?
A: Yes, it can be used, but very inconvenient, because the cutting table is not flat or steel plate deformation, will lead to cutting when the cut mouth and iron plate hit. The best distance between the cutting mouth and the iron plate is 5 mm. The effect of the arc pressure booster is to keep the torch and the iron plate at about 5 mm.
Q: I have a plasma host can match with the your CNC machine?
A: Yes, of course. Because we CNC cutting machine and arc pressure regulator to do a good anti-interference ability, able to adapt to all the plasma host.
Q: If some problems happened to this machine during warranty period,what should i do?
A:We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever,so any doubts,just let us know,we will give you solutions as soon as possible.
We have collected a lot of on-site installation and commissioning experience, using a lot of user suggestions, recording video tutorials, you think of the problems, all in the video tutorial.
If you like, please contact me.
