Tunnel drilling Jumbo atlas copco Boomer 281, Boomer 282 tunnel drilling rig

Product Overview

Description

 Hydraulic surface drilling Jumbo,KJ311 ,Boomer 281boomer 282 similar model drilling rig for tunnel



1. Main features and Specification of Hydraulic surface drilling Jumbo,KJ311 ,Boomer 281boomer 282 similar model drilling rig for tunnel

Dimension and Weight



Length                                      11300mm
Width                                       1750mm
Height                                      2000/3000 mm
Weight                                     About 12000 kg
Tramming speed, flat ground       10 km/h
Tramming speed-14%=1:7=8º 5 km/h
Gradability                                25%



Protection



Noise level                               <100 dB(A)
Adjustable safety canopy            POPS +ROPS



Drilling System



Drifter                                      1×HC50
Percussion power                       13Kw
Percussion pressure, max.           130bar
Rotation pressure, max.              150 bar
Frequency                                  62 Hz
Rotation torque                         325Nm
Hole size                                  45-64mm
Rod size                                   R38-H35-R32
Flushing volume                        25L/min
Feed
Feed roll-over                            360°
Feed extension                          1600mm
Boom
Model                                       K 26F
Type                                        Automatic parallelis
Boom zoom                              1200mm





Control system

Power cntl.                              Percussion & collaring
                                             power adjustable
Rotation cntl.                          Rotation speed adjustable
                                             Rotation direction cntl.
Automatic features                   Collaring
                         Feed force cntl. Percussion
                         Flushing cntl.
                         Ant-jamming
                         Auto-return



Power Pack


Motor                                      45Kw,AC
Percsn+feed+boom                    Variable piston pump
Rotation                                  Gear pump
Filtration                                 10μ
Hydr. tank                               240L
Hydr. oil cooler                         Counter flow
Voltage*                                 380V
Frequency*                              50Hz
Start                                       Δ-Y
Cable reel                                1× K440
Cable length*                          100m
Cable size*                             Φ28mm
Cable type*                             3×35+3G6+2×1.5



Water and air System


Compressor                            1×JN5, Screw type
Output                                   0.5m3/min
Pressure                                 5-7bar
Shank lub.                              Oil mist
Air consumption                      0.3m3/min
Shank lub. oil consumption       180-250g/h
Flushing pump                        1× CR3
Power                                     1.5Kw
Output                                  3m3/h


Under Carriage


Engine                                  BF4L2011,55Kw`
Transmission                         4-wheel drive
Oscillation                             Rear axle ±10°
Tyre                                     11.00×20
Steering                                ±40°articulation
Service brake                         Duo-circuit disc brakes
Parking/emergency                 Multi-disc on trans.
Fuel tank                              100L





2.Application of  Hydraulic surface drilling Jumbo,KJ311 ,Boomer 281boomer 282 similar model drilling rig for tunnel

 KJ311 is a hydraulic drifting jumbo designed fo12-35 m2 cross section in underground mining operations.



 Robust universal drilling boom creates ideal face drilling coverage. Automatic parallelism and 360o roll-over enable easy, fast and accurate positioning for face drilling, sideway drilling and bolt hole drilling.



The layout of components provides excellent vision for the operator in drilling and travelling.Powerful and well balanced 4-wheel drive chassis allows the rig to move through limited space and tough terrain in the mines. Duo-circuit service brake and enclosed multi-disc parking/ emergency brake ensure safety in tramming and on ramp slope.



Field proven high frequency hydraulic drifter delivers high performance. Trapezoid shaped percussion piston optimizes shock wave transfer efficiency, enhancing penetration and decrease drilling consumables costs.

Comfortable operator station provides safe working condition. Many automatic features simplified the drilling control and helps the miners to concentrate on fast and accurate drilling.

All service points are easily accessible, which simplifies daily routine maintenance.

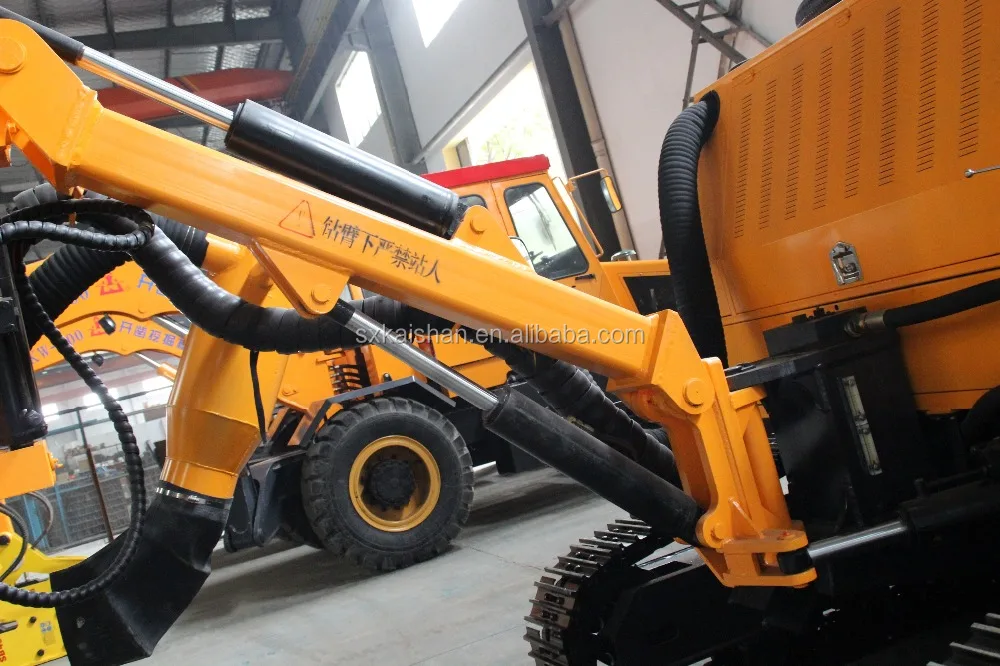

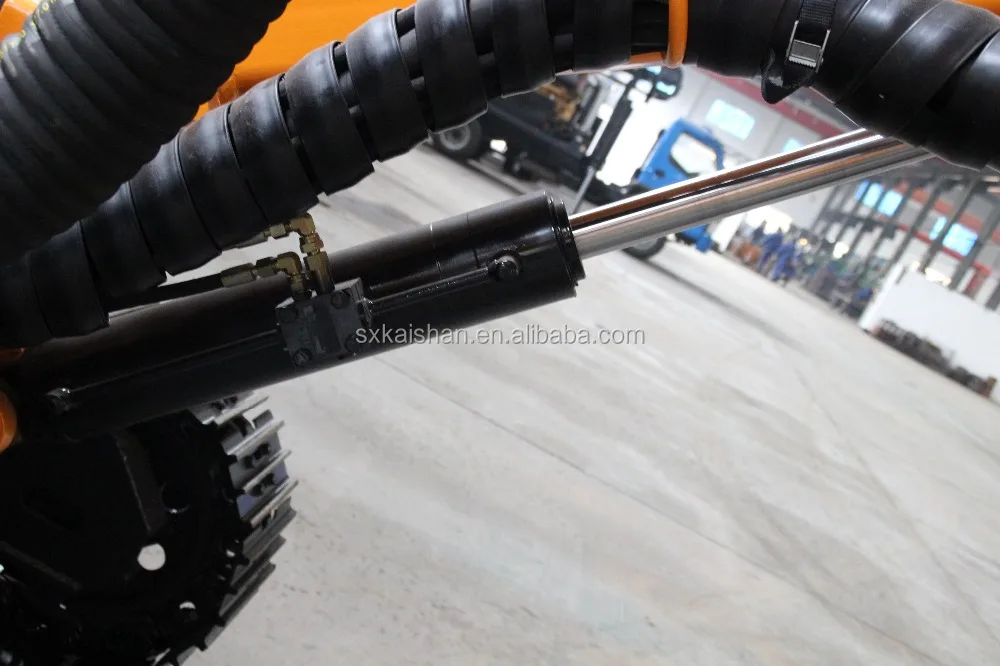

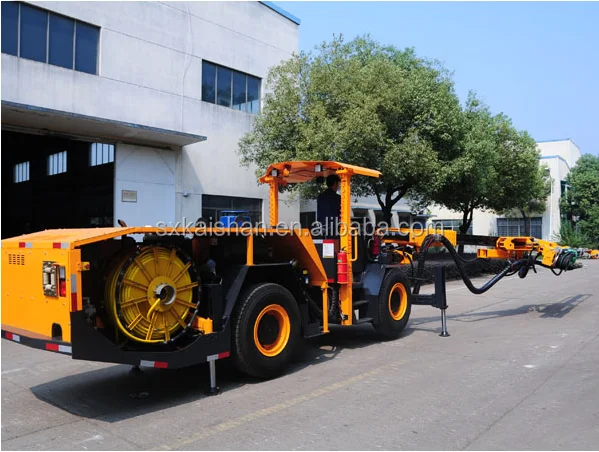

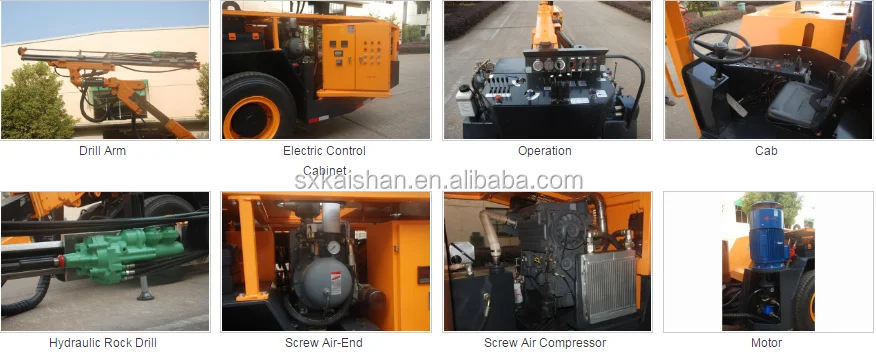

3. Hydraulic face drilling Jumbo show of  Hydraulic surface drilling Jumbo,KJ311 ,Boomer 281boomer 282 similar model drilling rig for tunnel

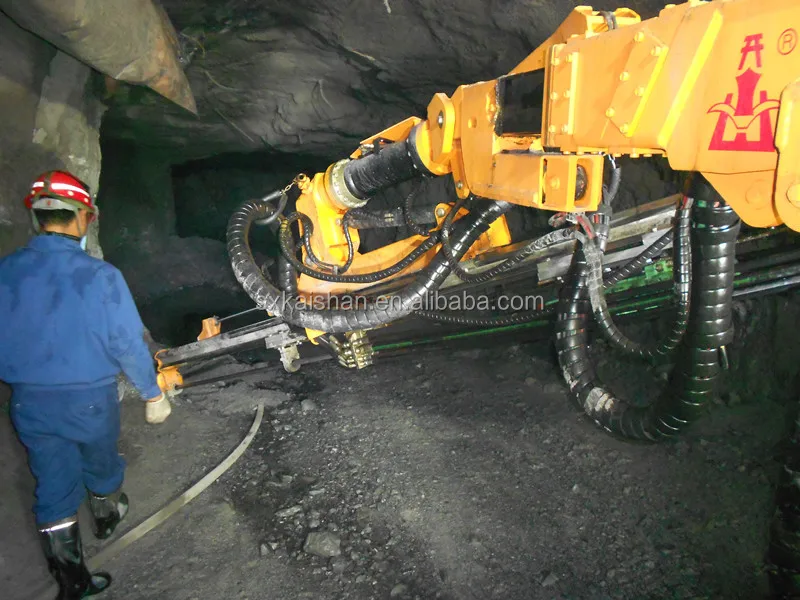

4. Working show of Hydraulic surface drilling Jumbo,KJ311 ,Boomer 281boomer 282 similar model drilling rig for tunnel









5.We also provide other Mining operations.











6.Our Company:





 Good Service, competitive price, high quality, fast shipping and perfect after

     sale service.



Welcome to visit our factory and would like to start the cooperation with you in the near future.
