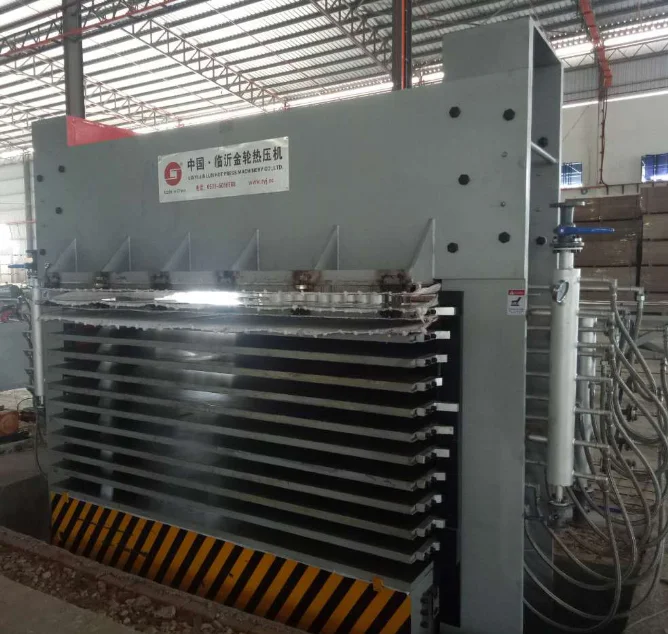

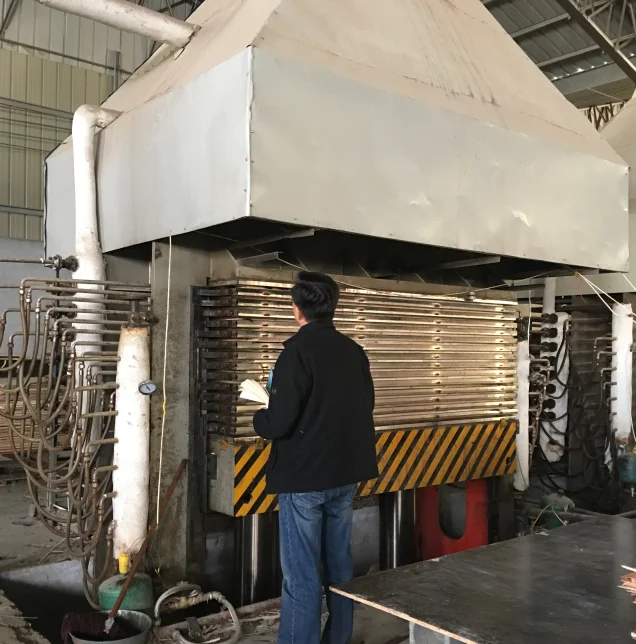

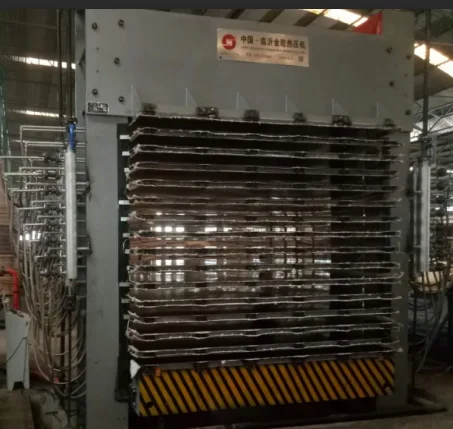

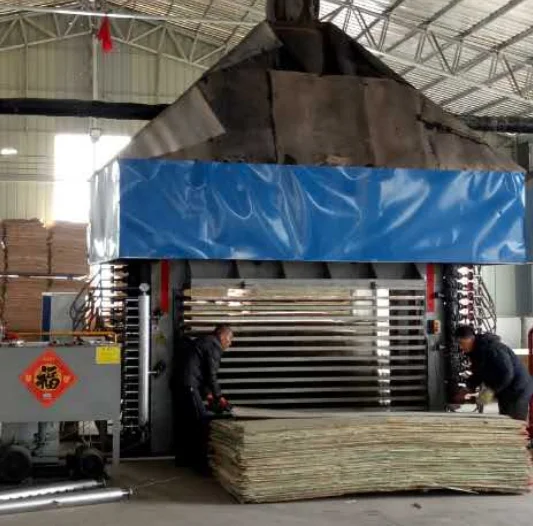

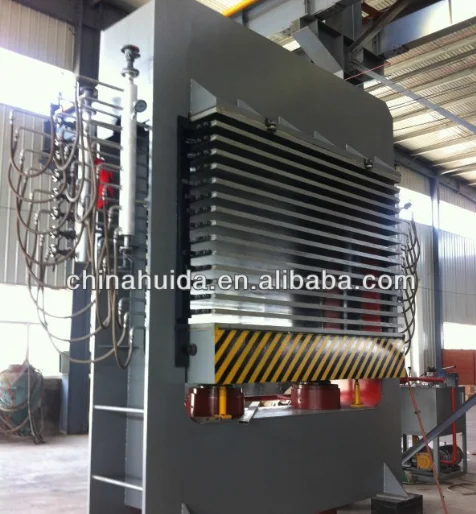

plywood hot press machine, woodworking machine, hydraulic hot press machine

1.Hot platen:
It is drilled from excellent steel and it is high precision,
high strength and durable.It is manufactured on worktable 2700 mm x 1370mm so as to keep the hot platen easy to operate.
2.Heating system:
It can be heated by steam /,oil /eletrict oil heater.
The steam boiler is low in cost and suitable for common production,yet it is high pressure vessels,so it should be operated carefully.

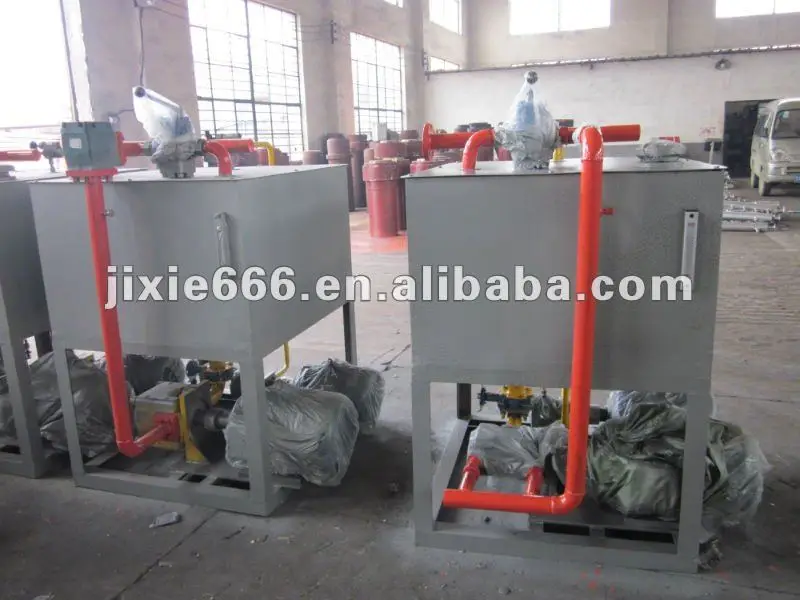

As to the oil heater,it is adjustable, safe, uniform temperature,energy saving
and so on. yet it may cost much than steam boiler.
The electric oil heater is environmental protection instead
using coal or wood
as it’s fuel, but it may cost lots of electric energy.
3.Hydraulic system:
It is “Triple Filter”and it has excellent oil pump and electric motor.
It uses right-angled one-way valve so that it can work smoothly.
the pressure is adjustable cylinder.
It is worked through excellent CNC precision machine tool.
It uses high quality oil envelop so as to avoid of oil leaking.
4.Control system:
Micro-computer ,Manually/Automatic controlled.
It can lift the hot platen, close the separation,add the pressure, keep the pressure, keep time, descend the hot platen and so on

Certifications

Detailed Images

Machine Parts

main frame:
Frame style: Combination frame

Main Features

Name: Hydraulic system
Hydraulic system control method: Manually/Automatic controlled
Hydraulic system:
It is “Triple Filter”and it has excellent oil pump and electric motor.
It uses right-angled one-way valve so that it can work smoothly.
the pressure is adjustable cylinder.
It is worked through excellent CNC precision machine tool.
It uses high quality oil envelop so as to avoid of oil leaking.

Machine Parts

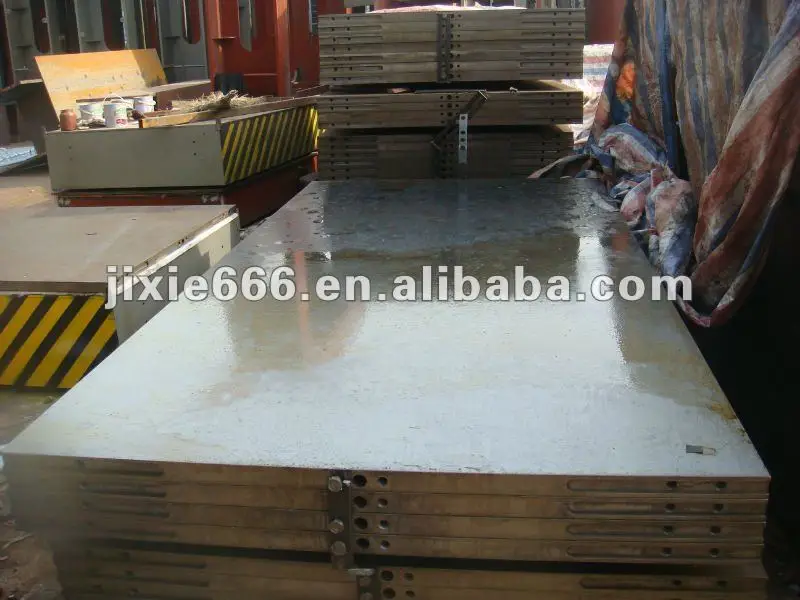

Name: Hot platen:
It is drilled from excellent steel and it is high precision,
high strength and durable.It is manufactured on worktable 2700 mm x 1370mm so as to keep the hot platen easy to operate.

Main Features

Name: Cylinder
Quantity and Diameter of Cylinder:
2 units Φ320mm
brand: wuxi cylinder

Our Service

Packing & Delivery

Packaging
Size	2700 (L) * 1370 (W) * 672 (D)
Weight	16 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	2700 (L) * 1370 (W) * 1200 (D)
Weight	4 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
