TONEY traversing robot arm is applicable to all types of horizontal injection machine ranges of 80~1000T for take-out products and runners. Vertical arm is telescopic type, with product arm and runner arm, for two plate or three plate mold products take out.
Traverse axis driven by AC servo motor. After installed this robot, the productivity will be increased 10~30%, reduce defective rate, ensure safety of operators, reduce manpower and accurately control the output to reduce waste.

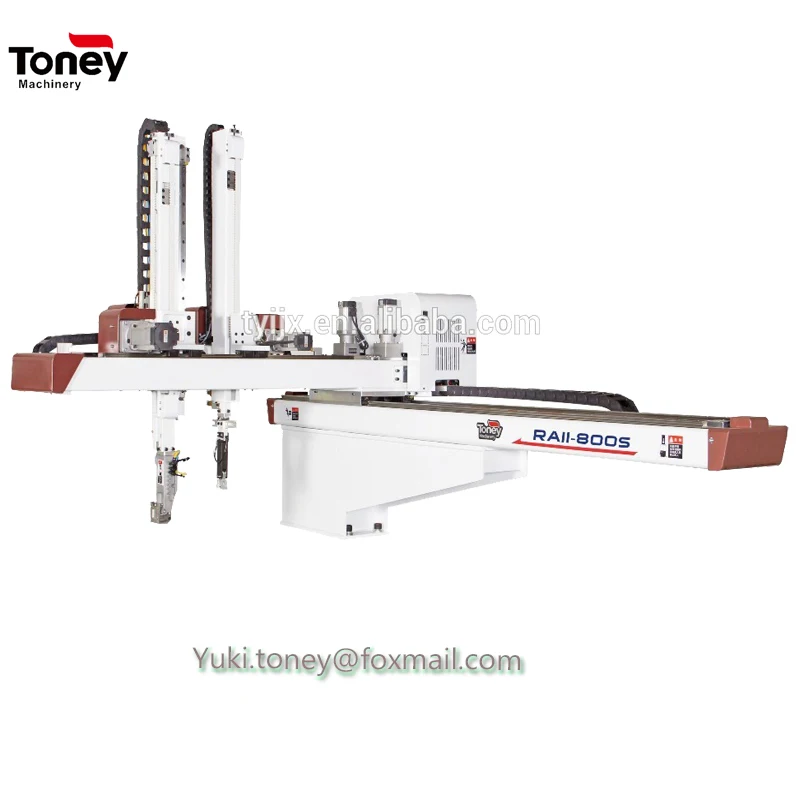

SPECIFICATIONS FOR RA-800S 5 axis robot arm
RA-800S
Vertical (product arm )
mm
800
Vertical (runner arm)
mm
850
Traverse
mm
1400-1600
Stroke
Crosswise(Product arm)
mm
170-700
Crosswise( Runner arm)
mm
30-560
Capacity
Max load
KG
5
Suitable for injection machine tonnage
Ton
100-350
Number of axis
AC Servo motor
5 axis
Weight
Main body
KG
220
Control box
SPEC-FM1

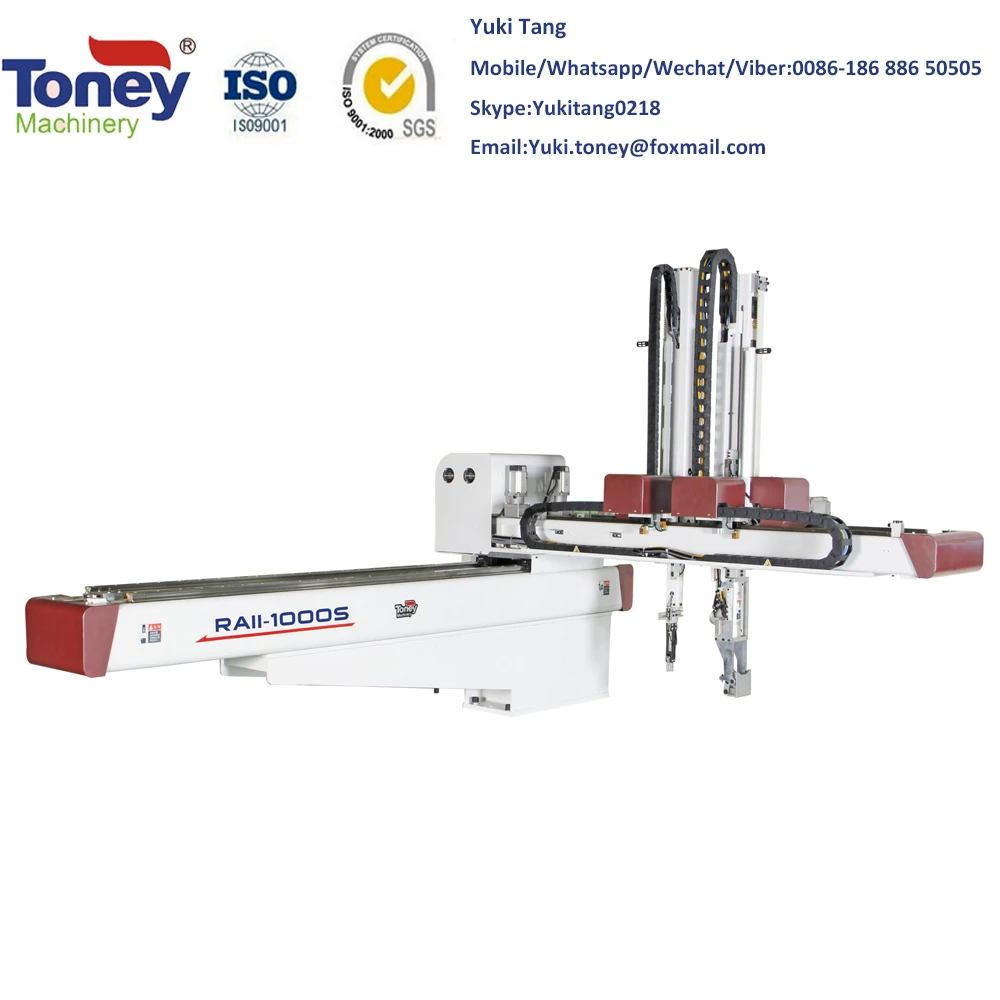

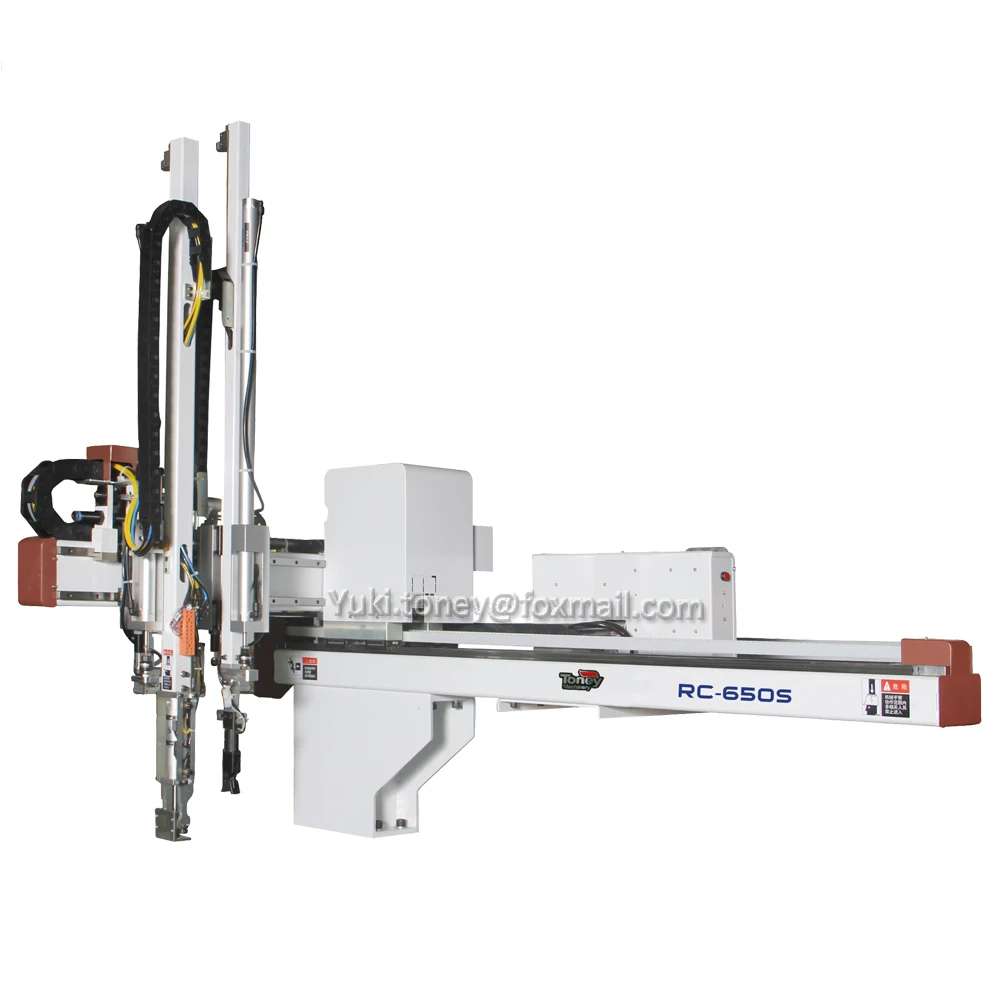

5 Axis injection Robots Arm( AC Servo Driven Robot Arm)
1. Driven by AC servo motor for 5 axis, high, stability and precise position. 2. Multiple stopper and lay out position. 3. Fast removing. 4. Save energy. 5. Group management. 6. 5 Axis with AC motor driving
7. 5 Axis including 2 arm( Product arm and runner arm) for three-plate mold, if runner arm using cylinder driving can be cheaper.
♥ ♥ ♥Knowledge for Robot Selection♥ ♥ ♥
Step 1: Selection on the tonnage of injection molding machine
Step 2: Selection of Swing-arm Robot or Traversing Robot Arm
Step 3: Double-arm or Single-arm selection
Step 4: Selection of Telescopic Arm or Single Stage Arm
Step 5: Selection of Two-axis, Three-axis and Five-axis
Certifications
Detailed Images
Manipulator Parts
Name: Chain
Brand: TONEY
Original: TaiWan
To protect the cable for long service life
Manipulator parts
Name: Guid Brand: THK Original: Japan
High quality guid import from Japan to ensure the stability working life.
Manipulator Testing
Model:RAII-3000S (Suitable for 2000-2500T injection machine) Brand: TONEY Original: China All manipulator 100% tested in workshop to ensure the quality and function.
Manipulator parts
Name: Control System Brand: CRP Original: China Chinese and English version adjustable
Our Service
Pre-Sales Service
* Yuki with fluent English speaking 24 Hours online for Inquiry and consulting support.
* OEM order is welcomed
* Our Factory located in famous industrial city -Dongguan, convenience for visit. .
* Business term :EXW, FOB, CIF, CNF...
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our Company
GUANGDONG TONEY ROBOTIC INTELLIGENCE CO.,LTD
Established at 1995, located in Dalang Town of Dongguan city, factory space 15,000m2.
Toney Business
Specialized in R&D manufactory and marketing business of high -end industrial robot arm , refrigeration equipment and plastic auxiliary equipment of plastic molding.
EXPORT COUNTRIES
Attend international trad show and meet all over the world customers. we sold to southeast Asia and middle-east countries such as Australia, Vietnam, Malaysia, Indonesia
Engineer service machine oversea
Our engineer are available overseas service at your factory for install, training and problem solve.
Packing & Delivery
Internal packing detail
Packing material
Carton box with bubble and wrap film
Function
avoid to damage and water proof
Detail
All robot arm test one by one more than 24 hours before shipping.
bubble ---Carton box---Wrap film
Engineer available install machine in your factory in necessary.
Outside packing detail
Size
1.68*1.09*1.5m ( 4 sets together)
Weight
300kg
Detail
Fumigation wooden box with fumigation certificate.
