  New Products Audio Video Conference System

Your Preferred Choice for Economical PA System





Descriptions

TV-60MCU support standard H. 323 protocol, support H.264 (high profile) codec and standard H.239 dual-streams; with full HD 1080P/60 terminal access and media processing characteristics.

Adopt  Cloud based architecture, with distributed MCU. The system still can run normally even though there is any MCU broken or stop to work, as long as there is still one MUC working.

TV-60MCU-16AFeatures



*  Support multiple-image; support multiple picture layout, single screen can support

up to 16 images;

*  Support automatic split screen;

*  Director conference mode

*  Chairman conference mode

*  MCU Calling mode

*  Conference room mode

*  Broadcast Mode

*  Free mode;

*  With voice motivation function;

*  With breakpoint re-invitation function

*  Support the camera remote control, backlight Settings;



Maintenance Management

* With WEB management for Terminals  interfaces are in both Chinese and English

version,   to meet China's use of habits;

* Equipment management;

* User management;

* Meeting management;

* Support Telnet, SSH remote maintenance;

* Operate the zone management according to users’ features, regional features;

* Support large-scale terminal conference management;

* Software upgrades: support local upgrade, remote upgrade;

* IP Network packet loss status indication: PING, Packet loss, delay, jitter test;

* Network packet loss status indication;

* Support event log records;

* Supporting configuration import and export;

* Reset to defaults.



Physical property

* Dimensions: 675mm×430mm×88mm;

* Weight: 25kg;

* Electrical characteristics;

   Working voltage : 100VAC~240VAC  ;

* working frequency: 50Hz~60Hz

* Maximum power consumption:less than 500 w;

* Environment temperature: 10 ℃~ 35 ℃ (work) - 40 ℃ ~ 55 ℃(non-work state);

* Relative humidity: 10%~80% (work) 0%~95% (Non work );

* Ambient  noise: less than 50dbA.

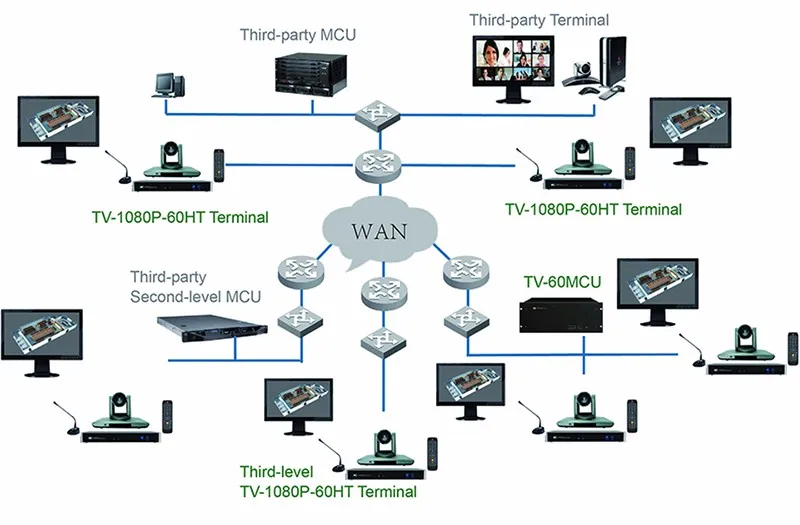

System Diagram

TV-60MCUProduct List

MCU      TV-60MCU

Video Conference Terminal     TV-1080P-60HT

Specifications


Model

Support

TV-60MCU

120 roads 1080P

TV-60MCU-A

120 users 1080P  High reliable design

TV-60MCU-16

16 users 1080P

TV-60MCU-16A

16 users 1080P  High reliable design





Communication protocol

* Multimedia framework protocol ITU-T H.323,IETF SIP





Video Features

* Support H.264 (support Highprofile);

* Video Resolution :QCIF,CIF,4CIF,480P,D1,720P,1080P24,1080P25/30,1080P50/60;

* Support mixing speed, mixing video formats, mixed protocol meetings;

* Static graphic :XGA,HD 720P,640x480,1280x1024,1080P(1-60frames),Chinese subtitles;

* Support H.239 digital dual stream technology and primary and secondary streams can all reach  1080P 60;

* 1M bps for 1080P HD video conference.



Audio features

* Audio Codec : G.711A/U,G.722,G.7221,G.722.1.C,G.723,iLBC, AAC,and so on ;

* Lip Synchronization;

* Multichannel mixing;

* Echo cancellation;

* Automatic gain;

* Noise cancellation.



Network Features

* With dual 100M / 1000M network interface;

* Can be adapted to DDN, ISDN, ATM, SDH, VPN, leased line satellite, ADSL and other lines;

* Ability across routers and firewalls, to ensure system security, support for dual network access;

* Support H.264 SVC, the ability to provide anti-network error, can withstand a 20% packet loss, does not affect the proceedings;

* Support voice priority, support Qos strategy;

* H235 support signaling encryption, AES media stream encryption;

* Three Password protection: meeting joining password, conference controlling password, ministrator password
