ceramic tile impact resistance tester
- Category: >>>
- Supplier: Anytester (hefei) Co. Ltd.
Share on (60629718568):
Product Overview
Description
Product Description

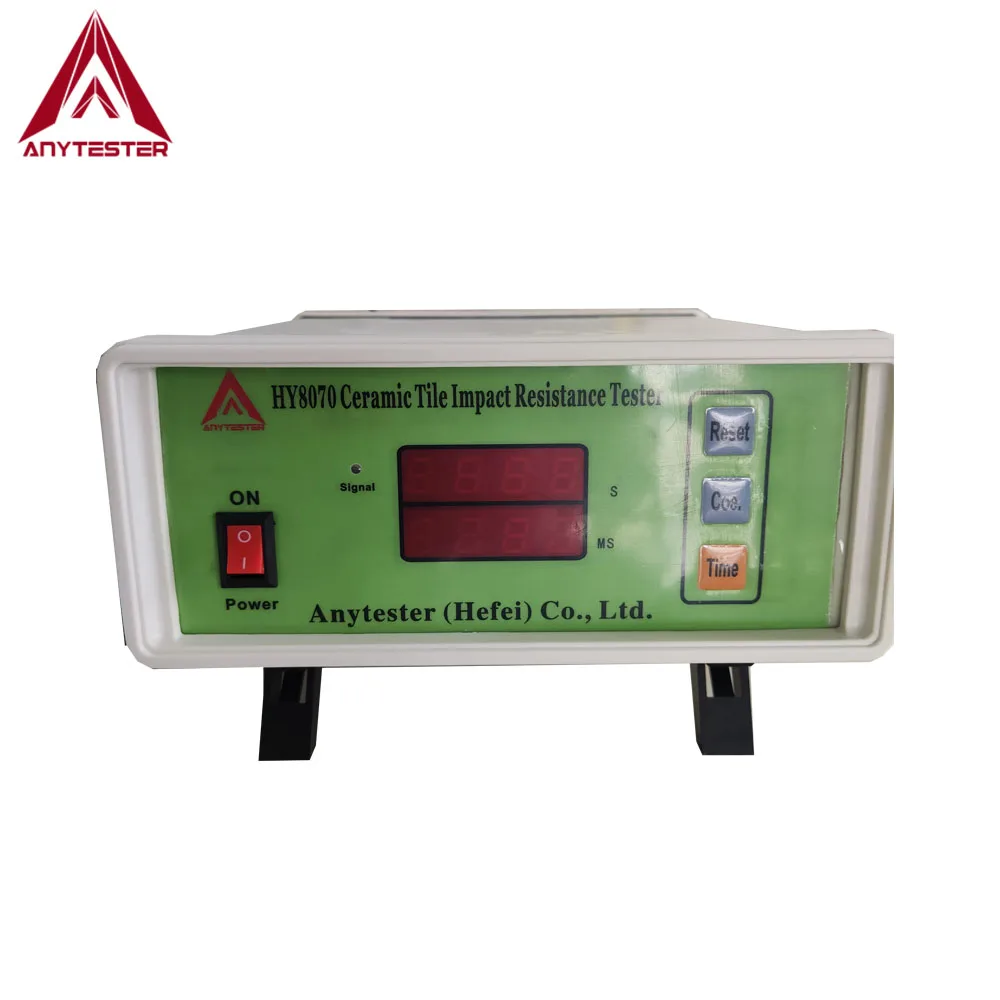

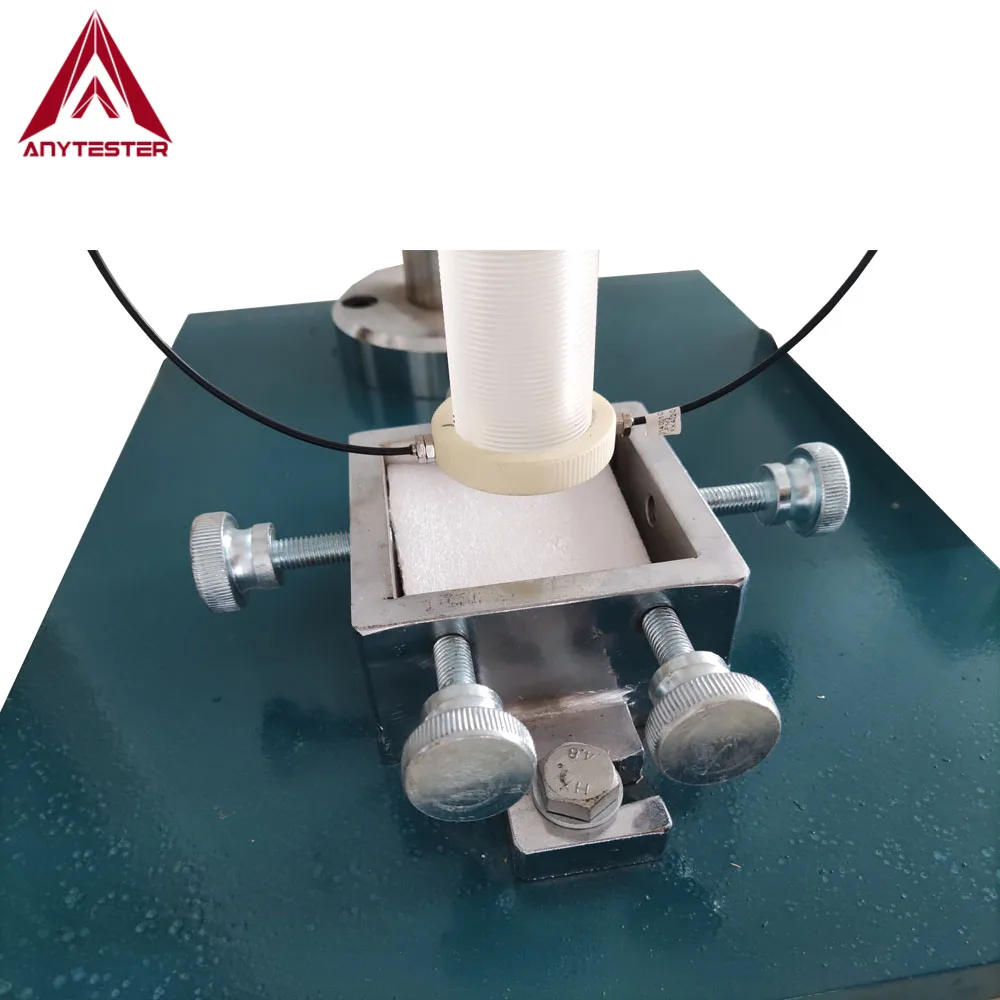

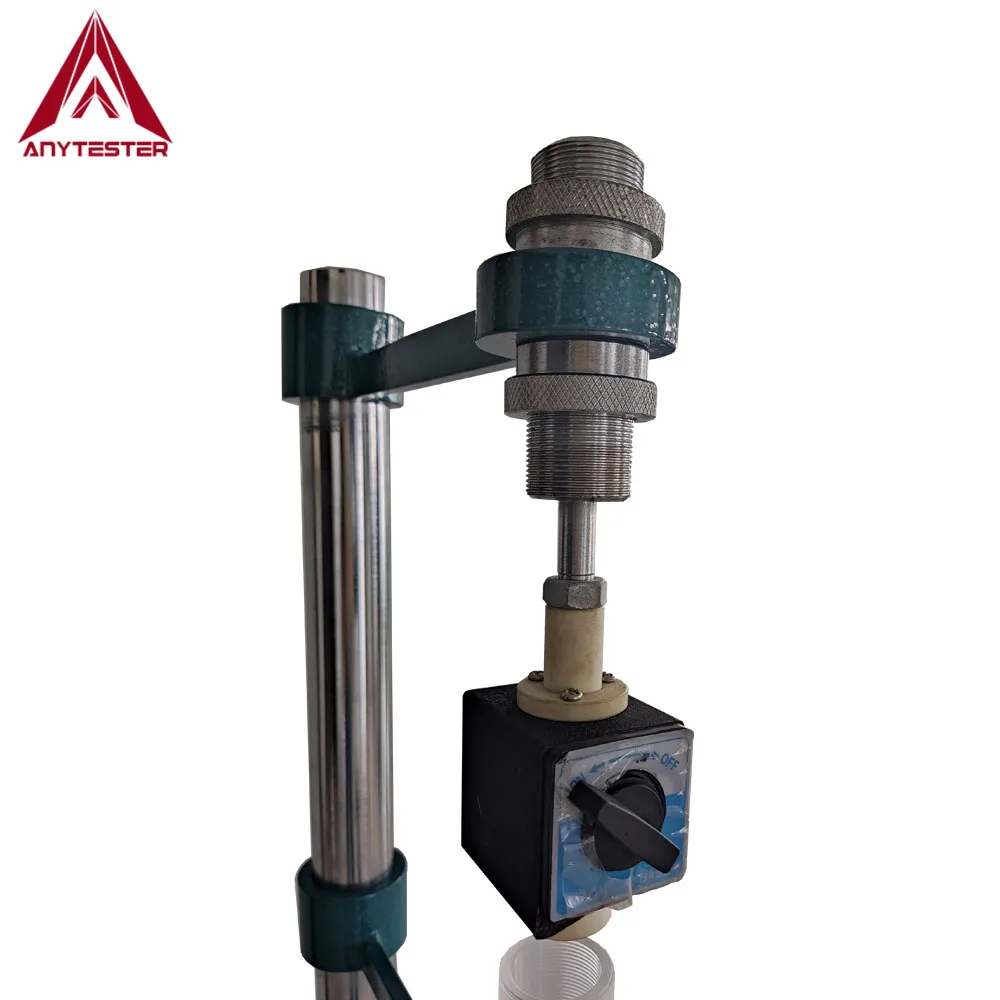

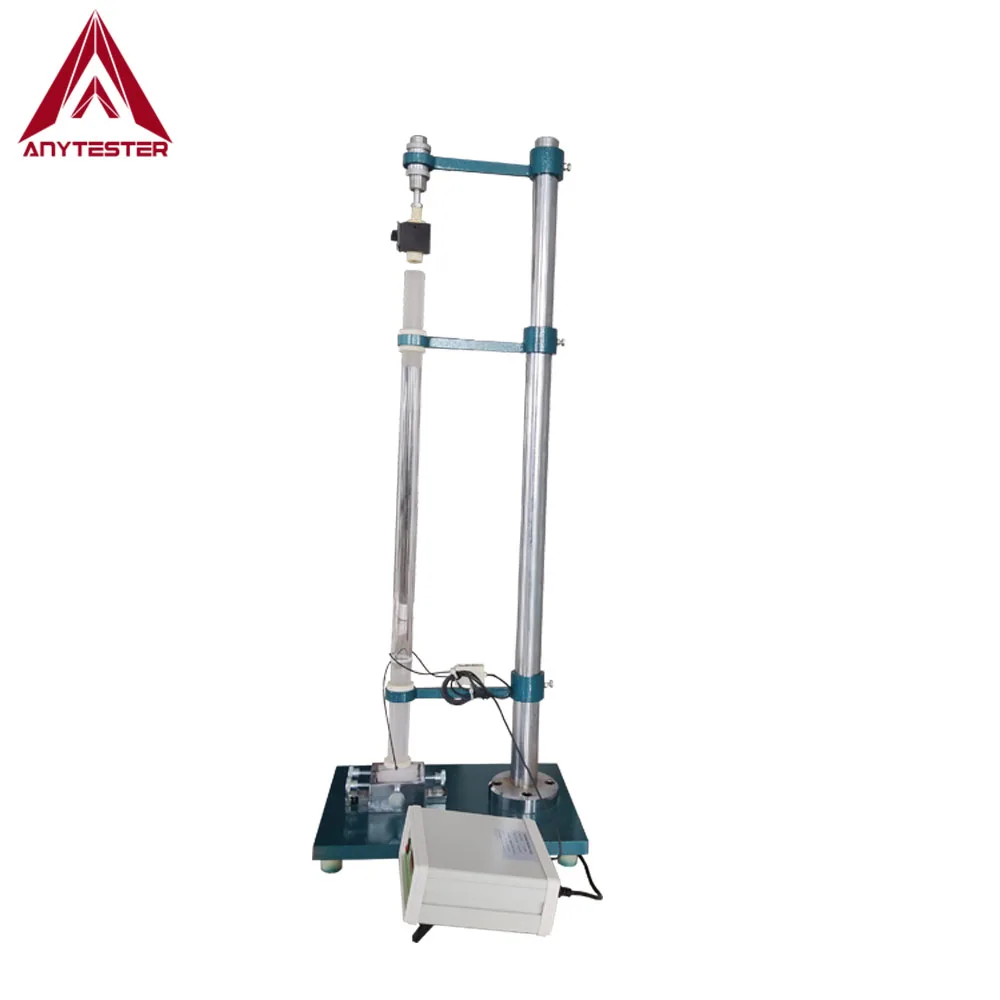

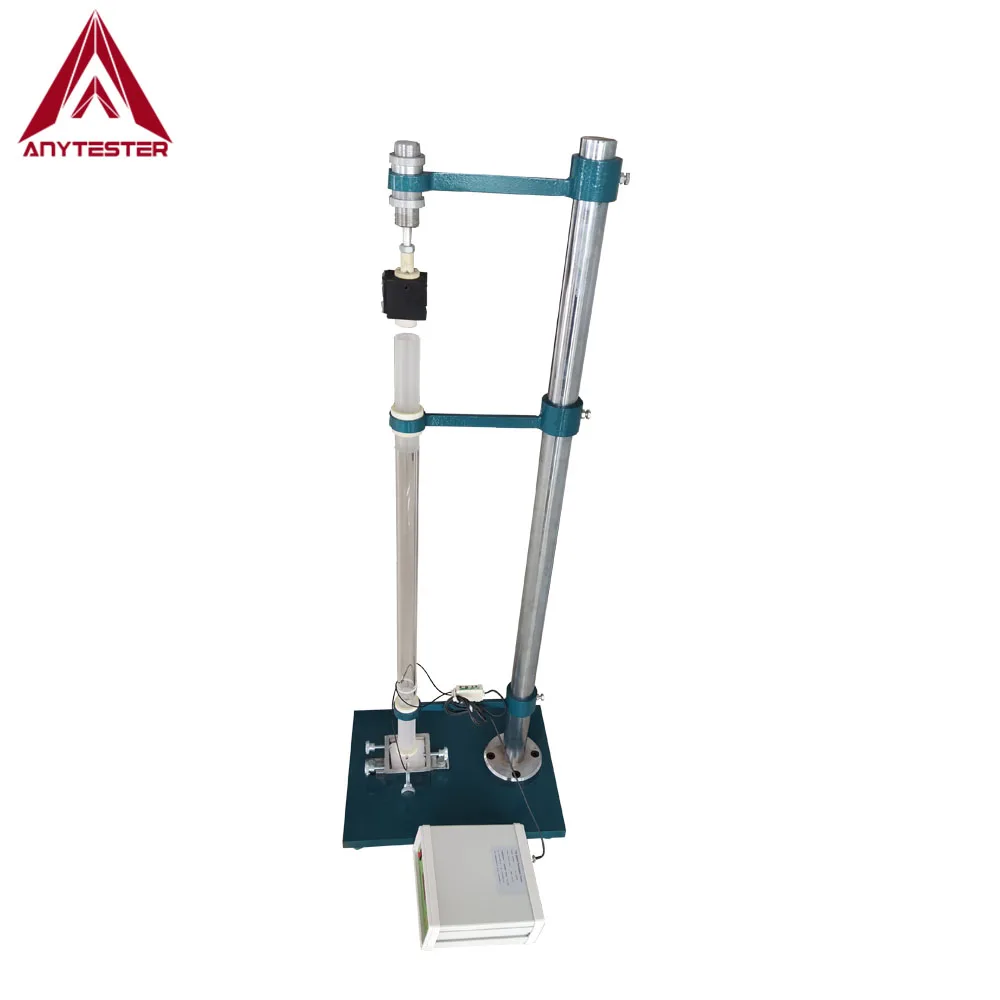

HY8070 Ceramic Tile Impact Resistance Tester is used to determine the impact resistance of all ceramic tiles by mesuring the coefficient of restitution. A steel ball droping from a fixed height onto the specimen, measuring the rebound height to calculate the coefficient of restitution.
Standard
ISO 10545-5 | GB/T 3810.5 |
|
Specification
Model | HY8070 |
Steel ball diameter | 19mm±0.05mm |
Falling height | 1000mm±1mm |
Laser precision time measurement | Accurate to 1μs |
Power supply | AC220V, 50Hz, 1.5kw |
Working chamber size | 500×400×1440mm |
