Product Overview

Description



Product Description

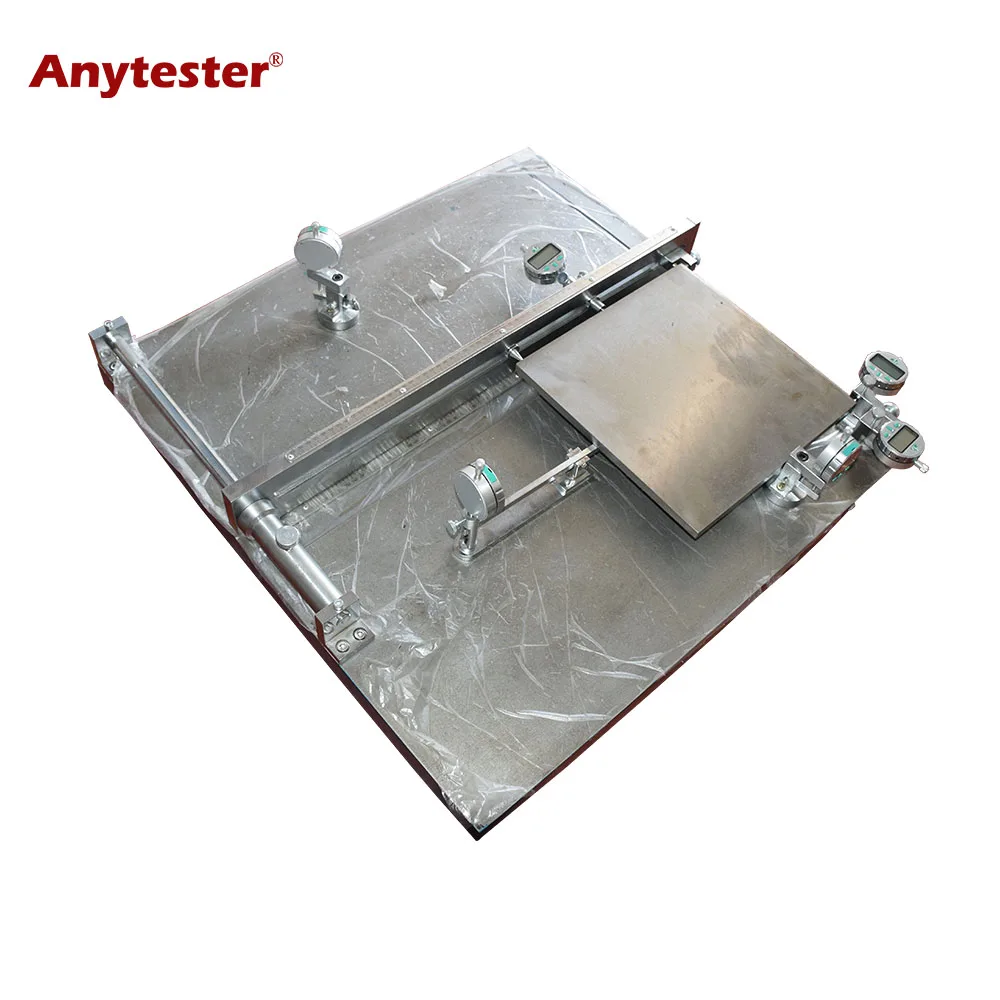

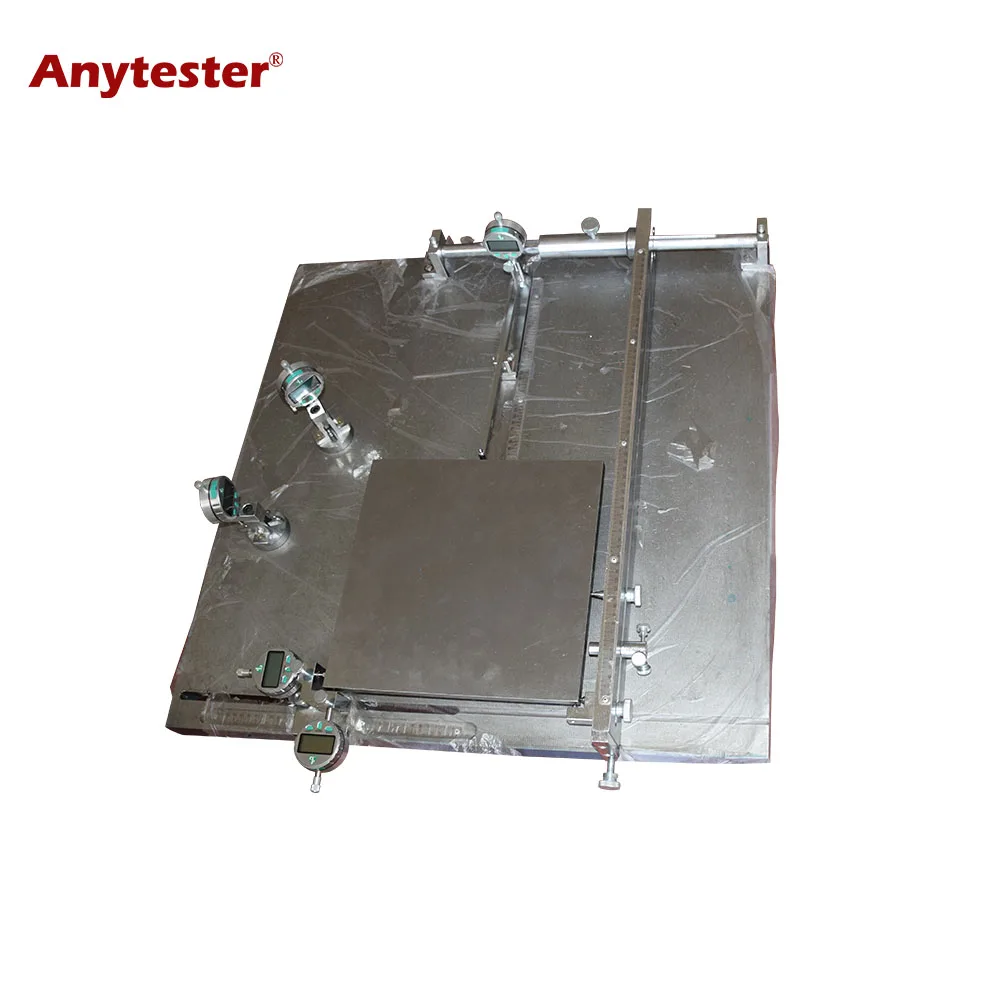

HY8110 Ceramic Tile Dimensions and Surface Quality Tester is used to determine the dimensional characteristics and shape features of ceramic tiles, including straightness of sides, rectangularity and surface flatness.

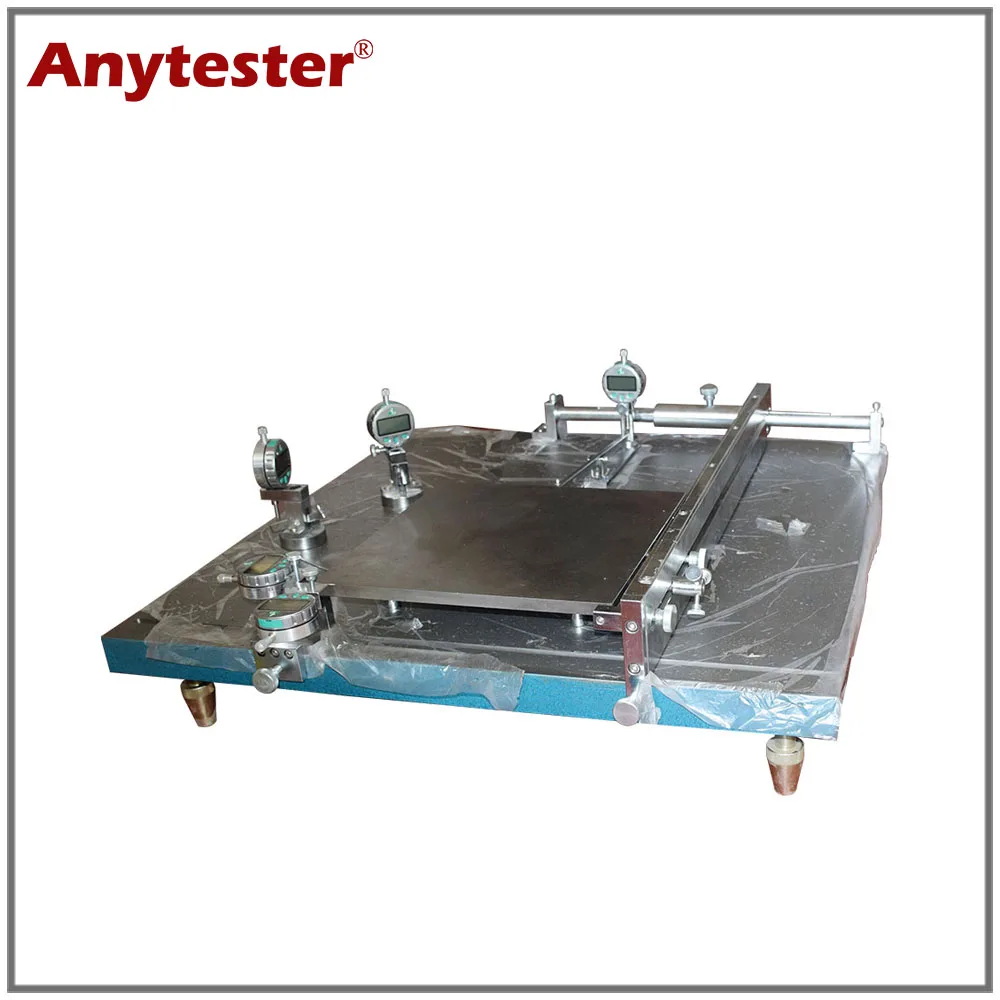

HY8110 Ceramic Tile Dimensions and Surface Quality Tester.jpg








Standard














ISO 10545-2



GB/T 3810.2













Features


        1.         It consists of supporting plate, movable left support and right support;


2.         Dial or digital gauge can be selected;


3.         Fast and accurate measurement.





Specification

























Model



HY8110


Ceramic Tile Dimensions and Surface Quality Tester



Measuring range



40~600×600mm, 40~800×800mm, 40~1000×1000mm



Measuring accuracy



±0.01mm



Display mode



Dial display (digital display optional)
