Metal Engraving Machine Automatic Numbering Machine China Marking Machine 430*330*675 Provided 2 Years CN;ZHE Metal, Plastic 3mm
- Category: Metal Engraving Machinery >>>
- Supplier: Taizhou,Nachang,Cnc,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Information
Welcome to contact Bo Lin for product inquiries and technical support.
Welcome to contact Bo Lin for discount and free test
NCSK start producing penumatic marking machine since 2002. In the past 15 years, we keep on developing the hardware and software to make the machine more easy to use. In 2012, we start using Aluminium body intead of cast iron body for machine, Which Increased the costs but makes the maching more light, beautiful and not easy to get dirty.
Marking contents | Numbers, characters, graphs and coders. |
Marking depth | 0.02-1mm(adjustable,relevant to materials) |
Marking speed | 2-3 letters/s according to letter size |
Marking materials | Metal or nonmetals with hardness under HRC55 |
Power | AC220V±10% 50~60Hz AC110V±10%50~600Hz |
Pneumatic pressure | 0.2-0.7Mpa |
Energy consumption | 100W(air compressor excluded) |
Repeat precision | 0.02-0.05mm |
Working Environment | Regular working environment |
Item | Marking Area(mm²） | Maxiumm Height (mm) | Weight(kg) | Dimensions(mm) | Remarks | ||||||
L | W | H | D | ||||||||
NCQ/A-135-85 | 135*85 | 280 | 22 | 430 | 330 | 675 | 0-280 | machine can be customized; we can make machine according to your requirements. | |||
NCQ/A-200-110 | 200*110 | 280 | 23.5 | 465 | 390 | 675 | 0-280 | ||||
NCQ/A-250-200 | 250*200 | 280 | 49 | 540 | 435 | 685 | 0-280 | ||||
Detailed Images

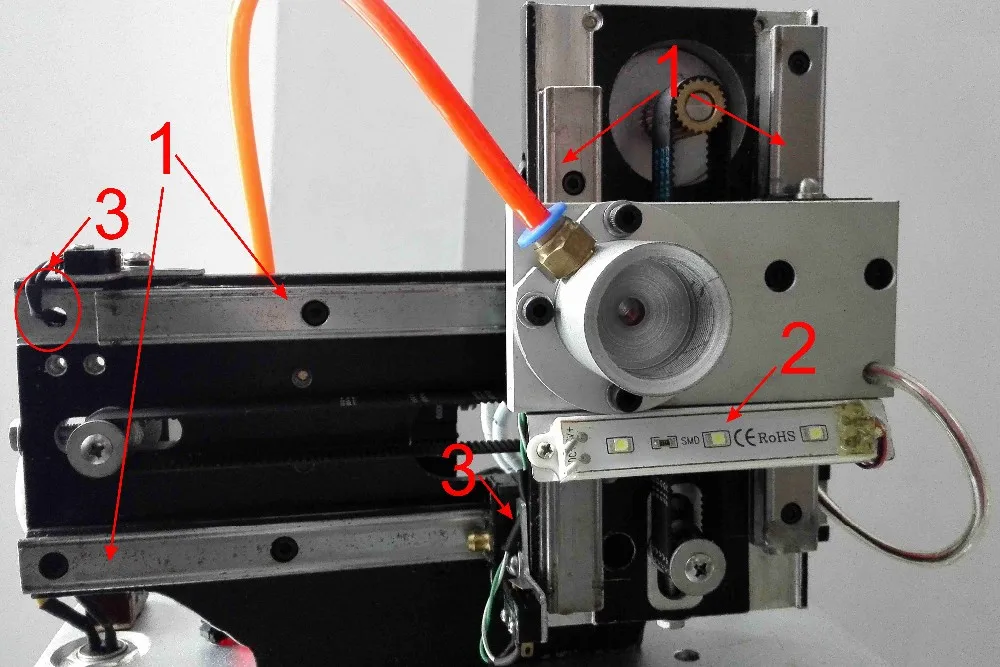

1. Guide rail is the most important things for working stability and machine life. So we use two linear guide rail on each axis to make sure the machine is stable.
2. LED light to lighting the work area.
3. Protect wire when going though hole.

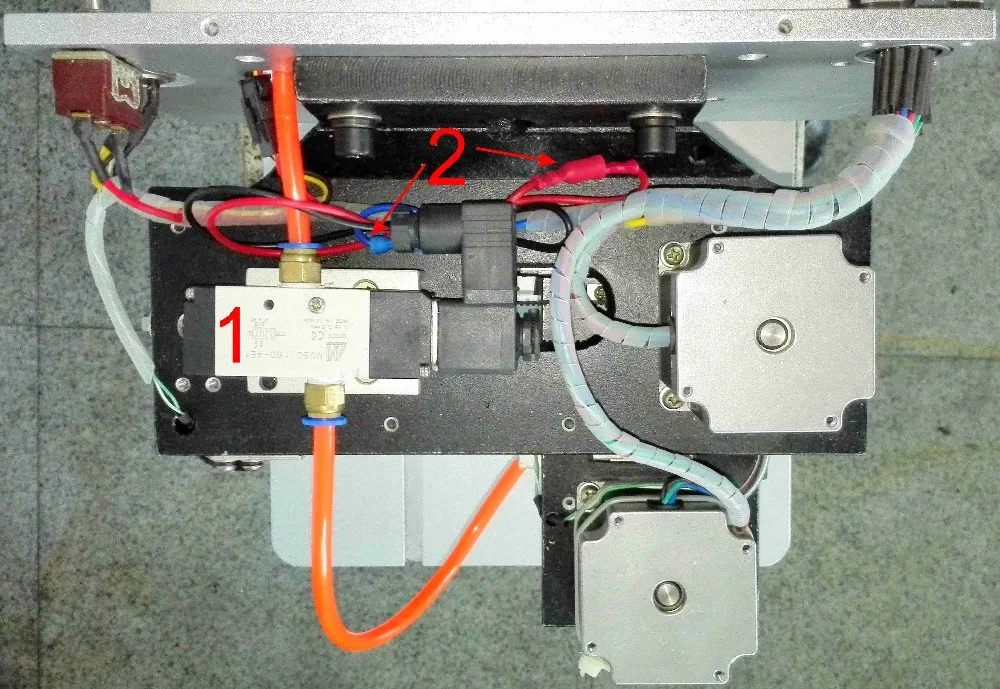

1. High quality solenoid valve, made in TAIWAN, the life is more than 20,000,000 times.
2. Using wire terminal to connect the electronic device, easily to replace.
1. The wire will be bending many time when machine is working. To avoid the damage, we use plastic sleeve to protect wire and fixed to the body.
2. Every Solder joint are protected by heat-shrinkable sleeves.
1. Penumatic machine create vibration when working, this vibration may interfere the marking and reduce the machine life. So we design two stainless steel column to reinforce the machine.
2. This knob is designed to reduce the high frequency vibration.
Accessories box
Common accessories is free with machine.
1. Sealing O-ring and spring
2. Cleansing oil: clean marking head.
3. Plier and wrenche

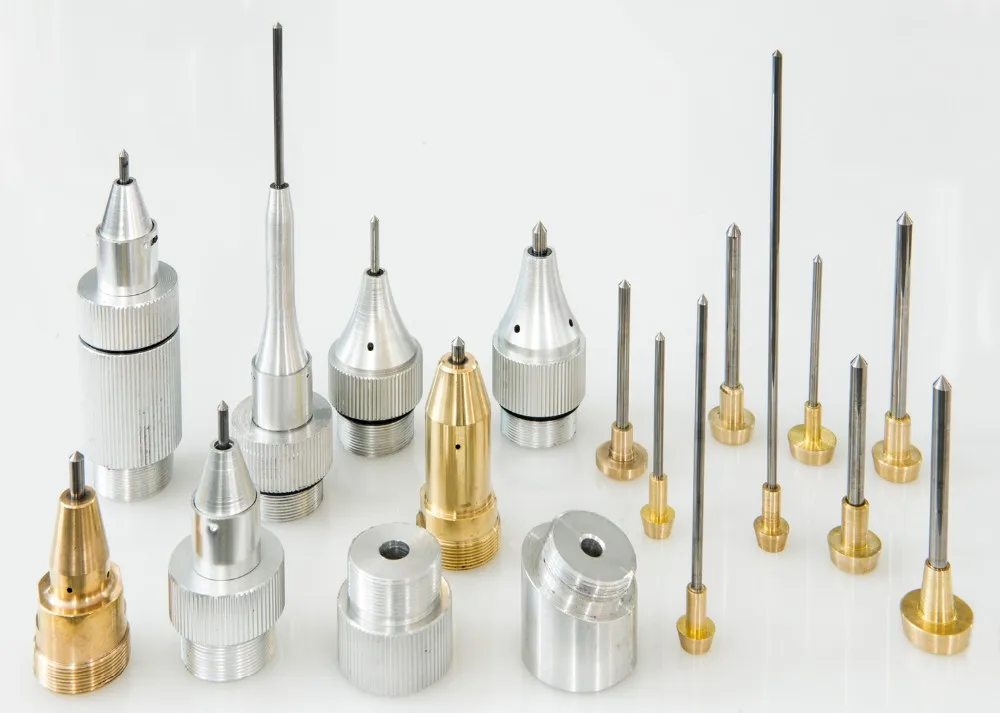

4. Marking head and pins
We design Various kinds of marking head to adapt various application.

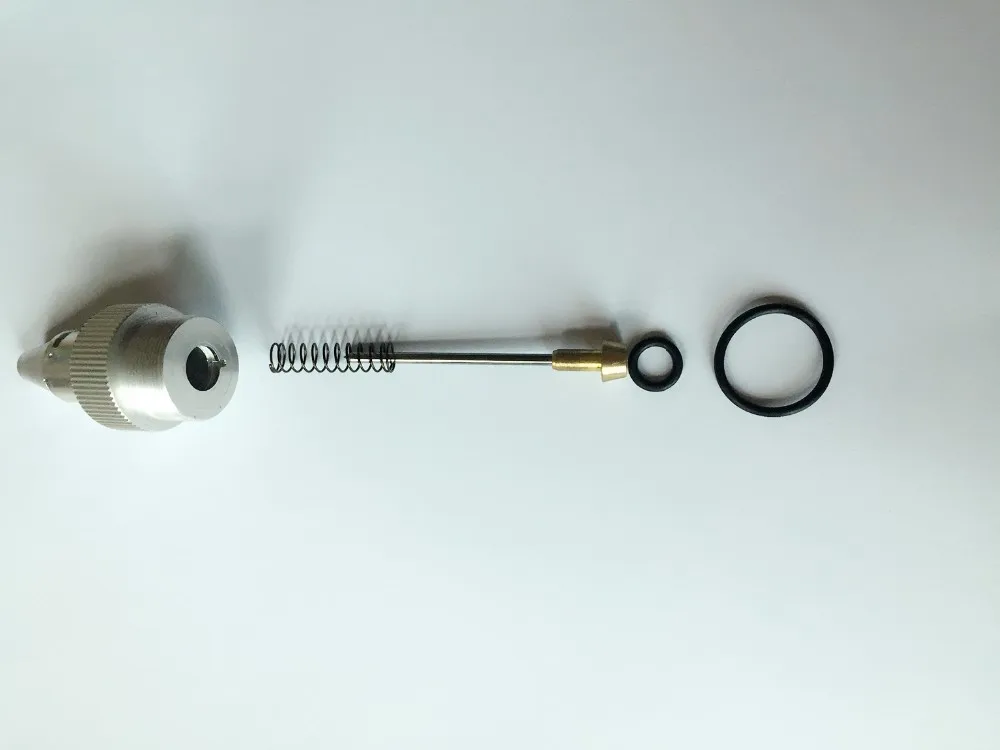

Marking pin installation
spring----＞marking Pin ----＞Small O-ring ----＞big O-ring
The material of the marking pin is Tungsten steel and cooper .
The hardness of Tungsten steel is HRC90.
So the marking can working for material with hardness under HRC55. Inside of the marking head there is Tungsten steel tube. that makes the marking head using at least 2 years. .

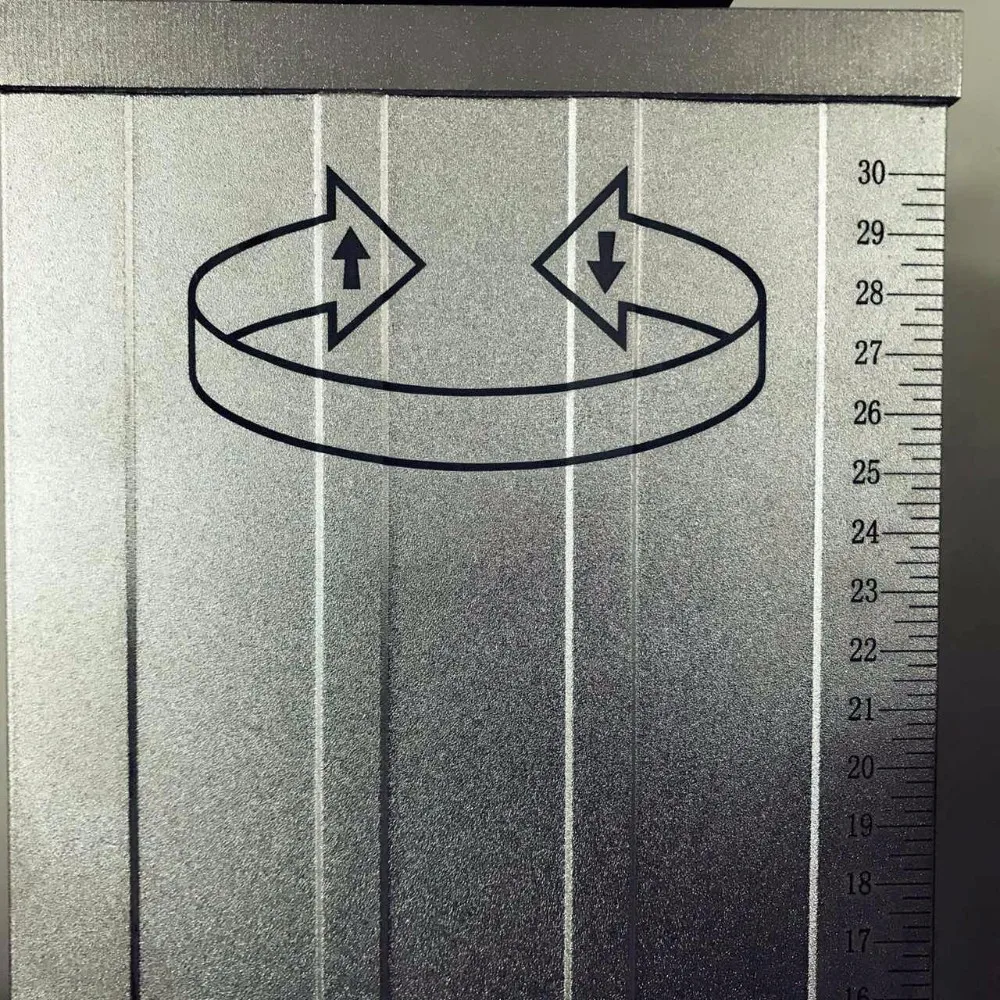

Calibration show in cloumn
.Easily for us to know the height of the whole marking head and the direction of up and down .
More Series

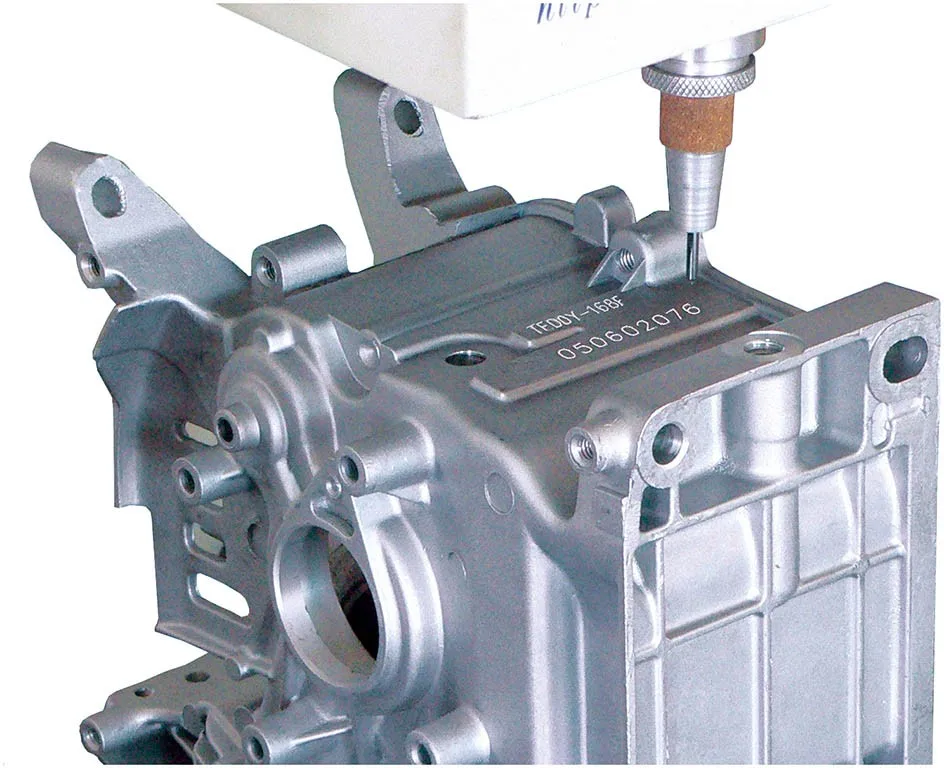

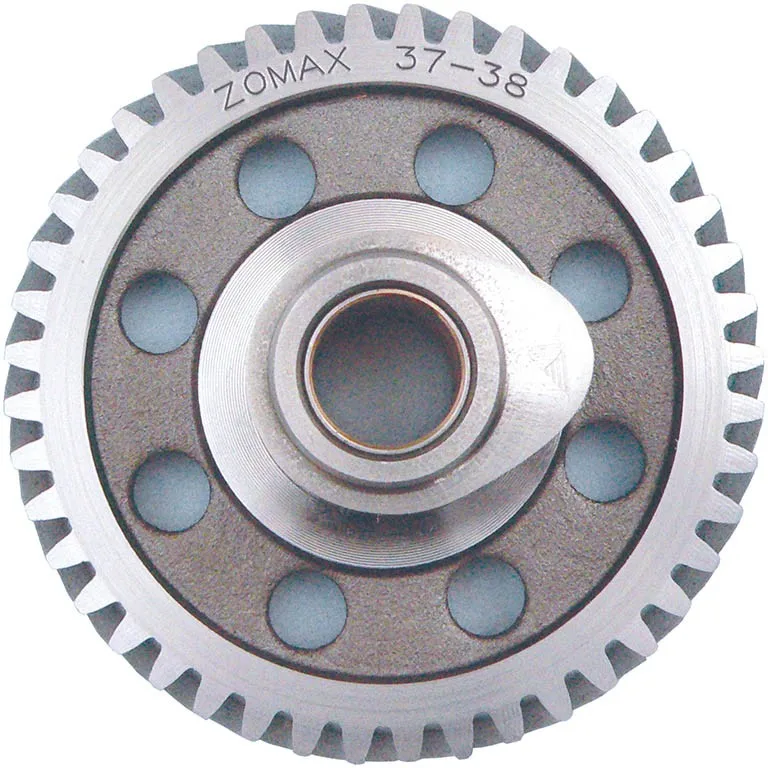

Applications
Company Information
Certificate
FAQ
Q1: I know nothing about laser marking machine, which type should I choose?
Please tell us the material of your product, we will help you to choose the right machine and find a solution to mark your
product.
Q2: When I got this machine and don't know how to use, what should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer
to your site for training or you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
We provide two years warranty. During the warranty, If there is any problem with the machine, we will provide the parts free of
charge (except for artificial damage). After the warranty, we still provide whole lifetime service.
Q4: What is the consumables of laser marking machine?
It has no consumable. It's very economical and cost effective.
Q5: What's package, will it protect the products?
We have 3 layers package. Outside is the wooden cases free of fumigation. In the middle, the machine is covered by foam, to
protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q6: What's delivery time?
Commonly, the lead time is within 5 working days after receiving the payment.
Q7: Are you trading company or manufaurer ?
A: We are factory. And we have been in the laser field for more than 10 years.
