EMM083 series low pressure polyurethane foaming machine(2 components)

Product Overview

Description

EMM083 series low pressure polyurethane foaming machine(2 components)



Specifications

EMM083-2 polyurethane foam injection machine
1.high-tech model
2 high safety standard.
3.imported parts
4.POLY.

EMM083 series low pressure foaming machine is hightech model combined with international technology and after market research for polyurethane industry application. Main parts are imported and the whole equipment has reliable performance and high safety standard.

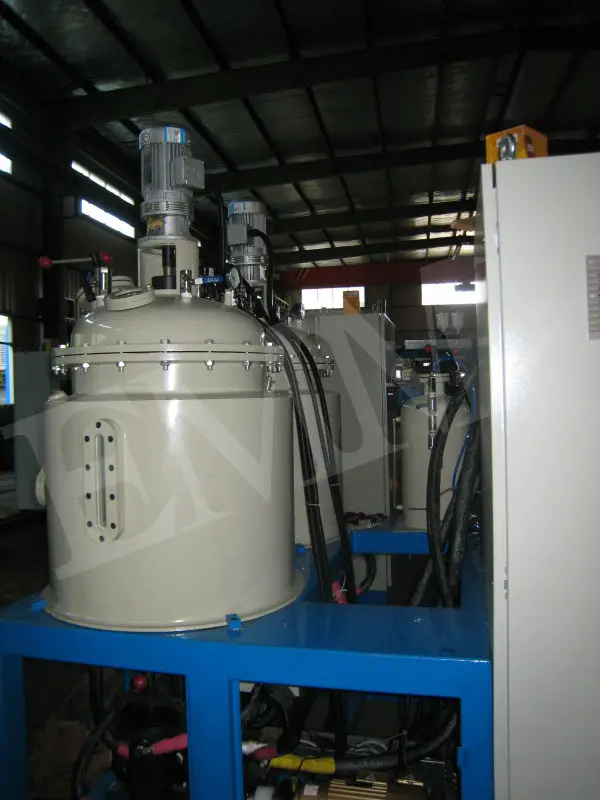

EMM083-2 polyurethane foam injection machine adopts one tank for POLY., one tank for ISO.  Two metering units control outflow of metering pumps.  Density is adjusted by various mixing ratio. Professional in foam industry manufacture.

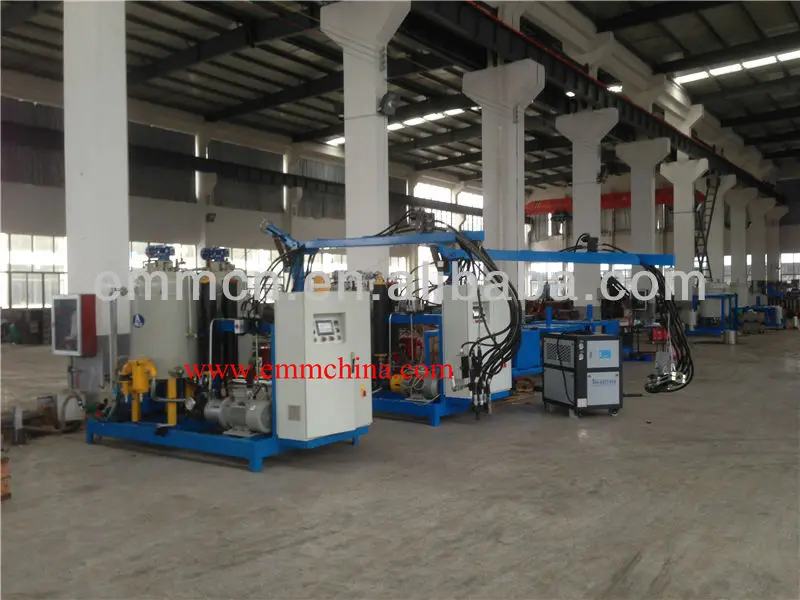

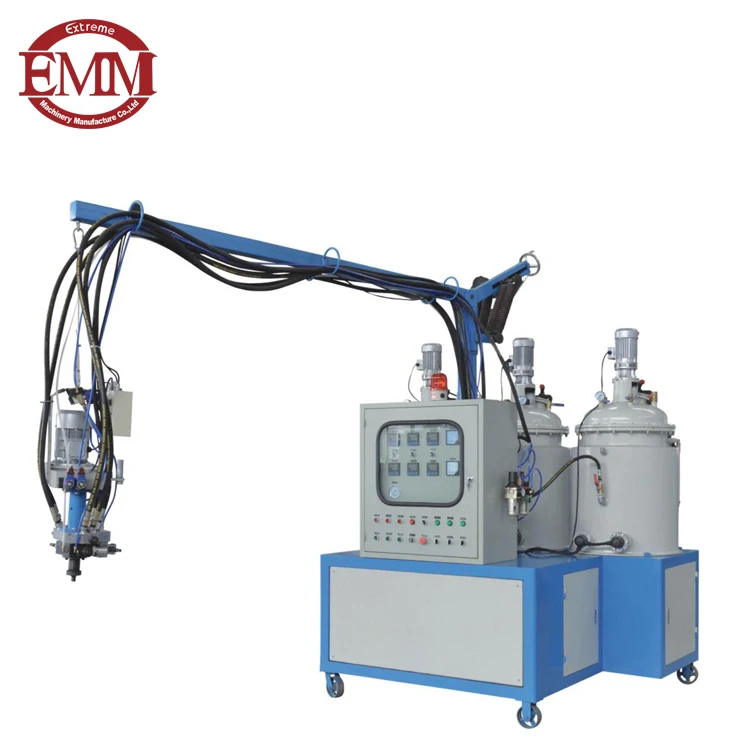

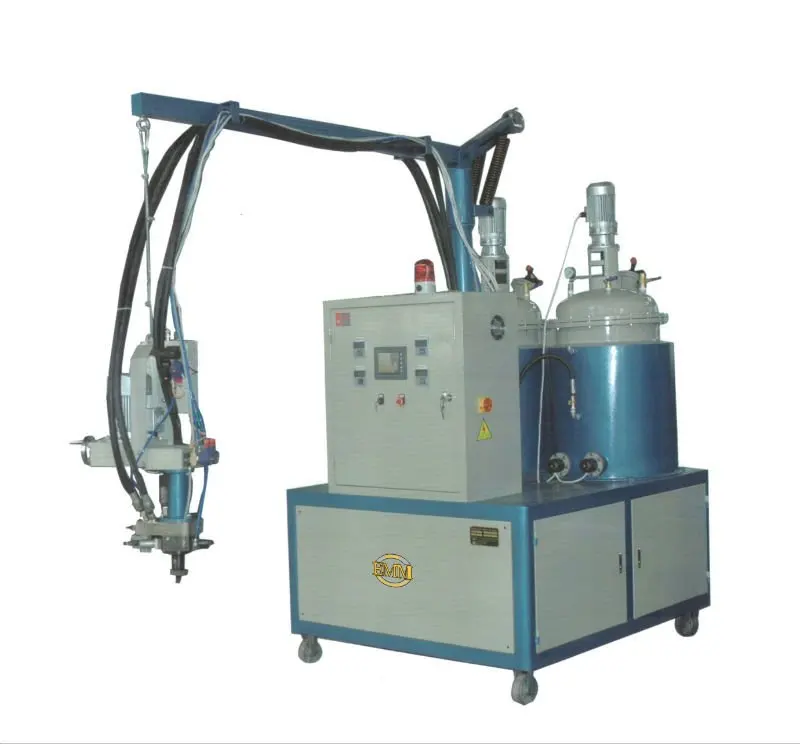

EMM083-2 polyurethane foam injection machine picture















Profuct specification



2.1 Model:  EMM083-2 polyurethane foam injection machine



2.2 Foam type:hard foaming,half-hard foaming



2.3 Viscosity: (22°C)

                       POLY:~2000mPas

ISO:~1000mPas



2.4 Pouring output: 50-200 g/s (1:1), adjust range of mix ratio:5:1~1:1



2.5 Injection time:0.01~9.99 (accuracy reach 0.01s)



2.6 Injection Program No.:

Hand-injection: 10

Auto-injection:60



2.7Measure unit:measure accuracy ≤0.5% .For component’s measurement, it includes bracket with vibration pads, variable frequency motor, coupling, axial piston pumps and valves, electronic pressure switches, etc.



2.8 Pressure limit and control system

Working pressure range is 0~4MPa for components, if beyond setting range, machine stop injection automatically and alarm



2.9 Flow measurement and control system

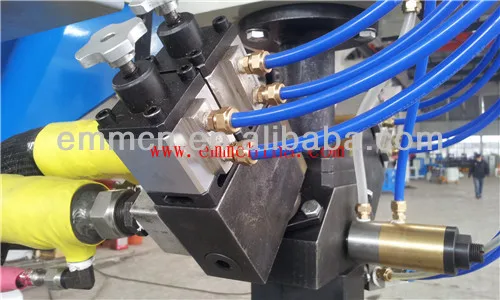

According to the pump output flow and process requirements mixture components and related parameters; group were traffic speed control motor speed by changing the pump output flow, remove the mixing head, with each injection valve so that A, B flow to each container of raw materials . Flow of each component separately and mixing parameters to detect than the parameters, correction to achieve the component flow regulation and control.



EMM083-2 polyurethane foam injection machine



Component material	POLY	ISO.
Quantity	1	1
Metering Pump model	NB3-C40F(40cc/r)	NB3-C40F(40cc/r)
Motor power(kw)	5.5	5.5
Motor speed(rpm)	500-1450	500-1450
	DOP	DOP





 EMMis a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.

We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team memebers includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.

1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on.

During the guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us.

If the malfunctions are caused by customer's incorrect operations, we will offer the spare parts at cost price.

Anyway, our company promises to supply the customer cost price of spare parts and provide long-term technical guide beyond the guarantee.

1. 100% by T/T;

2. 30% deposit by T/T, the balance paid by L/C at sight;

3. 100% by L/C at sight;

4. 100% by 30, 60 or 90 days usance credit.

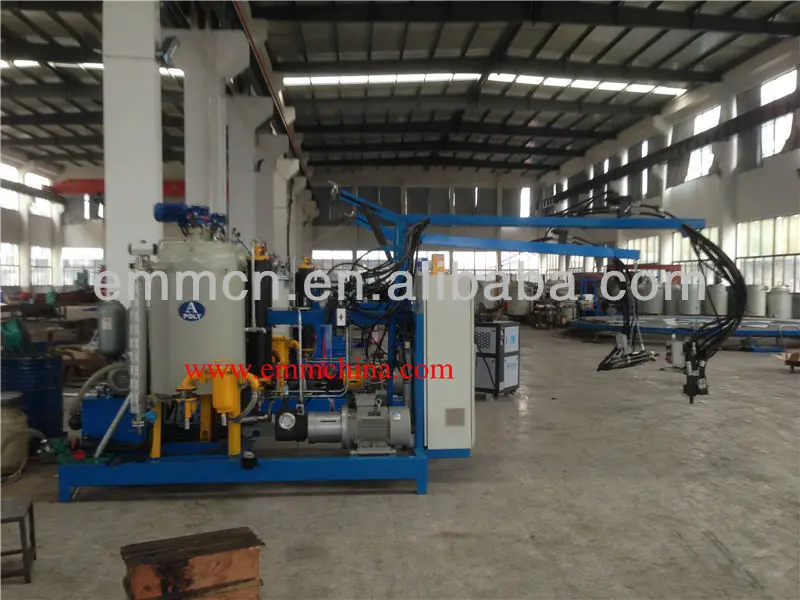

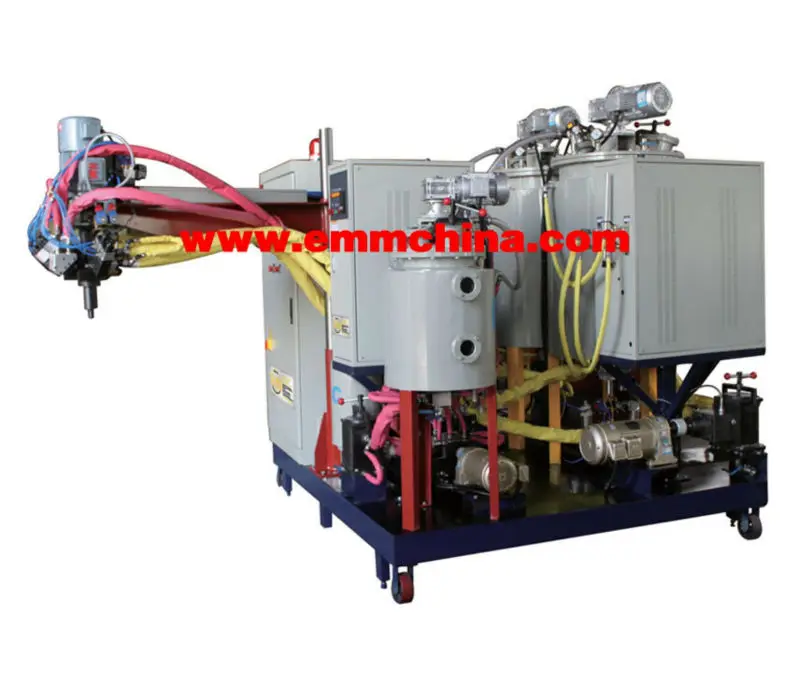

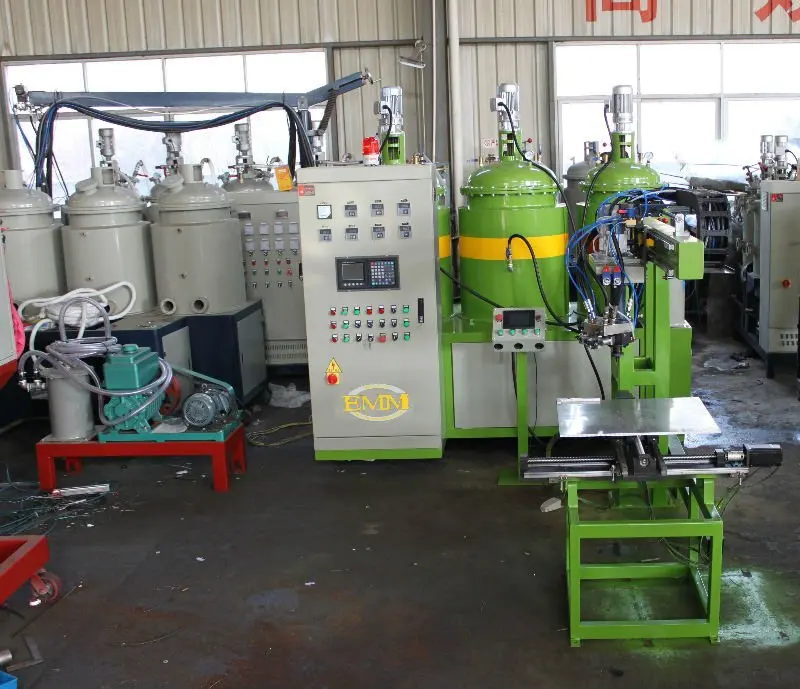

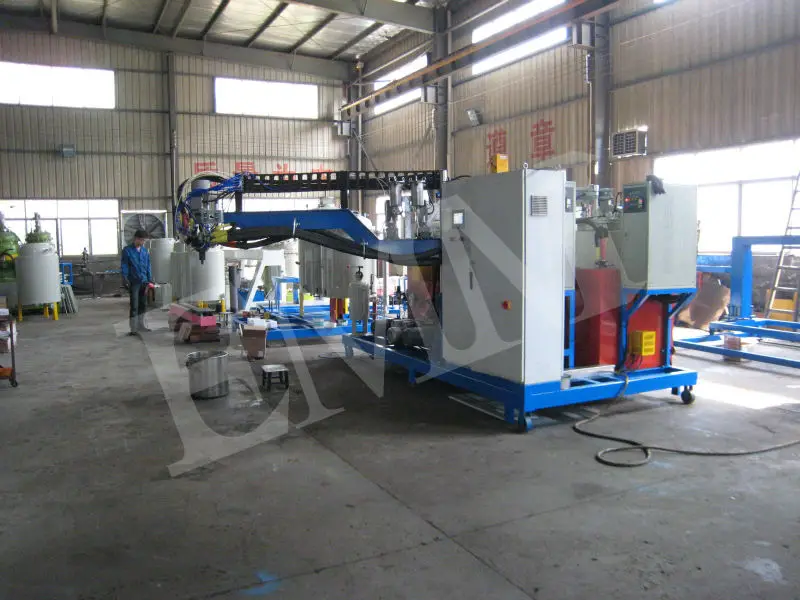

 EMM083-2 polyurethane foam injection machine pictures
