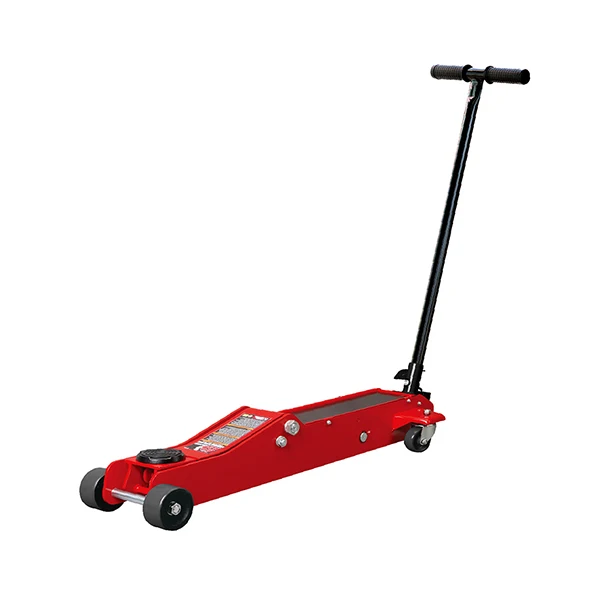

T830031(S) long hydraulic floor car jack 3 T

Product Overview

Description

This BIGRED product has a single hydraulic pump piston that effortlessly raises the lift arm. Pump piston dust

shields and wiper seals protect the hydraulic system from contaminants. The jack features an overload valve

bypass system to prevent jack damage and user injury. Compact design allows use in confined spaces. Easily

fits under low vehicles. This product is tested for reliability and safety.





model number	T830028
capacity(T)	3
min height(mm)	140
max height(mm)	525
N.W/G.W(kg)	47/51
packing size(mm)	1295*420*240
product size (mm)	1150*350*180
handling type	T handle
CTN	189PCS

Features:

• Professional stronger construction
• Compact and space-saving

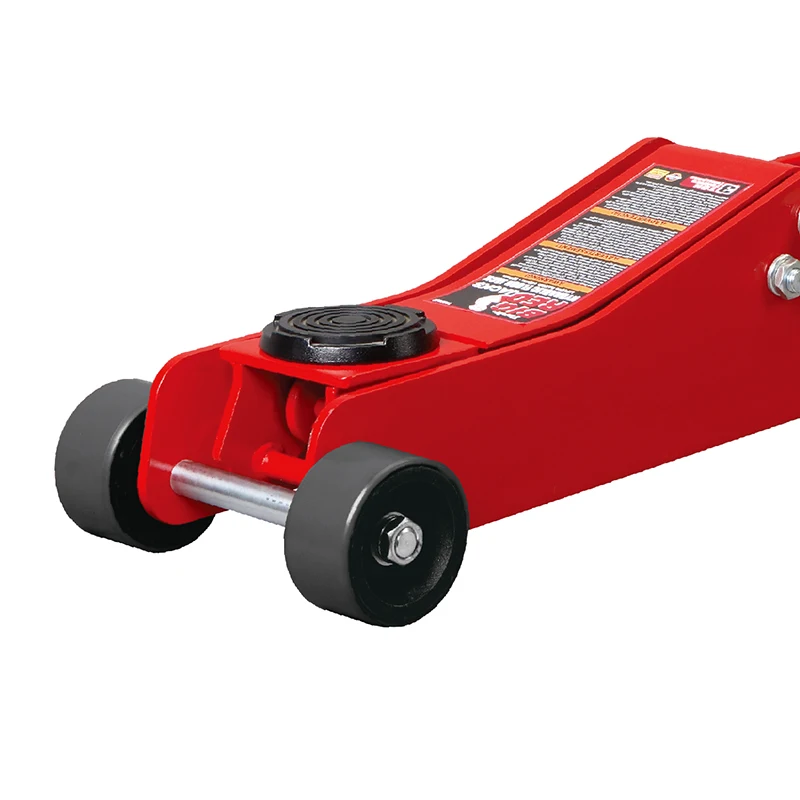

• Protector, top saddle protection for safer lifting
• Polyamide wheels for quietly positioning
• Long life using more than 1000 times



Model	Capacity (tons)	Minimum Height (mm)	Maximum Height  (mm)	Quantity 20’CY (Piec es)	Product Size (mm)	Net Weight/Gross Weight (kg)	Packing Size (mm)
T820031	2T	70	500	350	900*450*170	40/44	900*450*170
T830031D	3T	80	500	200	845*420*232	50/54	1000*500*190
T820028	2T	76	510	286	1006*365*136	42/45	1050*440*195
T830028	3T	140	525	160	1150*350*180	50/55	1280*410*240
