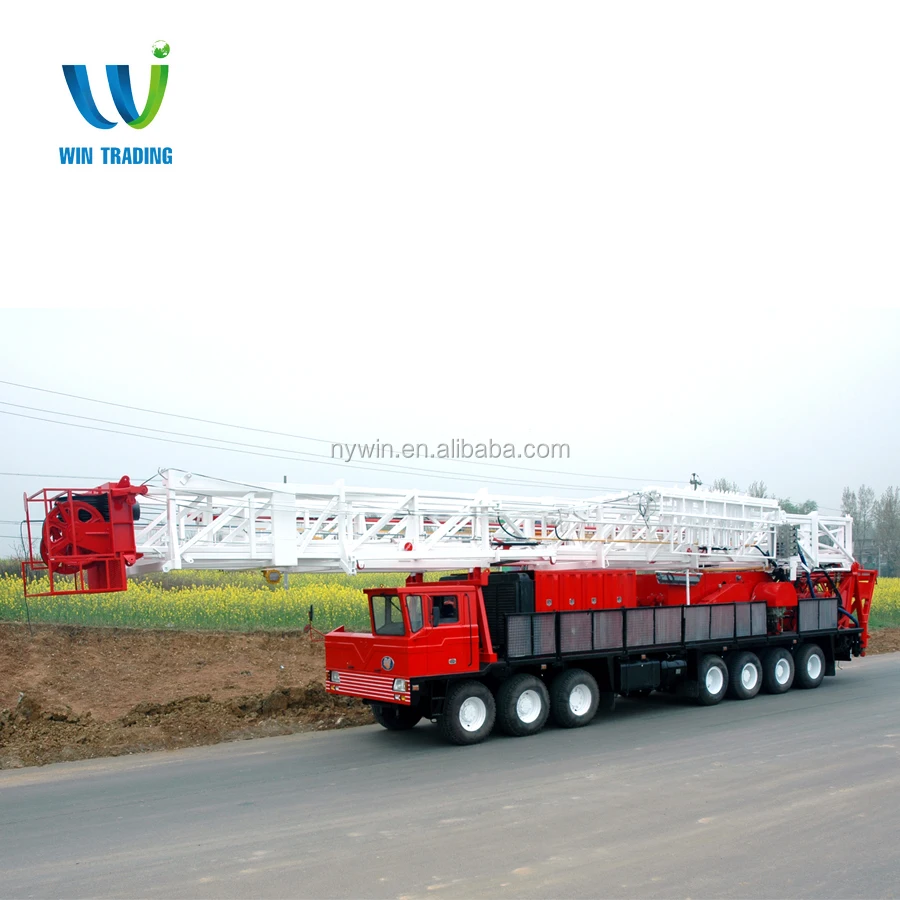

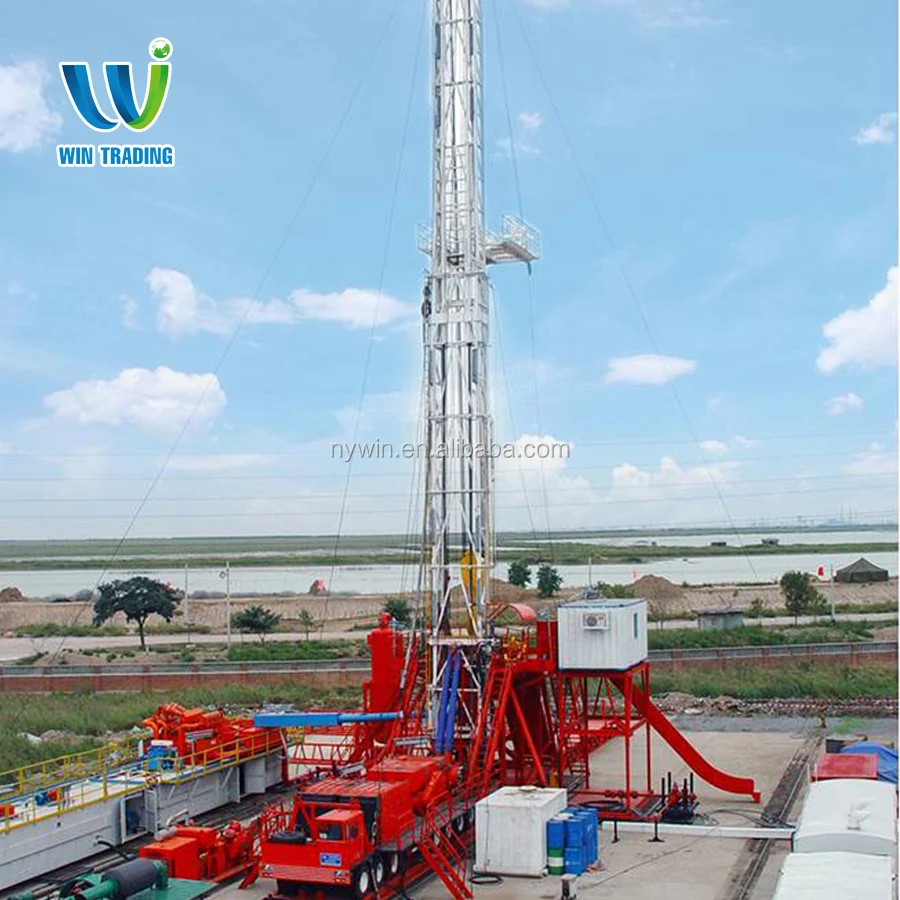

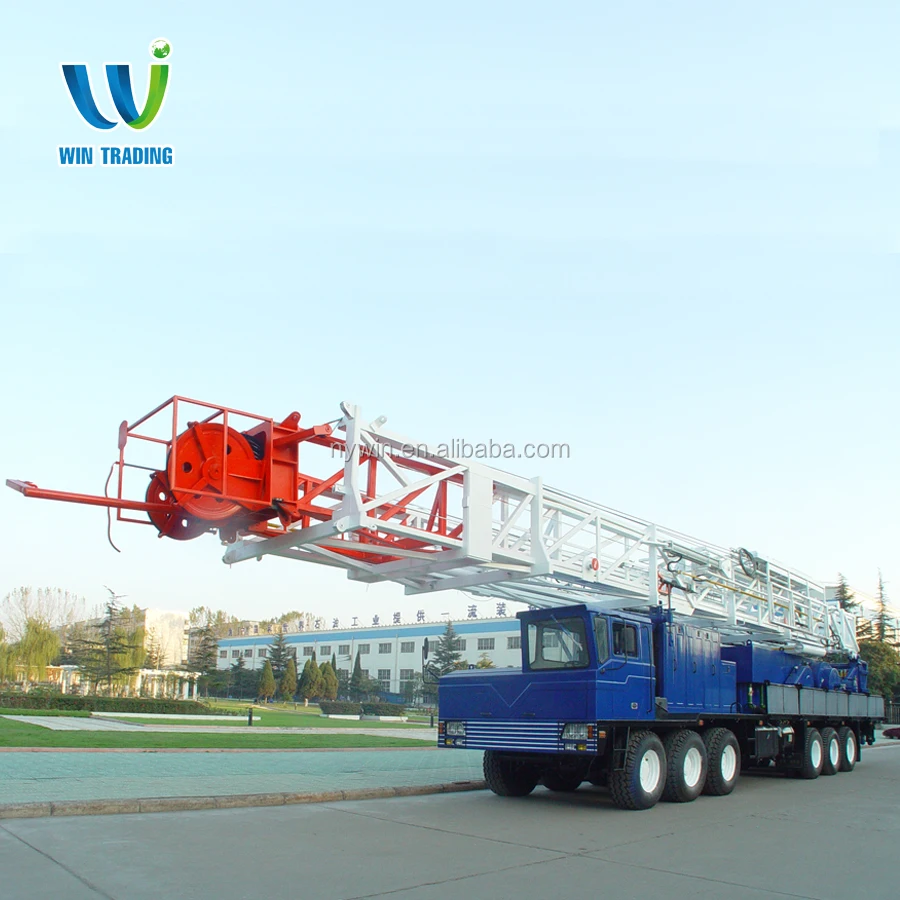

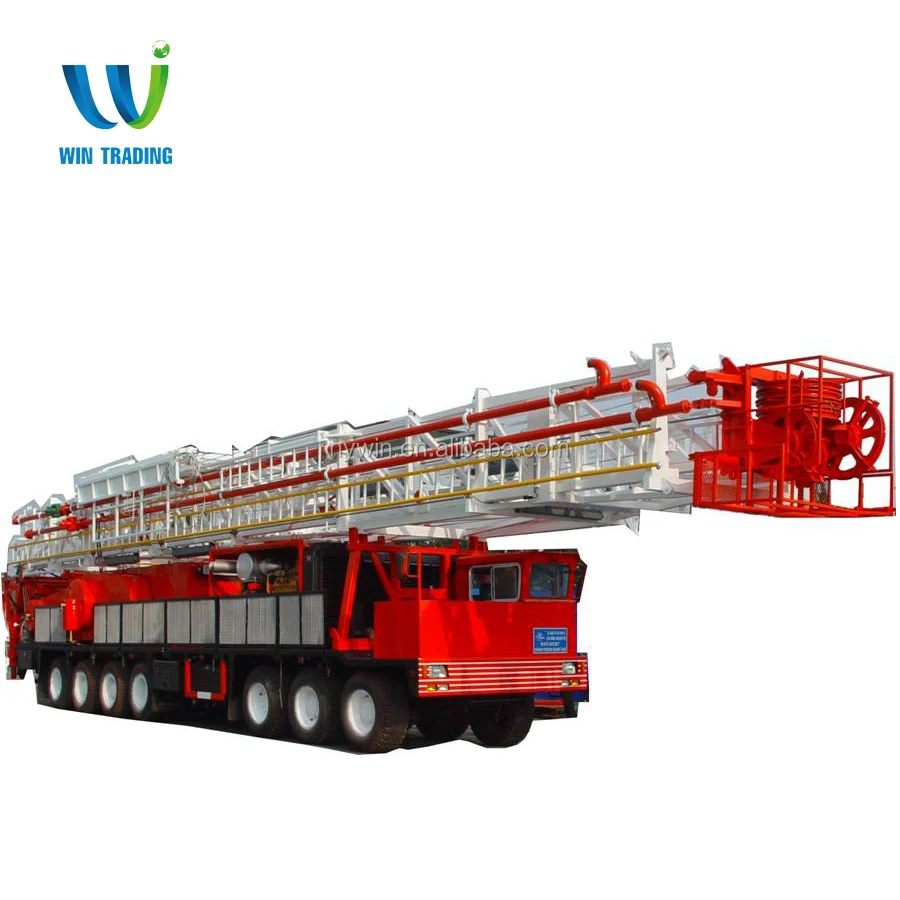

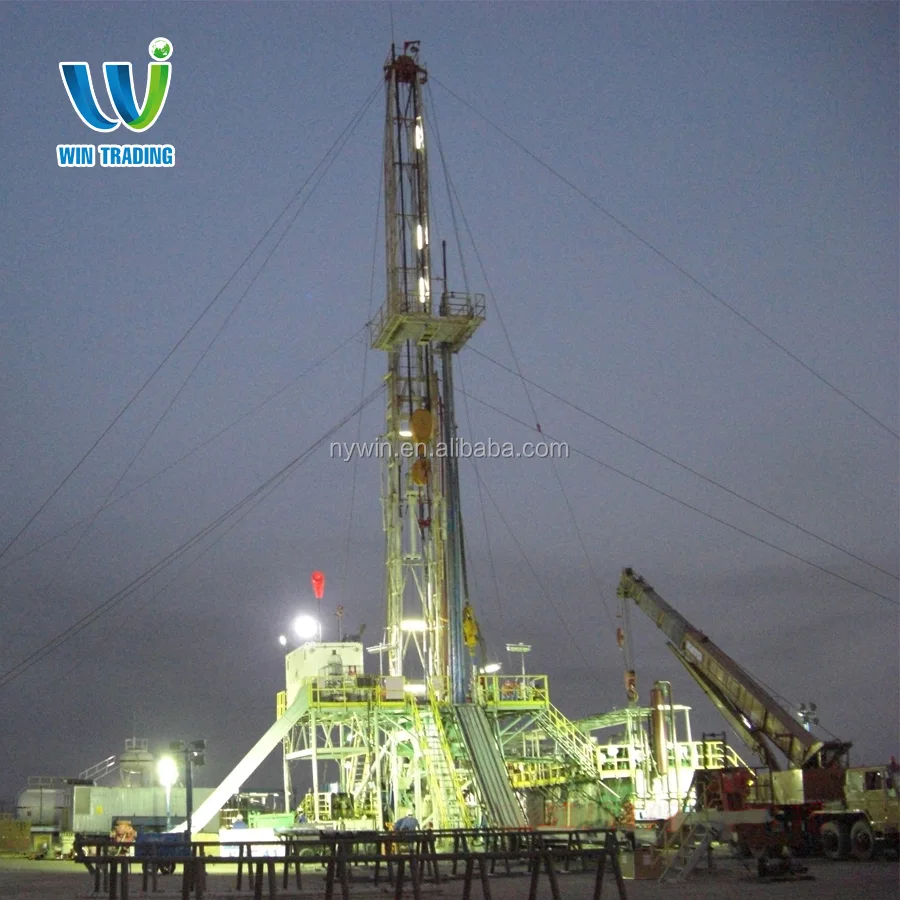

RG API Standard Oil Field Oil and Gas Well Bore Hole Truck Mounted Mobile ZJ30 750hp Drilling Rig and Workover Rig

Model                                                    ZJ 30/750HP

Drilling depth: normal depth               φ114mmDP   3000m

                                                              φ127mmDP   2500m

Nominal Workover Depth                   2-7/8’’ DP     26000ft

The max.load of hook block               1800kN

Power of drilling rig                             540HP*2/2100r/min

Height of mast                                     38m

Traveling system                                 6×5

     No.of effective wireline                    10

     Diameter of raising wireline          φ32mm

      Raising speed of hook block     0.2~1.2m/s

Open diameter of rotary table           27 ¹/₂"

Drift diameter of swivel stems         φ76mm

Height of rig floor                               19.70 ft

Scope of ambient temperature        -18℃ — +45℃
