Product Overview
Description
1200C 1400C 1500C 1600C 1700C 1800C High Temperature furnace Laboratory digital heat treatment Box/Muffle Furnace
Our Services
Product Description
XY series box furnaces are the most cost effective bench-top high temperature muffle furnace. The furnace consists of high quality alumina fiber brick and MoSi2 heating elements with special design, and furnace temperature is controlled byhigh precision SCR (Silicon Controlled Rectifier) digital controller with accuracy ±1℃ and 30 segments programmable. It is an ideal tool for Materials annealing and sintering in your research laboratory.
Technology parameter
Product application: Widely used in enterprises and institutions scientific research and small batch production, as well as colleges and universities involved in scientific research and teaching of ceramics, metallurgy, electronics, glass, chemical, machinery, refractory materials, new material development, special materials, building materials in the field.
The detail specifications of 1200C 1400C 1500C 1600C 1700C 1800C High Temperature furnace Laboratory digital heat treatment Box/Muffle Furnace
| Max.temperature | 1700C |
| Working temperature | 0-1600C |
| Furnace Chamber size(DWH)mm | 200*150*150 or as your requirement |
| Heat element | Mosi2 heating element |
| voltage and frequency | 220v 50Hz/60Hz |
| Heating rate | 0-10C/min |
| Temperature accuracy | ±1°C |
| Thermocouple | B type |
Temperature control | Adopt international advanced temperature controller, with 30-50 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.(Touch screen optional) |
Furnace shell structure | Electric furnace shell adopts double layer forced air cooling structure |
| Furnace Chamber material | Adopt the most advanced light alumina ceramic fiber in the world |
| Sandard accessories | Crucible tongs 1pc, Heating element 2pcs,Thermal gloves 1 pair,User manual 1 pc,other small tools for assembly furnace |
| Other temperature options | 1200C,1400C,1700C,1800C |
| Furnace chamber standard size | 100*100*100mm,200*150*150mm,300*200*200mm,400*300*300mm or other OEM size |
| Waranty | One year |

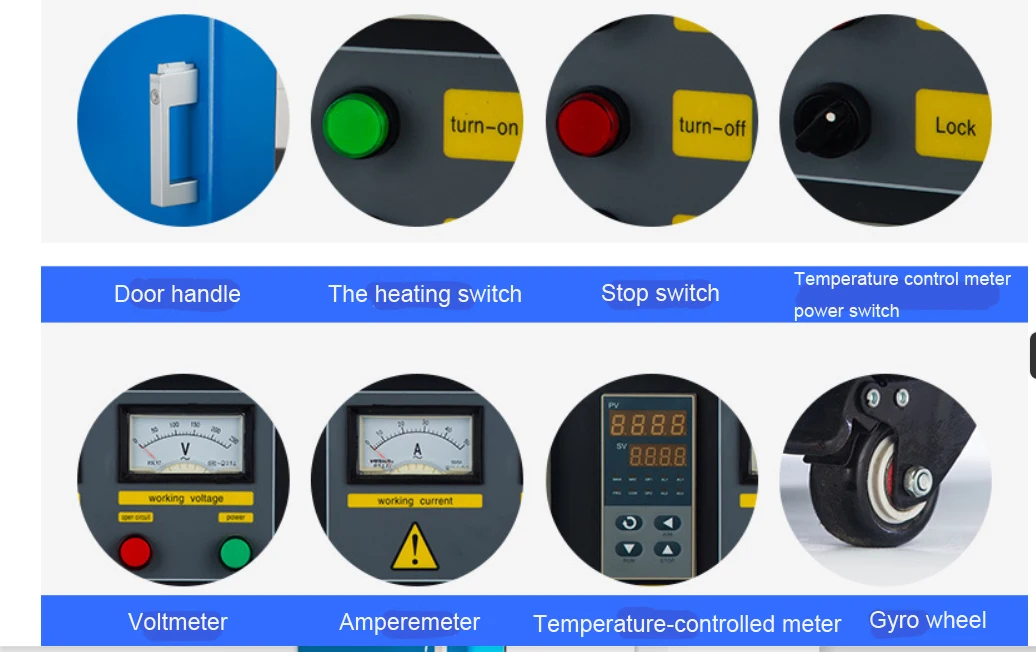

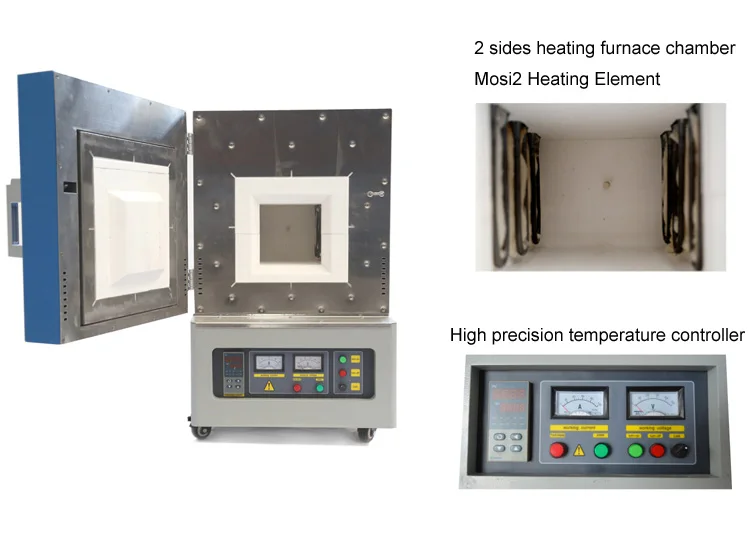

Detailed Images
High temperature furnace test area
Related products
Certifications
Our products have passed CE certification, SGS,UL,ISO9001 and other certificates.
How to make an order
FAQ
1. Q:Are you muffle furnace manufacturer?
A: Yes, we are professional muffle furnace manufacturer of China.
2. Q:What kind terms of payment can be accepted?
A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc.
3. Q: Can I ask for customized furnace?
A: Yes, customized furnace is accepted.
4. Q: What about the delivery time?
A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.
5. Q: What about the guarantee period?
A: The guarantee period is 12 months.
6. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
