24V 720W 3CH 30A led Amplifier RGB Signal Repeater led rgb repeater
- Category: >>>
- Supplier: Shenzhen Hoion Lighting Co. Limited
Share on (60630249529):
Product Overview
Description
Factory 720W 3ch RGB Signal Repeater led rgb repeater led Amplifier RGB LED Amplifier
We are manufacturer and specialized in led control field from 2010 years.
Our main products include:
Constant voltage controllers for DIM/CCT/RGB/RGBW/RGBWW:
RGB controller Wireless RF controller IR remote controller LED dimmer,
RGB amplifier SPI controller LED Audio Controller DMX512 decoder
Constant current RF dimming driver for DIM/CCT:
RF 2.4G SYNC dimming driver (DIM) RF 2.4G SYNC dimming driver(CCT)
RF 2.4G remote control RF 2.4G multiple-zone remote control
Our advantage:
1.Stable quality---3 years warranty
2.More experiece in EU and North America(we have stable relationship with some old friends from 2012):
3.Reliable cooperation based on ISO9001 quality control system and delivery time control.
4.Experienced on the OEM/ODM work.
Product Description
HX-AMF-02
LED Singal Amplifier
HX-AMF-02 RGB Amplifier is compatible with all our company RGB LED controller. It receive in and transmit out PWM signal. Adding one HX-AMF-02 RGB amplifier, more 360W (12V) led strips can be derived. In theory, RGB amplifier can be connected to numerous.
Technical Parameters
Working temperature | -20-60℃ |
Supply voltage | DC12V~24V |
0utput | 3 channels |
Connecting mode | common anode |
External dimension | L91*W88*H24 mm |
Packing size | L94*W92*H26 mm |
Net weight | 190g |
Gross weight | 220g |
Static power consumption | <1W |
Output current | ≤8A(each channel) |
Output power | 12V:≤360W, 24V:≤ 720W |
Direction for use

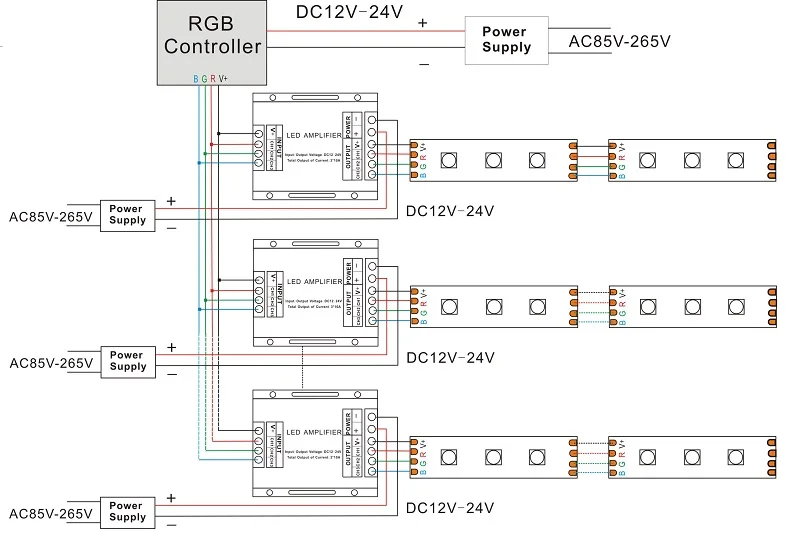

Seriously according to the print sign on the RGB amplifier iron box, connect the input and output signal lines correctly. Then connect the power supplier to the RGB amplifier Power. Specifically for the connection with LED controller and LED strip, please refer to the following <Typical Applications>.

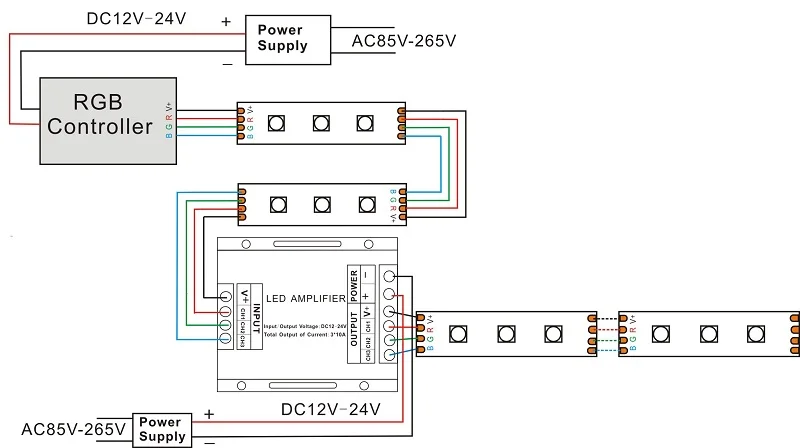

Application Circuit 2:
Application Circuit 3(single color):
Application Circuit 4(single color):
Notes
1. Supply voltage of this product is DC12/24V, never connect to others or AC220V.
2. Uses a separate switching power supply for amplifier, the effect is even better.
3. Lead wire should be connected correctly according to the connecting diagram offers.
4. Overload will destroy this product;
5. Warranty is one year, and exclude the artificial situation of damaged or overload working.
Product information for placing order
Product name | Item number |
LED Singal Amplifier | HX-AMF-02 A/C |
