ptc heater 100w assembled with electrode plates and heat sink fins are dynamic heating element designed to heat up moving air. The large surface area of aluminum fins ensures a homogeneous heat transfer adjustable with air flowing volume. Power can be regulated by the airflow and assembly condition. The higher the airflow, the higher the power(wattage) .Jinke is providing a wide range of designs.
Main features
1.Safety due to automatic temperature control, max temperature is lower than 300 degree C. Won’t burn when contact with paper, clothes or others.
2.Self-regulationg function of power, no need the thermostat.
3.Reliable and long life
4.Low air resistance, low electrical noise.
5.Awarded CUL/UL, TUV, VDE,CQC certifications
ptc heaters for family with fan heaters specification
1.Power: 200 to 4,000W 2.Rated voltage: AC/DC 48V, 100V,110V,115V-240V 3.Operating life: up to 1,000 times

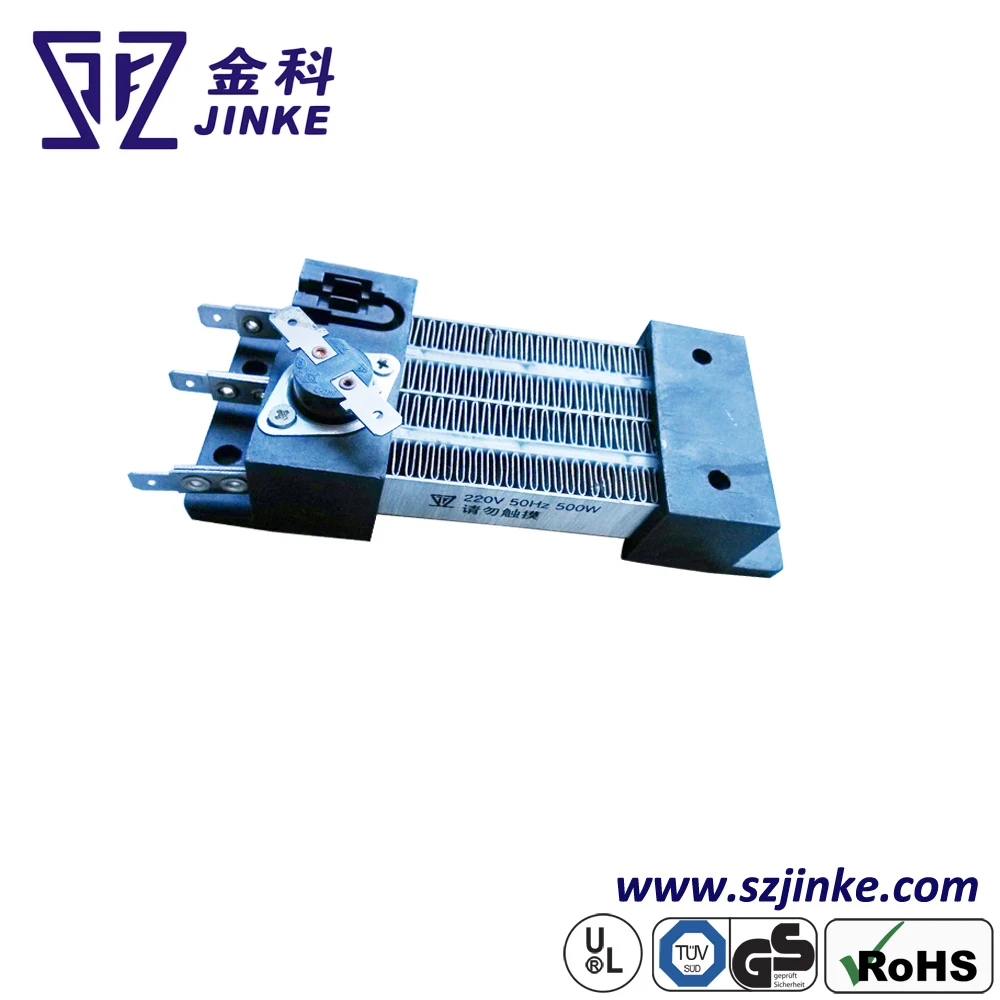

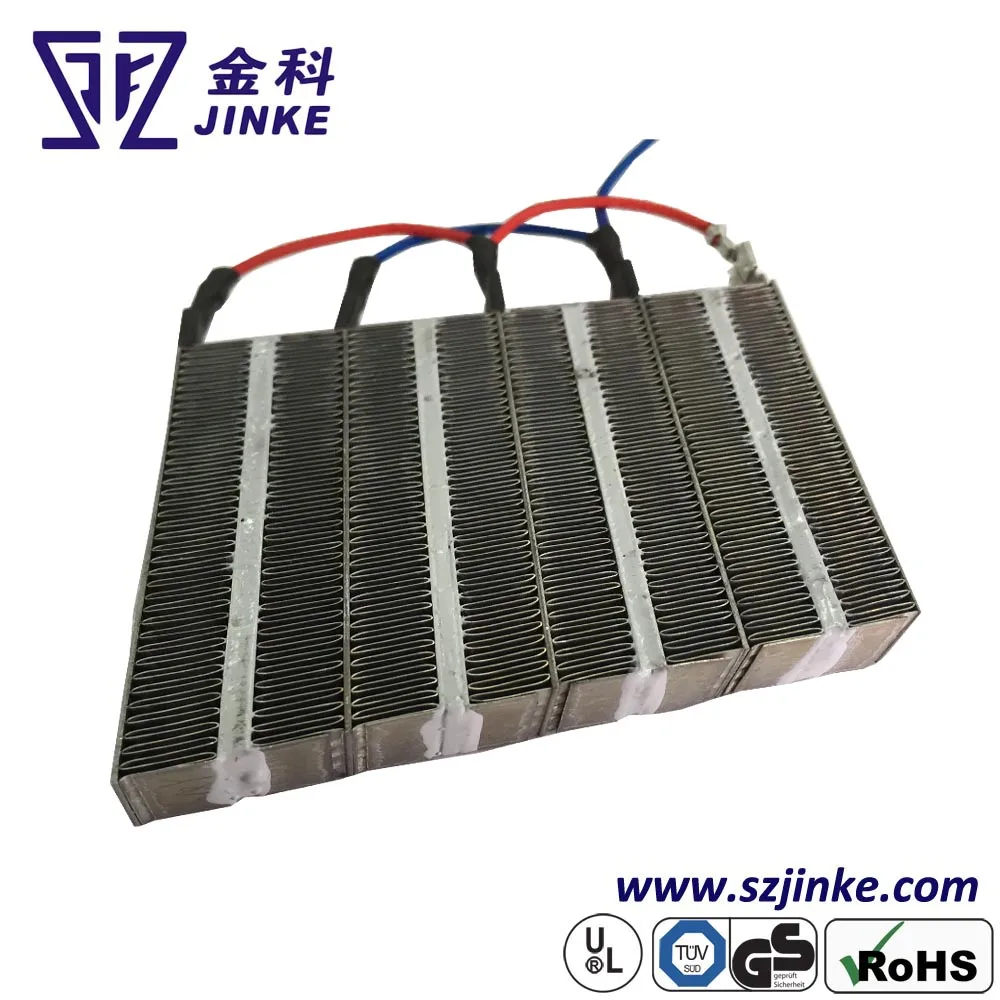

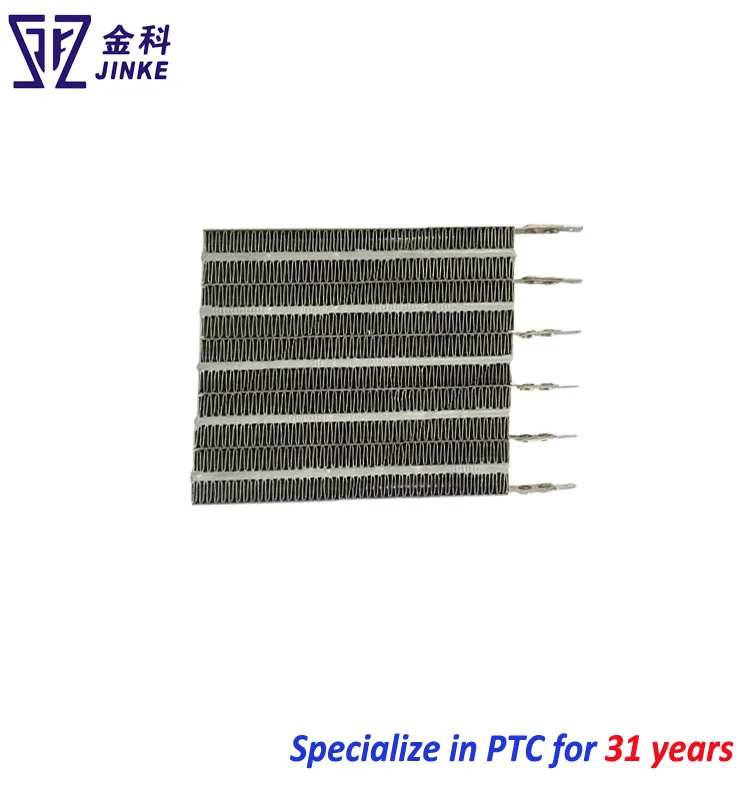

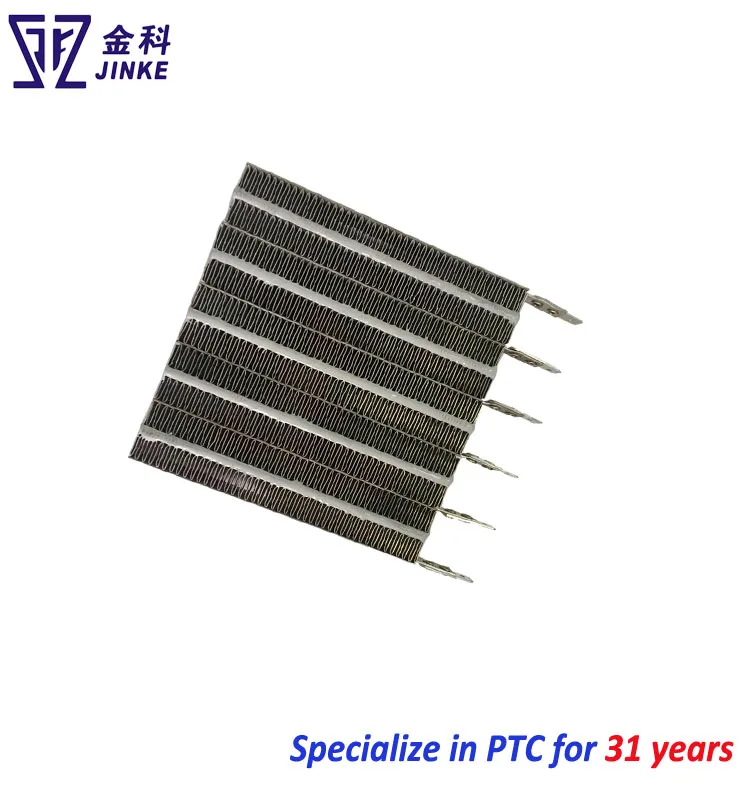

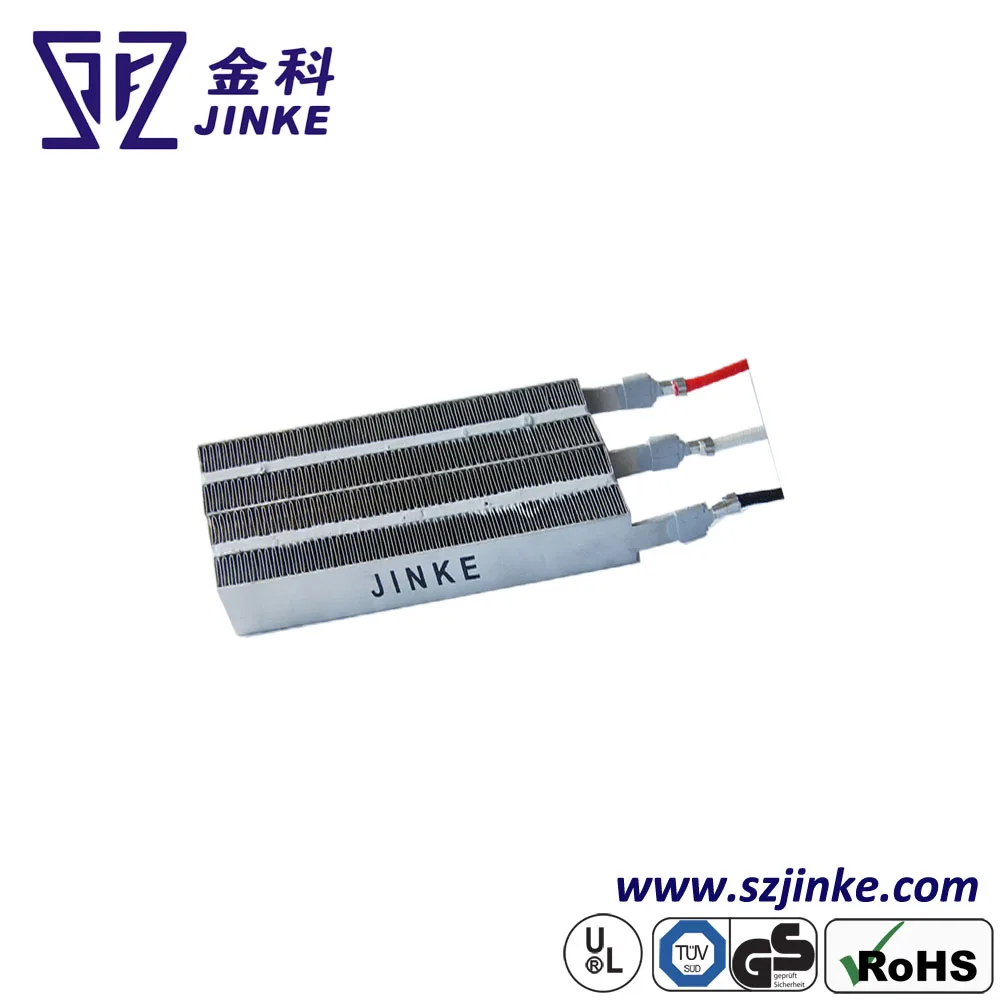

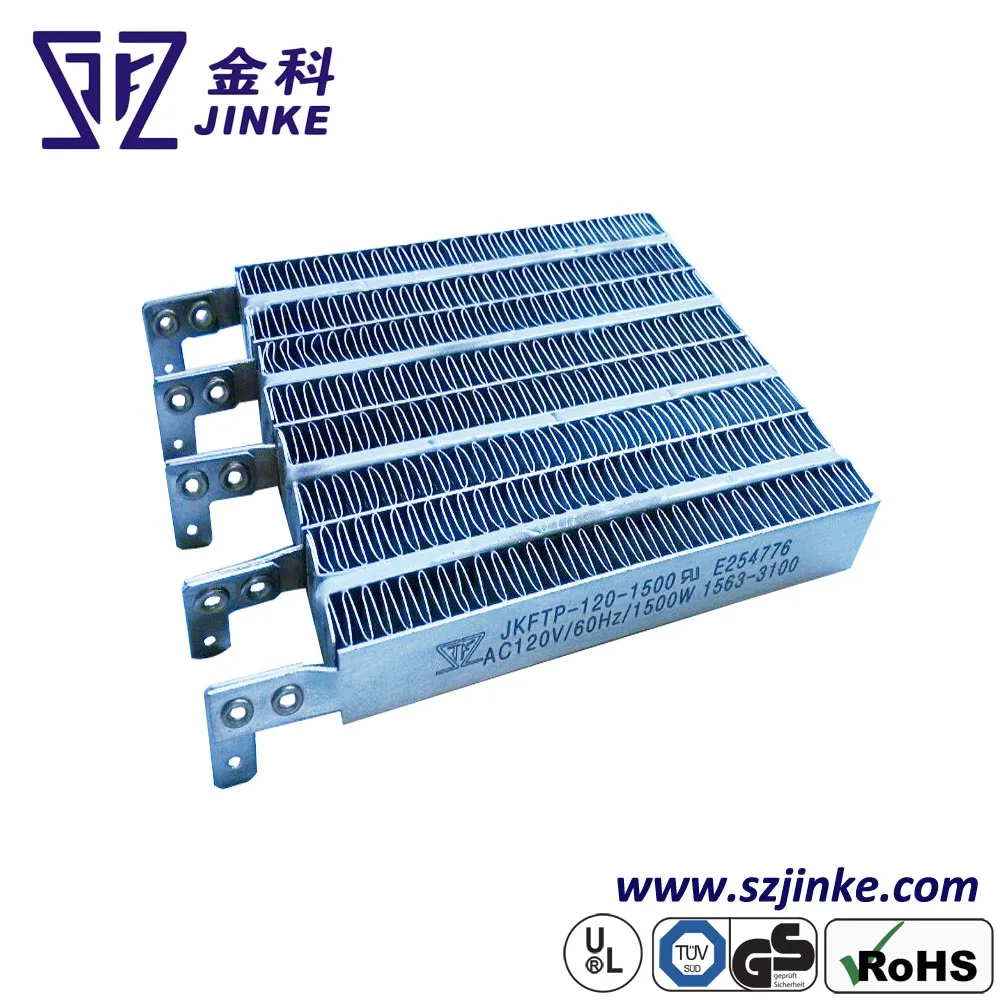

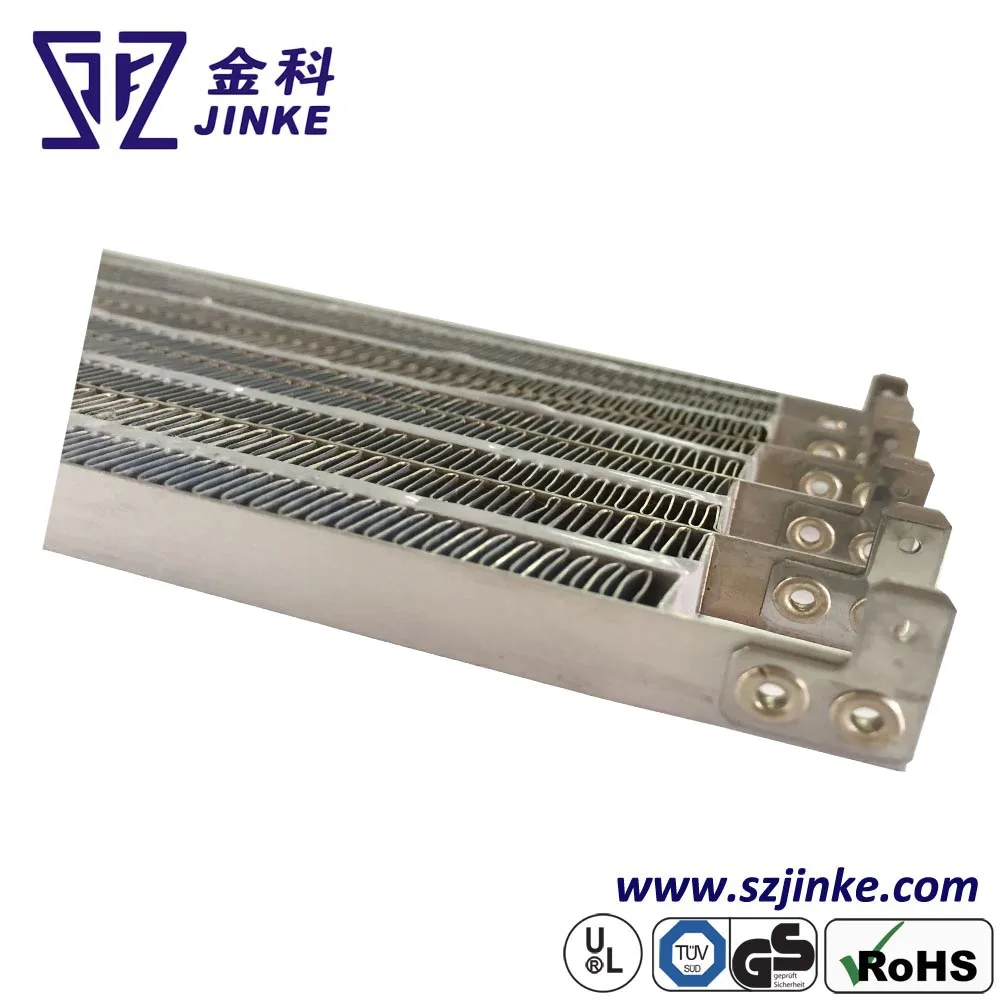

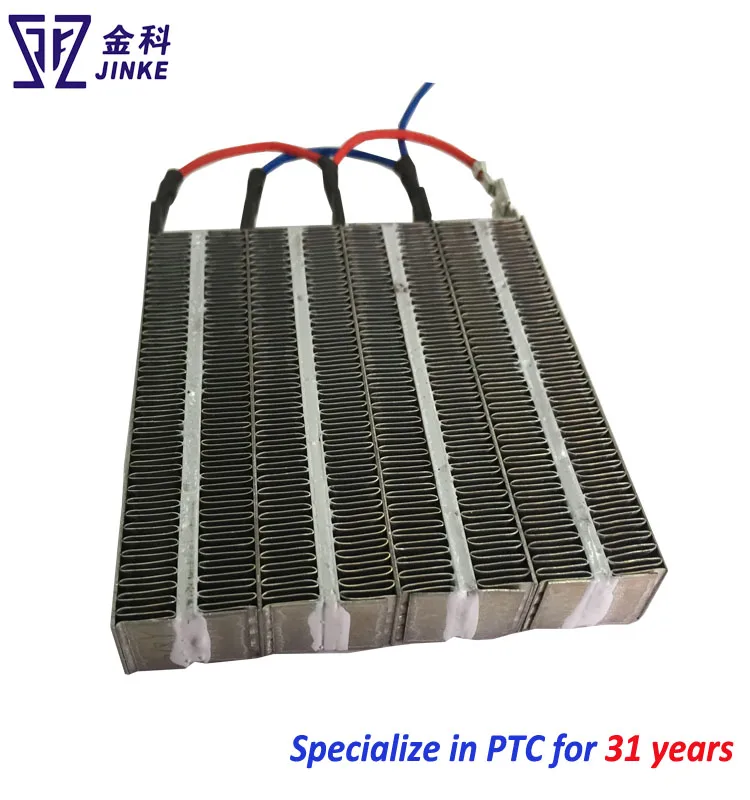

Product picture
Product quality certifications
UL & TUV & SA & CQC
ISO/TS16949:2009
ISO9001:2008
ROHS & REACH
Ptc heater workshop
Professional production team,production line , experienced technical expert who engaged in this industry for 28 years ,we have the professional production for ptc fan heater
Main Applications
This kind design ptc ceramic heater can be widely used for kinds of air heating. Such as the fan heater, hand dryer, cloth dryer, dish dryer, shoes dryer etc.
Notice in application
1)After switching on, the power is large, and then decrease, finally it become steady state. The steady state power changes with applied conditions. Faster is the heat conduction, higher is the steady state power; higher is the surface temperature, higher is the power.
2)The surface temperature of this kind ceramic ptc heater can be controlled by itself, control circuit may be omitted in most appliances. 3)Our PTC products are high reliable, long lifetime, but if they are assembled improperly, the power or temperature may be instable. 4)Parallel connection is necessary for two or more ceramic ptc heater element connection
Coperation Partner
Packaging & Shipping
Our Services
Quick response: Your inquiriments & quotation will be replied in 24hours
Sample support: 3 free samples are available in 5~10days.
ETD: Your orders will be finished in 20-60days, depends on quantity.
Payment term: T/T, L/C, D/P,D/A, Western Union & Paypal (samples only)
Company Information
Company introduction
Shenzhen Jinke Special Materials Co.,Ltd was founded in 1987ed. We are the first & biggest PTC ceramic heater heating element manufacturer in China and an high technology enterprise of R&D, production & sales. Our company have the ISO9001:2008, ISO9001:14001, and TS16949 certifications.
Our main products include PTC heating element, PPTC resettable fuse, ceramic fan heaters, coolers, humidifiers, graphites, and carbon nanotubes. All the products have been approved by UL,ROHS,CE certifications. OEM & ODM are welcome here.
We participated the fairs..
Contact information
Shenzhen Jinke Special Material Co., Ltd Jinke Industrial Park ,Guanlan High-Tech Park,Guan Lan Town,Bao’an Shenzhen 518110 China
