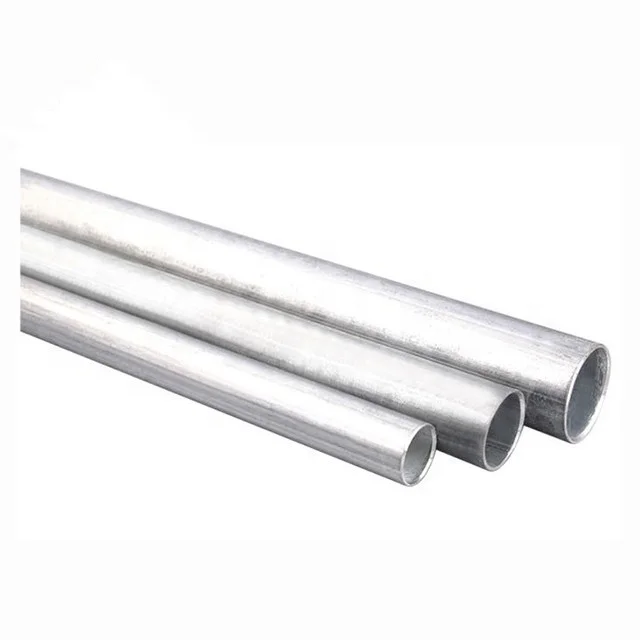

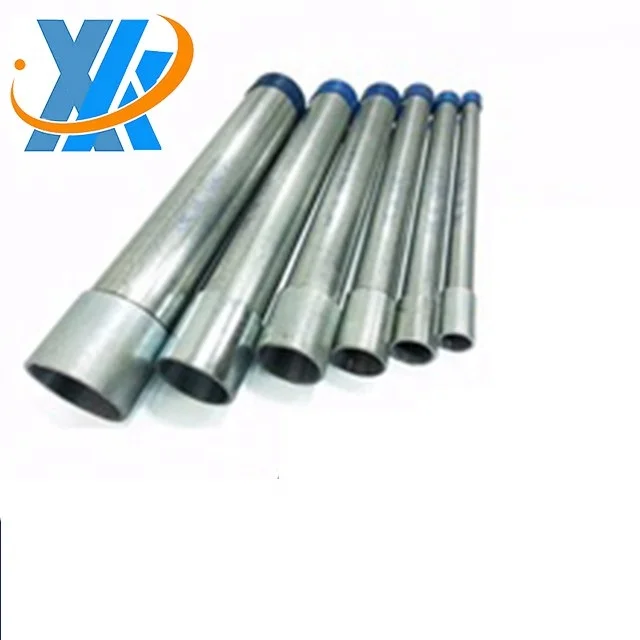

Galvanized Steel EMT Electrical Conduit for cable pipe
- Category: Conduit & Fittings >>>
- Supplier: Shanghai Xiaokai Building Material Co. Ltd.
Share on (60630670782):
Product Overview
Description
manufacturer Galvanized/Stainless Steel EMT Electrical Conduit for cable pipe
ELECTRIC METALLIC TUBING (UL797-ANSI 80.3)
Nominal Diameter | Outside Diameter | Wall Thickness | Length | Weight | |||
Inch | Inch | mm | Inch | mm | FT | mm | KG/PC |
1/2’’ | 0.706 | 17.93 | 0.042 | 1.07 | 10 | 3050 | 1.357 |
3/4’’ | 0.922 | 23.42 | 0.049 | 1.24 | 10 | 3050 | 2.069 |
1’’ | 1.163 | 29.54 | 0.057 | 1.45 | 10 | 3050 | 3.063 |
1-1/4’’ | 1.51 | 38.35 | 0.065 | 1.65 | 10 | 3050 | 4.555 |
1-1/2’’ | 1.74 | 44.2 | 0.065 | 1.65 | 10 | 3050 | 5.281 |
2’’ | 2.197 | 55.8 | 0.065 | 1.65 | 10 | 3050 | 6.720 |
2-1/2’’ | 2.875 | 73.03 | 0.072 | 1.83 | 10 | 3050 | 9.800 |
3’’ | 3.5 | 88.9 | 0.072 | 1.83 | 10 | 3050 | 11.984 |
3-1/2’’ | 4 | 101.6 | 0.083 | 2.11 | 10 | 3050 | 15.988 |
4’’ | 4.5 | 114.3 | 0.083 | 2.11 | 10 | 3050 | 17.804 |
Notes: Applicable tolerance
Length: 10FT ±1/4in. 3050mm ±6.35mm.
Outside Diameter: 1/2" to 2" ±0.005in.(16mm to 53mm ±0.13mm).
2-1/2" ±0.010in. (63mm ±0.25mm).
3" ±0.015in. (78 ±0.38mm).
3-1/2" to 4" ±0.020in. (91mm to 103mm ±0.51mm)
sion resistance electric Conduit
Packing Detail:1. Bulk, 2. Wooden Pallet, 3. Wooden Box, 4. OEM
Shipping Detail:15 to 20 days for a 20' container EMT Electrical Conduit
Advantage:Only 40km neighbored the world biggest Port - Shanghai Yangshan Port.

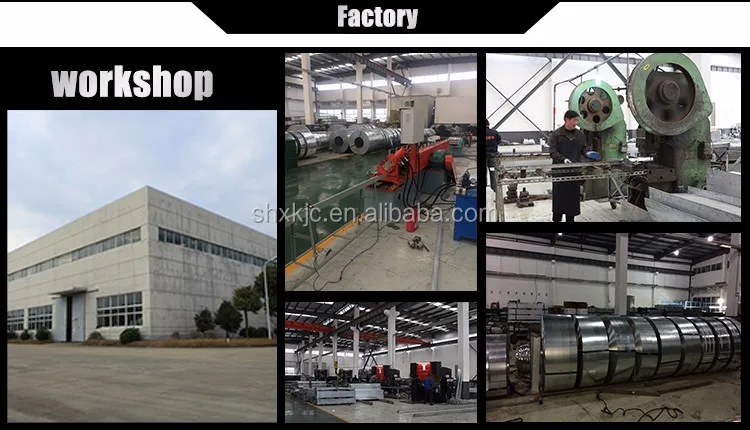

Shanghai Xiaokai Building Material Co.,Ltd is a professional manufacturer which specializing in manufacturing and selling the modern constructive conduits, cable trays and C purlin and other relative products. The company located in the famous financial city – Shanghai. Main products including: HDG conduit, GI conduit, GI C purlin, SS cable tray, GI cable tray and others. Our products could be manufactured according the BS, UL, AMSI, JIS and GB standard which is widely used in the markets, hotels, power plant, underground construction and mansion. etc Xiaokai Company’s mission“To give the best Service, Superior quality, Competitive prices fit for the needs and demand. Lead market trend.’’ |  |
| cable tray | electric conduit | strut channel |
 |  |  |
FAQ
1.You can provide some samples for me?
Yes, we can provide free samples to you, but the freight need you to bear. Please send sample list by email.
2. How long can I receive samples? casing zinc electrical wire conduit
We usually use international express delivery, usually 3-4 working days will arrive.
EMT Electrical Conduit
3. How does your company do regarding quality control?EMT Electrical Conduit
Each year we have quality supervision department inspection, and issue inspection reports, each batch of goods will be strictly controlled, the company's internal will have quality regulation, to ensure that every batch of products qualified and best quality.
EMT Electrical Conduit
4. Can provide a catalogue for me?
The electronic version can be submitted by e-mail or the hard copies of catalogs are free but freight should be collected.
Contact us Contact person: Wendy Wang Mob/Whatsapp:+86-18818212995 Tel: +0086-21-37919855 Skype: wendywang1206 Email: wendywang(@)shxkjc.com |  |
