JT 106AS 10kg Gear Pump filter cover glue dispensing machine
- Category: >>>
- Supplier: Fujian Jingtai Equipment Co. Ltd.
Share on (60630764540):
Product Overview
Description
Product Description
Product Application
The Jingtai Equipment Co., Ltd. mainly suppply the hot melt glue machine/equipment directly, our machine also can do as one part of your whole produce process when you need the glue process.
The output gluing way is dot spraying, strip spraying, mist spraying or scraper nozzle gluing. You can choose which one is best working for your products.
Our hot melt glue machine/applicator is used for footwear, packaging, woodwork, textile, toy-making, leather wares, non-woven, electronics, electrical instruments and other industry.
Saving production costs, saving labor costs and improve production efficiency for the client.
JINGTAI HOT MELT GLUE MACHINE/APPLICATOR | ||||||
MODEL | JT106P | JT106M | Mark | |||
TANK CAPACITY | 10 kg | 10 kg | ||||
MAX. MELTING RATE | 10 kg/hour | 10 kg/hour | ||||
MAX. OPERATION TEMP. | 200℃ | 200℃ | ||||
SETS OF HOSE & GLUE GUN | 1-4 sets | 1-4 sets | ||||
MAX. VISCOSITY | 12000 cps | 12000 cps | ||||
AIR PRESSURE | 4-6 kg/cm2 | 4-6 kg/cm2 | ||||
POWER | 3.9 kw | 4.00 kw | ||||
PUMP TYPE | PNEUMATIC PUMP | GEAR PUMP | ||||
TYPE OF TEMP. CONTROL | DIGITAL DISPLAY | DIGITAL DISPLAY | ||||
WEIGHT | 66 kg | 68 kg | ||||
DIMENSION | 750*350*600 | 750*500*450 | ||||
Main Features
1) Simple structure ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Saving production costs: the glue control by PLC or Manual;
4) Saving labor costs: the machine can instead the worker and it can work 24hours if you need;
5) Improve production efficiency: With control by computer, the machine can output the glue with high speed.
6) Running in a high automatization and intellectualization,no pollution
Detailed Images

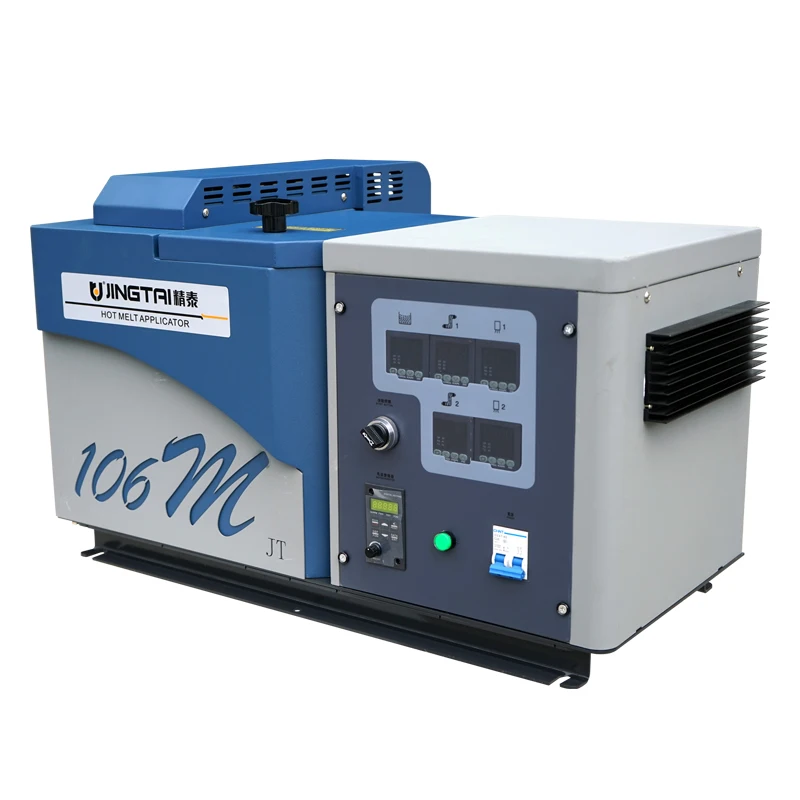

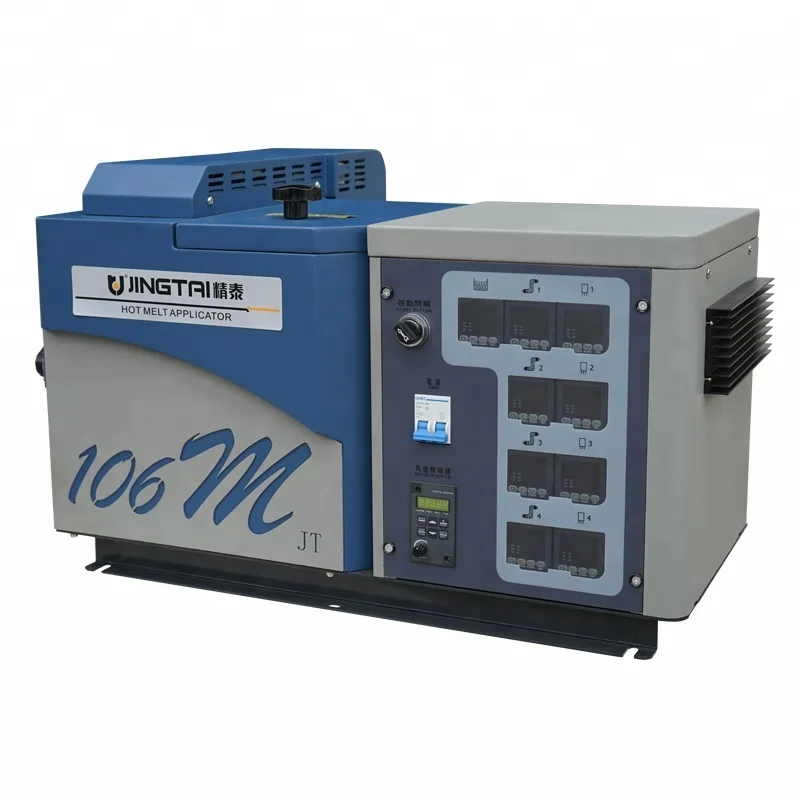

JT106M Hot Melt Glue Applicator
Name: Hot Melt Glue Machine/Applicator
Brand: Jingtai
Original: China
1. The glue output is stable;
2. High Temperature working for the Max. Glue is 200℃;
3. Low Price and Good Quality;
4. You can choose 1-4 sets glue gun.
Main Accessories

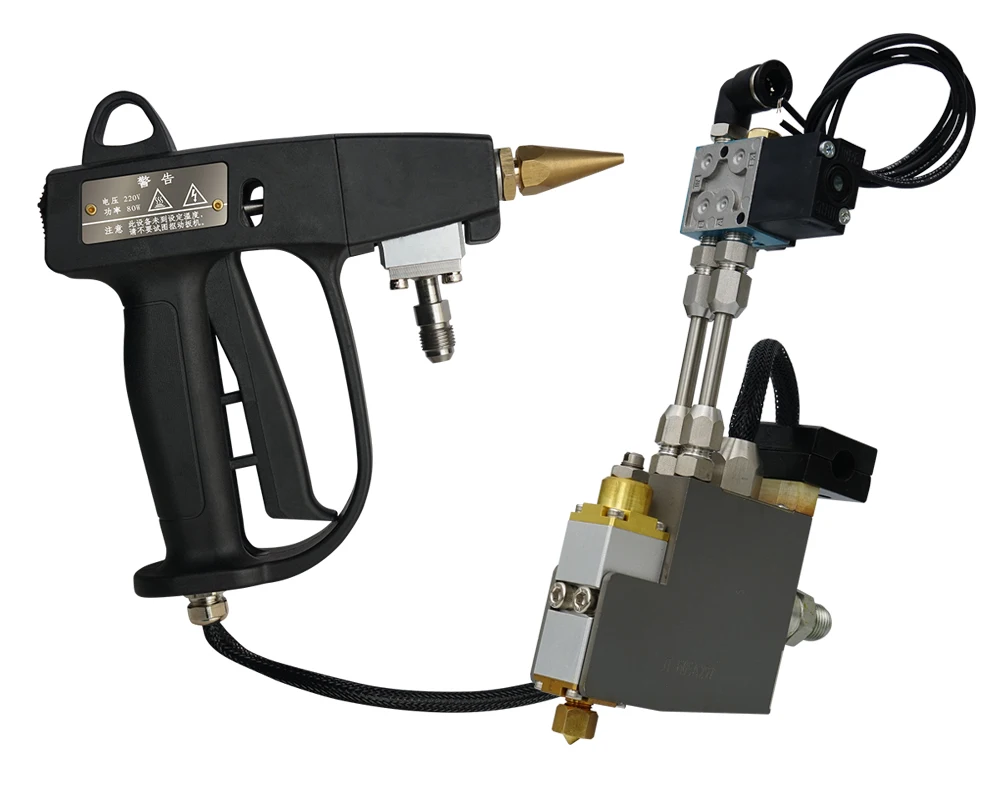

Name: Glue Gun
Brand: Jingtai
Original: China
1. Manual or automatic Glue Gun can be chosen;
2. 1-4 sets of Glue Gun can be chosen;
3. The machine is easy to cooperate with any assembly line
4. Glue output way can be chose by dot sparying, strip spraying, mist sparying, scraper sparying;
Main Accessories

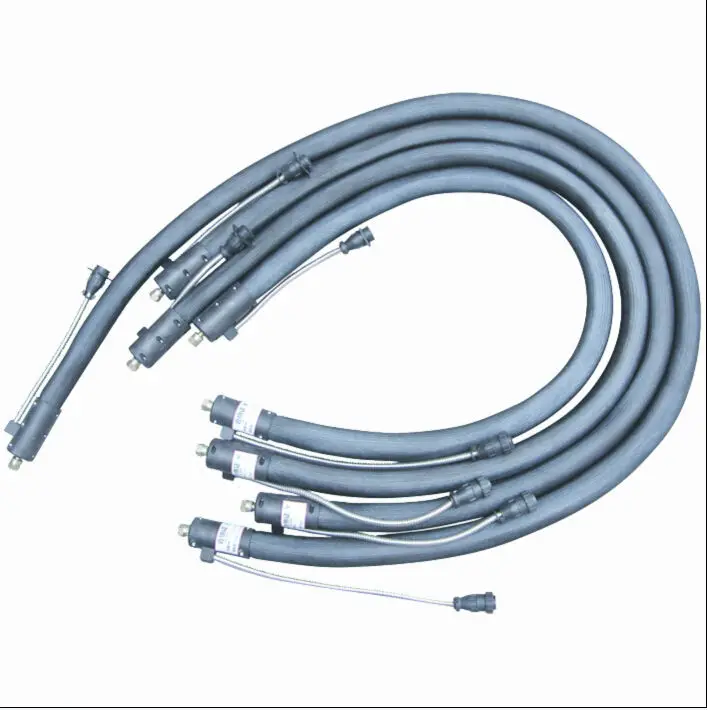

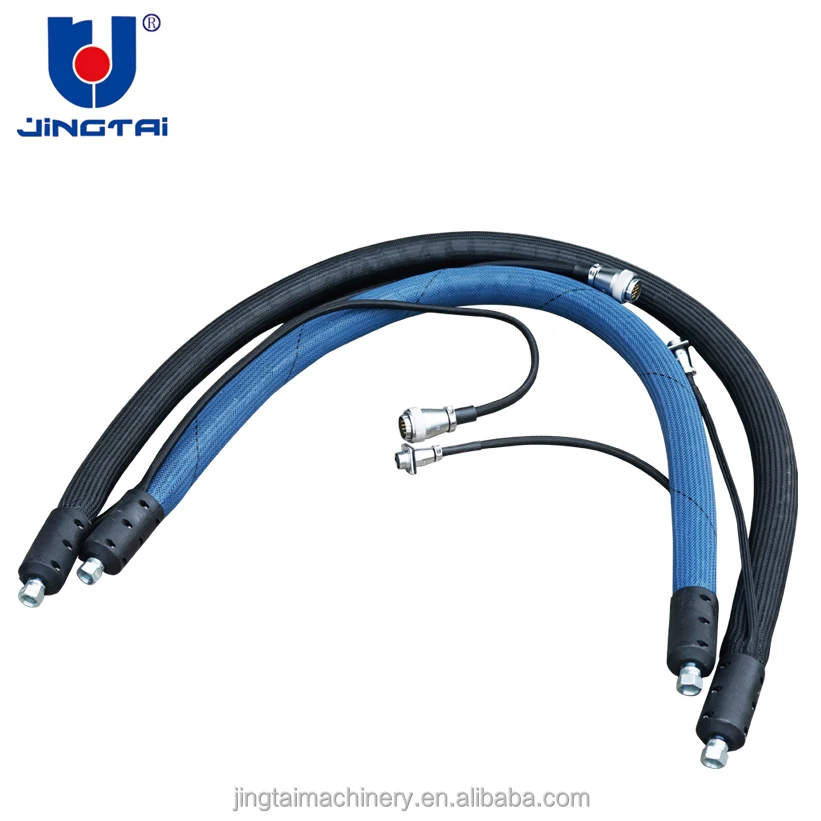

Name: Hose
Brand: Jingtai
Original: China
1. Customized pipe length;
2. High Quality;
3. k-type, PT100, Ni120 Temperature sensor can be chosen
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 900(L) * 900(W) * 1000 (H) mm | |
Weight | 75kg | |
Packaging Details | 1. The packing is confirmed to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm. 2. In order to be waterproof, we usually use bubble film to wrap machine. 3. In order to avoid the machine being damaged in transit, the foam will be full filled between the machine and wooden carton. 4.pack it according to customers special request. | |
