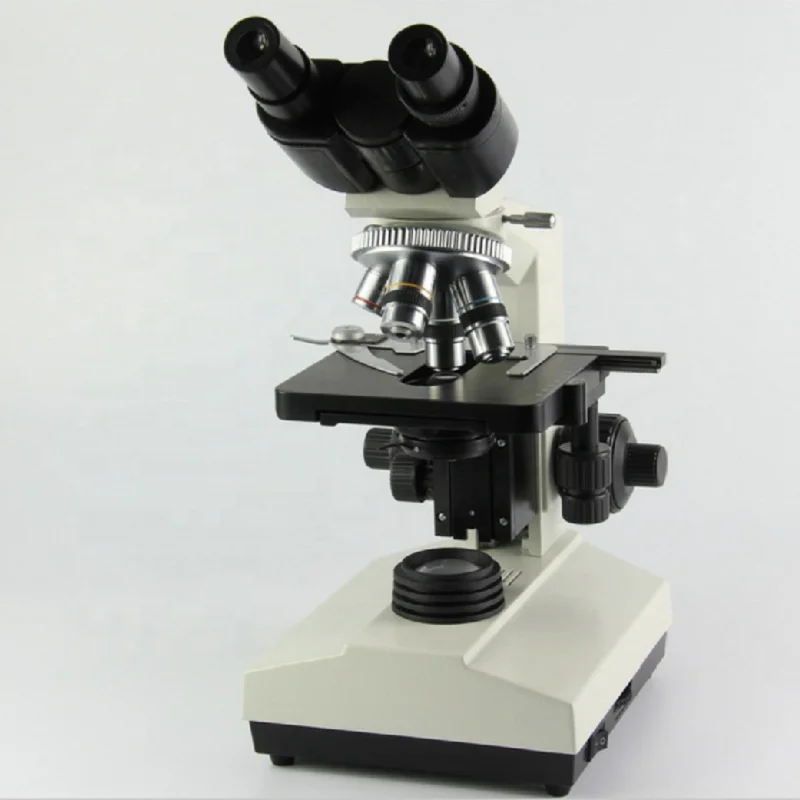

BD SW107 binocular compound optical Biological Microscope
- Category: >>>
- Supplier: Shenzhen Boshida Optical Instrument Co. Ltd.
Share on (60630824219):
Product Overview
Description
Product Description
Model | BD-SW107 |
Optical system | Achromatic optical system |
View tube | Brinocular, 30 ° Tilt. |
Eyepiece | Wide-angle WF10 × (Φ18mm)/Monocular WF16X |
Objective | Achromatic objective: 4X 10X 40X(spring) 100X/(spring, oil) |
Nosepiece | Four-hole convertor |
Stage | Sigle layer mechanical stage. Motion ruler:132X140mm, moving range: 75mm ×45mm |
Focusing mechanism | Coaxial positioning system. Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy :0.002mm. Coarse regulation:22mm |
llumination | 6V20W halogen lamp (or LED), the brightness is adjustable. |
Condensor | N.A.1.25, with iris diaphragm. |
Power supply | AC 110V 60Hz or AC 220V 50Hz |
Our Services
Warranty policy
1). We provide one year warranty for whole machine.
2). We will cover all cost due to quality problem during the warranty period.
3). For those problems caused by improper operation or inappropriate protection or maintenance, we will repair free of charge, but for damage spare parts, we will only charge at the cost price.
4). We provide the whole using life service free of charge, but for the products that exceeds warranty period, we will only charge the replacement at cost price.
Company Information
Contact: Apple Cheng
Mobile/wechat: +86 136 1304 5058
QQ: 3032176780
www.cn-microscope.com
Packaging & Shipping
Foam+Carton
Optional: Wooden box
