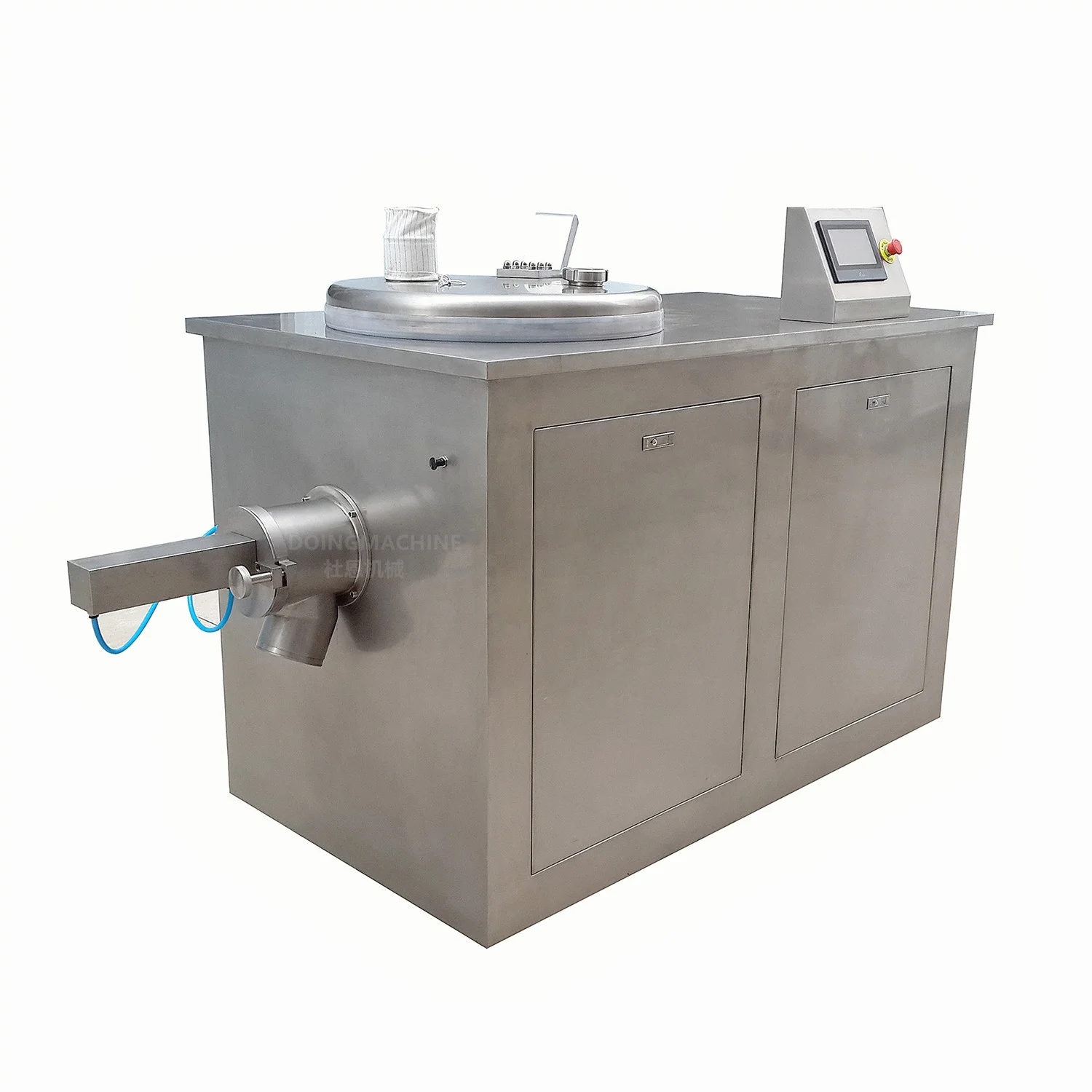

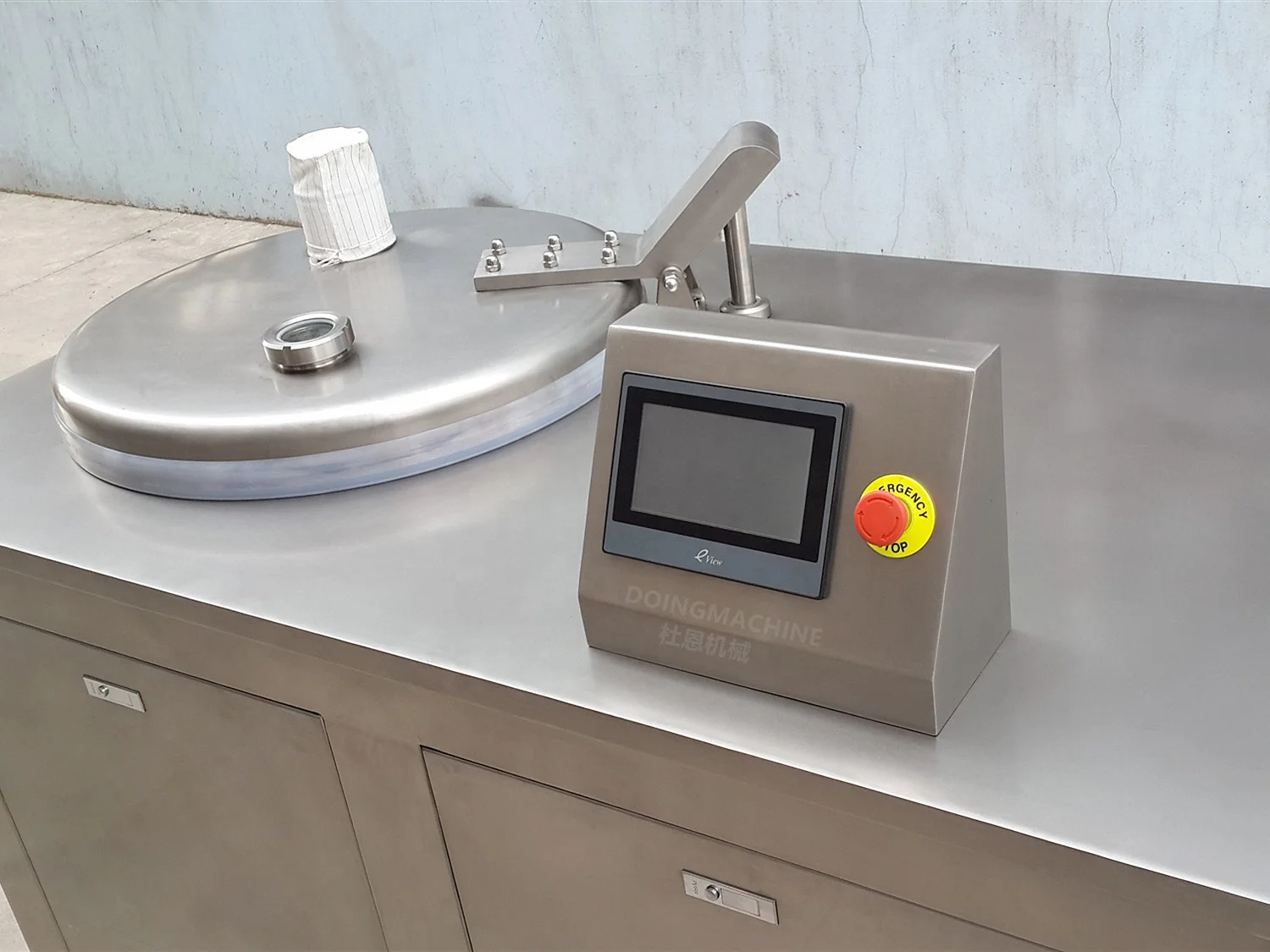

Pharmaceutical high shear mixer
- Category: >>>
- Supplier: Changzhou Doing Machine Co. Ltd.
Share on (60630832839):
Product Overview
Description
Product Description
Main features
1. Fast dry mixing of powders and wet granulation process in pharmaceutical, chemical and food industry
2. Mixing vessel volume: 50-600L;
3. GMP design
4. Binder liquid spray system and heating jacket can be equipped.
2. Mixing vessel volume: 50-600L;
3. GMP design
4. Binder liquid spray system and heating jacket can be equipped.
Working principle

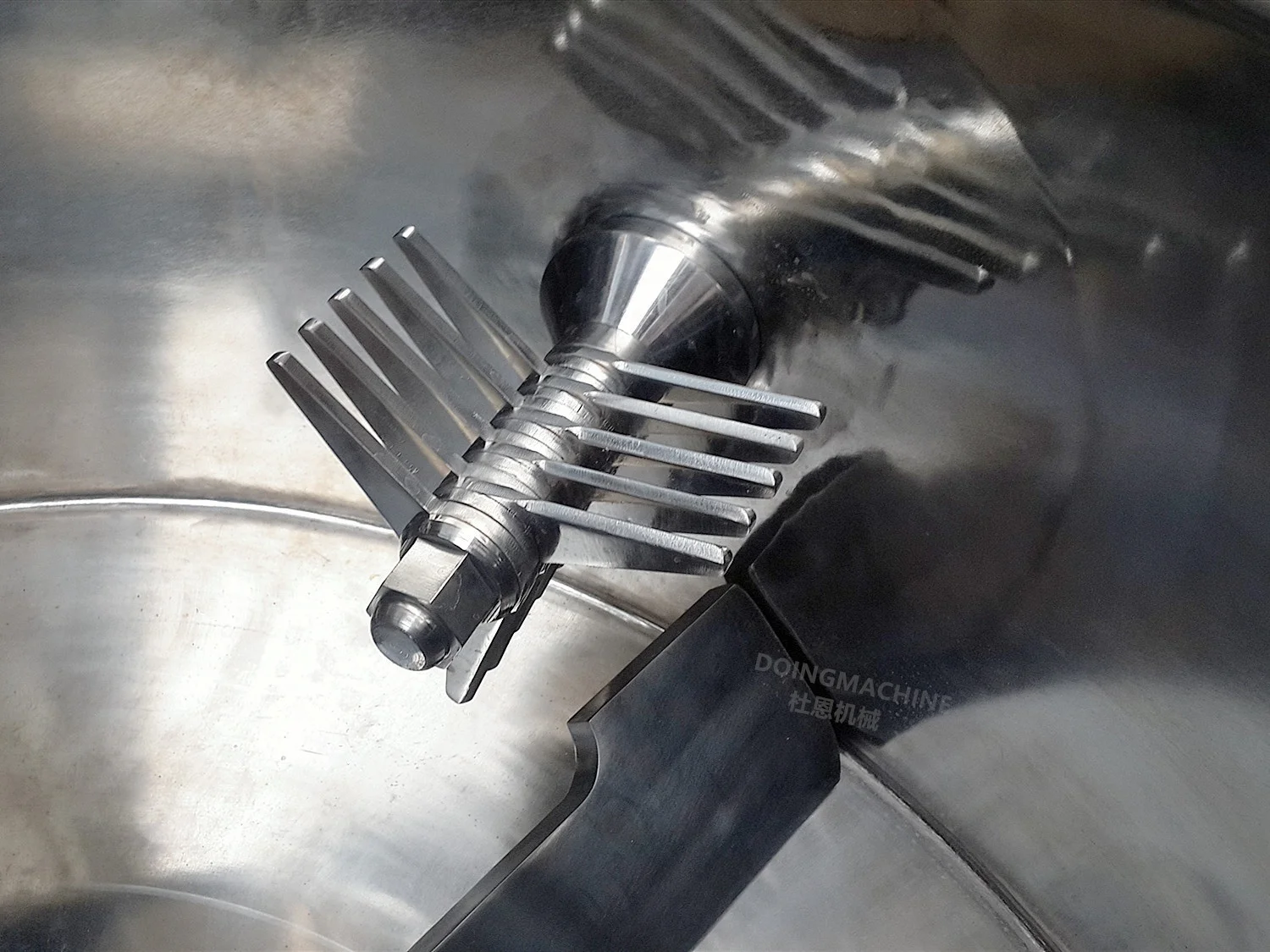

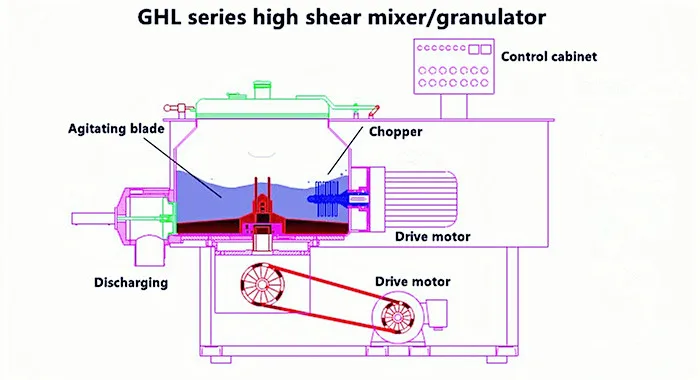

GHL series high shear mixer granulator consists of a vertical mixing barrel, bottom placed agitating impeller and side installed choppers. When powders or slurry materials are fed into the mixing barrel, the specially designed rotating impeller pushes the material onto the inner barrel wall. Under the effect of centrifugal force, the material moves up alongside the barrel wall to form a swirl flow. At the same time, the side installed high-speed chopper completely shear and chop the materials to get uniform mixing.
High shear mixer granulator is also extensively used for wet granlation process by evenly adding binder to fine-powder mixture to get uniform granules in a short time.
GHL series high shear mixer granulator can carry out even mixing of powders or slurry materials with different proportion, so that the mixed materials can reach their best effectiveness. Also it has been used for wet granulation process.
Technical advantages
1) The whole machine is made by stainless steel and well polished. It can meet GMP pharmaceutical standard.
2) The machine is compact and easy for operation and cleaning.
3) Mixing bowl opening and product discharging are automatic via pneumatic drive system.
4) Mixing time is very short. Only takes 3-5 minutes in many conditions.
5) The operation steps are interlocked for safety
2) The machine is compact and easy for operation and cleaning.
3) Mixing bowl opening and product discharging are automatic via pneumatic drive system.
4) Mixing time is very short. Only takes 3-5 minutes in many conditions.
5) The operation steps are interlocked for safety
Main technical parameters
Model | GHL-50 | GHL-100 | GHL-200 | GHL-300 | GHL-400 | GHL-500 |
Volume L | 50 | 100 | 200 | 300 | 400 | 500 |
Max capacity kg/batch | 30 | 40 | 80 | 120 | 160 | 200 |
Mixing speed RPM | 100-400 | 80-270 | 80-270 | 60-220 | 50-220 | 40-180 |
Mixing power KW | 5.5 | 11 | 15 | 22 | 22 | 30 |
Chopper speed RPM | 50-3000 | 50-3000 | 50-3000 | 50-3000 | 50-3000 | 50-3000 |
Chopper power KW | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 |
Dimension LxWxH M | 2X0.85X1.2 | 2.5X1X1.8 | 2.8X1X1.9 | 3X1X2.1 | 3.1X1.25X2.1 | 3.1X1.3X2.5 |
Detailed Images

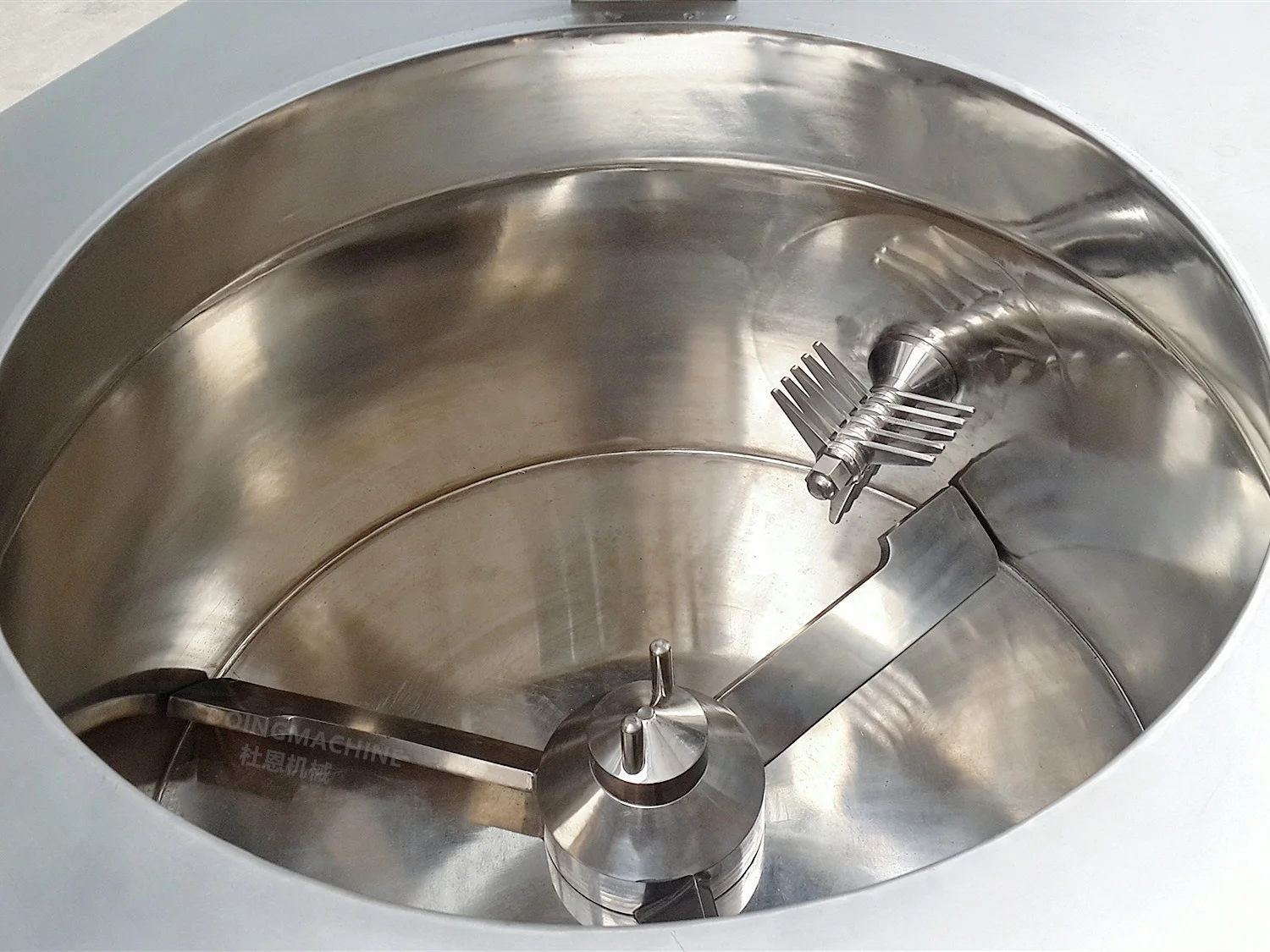

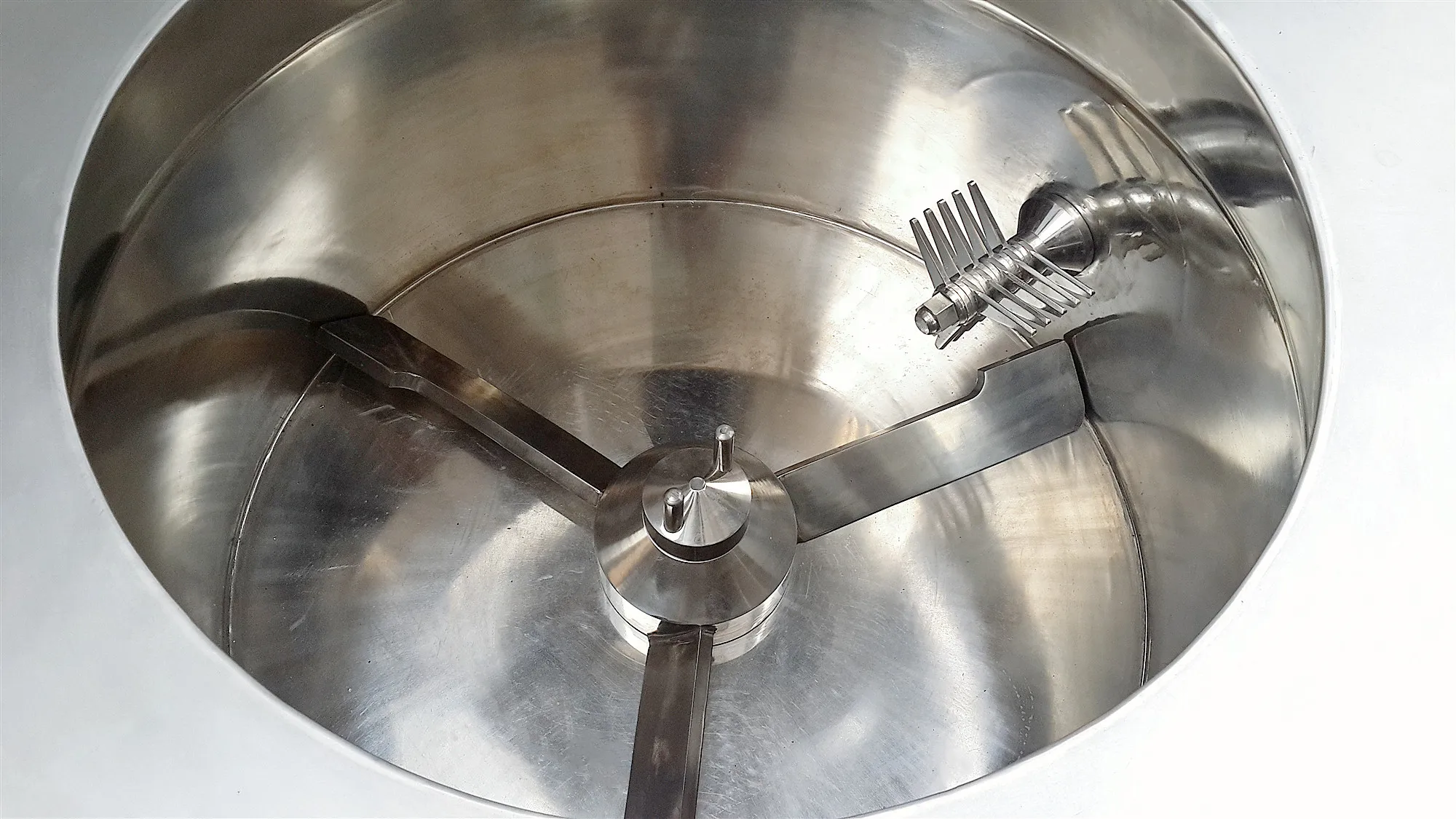

Mixing granulating bowl

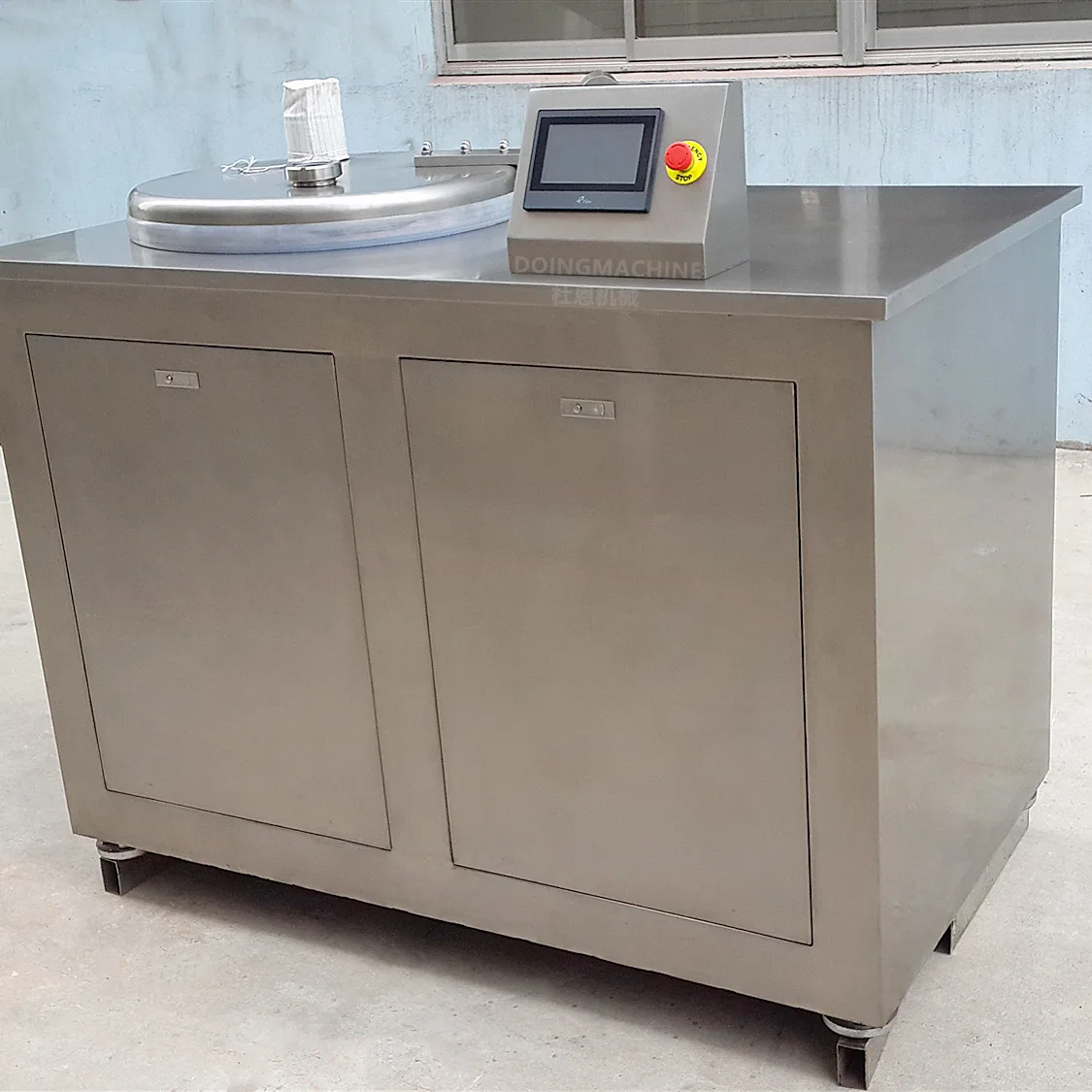

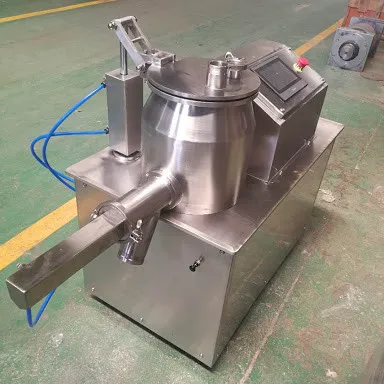

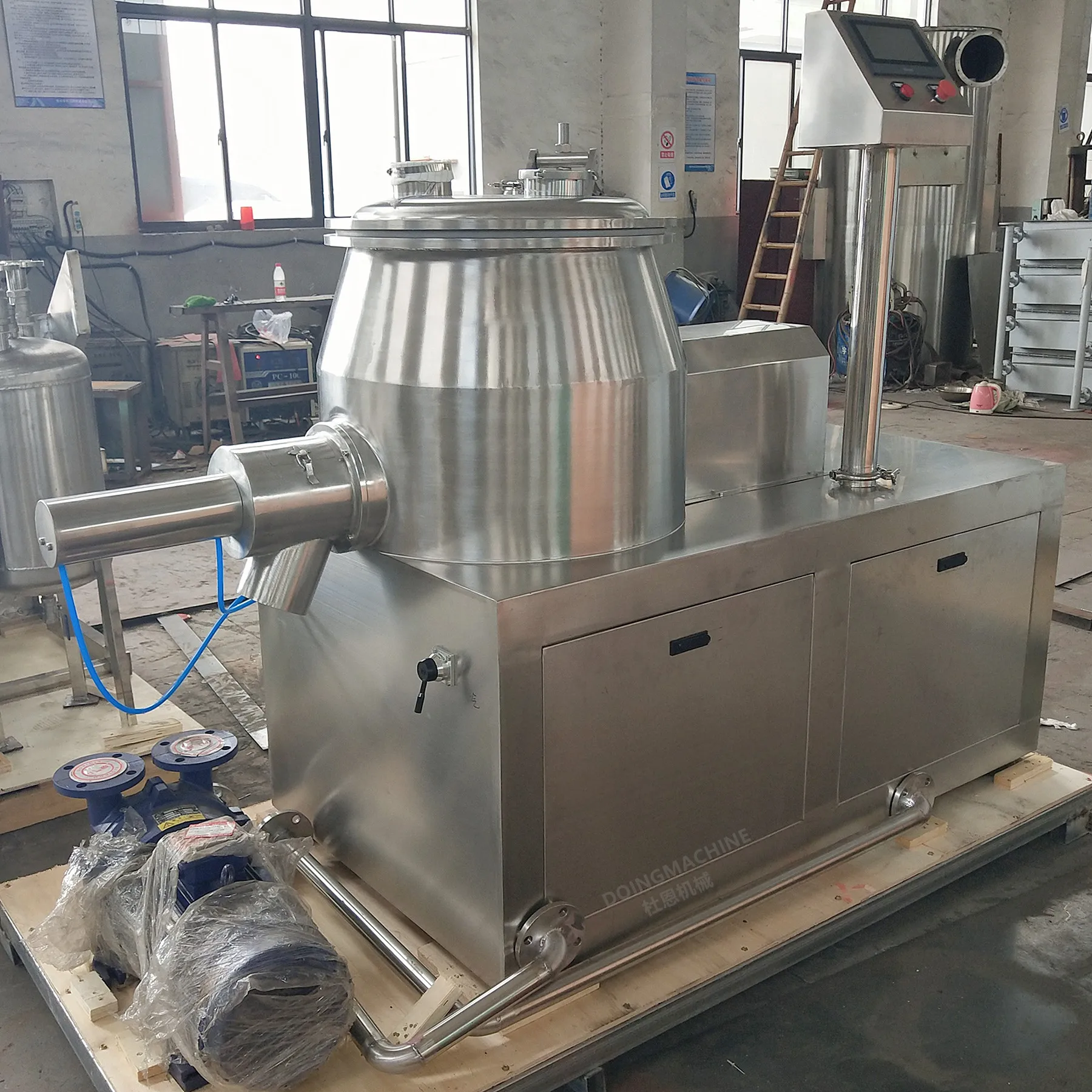

Table-type granulator

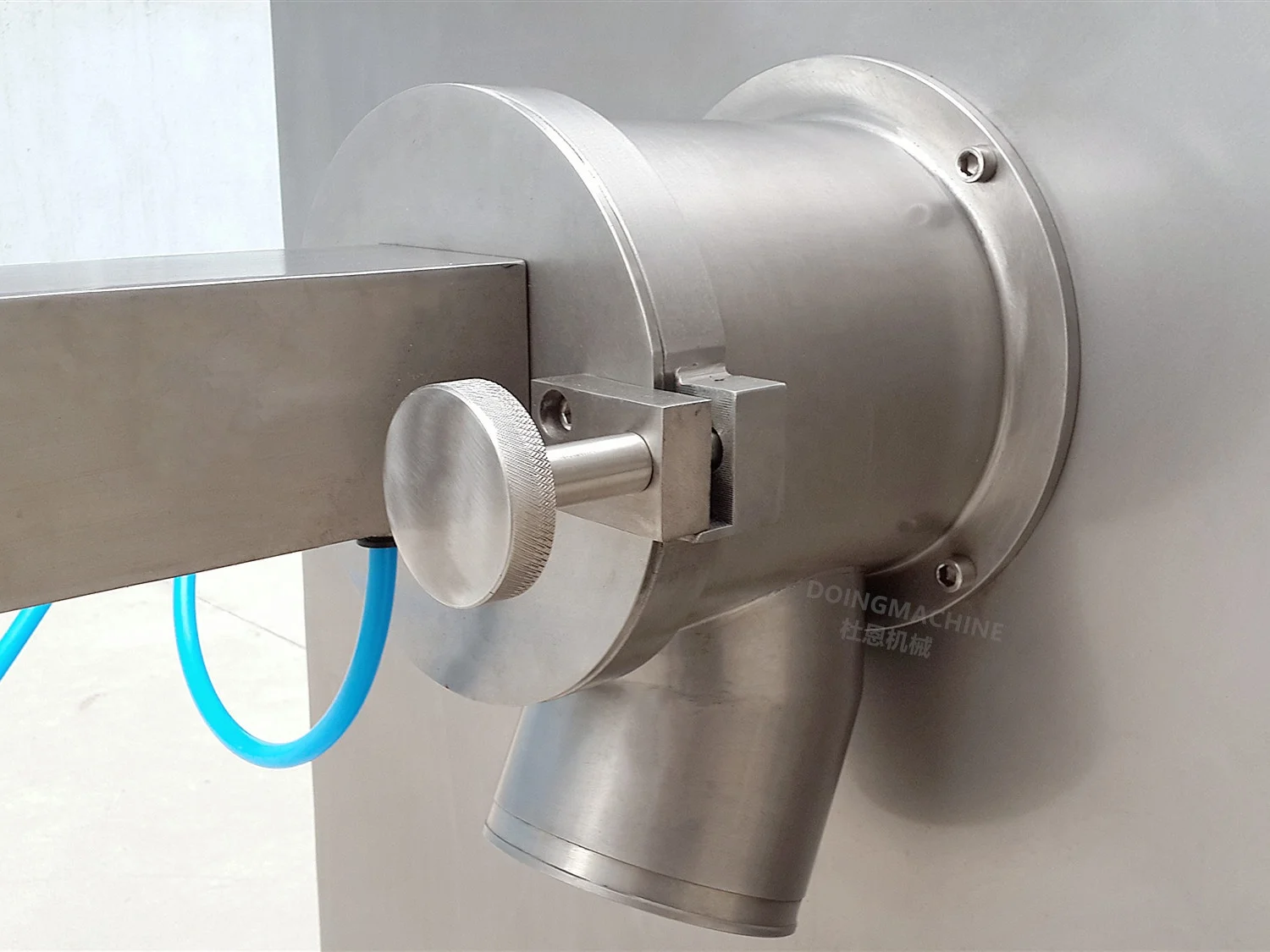

Discharge valve
Pneumatic lid-opening device
Packing & Delivery
FAQ
Q: What information should be provided in order to get a proposal or quotation?
A: Our high shear mixer granulator can be customerized. To work out a detailed proposal or quotation, we have to know the following information:
1) Particle size of products to be mixed
2) Bulk density of products to be mixed
3) Mixing/granulating bowl volume
4) Construction material:SUS304 or SUS316L
5) whether liquid binder dosing device and heating jacket are needed
Q: How the machine will be delivered ?
A: The mixer is packed in plywood box for shipping
Product Description
Main features
1. Fast dry mixing of powders and wet granulation process in pharmaceutical, chemical and food industry
2. Mixing vessel volume: 50-600L;
3. GMP design
4. Binder liquid spray system and heating jacket can be equipped.
2. Mixing vessel volume: 50-600L;
3. GMP design
4. Binder liquid spray system and heating jacket can be equipped.
Working principle
GHL series high shear mixer granulator consists of a vertical mixing barrel, bottom placed agitating impeller and side installed choppers. When powders or slurry materials are fed into the mixing barrel, the specially designed rotating impeller pushes the material onto the inner barrel wall. Under the effect of centrifugal force, the material moves up alongside the barrel wall to form a swirl flow. At the same time, the side installed high-speed chopper completely shear and chop the materials to get uniform mixing.
High shear mixer granulator is also extensively used for wet granlation process by evenly adding binder to fine-powder mixture to get uniform granules in a short time.
GHL series high shear mixer granulator can carry out even mixing of powders or slurry materials with different proportion, so that the mixed materials can reach their best effectiveness. Also it has been used for wet granulation process.
Technical advantages
1) The whole machine is made by stainless steel and well polished. It can meet GMP pharmaceutical standard.
2) The machine is compact and easy for operation and cleaning.
3) Mixing bowl opening and product discharging are automatic via pneumatic drive system.
4) Mixing time is very short. Only takes 3-5 minutes in many conditions.
5) The operation steps are interlocked for safety
2) The machine is compact and easy for operation and cleaning.
3) Mixing bowl opening and product discharging are automatic via pneumatic drive system.
4) Mixing time is very short. Only takes 3-5 minutes in many conditions.
5) The operation steps are interlocked for safety
Main technical parameters
Model | GHL-50 | GHL-100 | GHL-200 | GHL-300 | GHL-400 | GHL-500 |
Volume L | 50 | 100 | 200 | 300 | 400 | 500 |
Max capacity kg/batch | 30 | 40 | 80 | 120 | 160 | 200 |
Mixing speed RPM | 100-400 | 80-270 | 80-270 | 60-220 | 50-220 | 40-180 |
Mixing power KW | 5.5 | 11 | 15 | 22 | 22 | 30 |
Chopper speed RPM | 50-3000 | 50-3000 | 50-3000 | 50-3000 | 50-3000 | 50-3000 |
Chopper power KW | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 |
Dimension LxWxH M | 2X0.85X1.2 | 2.5X1X1.8 | 2.8X1X1.9 | 3X1X2.1 | 3.1X1.25X2.1 | 3.1X1.3X2.5 |
Detailed Images
Mixing granulating bowl
Table-type granulator
Discharge valve
Pneumatic lid-opening device
Packing & Delivery
FAQ
Q: What information should be provided in order to get a proposal or quotation?
A: Our high shear mixer granulator can be customerized. To work out a detailed proposal or quotation, we have to know the following information:
1) Particle size of products to be mixed
2) Bulk density of products to be mixed
3) Mixing/granulating bowl volume
4) Construction material:SUS304 or SUS316L
5) whether liquid binder dosing device and heating jacket are needed
Q: How the machine will be delivered ?
A: The mixer is packed in plywood box for shipping
