2.2KW Flexible Dust Extractor Machine HEPA Filter Industrial Dust Collector System
- Category: >>>
- Supplier: Dongguan Villo Technology Inc.
Share on (60630980552):
Product Overview
Description
VJF Series Air Pulse Jet Cleaning Industrial Dust Collector
Product description
VJF series is an industrial dust collector with multi-motor power, large air volume, pulse jet filter cleaning, stability and
reliability. Can meet the dust removal needs of multiple industries and multiple processes.
Applications
A self-cleaning dust collector for continuous applications, where high collection efficiency is essential, such as grinding,
sandblasting, mixing, packaging, vibrating screen, crushing, etc.
Features
* Compact design allows placement flexibility and saves floor space.
* The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.
* Pulse jet cleaning method for the filter makes machine to work continuously, user can set the pulse frequency depending upon the requirements.
* Real-time monitoring of machine pressure changes can quickly detect whether the filter needs to be cleaned.
* The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.
* Pulse jet cleaning method for the filter makes machine to work continuously, user can set the pulse frequency depending upon the requirements.
* Real-time monitoring of machine pressure changes can quickly detect whether the filter needs to be cleaned.
Right elevation
Left elevation
Front elevation
Technology Parameters
Model | VJF-1.5 | VJF-2.2 | VJF-3.0 | VJF-4.0 | VJF-5.5 | VJF-7.5 | VJF-11 | VJF-15 | |||||||
Voltage (V/Hz) | 380 / 50 | ||||||||||||||
Power(kW) / (HP) | 1.5 / 2.0 | 2.2 / 3.0 | 3.0/4.0 | 4.0 / 5.5 | 5.5 / 7.5 | 7.5 / 10 | 11 / 15 | 15 / 20 | |||||||
Max air flow (m³/h) / (CFM) | 1500 / 882 | 2200 / 1294 | 3000 / 1765 | 4000 / 2353 | 5500 / 3235 | 7500 / 4412 | 9000 / 5294 | 12000 / 7059 | |||||||
Filter area (m²) / (sq.ft) | 11 / 118.5 | 22 / 237 | 22 / 237 | 44 / 474 | 44 / 474 | 66 / 710 | 99 / 1066 | 99 / 1066 | |||||||
Filter efficiency | >99% | ||||||||||||||
Dust container capacity (L) / (gal) | 30 / 7.9 | 50 / 13.2 | 60 /15.9(2pcs) | 80 / 21.2(2pcs) | 100 / 26.4 (2pcs) | 100 / 26.4 (2pcs) | |||||||||
Noise dB (A) | 71±2 | 73±2 | 74±2 | 76±2 | 78±2 | 79±2 | 80±2 | 81±2 | |||||||
Filter cleaning method | Pulse Jet | ||||||||||||||
Dia. air inlet (mm) / (in) | Ø150 / 6 | Ø200 / 8 | Ø250 / 10 | Ø300 / 12 | Ø350 / 14 | Ø400 / 16 | |||||||||
(mm) / (in) | 795*630*1730 / 31.3*24.8*68.1 | 995*725*1860 / 39.2*28.6*73.3 | 1060*925*1950 / 43.3*36.4*80.7 | 1195*1035*2200 / 47.1*40.8*86.6 | 1450*955*2040 / 57.1*37.6*80.3 | 1450*1305*2180 / 57.1*51.4*85.9 | |||||||||
Weight (kg) / (lb) | 180 / 397 | 260 / 574 | 280 / 618 | 340 / 750 | 360 / 794 | 600 / 1823 | 810 / 1786 | 830 / 1830 | |||||||
Product Configuration
PTFE coated filter cartridge
Air pulse jet cleaning device
Pressure gauge
Optional Configuration
Siemens Inverter
Multi Tower Light
Soft Starter

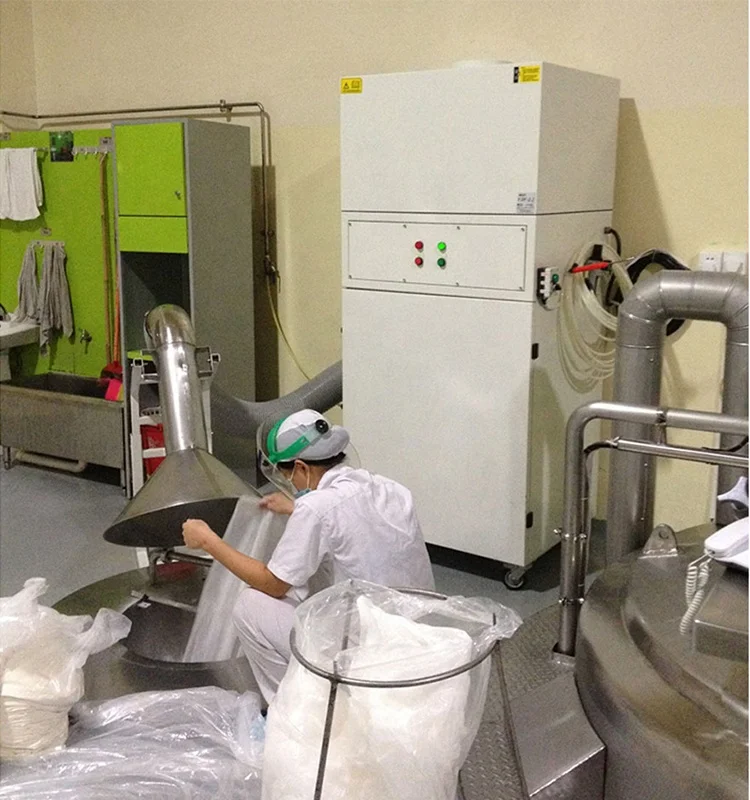

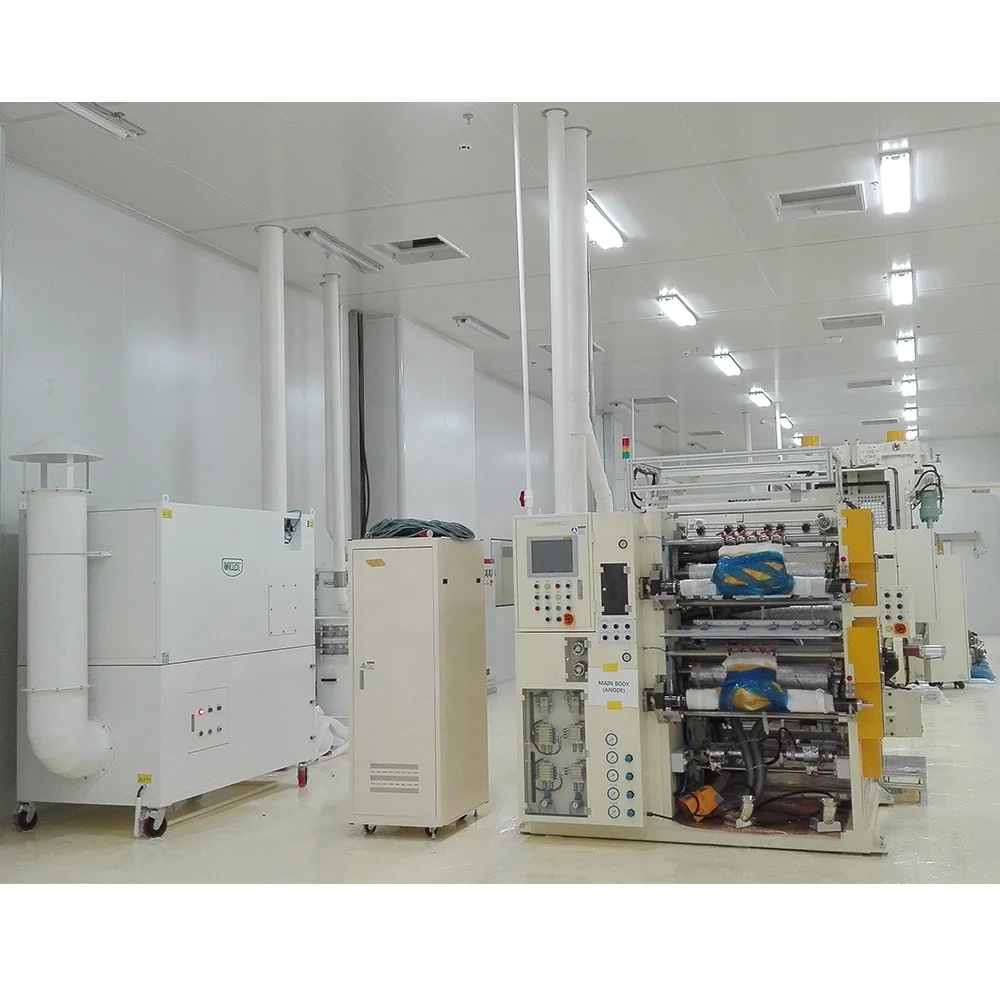

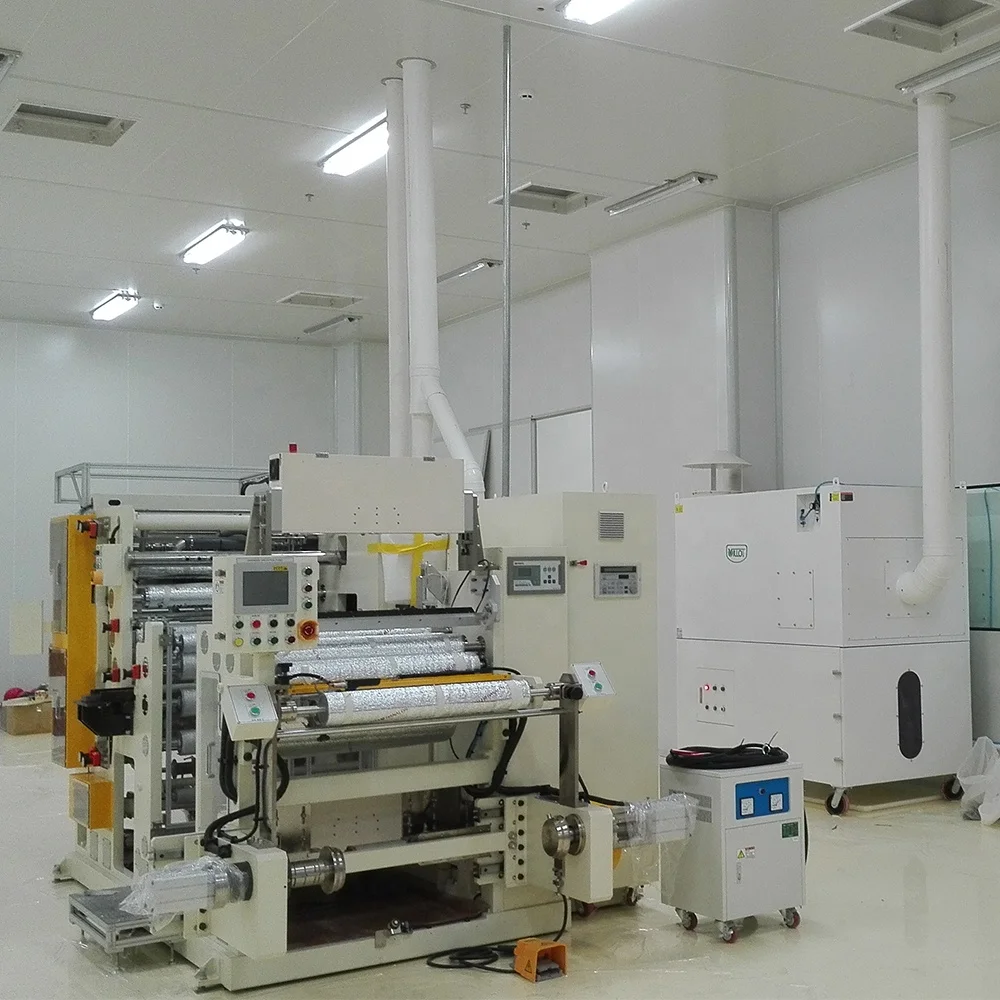

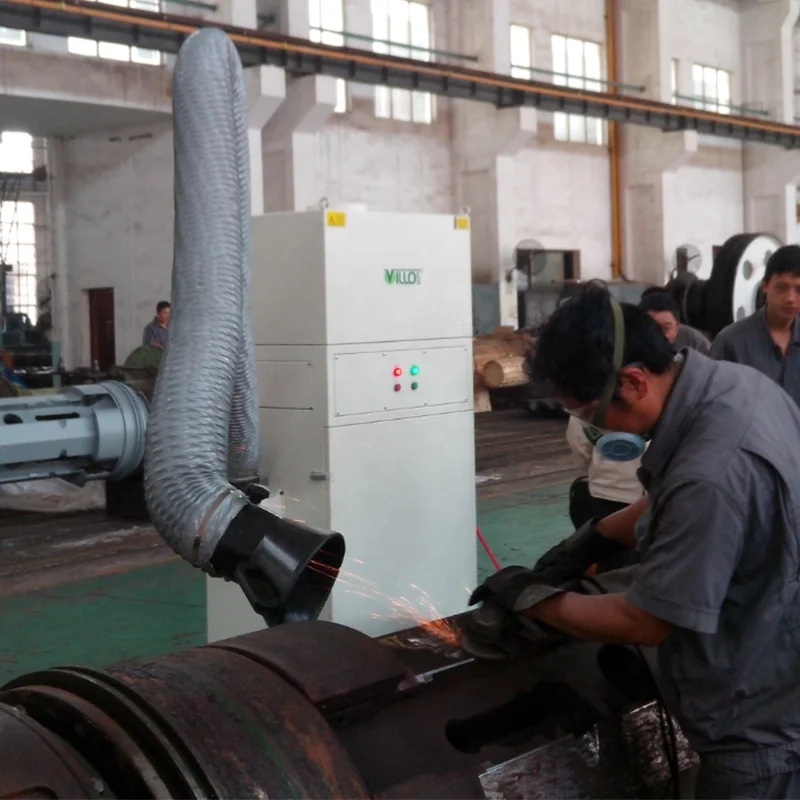

Successful Project
