Product Overview

Description

Universal Valve Seat Maintenance tool QM18-62A

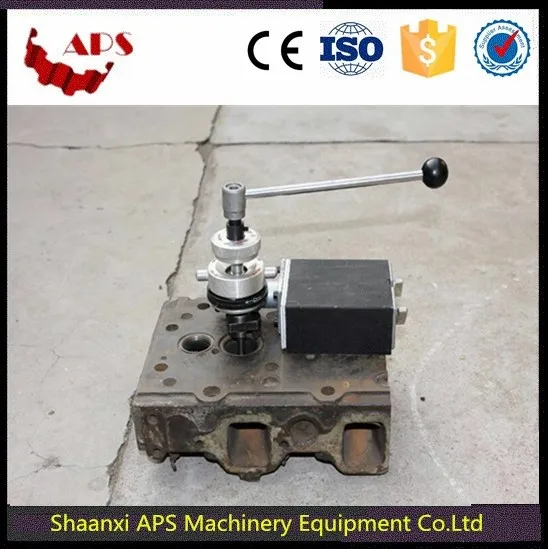

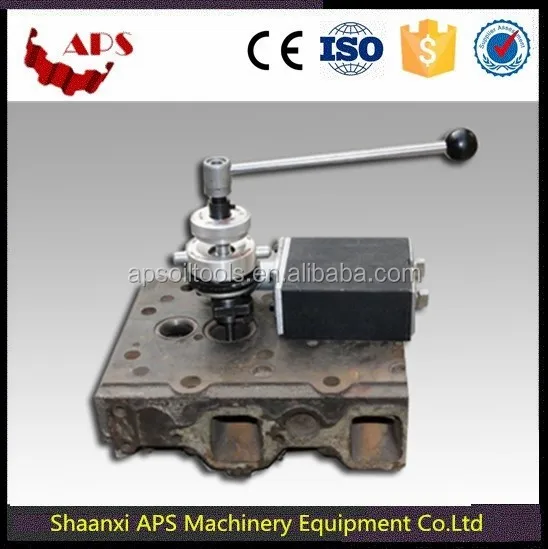

QM18-62A  Valve Seat Cutting Machine( Garage Workshop Machines) is  Suitable for iron and aluminum cylinder head, easy to installate.This machine has Support bar, Can support 30 degrees  for tilt cylinder head.

Usage:Valve Diameter is in18-62mm Motorcycles, cars, buses, trucks, tractors and other various types of gasoline, diesel engine,



Features:

²  Applicability: Where the diameter of 18-62mm in the various angles of the valve can be used

²  A molding: the face and the upper and lower chamfering a molding process

²  No need to grind: After processing the valve seat generally do not need grinding, with the new valve with the direct use

²  Accurate positioning: can accurately ensure that the valve seat face, the upper and lower chamfer position, width and coaxial with the valve duct; the reamer is guided by the catheter positioning valve stem and diameter is always concentric.

²  Permanent use: The reamer blade can be worn after the blunt, the reamer can be permanently used, an investment benefit for life

²  Can handle special hard seat: blade for the carbide material, Machinable special hard seat



²  Special features: Compared with the old reamer can improve the effectiveness of more than 10 times. Performance breakthroughs in the general people's imagination, buy a set to eliminate all the old reamer.

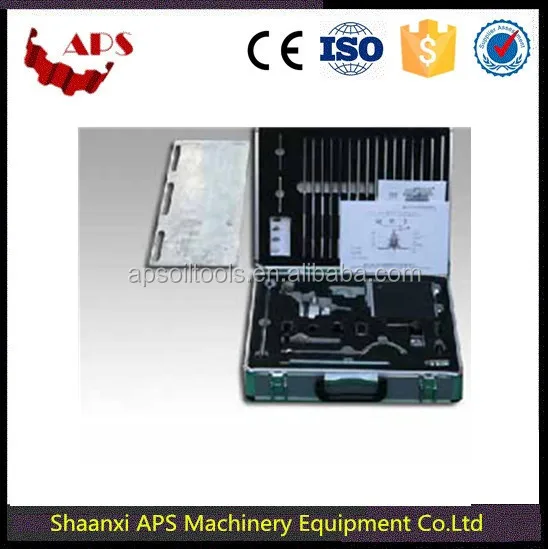

Packing list

Commodity name	Quantity(pc)	Leader dia(mm)	Quantity(pc)	Leader dia(mm)	Quantity(pc)	Blade type	Quantity (pc)
Body assembly	1	5	1	9	1	45°-1.2	1
Adjustalbe seat	1	5.48	1	9.43	1	45°-0.8	1
18-40mm blade rest	2	5.98	1	9.50	1	55°-1.5	1
40-60mm blade rest	1	6	1	11	1	60°-1.2	1
Tool presetter	1	6.58	1	11.97	1
Magnetic base	1	6.97	1	12	1
Iron plate	1	7	1
Rocking handle	1	7.99	1
Grinding wheel sleeve	1set	8.03	1
Inner hexagon spanner	2	8.97	1
