NEW 250CC ADULT TRICYCLE EEC(MC 369)

Product Overview

Description

BODE is a professional company integrated with developing , designing manufacturing and selling. Bode is

specialized in manufacturing the Go kart, ATVs and Dirt Bikes,  Bode has established well sales network in

different countries , has exported products to UK ,South Korea, Australia, EU. South Africa,etc.











 SPECIFICATIONS:





1.Engine Type	single cylinder, water-cooling,4-stroke
2.Transmission	4 gears with one reverse gear,manual cluth
3.Ignition mode	CDI
4.Compression propor	10.5:1
5.Power	9.6KW/7,500rpm
6.Max.torque	12.7N.m/6,000rpm
7.Displacement	243ml
8.Start mode	electric
9.Tranmission mode	chain
10.Min.ground clearance	100mm
11.Max.speed	>70km/h
12.Power source	12V,12AH
13.Fuel tank capacity	10L
14.Front wheels	185/30-R14
15.Rear wheels	295/30-R14
16.Break type(F/R)	disc/disc
17.Front hanging	double arm-swing
18.Rear hanging	integral
19.Product dimensions	2650x1650x770mm
20.Carton dimensions	2600x1150x750mm
21.wheelbase	1450mm
22.height of seats	17mm
23.dry weight	250kg
24.load capacity	225KG
25.climbing degree	>20









Other
Conveyance:Qty/20'    GP:12
 Qty/40'    GP:24
 Qty/40'    HQ:24
Atv and go kart HS code:8703101100

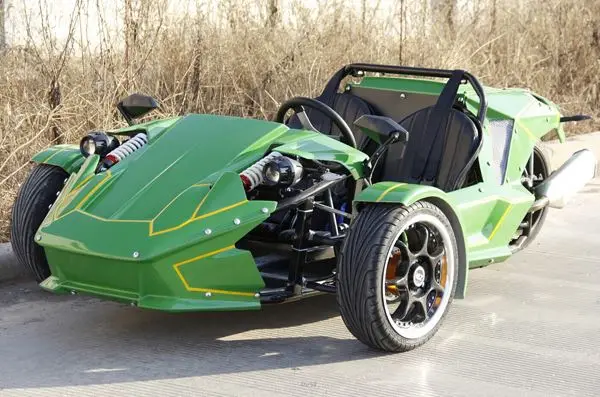

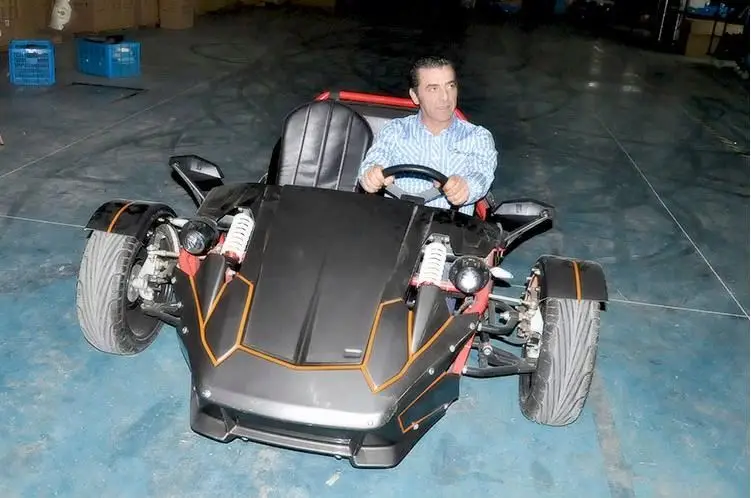

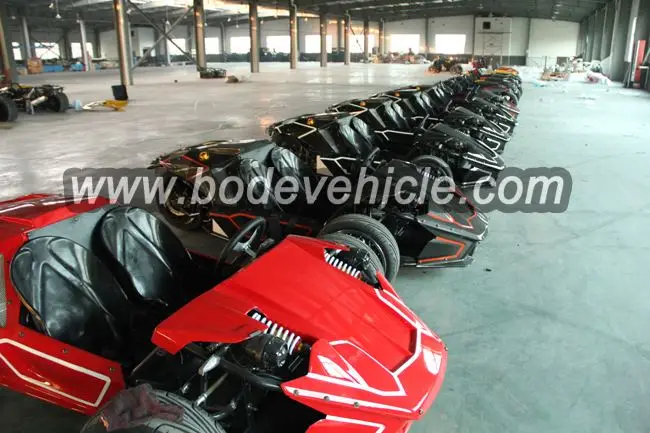

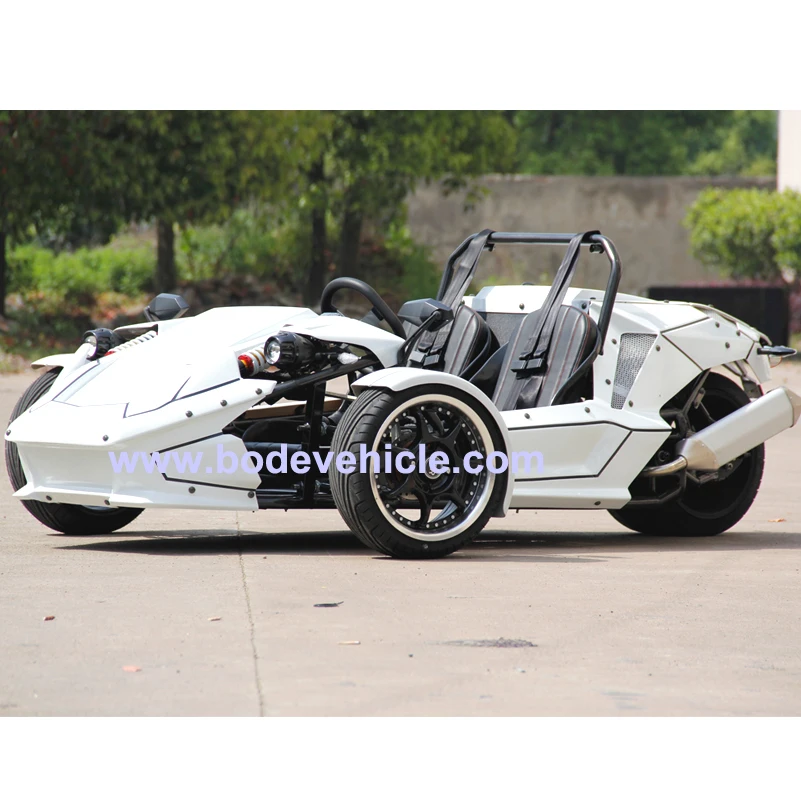

 PICTURES:
