Product Overview

Description

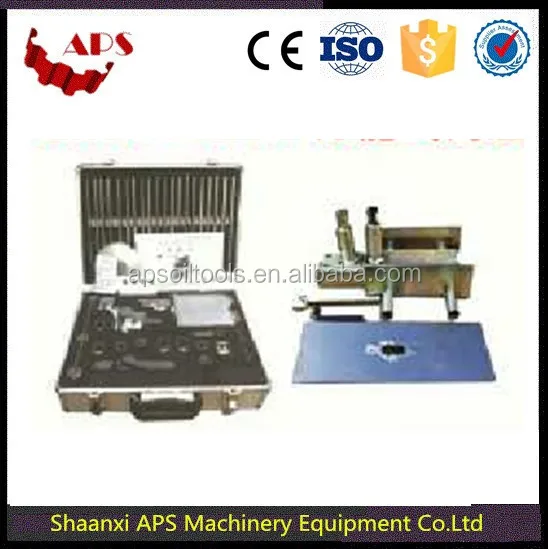

Universal Valve Seat Maintenance tool QM18-62D

magnetic base with iron stand+21pcs leader+8pcs blade+6pcs blade rest)







QM18-62D  Valve Seat Cutting Machine( Garage Workshop Machines) is  mainly applied to the special hinge valve and boring cylinder mill shaft hinge valve users, suitable for 18-62mm all kinds of small medium and large cars, diesel vehicles, agricultural vehicles

Increased the number of leader(21) and the number of parts (6 blade rest, 8 blade), greatly improve the efficiency, save a lot of time to reduce the burden on staff.

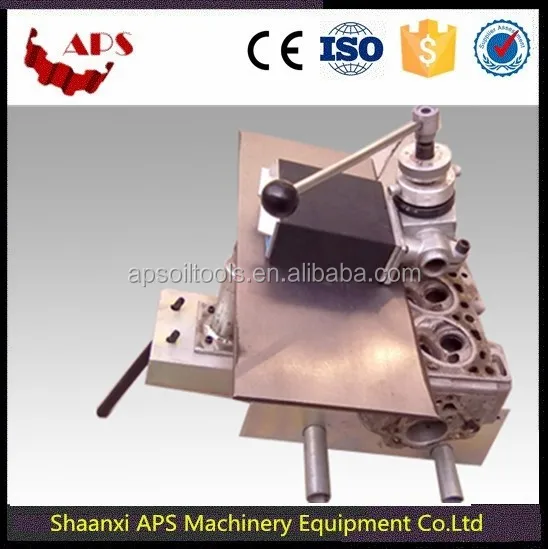

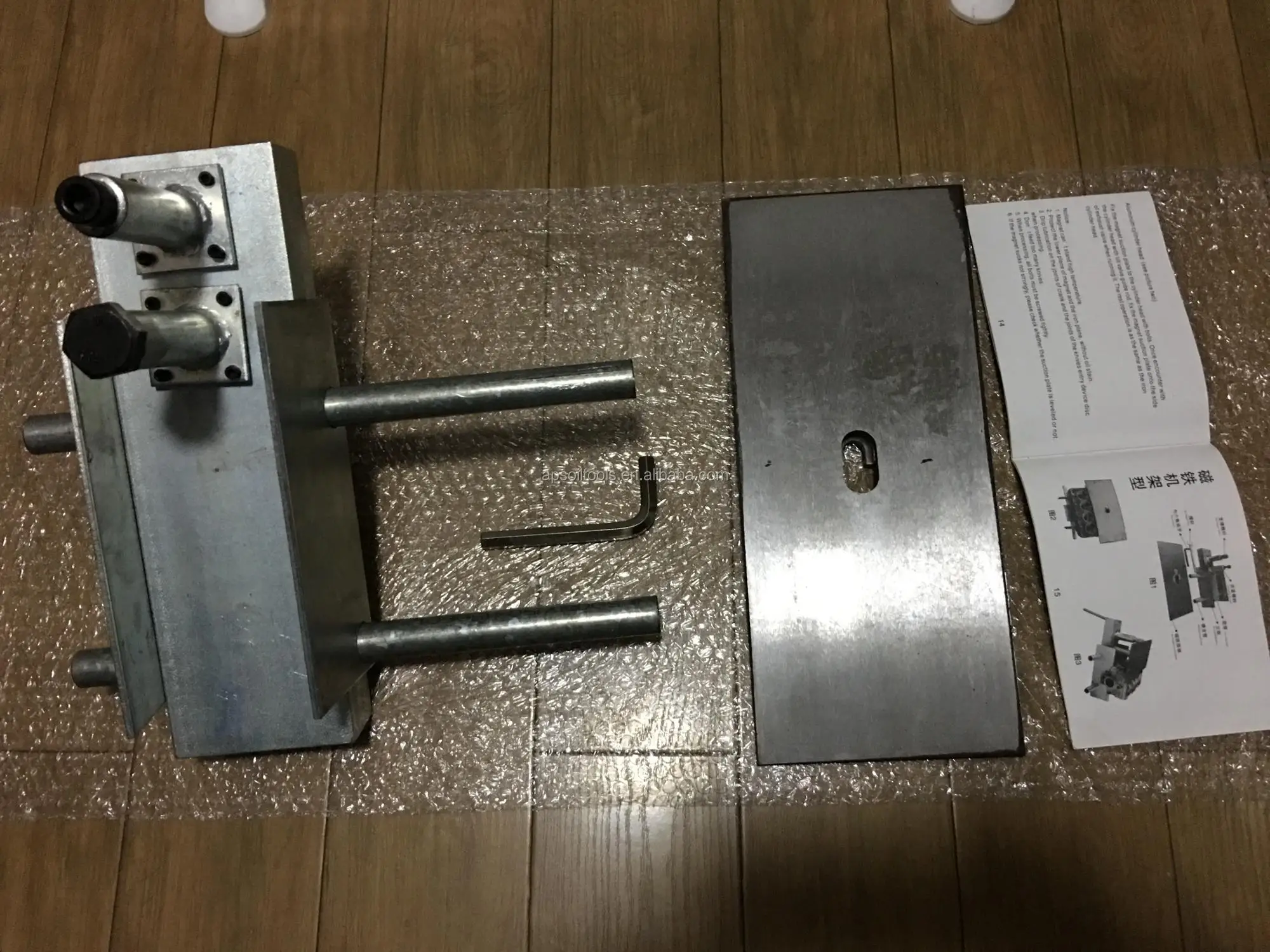

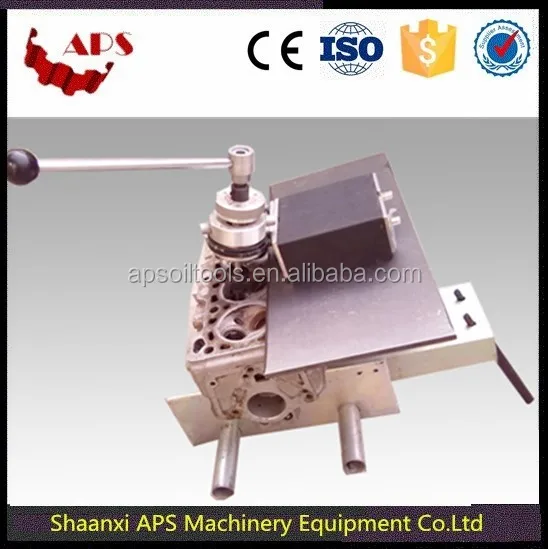

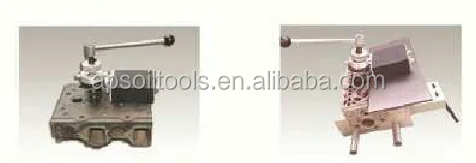

The iron frame also designed the support bar, played a quick and easy way to improve the effectiveness of the role of those 426 and so on the valve tube tilting cylinder head can be used when the rack can be raised 30 degrees angle, the valve duct and the ground vertical, greatly improved The suction of the magnet, for those who are particularly hard cylinder seat block provides a suction guarantee, reducing the valve stem and guide rod gap caused by static center is not accurate hinge phenomenon. The rack is suitable for iron, lv size of a variety of cylinder head.



Features:

²  Applicability: Where the diameter of 18-62mm in the various angles of the valve can be used

²  A molding: the face and the upper and lower chamfering a molding process

²  No need to grind: After processing the valve seat generally do not need grinding, with the new valve with the direct use

²  Accurate positioning: can accurately ensure that the valve seat face, the upper and lower chamfer position, width and coaxial with the valve duct; the reamer is guided by the catheter positioning valve stem and diameter is always concentric.

²  Permanent use: The reamer blade can be worn after the blunt, the reamer can be permanently used, an investment benefit for life

²  Can handle special hard seat: blade for the carbide material, Machinable special hard seat



²  Special features: Compared with the old reamer can improve the effectiveness of more than 10 times. Performance breakthroughs in the general people's imagination, buy a set to eliminate all the old reamer.

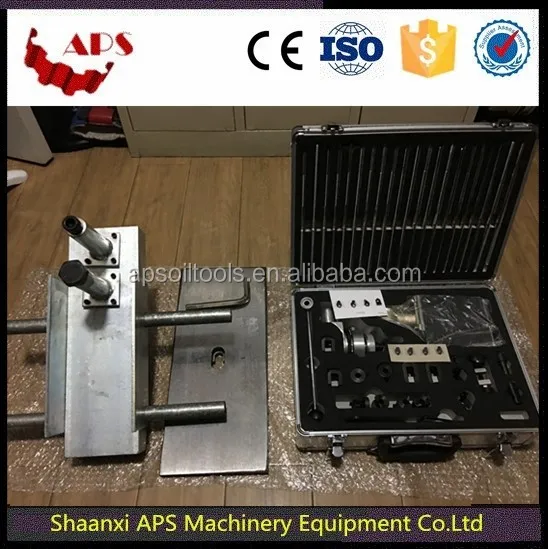

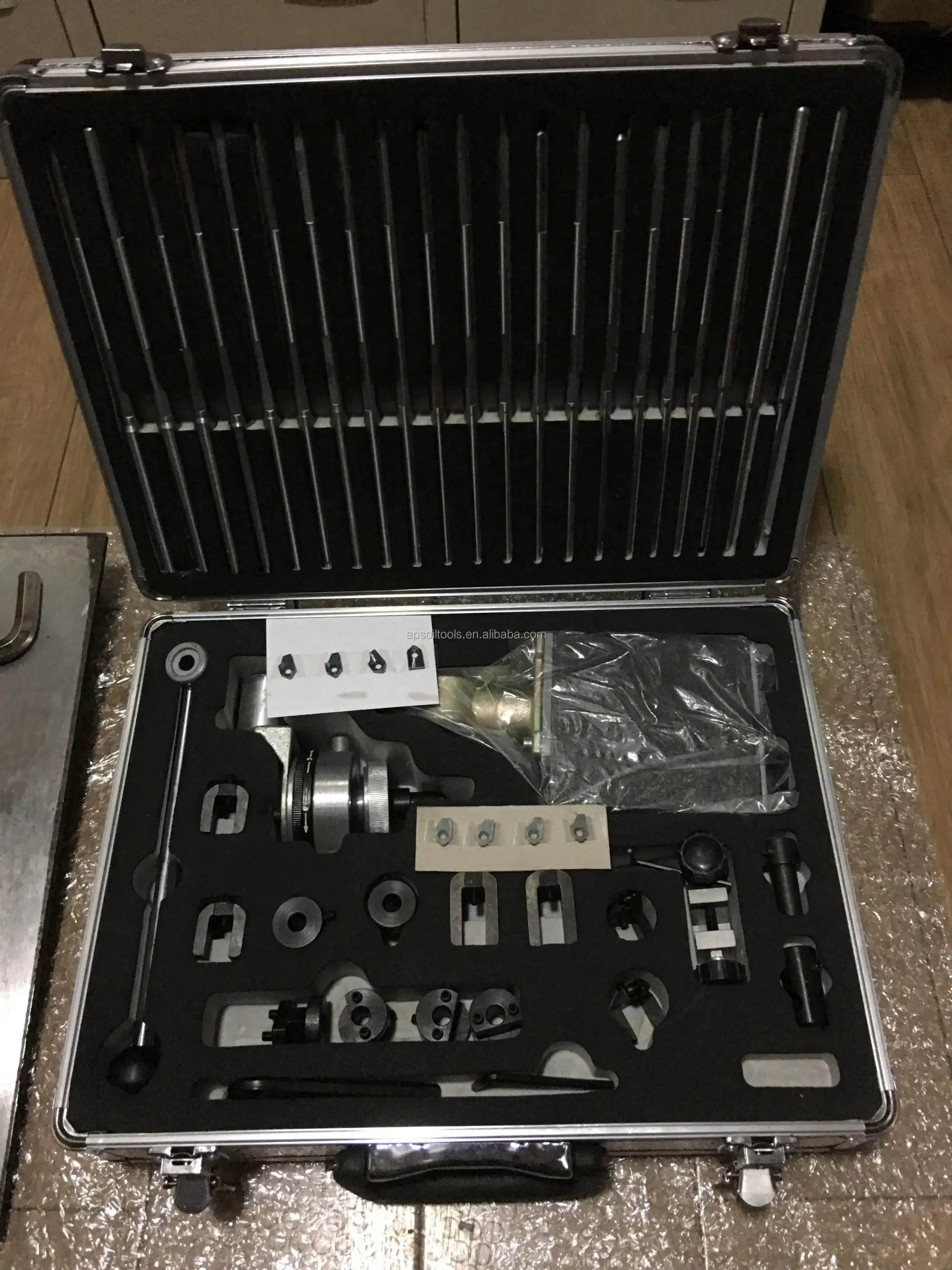

Packing list

Commodity name	Quantity(pc)	Leader dia(mm)	Quantity(pc)	Leader dia(mm)	Quantity(pc)	Blade type	Quantity (pc)
Body assembly	1	5	1	9	1	45°-1.2	2
Adjustalbe seat	1	5.48	1	9.43	1	45°-0.8	2
18-40mm blade rest	3	5.98	1	9.50	1	55°-1.5	2
40-60mm blade rest	3	6	1	11	1	60°-1.2	2
Tool presetter	1	6.58	1	11.97	1
Magnetic base	1	6.97	1	12	1
Iron plate	1	7	1	5.5	1
Rocking handle	1	7.99	1	6.03	1
Grinding wheel sleeve	1set	8.03	1	8	1
Inner hexagon spanner	2	8.97	1	9.52	1
				10	1
