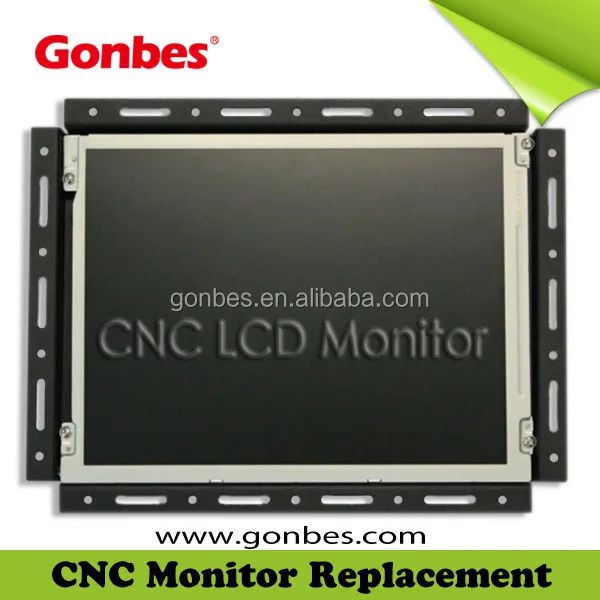

Industrial CRT CGA EGA RGBhv MDA to VGA LCD Mazak Monitor
Application:
Repaire & replace CNC replacement monitor CRT to LCD, like Fanuc, Siemens, Mazak, Heidenhain, Hitachi, Toshiba, Mitsubishi, Sharp, Tatung, Totoku, and Magnetek, and etc.
The replacement : GBS8229 = old CNC CRT monitor + XVGA Converter

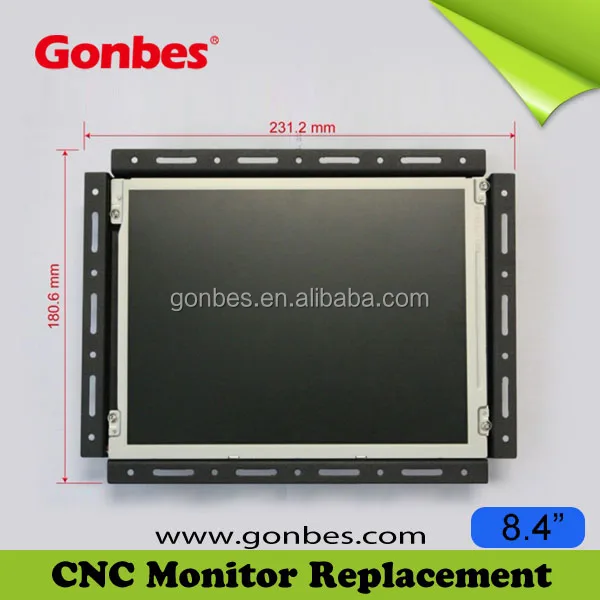

Available sizes: 8.4 inches, 10.4 inches, 12.1inches and 15 inches, 17 inches, 19 inches
Feature specifications
| Input | Signals | MDA,CGA,EGA,RGB,RGB Sog,RGBS,RGBHV,YPbPr |
| Interface | 9pin,3pin,6pin,14pin,20pin,25pin | |
| Horizontal Frequency Rate(H) | 12kHz to 40kHz, auto recognized | |
| Output | Supports | 15pin VGA,Resolution:800*600/60HZ, or custom |
| Interface | D-Sub 15 PIN standard VGA port | |
| Power | DC 12V 1.0A | |
Note:
1. YPbPr = YUV
2. Input Horizontal Frequency Rate 12 kHz to 40 kHz automatically recognized.
3. Support RGB and YPbPr
4. Support Interlaced Scanning and Line by Line Scanning.
5. Support Vertical Resolution from line200 to line 600 automatically recognized.
6. Support variable Horizontal Resolution automatically recognized.
7. Support RGBHV (separate sync), RGBS (composite sync), automatically recognized.
8. Output resolution: 800*600/60Hz standard VGA or custom-resolution.

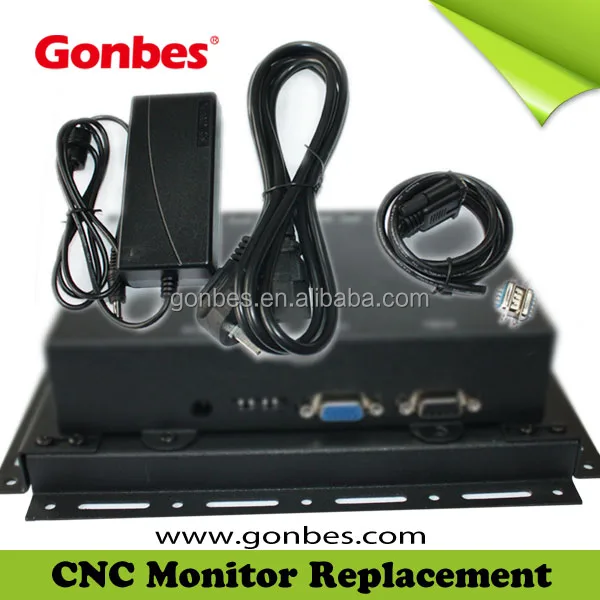

Delivery Carton Contents
| Item | QTY | Remarks |
| GBS8229 | 1 | cnc crt monitor for mazak, 8.4" 10.4", 12.1" Stock available |
| User’s Manual | 1 | English |
| Power Adaptor | 1 | DC12V,1A |
| half 9pin cable | 1 | |
| 9pin M-F cable | 2 | 1 Male + 1 Female |
Definition of 9 Pin cable
Name | Wire color | Signal | |
| A | Silver | Shield |
B | Black | Ground(GND) | |
C | White | Vertical Frequency Rate(V) | |
D | Orange | Horizontal Frequency Rate(H) | |
E | Blue | Blue(B) | |
F | Green | Green(G) | |
G | Red | Red(R) | |
H | Brown | Undefined(null) |
Packaging & Shipping
Export Packing
Quantity: 1unit/ctn
Carton Size: 39*33.2*15 cm
Carton G.W.: 3.1 kg
Gonbes XVGA Products
FAQ
Delivery Lead Time
1 day upon payment. (PayPal, Western Union, TT)
