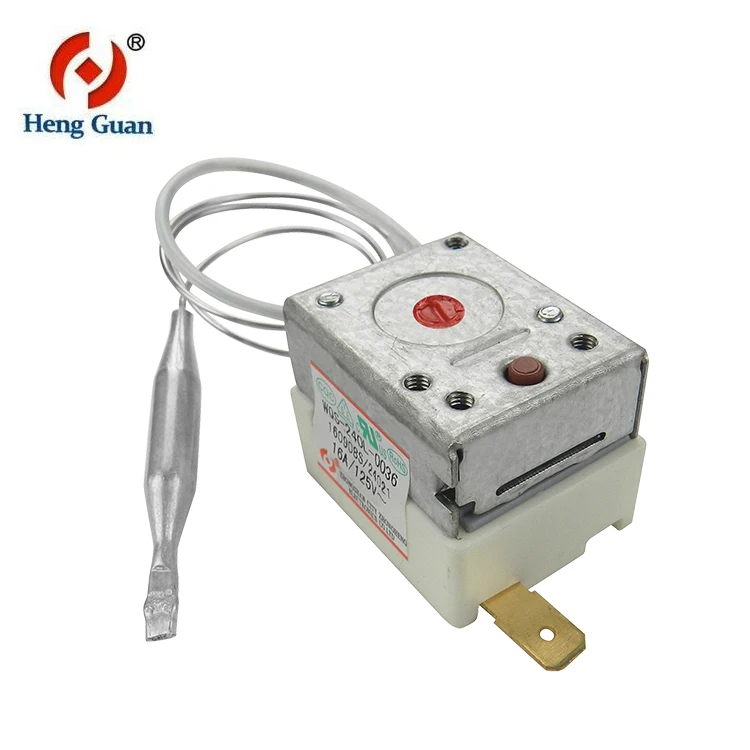

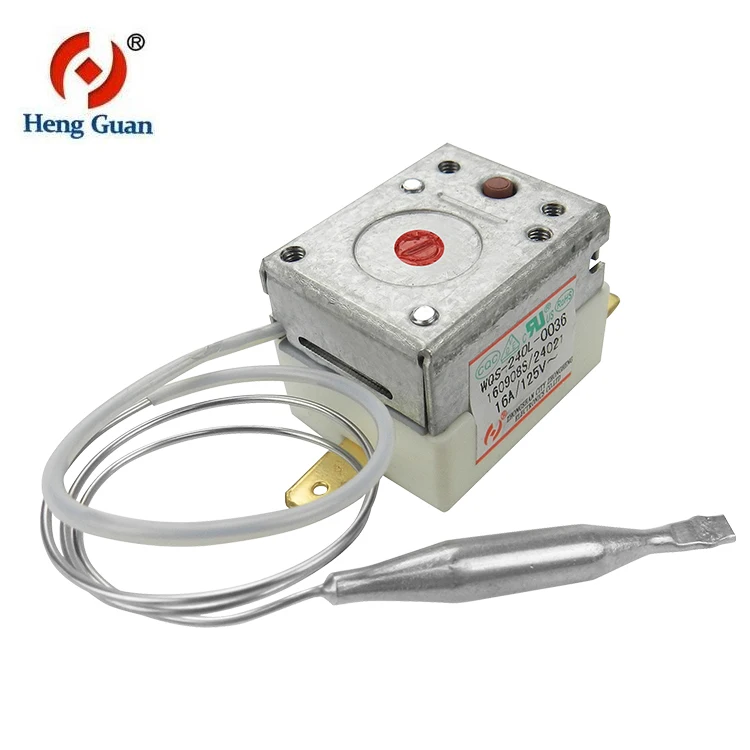

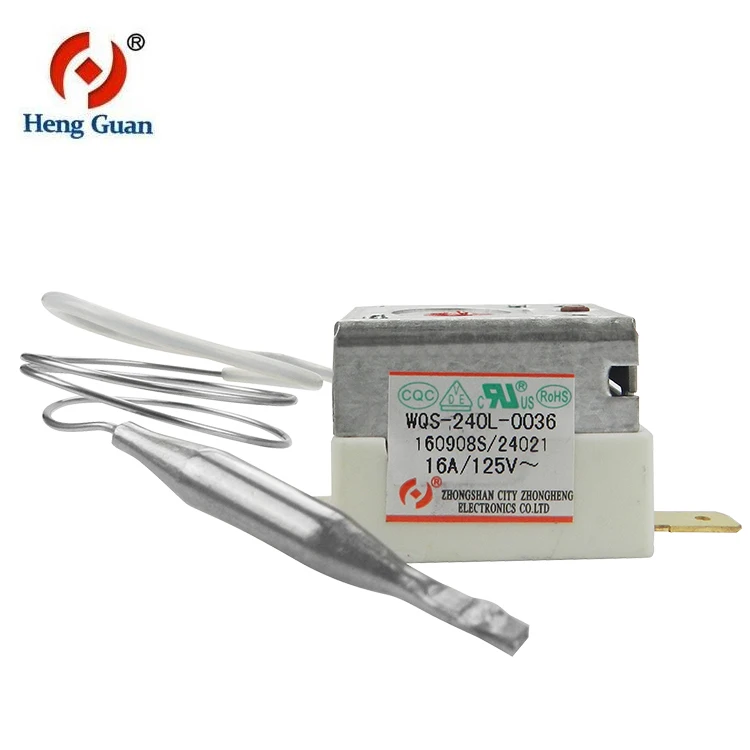

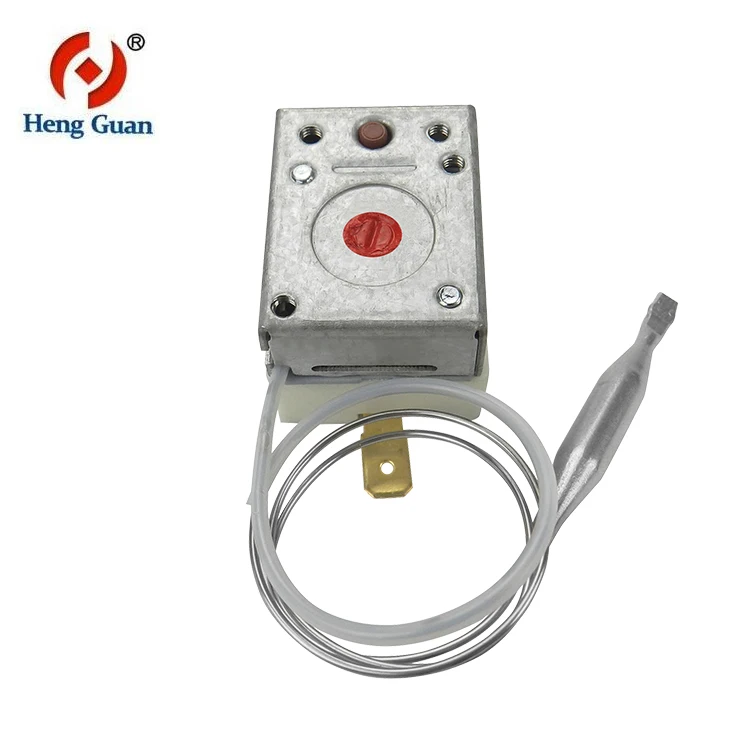

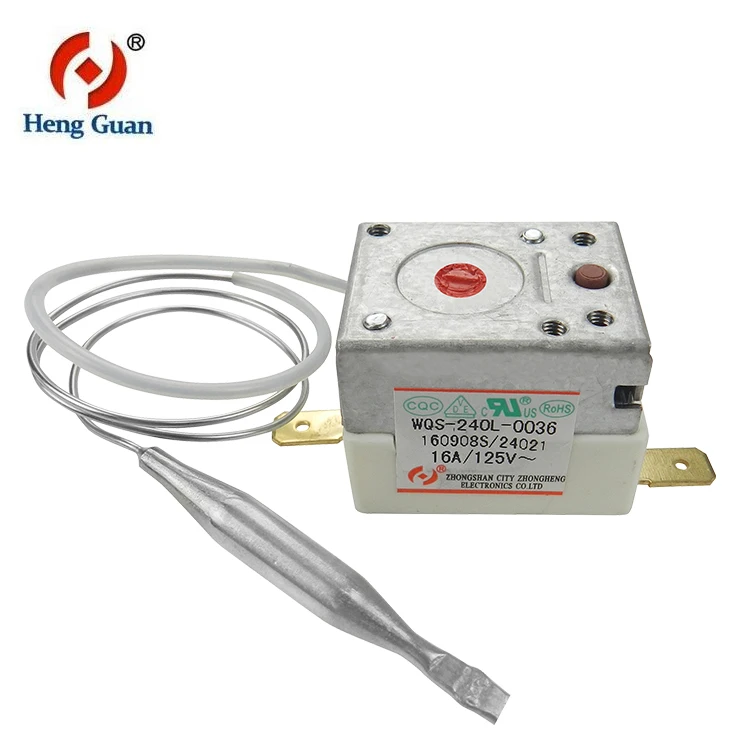

Popular thermostat thermal Cutout Switch overheat protect
- Category: >>>
- Supplier: Zhongshan Zhongheng Electronic Co. Ltd.
Share on (60631090980):
Product Overview
Description
Popular thermostat thermal Cutout Switch overheat protect
Product Description
Parameter:
| No. | Main Parameters | |
| 1 | Model No. | WQS series |
| 2 | Temperature | 20℃~320℃ |
| 3 | Capillary length | 300mm~2000mm,stainless steel capillary tube and sensing bulb |
| 4 | Rlated voltage/current/frequency | 125/250VAC 16A |
| 5 | Electric strength | 2000VAC/1 min/0.5mA |
| 6 | Insulation resistance | ≥100MΩ |
| 7 | Contact resistance | ≤50mΩ |
| 8 | Wiring form | S.P.S.T |
| 9 | Function | Over temperature protection |
| 10 | Application | Electric water heater, electric heater, electric boiler, washing machine, electric oven, deep fryer, air fryer, hotel kitchen equipment |

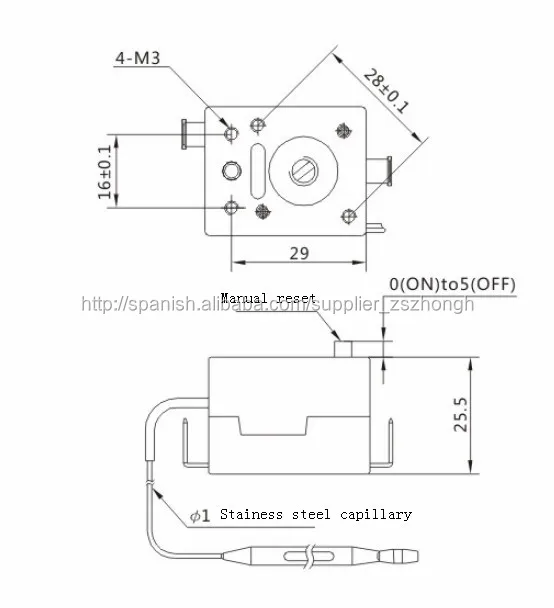

Drawing:
Remark:
Can provide the accessory of water leakage function: Fasting screw, copper gasket, rubber garsket
Our advantages:
High reliabilities
Wide control range
Great contact capacity
Accurate temperature controlling
Why choose us:
1.Inquiry response: Your inquiries will be replied in 2 hours workingday.
2.Payment & Delivery: T/T,L/C,West Union(samples only)
3.100% QC inspection before shipment
4.Delivery time: 15-40days once receiving the payment.
5.Our products always got the praise from customers, whether price or quality.
We can provide OEM and ODM service about thermostat according to customer's demand.
Imported raw materials
Contact Movable contact piece
(South Korea imported arcing) (Japan imported beryllium copper)
Packaging & Shipping
Packing:
200 pcs/ctn
Standard export packaging
( bubble mould box with outer carton)
Size of the carton: 54cm*38.5cm*40cm
Our Services
Firstly, we have a professional team ready to working for your order.
Secondly, we have a range of high quality electric and industrial heating elements.
After have a browse at our electric and industrial heating elements merchandise, we'll make sure that you won't be disappionted.
Please kindly advise your specifications or drawing with following information when you inquiry:
1.Tube (Materials, diameter, length)
2.Wattage and voltage
3.Working environment and temperature
4.Type of terminal
5.Drawing of special type configuration
6.Special testing requirements before shipment
