DR CV 60 SAA CB TUV 60W isolated led driver 2.5a 42V led tube driver

Share on (60631337780):


Price:

Quantity:


Product Overview

Description



trade






Durable 24v 60w constant voltage triac dimmable power supply for led
















 Consatnt Voltage

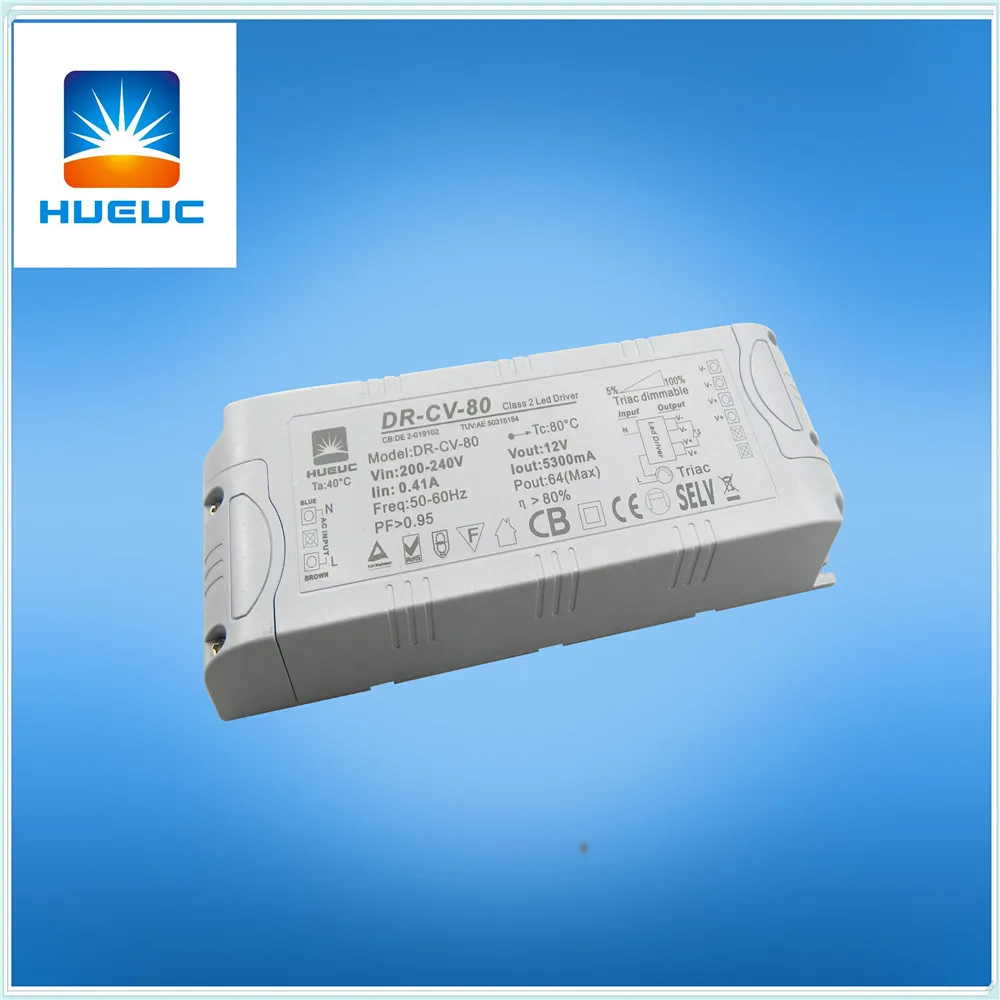

Model No. DR-CV-12  DR-CV-20 DR-CV-30   DR-CV-40  DR-CV-60  DR-CV80
  Input Voltage     Range  100-240VAC  100-40VAC  100-240VAC  100-240VAC  100-240VAC  100-240VAC
  AC Frequency  48-62Hz  48-62Hz  48-62Hz  48-62Hz  48-62Hz  48-62Hz
  Output Mode  constant  voltage constant        voltage constant  voltage constant  voltageconstant   voltage constant  voltage

  Output    Current


   (mA)



   1000&600



   1000&650&


   500



   2400&1500


  &1000&750



   3200&2000&


1300&1000



  4000&2500


  &1200



   5500&3300&


1650



  Output        voltage


  (VDC)


   12&24    24&36&48

   12&24&


   36&48



   12&24&


   36&48



   12&24&


   36&48


   12&24&48
  Output Power  12w 20w 30w 40w 45w-60w 80w
  Power Factor  0.95  0.95  0.95  0.95  0.95  0.95
  Efficiency  80%-86%  80%-86%  80%-86%  80%-86%  80%-86%  80%-86%
  Dimensions       (mm)     94*36*17  107*40*22 132*44*23  132*44*28  170*50*31  190*65*29
   Operating Temperature       -25~+55°C
   Storage Temperature        -40~+70°C
    Thermal Dissipation         Nature
    Life Time:       50000Hours,at TC max
   Relative Humidity        5~95%
   Isolation Voltage:         In/Out 3000VAC
   Vibration        5-55Hz/2g,30 Mimutes

















                                      Product features



  • Advanced patent dimming technology

  • Suitable for leading edge or tailing edge dimmers

  • Short cicuirt and over current and over voltage protection

  •

  • Recycle and no hazardous substance

  • Double isolation design for human safety

  • Conveniently connected terminals(screws)

  • Fireproof environmental protection PC plastic cover

  • 3 years quality Warranty
