Steel Rule For Die Making,Steel Die Cutting Rule For Die Making

Product Overview

Description

Specifications

1. imported steel as material
2. CB, LCB, SB, LSB
3. HF hardened edge HRC 55--57
4. ISO 9001 certificate



teel Rule For Die Making,Steel Die Cutting Rule For Die Making





Using the better imported steel as material, offer higher precision, tolorence of +-0.015mm

A perfect cutting rule starts from a superior material. Every FIRANGI CUTTING RULE is used the imported steel as material, which will offer the rules higher precision, helping users reduce the adjusting time for machine, also can reduce the machine's wear.



♣ Body Hardness

HRC 37~39 (medium hard)

HRC 40-45 (hard)

P.S. Most of customers feedback our rules are stronger than others, so more durable for others.



♣ Edge Hardness

HRC 55~58,  HF hardening, black edge.

P.S.  hardened by the technology of HF hardening, not fire hardening or laser hardening.





♣ Edge Hardening Method

High Frequency Induction by the ALO 192 machine from Sweden. This is the most advanced technology in the world, much better than fire hardening, laser hardening, makes the rule much more durable, meeting with the middle and large cutting demands.







    ♣ Cutting Bevel

  ♣ Edge Type

Shaved Edge, offering a very high degree of accuracy and edge straightness as well as excellent bending properties.



Ground Edge, offering good cutting results because of the micro-teeth on the bevel. For materials like plastics, rubber and laminates the ground execution has proven its highest efficiency.



The high sharpness and low friction reduce formation of dust and angel hairs.



In comparison to the shaved execution, Ground Edge has a slightly reduced bendability.

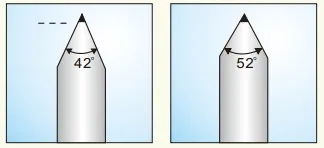

♣ Edge Angle

42 degree

52 degree



  Note:  762mm length is available, for those who no need 1 meter length, also more ceconomical.





 ♣ SANLI is regarded as the best rules making factory in the whole of China, quite famous with the real high quality and high cost performance. SANLI rules have been exported to U.S.A. Brazil, Guatemala, Turkey, Mauritius, Egypt, Japan, India, Thailand, Indonesia... and so many countries. No one feel unsatisfied after using it, you will also enjoy it.
