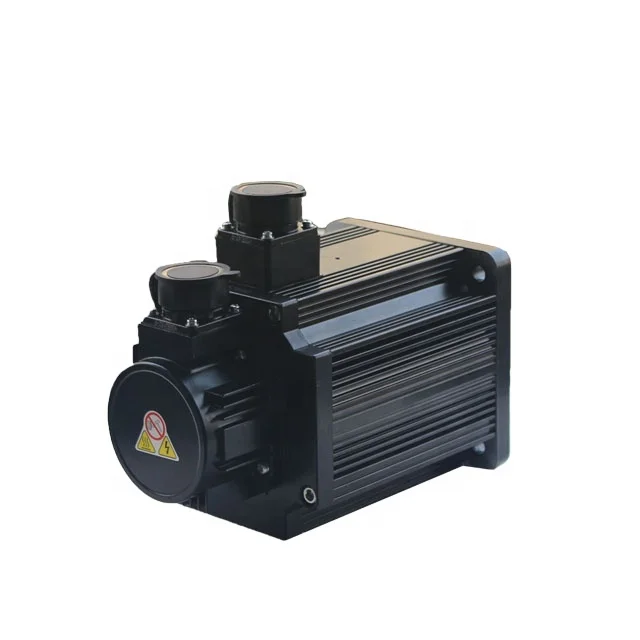

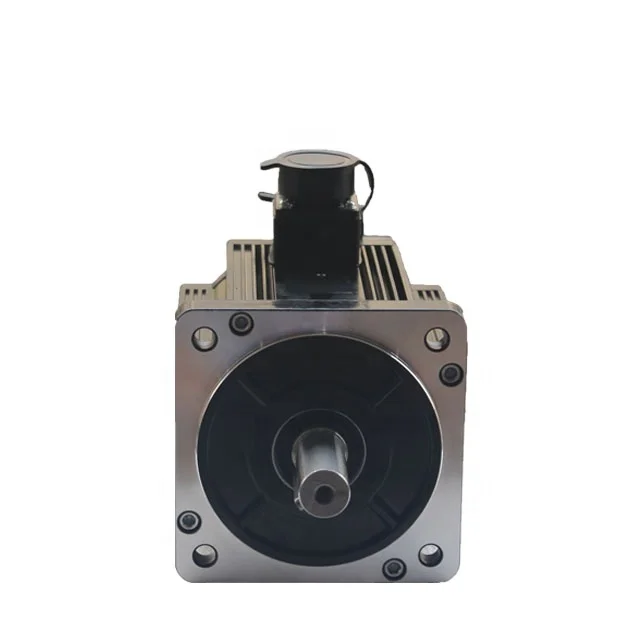

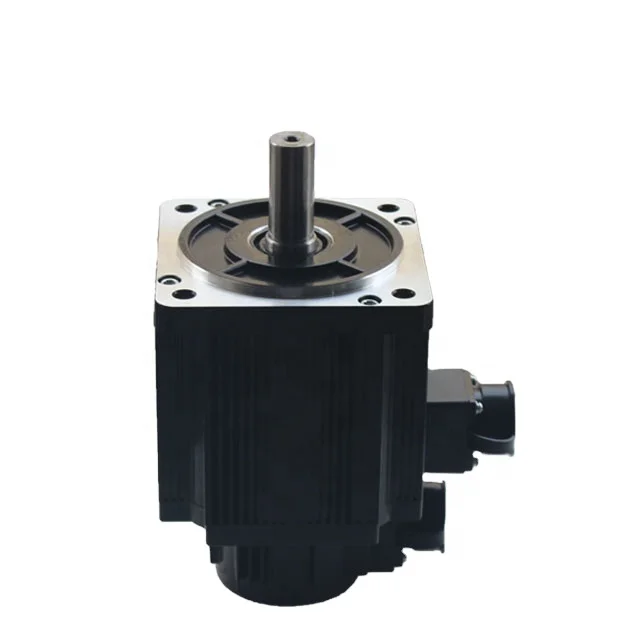

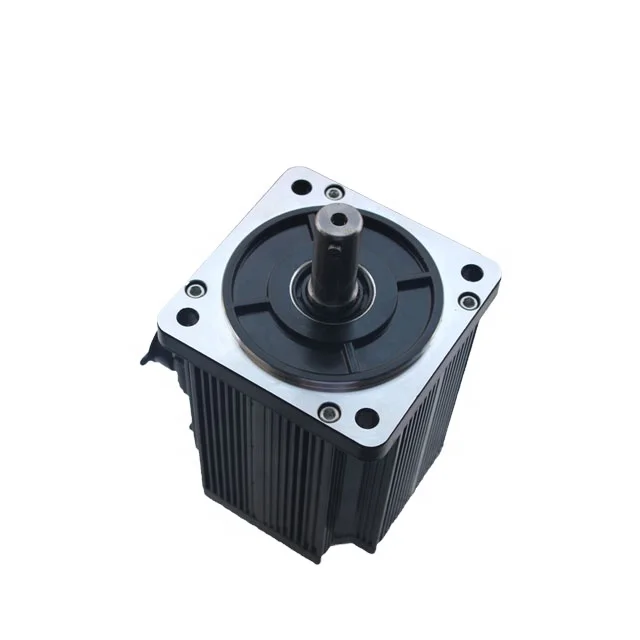

130mm high torque 1.5KW 220V 3 phase mige servo motor

Motor Model

130ST-M10015

Rated power   (KW)

1.5

Rated voltage (V)

220

Rated current (A)

6.0

Rated speed (rpm)

1500

Rated torque (N.m)

10

Peak torque (N.m)

25

Voltage constant (V/1000r/min)

103

Torque coefficient (N.m/A)

1.67

Rotor inertia (Kg.m2)

1.94*10-3

Line-line Resistance (Ω)

1.5

Line-line Inductance (mH)

4.37

Electrical time-constant (ms)

2.91

Weight (Kg)

10.2

Encoder line (PPR)

2500 P

Insulation class

Class F

Safety class

IP65

The operating

of Environmental Conditions

Temperature: -20℃ ~ +40 ℃

Humidity: Below 90%RH No dewing

Power connector

Signal

U

V

W

PE

Pin No.

2

3

4

1

Encoder connector

Signal

PE

5V

0V

A

B

Z

A-

B-

Z-

U

V

W

U-

V-

W-

Pin No.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15
