Gold Separating Machine Vibration Shaker Table



Application of Vibration Shaker Table



Jinshibao Vibration Shaker Table is one of the main equipments of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore.

Gold Vibration Shaker Table, Table Concentrator
The Vibration Shaker Table is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.22 millimeters.
Gold Vibration Shaker Table, Table Concentrator



Features of Vibration Shaker Table



The Vibration Shaker Table has following advantages:

• High recovery ratio


• High concentration ratio


• Easy installation


• Simple operation


• Deck constructed of fiber glass


• Three different decks to choose


• Long working life


• Adjustable stroke length and speed

 Gold Vibration Shaker Table, Table Concentrator

How to Select Table of Vibration Shaker Table

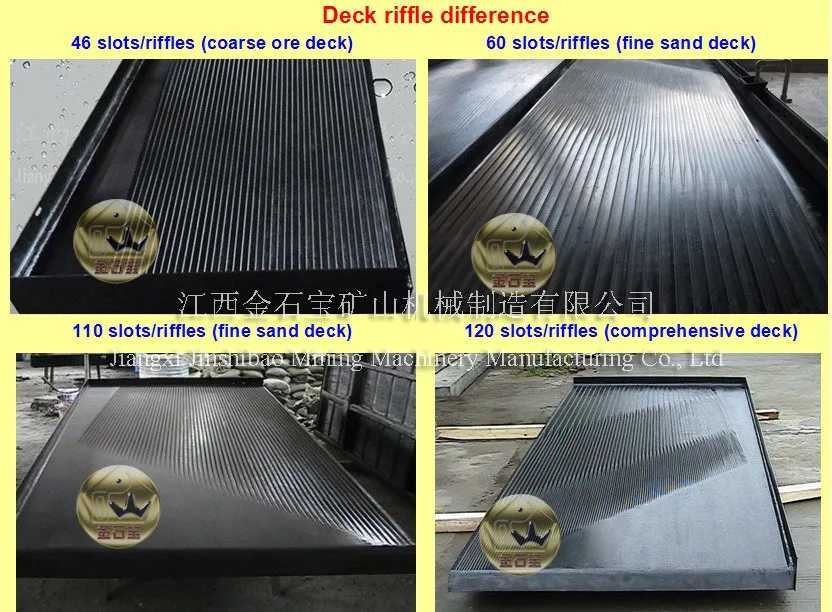

Our jinshibao Vibration Shaker Table have THREE different deck designs available:

(1) The course ore deck is designed for recovering particles size from 0.5 mm to 2 mm;

(2) The fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm;

(3) The slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074 mm.

 Gold Vibration Shaker Table, Table Concentrator



Structure of Vibration Shaker Table



The following drawing shows the structure of the Vibration Shaker Table:



Head Motion

6-S Vibration Shaker Table are furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum.
Gold Vibration Shaker Table, Table Concentrator
Decks

The decks of Vibration Shaker Table are constructed of steel framework and covered 16mm fiberglass with corundum, this cover its strength reaches as high as 70% of steel, the features of this design are stronger, wear-resistant, corrosion-resistant, and no distortion, it lengthens the working-life of machine and thus allows machine perform perfectly on different mineral and different weather condition.

Feed and Water Box

For the jinshibao Vibration Shaker Table, A wooden feed distributing box with hopper and long water box are attached to the iron of the deck, giving a very even distribution of feed and water.
Gold Vibration Shaker Table, Table Concentrator
Support device

We mainly have three supporting device types for the Vibration Shaker Table:

• #28 channel steel type support Gold Vibration Shaker Table, Table Concentrator


• #10 channel steel type support Gold Vibration Shaker Table, Table Concentrator


• #8 channel steel type support Gold Vibration Shaker Table, Table Concentrator

 You could also build the cement support foundation if you do not need to move the Vibration Shaker Table.



Technical Specs of Vibration Shaker Table



Below are the main specifications of the Vibration Shaker Table



Model Performance		LS4500	LY3000	LY2100	LY1100
Screen Size(mm)		4500× 1850× 1560	3000× 1620× 1100	2100× 1050× 850	1100× 500× 430
Horizontal Slope	Degree	0-5	0-10	0-8	0-10
Feeding Range(mm)	Sand  ore	-2	-2	-2	-2
	slime	-0.074	-0.1	-0.074	-0.074
Feeding Density	%	10-30	10-30	10-30	10-30
Capacity (t/h)	Sand ore	0.5-1.8	0.7-1.5	0.4-0.8	0.1-0.2
	slime	0.5-0.8	0.4-1	0.3-0.5	0.05-0.1
Water consumption	t/h	0.4-0.7	0.3-1.5	0.2-1	0.1-0.5
Motor power	kw	1.1	1.1	1.1	0.55
Dimension (mm) L× W × H		5600× 1850× 860	4075× 1320× 780	3040× 1050× 1020	1530× 500× 800
Deck Weight(kg)		370	310	180	50



More pictures of Vibration Shaker Table

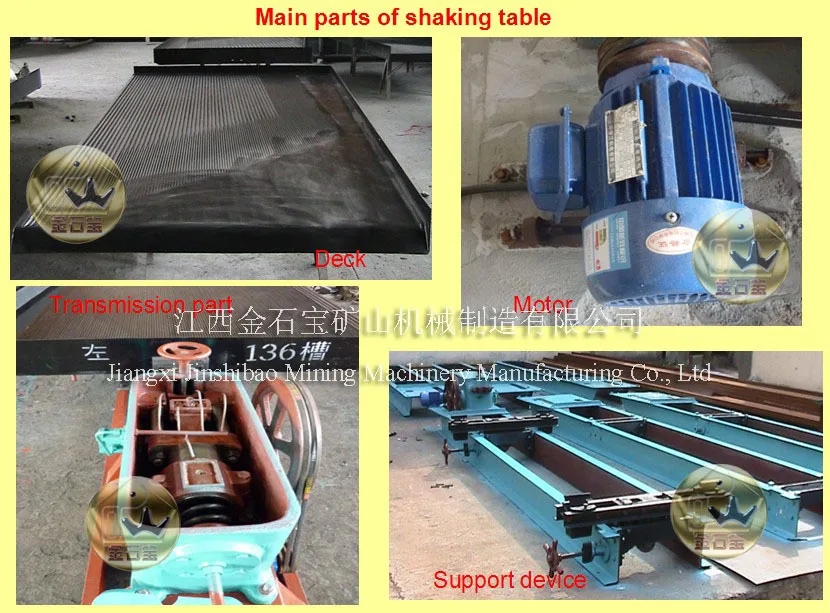

Below are the main parts of one set of Vibration Shaker Table:







Engineering cases of Vibration Shaker Table



Our Vibration Shaker Table are widely applied on different mining sites home and abroard.







•  LCL: If the Vibration Shaker Table is shipped by bulk, it is always packed in steel frame.

When the quantity is one set, the Vibration Shaker Table is installed up and packed in steel frame inside and plywood outside.

When the quantity is more than 1 set, the Vibration Shaker Tables are not installed up and packed in steel frames separately.







•  FCL: If the Vibration Shaker Table is shipped in container, it will be loaded in the container as belows without installation.

The purpose why do not install up them is to save the volume. The volume of one set of installed up LS4500 Vibration Shaker Table is about 10 cubic meters.







Customer service of Vibration Shaker Table



We could service you the complete line from the raw ore to get the final concentrates as below:
