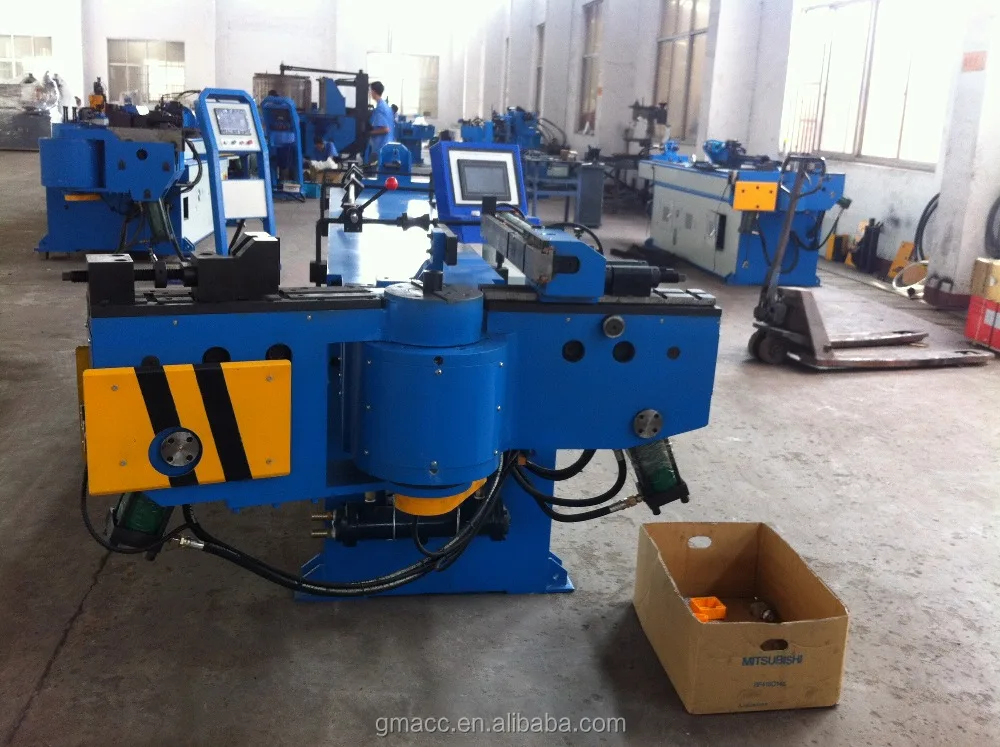

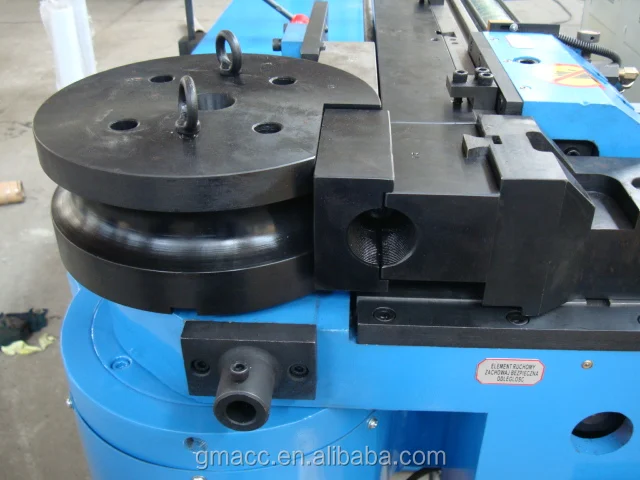

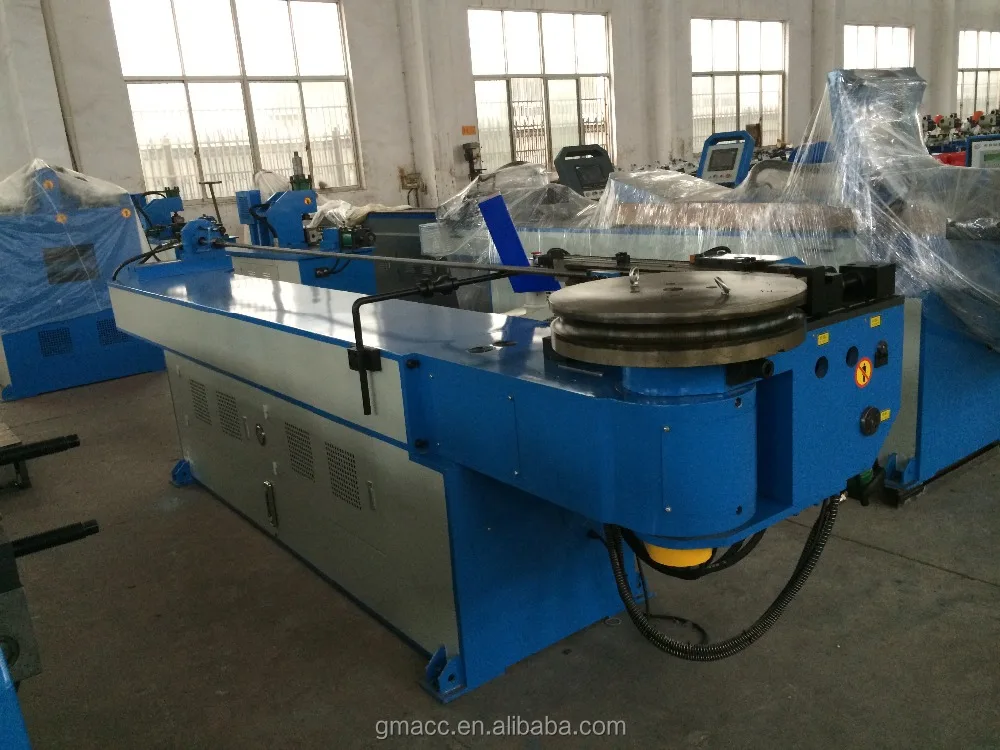

GM-SB-63NCB Numerical Control Single-Head Tube bending Machine:

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-63NCB

Ø Machine Characteristic

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

Ø Main Technical Parameter



Name	Unit	Parameter
Max. Bending Capacity	mm	63*4
Bending Radius Range	mm	25-300
Max. Bending Angle	°	190°
Though Effective Distance	mm	3500
Bending Speed	°/sec	30
Bending Precision	°	±0.10
System Motor Power	KW	5.5
Oil Pump Delivery Volume	L	25
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	4500*1200*1350
Machine Weight	T	3.0

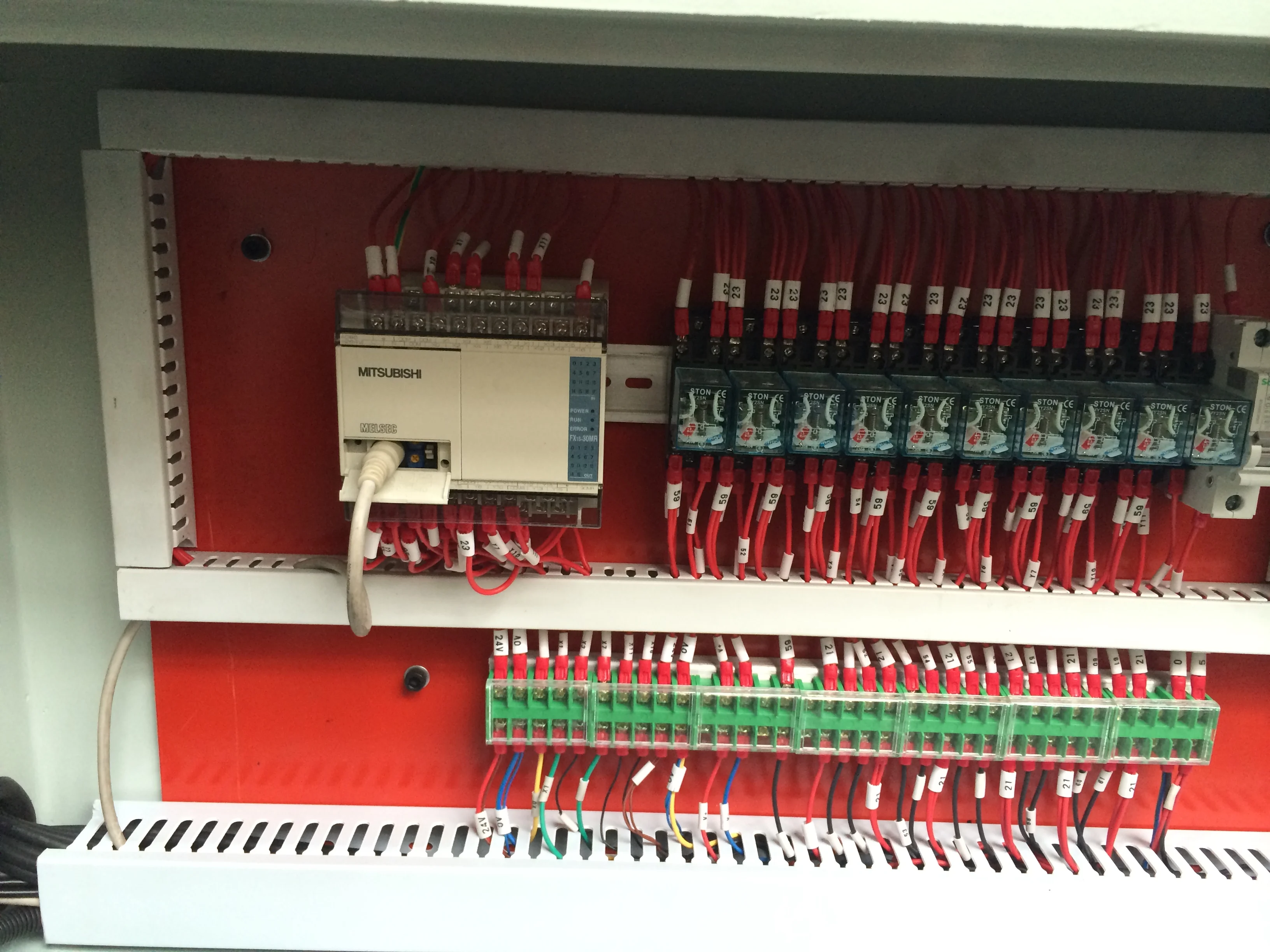

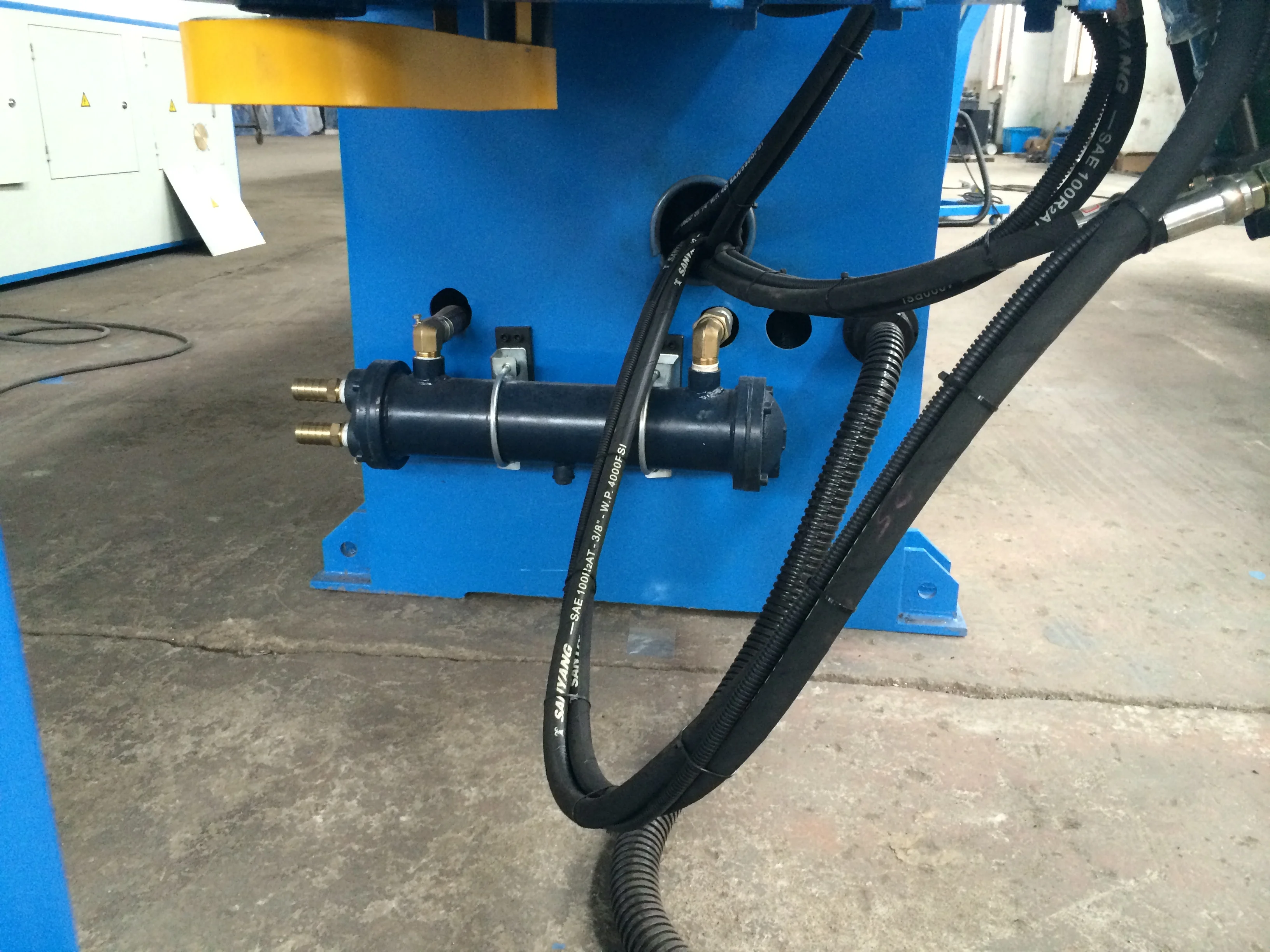

Ø Configuration of Hydraulic and Electronic Control System



Name	Manufacturer
Hydraulic Motor	Suzhou Jialifan
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Yuci Yuken
Oil way Board	Suzhou Boguan
Cylinder	Shanghai Qifan
Oil tube	Suzhou Kejia
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Wenzhou Changxing
Contactor	German SCHNEIDER(Imported)
Other Electric Parts	German SCHNEIDER,Omron, Taiwan SHILIN(Imported)
