CNC tube machine bender GM SB 38CNC 2A 1S
- Category: >>>
- Supplier: Zhangjiagang KING-MACC Machinery Manufacturing Co. Ltd.
Share on (60631516973):
Product Overview
Description

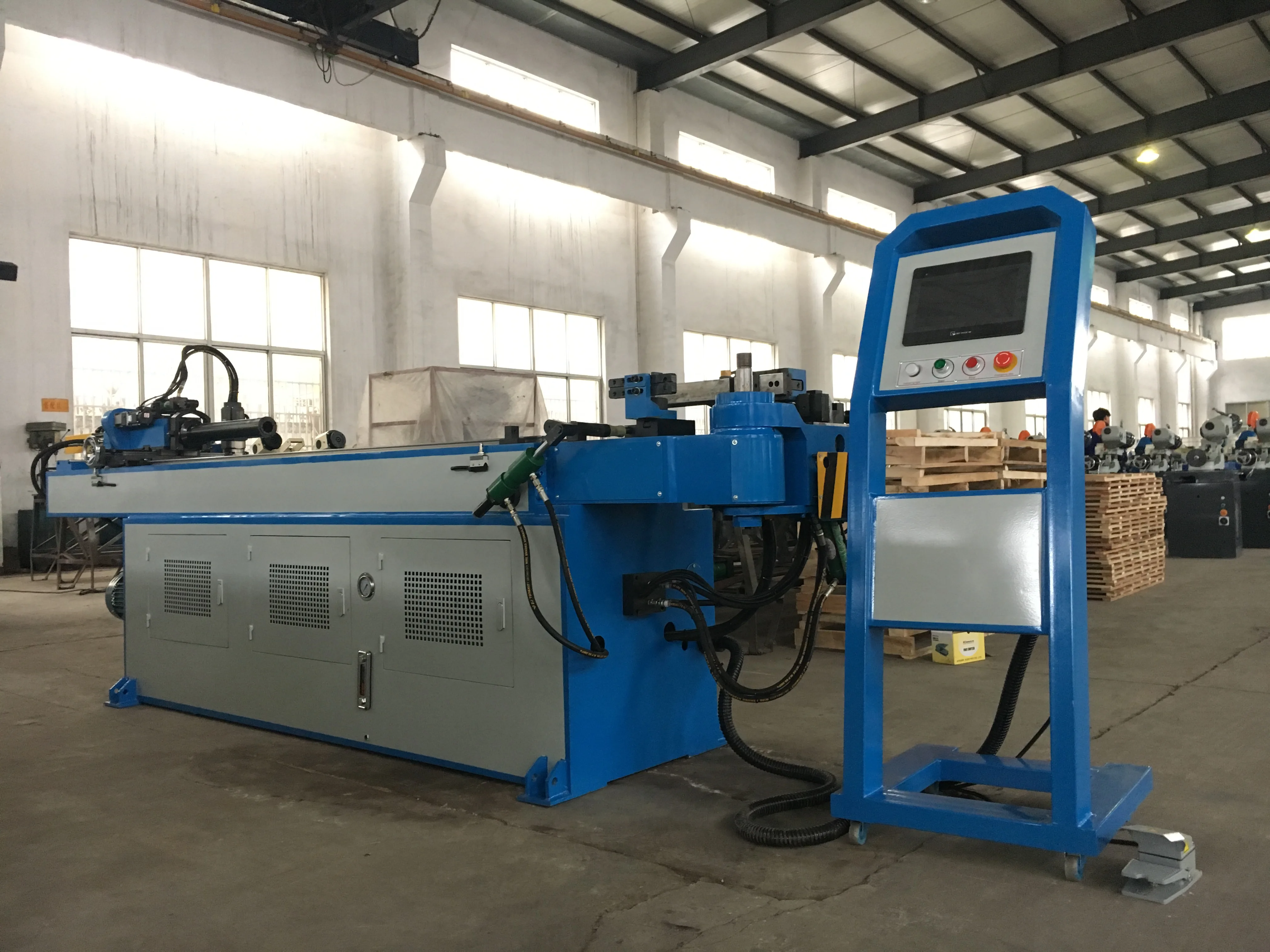

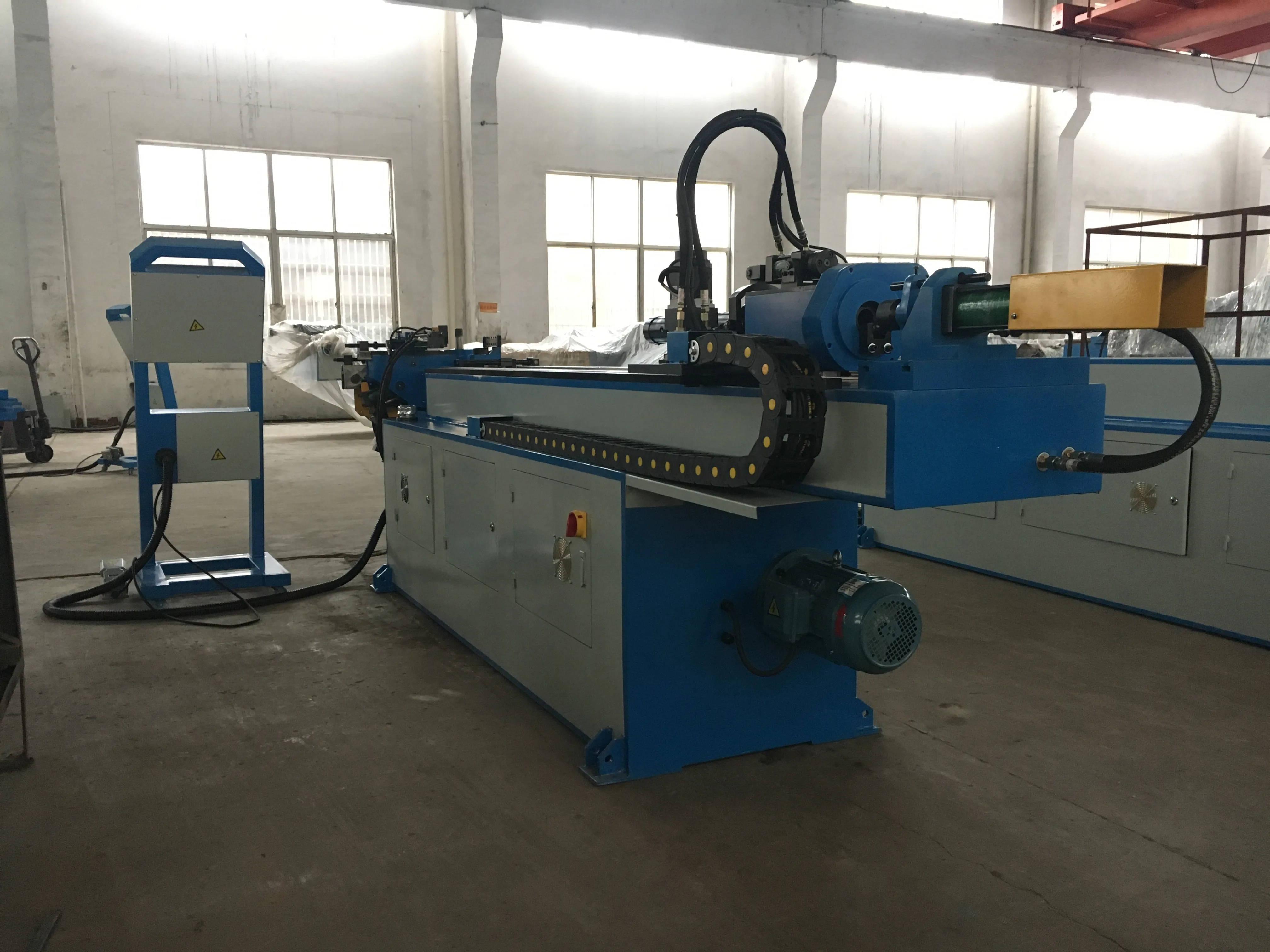

GM-SB-38CNC Full-Auto Numerical Control
Single-Head Bending Machine
Model:SB38×2A×1S
- Machine Characteristics

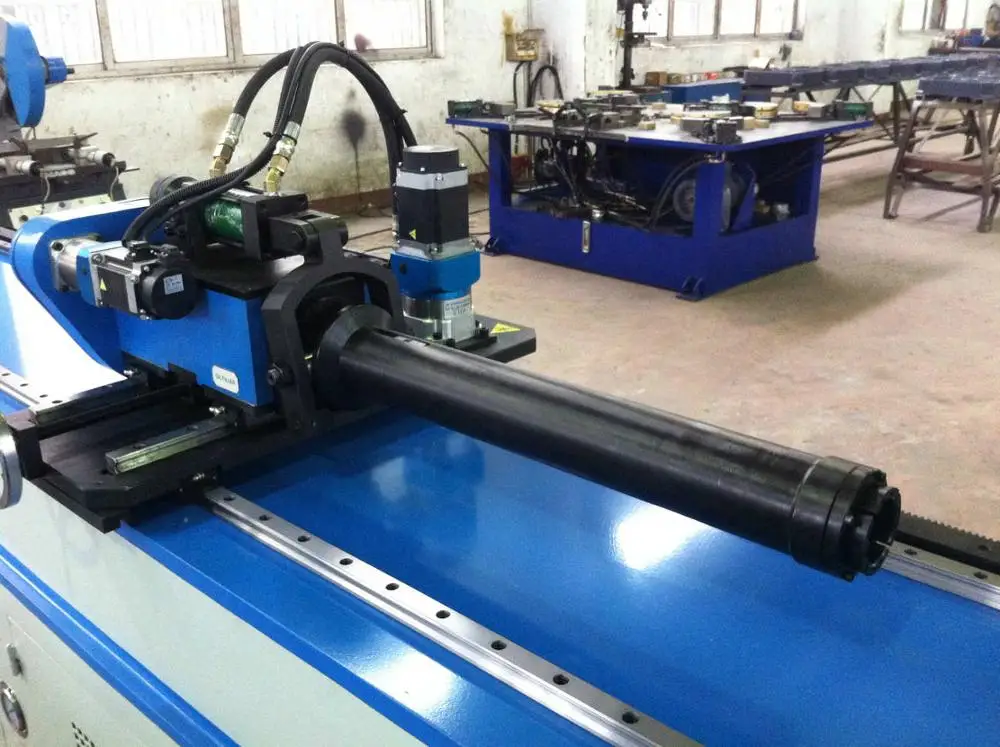

SB-SB-38CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe bending(C axis), pipe rotating(B axis), and pipe feeding(Y axis) are all drove by closed ring servomotor. Advanced technology, high automation reliability, integrated design all make CNC pipe bending machine the first class pipe processing machine in the world.
- Main Technical Parameter
Name | Unit | Parameter |
Max. Bending Capacity | mm | 38*2 |
Bending Radius Range | mm | 20-200 |
Max. Bending Angle | ° | 190° |
Bending Speed | °/sec | 60 |
Turning Speed | °/sec | 200 |
Feeding Speed | mm/sec | 1000 |
Bending Precision | ° | ±0.10 |
Turning Precision | ° | ±0.10 |
Feeding Precision | mm | ±0.10 |

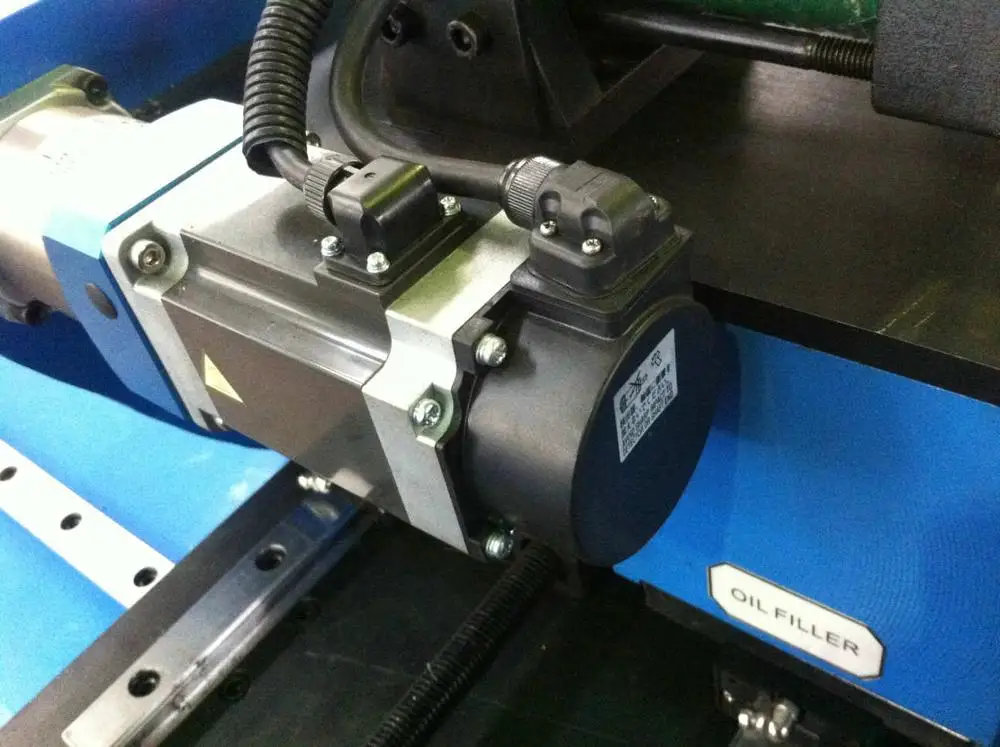

Turning Servomotor Power | kW | 0.4 |
Feeding Servomotor Power | kW | 1 |
Though Effective Distance | mm | 2200 |
System Motor Power | kW | 4 |
Max. Pressure | Mpa | 16 |
Oil Pump Delivery Volume | L | 14 |
L*W*H (Packaging Dimension) | mm | 3500*700*1300 |
Weight | T | 2.0 |
- Configuration of Hydraulic and Electronic Control System
Name | Manufacturer |
Hydraulic Motor | Suzhou Runmali |
Hydraulic Pump | Wuxi Tuoli |
Hydraulic Valve | Japan Yuken |
Oil way Board | Suzhou Boguan |
Cylinder | Shanghai Qifan |
Oil tube | Suzhou Kejia |
Touch screen | Taiwan Weinview |

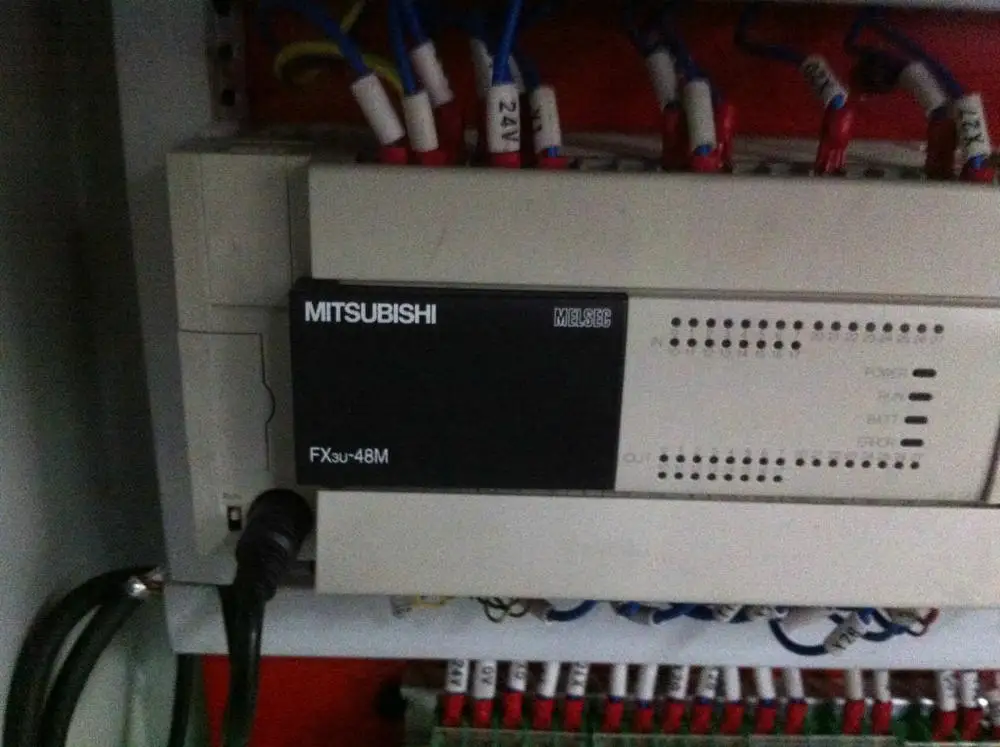

PLC | Japan Mitsubishi |
Angle controller | Japan Nemicon |
Switch power | Wenzhou Changxing |
Contactor | German SCHNEIDER |
Other Electric Parts | German SCHNEIDER,Omron, Taiwan SHILIN |
Packaging & Shipping
Company Information
Certifications
Our Services
1)Observing &Testing
After we receipt 30% advance deposit, we will start to produce. When the machine is completed, buyers come to observe and test machine by themselves, until the machine is satisfied with the buyers, they can pay for the other 70% balance.
2)Technical documents
The seller should supply buyer the documents for installation and commissioning within 5 days after contract is available, other related documents will be supplied to buyer before shipment.
3)After-sale service
After sale service shall be done by the seller. Seller will provide all kinds of technical support to the buyer by telephone, fax or email free of charge. After one-year guarantee period, we assure you life-long maintenance.
4)Installation
We provide electrical control maps and instruction book to you for installation with English instruction. If required, we can send 1 or 2 engineers to buyer’s country for installation and training.
