DYA Round Outward Manway with Pressure 1 3bar / Tank manhole cover
- Category: >>>
- Supplier: Wenzhou Daysly Technology Co. Ltd.
Share on (60631517965):
Product Overview
Description

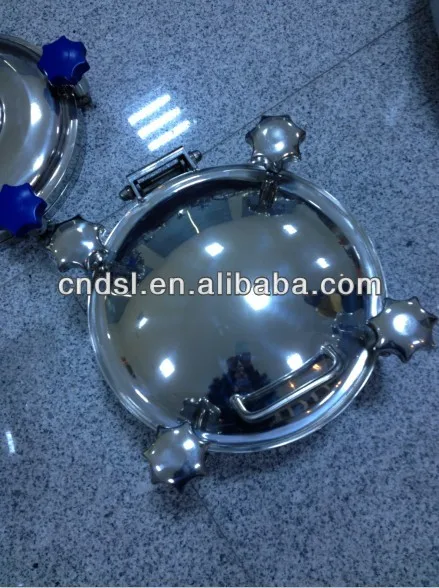

DYA Round OutwardManway with Pressure/ Tank manhole cover
Product Description
Feature:
Gasket: Silicone/EPDM/NBR/FPM in accordance with FDA177.2600
Material: Sanitary stainless steel304(1.4301), 316L(1.4404)
Internal surface: 0.8um-0.4um
Outside: Mirror polish / Dull polish/Matte/Sand-blasting finished
| SIZE | OD(MM) | t(MM) | H(MM) | t1(MM) | Pressure(bar) | Handwheel QTY |
| 200 | 206 | 3 | 100 | 3 | 1-3 | 4 |
| 300 | 306 | 3 | 100 | 3 | 1-3 | 4 |
| 350 | 356 | 3 | 100 | 3 | 1-3 | 5 |
| 400 | 406 | 3 | 100 | 3 | 1-3 | 6 |
| 430 | 436 | 3 | 100 | 3 | 1-3 | 6 |
| 450 | 456 | 3 | 100 | 3 | 1-3 | 6 |
| 500 | 508 | 4 | 100 | 3 | 1-3 | 6 |
| 600 | 608 | 4 | 100 | 4 | 1-3 | 6 |
Our Services
We can supply a wide range of sanitary valve and fittings, such as butterfly valve, ball valve, pnuematic valve, union, reducer, clamp, elbow. For detailed informations, please view our website(www.daysly.com) or contct us directly by email or by phone +86 15058322510.
