Haiwell China PLC 8points analog PLC module with remote I/O built in Ethernet port

Product Overview

Description

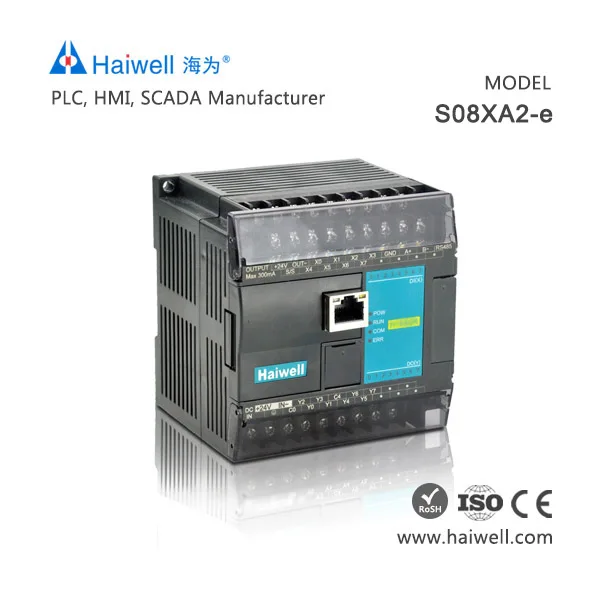

Haiwell China PLC 8points analog PLC module with remote I/O built-in Ethernet port

Haiwell PLC is a versatile high-performance programmable logic controller, which is widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevators, central air conditioning, numerical control machine tools and other fields of systems and control equipment.

It is the first PLC (Programmable logic controller) designed with 100% built-in simulator in China.

Very easy to study and use!  It is the best choice for small and medium PLC market. As compared to Siemens/Mitsubishi/AB etc, it is more cost-effective, very simple to study and use, equipped with all the necessary functions.

Haiwell PLC Ethernet + : Host PLC and remote modules support Ethernet communication, host PLC support Ethernet port and 5 other RS232/RS485 communication ports working simultaniously, support N:N network

type, support remote programming, debug, monitoring and data exchange. Easy to network with other PLC modules,HMI and PC via Ethernet port.

PLC Model Spec.



PLC Model	Power	AI	AO	Conversion Accuracy	Communication	Haiwell series
S08XA2-e	220V AC	4	4	12bit	1*Ethernet port+ 1*RS485, supports remote IO functions	Analog IO module



Haiwell PLC Analog Input (AI) Specification

Item	Voltage Input				Current Input		RTD Input	Thermocouple Input
Input range	-10V~+10V	0V~+10V	0V~+5V	1V~+5V	0~20mA	4~20mA	Pt100, Pt1000, Cu50, Cu100	S, K, T, E, J, B, N, R, Wre3/25, Wre5/26, [0-20]mV, [0-50]mV, [0-100]mV
Resolution	5mV	2.5mV	1.25mV	1.25mV	5uA	5uA	0.1℃	0.1℃
Input impedance	6MΩ				250Ω		6MΩ	6MΩ
Max input range	±13V				±30mA			±5V
Input indication	LED light means normal , dark means break OFF
Response time	5ms/4 Channel						560ms/4 Channel ,880ms/8 Channel
Digital input range	12 bits, Code range: 0~32000(H series module 16 bits A/D convert)						16 bits, Code range: 0~32000
Precision	0.2% F.S						0.1% F.S
Power supply	MPU use internal power supply, Extension module use external power supply 24VDC ±10% 5VA
Isolation mode	Opto-electric isolation, Non-isolation between Channel ,between analog and digital is opto-electric isolation
Power consumption	24VDC ±20%,100mA(Max)						24VDC ±20%,50mA(Max)



Haiwell PLC Analog Output (AO) Specification



Item	Voltage Output				Current Output
Output range	-10V~+10V	0V~+10V	0V~+5V	1V~+5V	0~20mA	4~20mA
Resolution	5mV	2.5mV	1.25mV	1.25mV	5uA	5uA
Output load impedance	1KΩ@10V		≥500Ω@ 5V		≤500Ω
Output indication	LED light means normal
Drive capacity	10mA
Response time	3ms
Digital output range	12 bits, Code range: 0~32000(H series module 16 bits A/D convert)
Precision	0.2% F.S
Power supply	MPU use internal power supply, Extension module use external power supply 24VDC ±10% 5VA
Isolation mode	Opto-electric isolation, Non-isolation between Channel ,between analog and digital is opto-electric isolation
Power consumption	24VDC ±20%,100mA(Max)

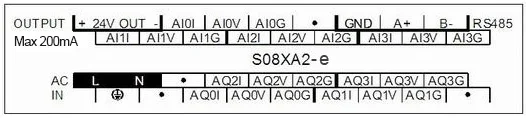

Haiwell S08XA2-e PLC analog module terminal wiring diagram



Programming Software

  HaiwellHappy is a IEC 61131-3 standard programming software for Haiwell PLC products. It is most convenient PLC programming software for users.  All neccessary instructions are highly intergrated,  Very easy to study and use.



It supports 100% built-in simulator(Interpolation simulator, communication simulator and PLC hardware simulator). LD-Ladder Diagram, FBD-Function Block Diagram and IL-Instruction List 3 programming languages are supported.







PLC advantages

As for PLC advantages, We can visually feel them through the following Haiwell Cloud networking diagram.

Haiwell Cloud is a cross-platform IOT cloud platform. It supports PC, iPad, Android, IOS and other terminals. You can visit on-site equipment from a thousand miles away, and realize the remote monitoring and maintaining for HMI and PLC. It supports remote programming, firmware upgrades,monitoring and diagnosis etc.

Haiwell Cloud provides security mechanisms for communication. It is secured by the encryption mechanism of 128-bit SSL,which ensures the stable and safe data transfer. It also uses A-key and B-Key protection mechanism to enable secure remote access to the devices.
