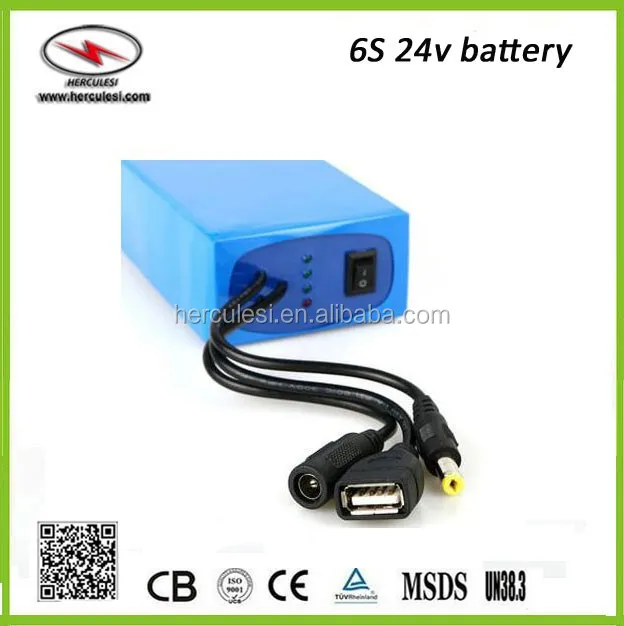

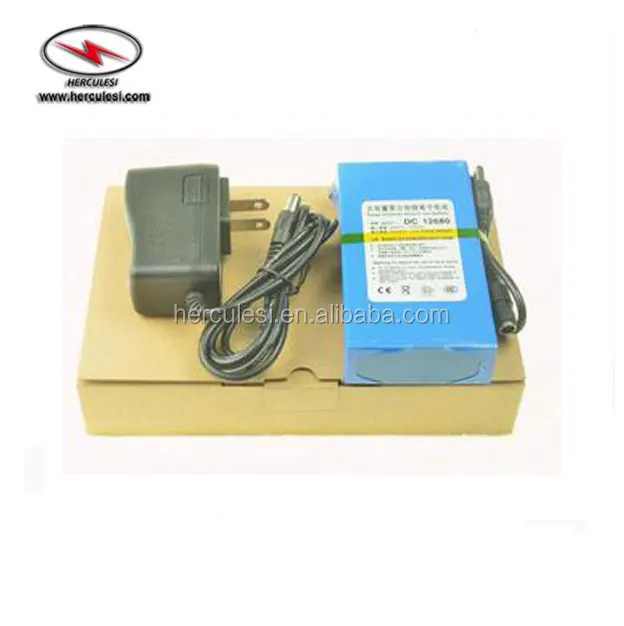

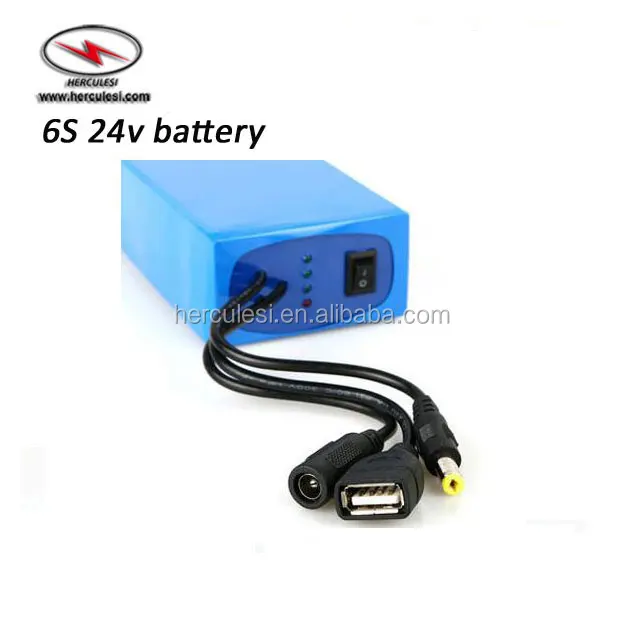

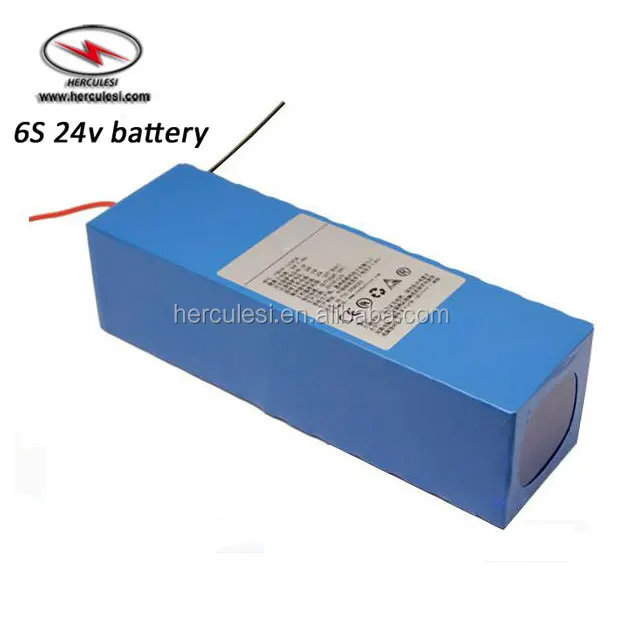

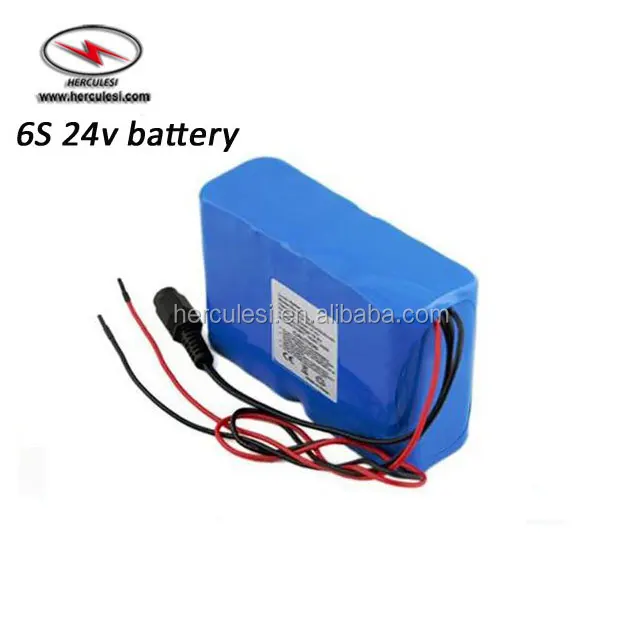

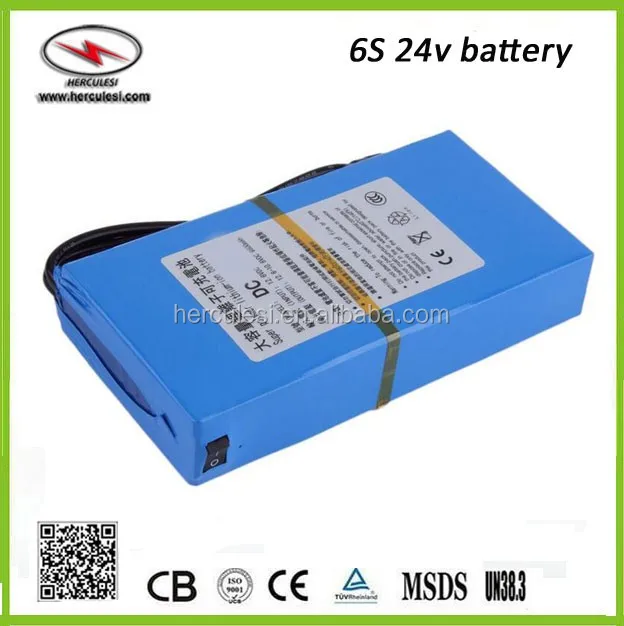

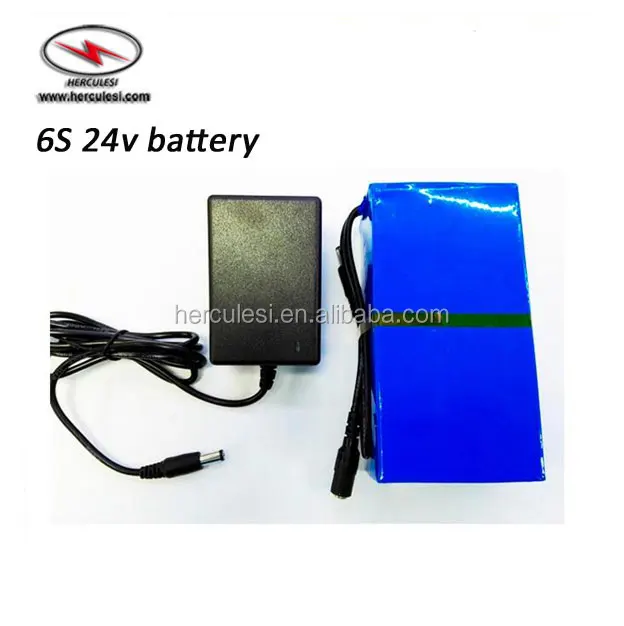

24V Deep Cycle Battery 6S NCR 18650 25.5V Li-Ion Battery Pack Made in China
| Battery Model | DC 24V 7000mAh | |
| Nominal Voltage | 22.2V | |
| Capacity | 7Ah | |
| Cell Type | 6S2P 18650 | |
| Charge | Way of charge | CC/CV |
| Continuous charge current / max charge current | 1A-2A (adjustable) | |
| Input voltage | 25.2V | |
| CellOvercharge Protection Voltage | 4.2V/ CELL | |
| Discharge | Continouns Dicharge Current | 1C-2C (adjustable) |
| Max discharge current | 2C
| |
| Cell Overdischarge Voltage | 2.8V/Cell | |
| Output Voltage | DC17V-25.2V | |
| Cycle Life | 800 times | |
| Weight | 600g | |
| Size | 95*70*75mm ( customized ) | |
| Stored energy | 160Watt hours | |
| Working Temperature | 0C-45C | |
| -20C-65C | ||
| Retention of charge | >95% | |
| Certification | CE,MSDS,POSH, UN38.3,UL | |
| Application | CCTV ,Led light | |
| Connectors | 5.5*2.1mm DC jack+5.5*2.1mm DC plug | |
| ON/OFF Switch | Availavle | |
| LED Indicator | Availavle | |
| 24V A grade PCM | Over-Current Protection ,Over-Discharge Protection,Over-Charge Protection,Short-Circuit Protection,Balance | |
| Package Include | 1 × Lithium Battery Pack ,1 × BMS System inside ,1 × 350mAh Charger | |
| Battery charger | 25.2v EU/UK/US /AU charger | |


24v lithium polymer battery Applications
mini 24v rechargeable battery for LED strip/panel/light
24v lipo battery for Camera/IP Camera
rechargeable li-ion battery 24v for Car camera recorder
Small 24v volt battery for Router/Switch
li-polymer battery for POS machine
lipo battery 24v Solar energy storage
24v li polymer battery pack for outside
24v lithium polymer battery for MP3
lithium battery 24v for drill
Ultra Thin 24v Battery Lipo for laptop

Shipping
..FedEx/DHL/UPS/TNT for samples, Door-to-Door
.. By Air or By Sea for batch goods for FCL. Airport/Sea Port receiving
.. Customers Specifying Freight forwarders or Negotiable Shipping Methods
.. Delivery time: 3-7 Days Upon payment receipt
Payment Term
.. Payment: T/T, Western Union, MoneyGram,PayPal; 100% deposits
.. MOQ: 1 Piece
.. Warranty: 13 months
One lithium battery 12v in a small case .

Instruction:
1.turn on the switch on the battery,the red indicator on the battery will be on.
2.when the red indicator of the charger adapter turn to green,then the battery is fully charged.
3.the indicator on the battery,it will always red.when the power of the battery use out,it will turn dark,though it has nearly 5% power,the red indicator will still on.
To charge
Switch on the adapter and the red light would be on .
Connect the point of the adapter to “DC In/Out”of the battery and the green light would be on,which indicates it starts to charge,the box does not finish charging unit the green light is off
To supply
Connect one point of the power wire to “DC In/out”of the battery and press the switch to “ON” and the other point of the power wire to any kinds of household appliances with the special technology,the inner circuit cut off
Automatically in case of incorrectly use,resulting in no output.but you can renew its output so long as to recharging battery.
Caution
Do use the specialized accessory to recharge.the input voltage of any appliance must be in the range of the output of the battery,otherwise it can do harm to appliance.
To avoid the descending capacity, the battery must not be put away over 1 year.
Away from high temperature,and kept in cool dry place.
1. My battery pack stopped charging, what should I do?
A :Often if this happens it is due to the anti-spark feature built into the BMS. Say you did not properly make a connection somewhere and the wires sparked, the BMS would shut itself down to prevent damage to the system. If this happens the first thing you always want to do is to try resetting the BMS by using your charger to try charging through the discharge connector for a few seconds, maybe a minute. You just run a jumper (basically regular wires) from the charger's connector to the battery's discharge contact, making sure you go positive>positive and negative>negative.
2. How do i know when it is fully charged?
A: If your battery has a voltage display on it then you can tell that is fully charged based on the voltage readout, You can also test the voltage with a multimeter directly from the discharge connector.
3. Do you offer charger for battery?
A: Yes, we do
4.what's your MOQ ?
A: 1PCs
5. can i get a free sample ?
A: sample is fine , free sample you are thinking to much .
