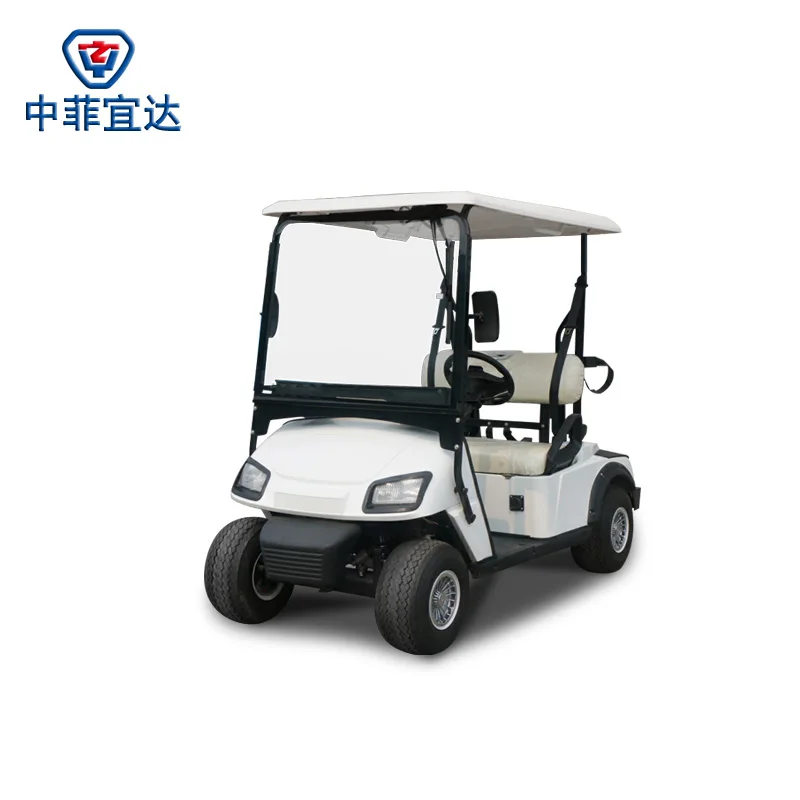

2 сиденьями с батарейным питанием Электрический гольф мобиль для Сделано в Китае

Container

General package

Semi assembled

Wholly assembled

Qty/20'

*

8

4

Qty/40'

*

16

8

Qty/40'HQ

*

16

8

Performance

Passenger Capacity

4 Seats

Max.Speed

25-30km/h(adjustable)

Driving Range

80km

Climbing Ability

<20%

Braking Distance

<3.5

Mini Turning Radius

3.5m

Min.Clearance

400mm

Recharge Time

8-10hours

Dimension

L*W*H

2880*1200*2100mm

F/R Tread

855/980mm

Axle Distance

1720mm

Curb Weight

520kgs

Standard Configurations

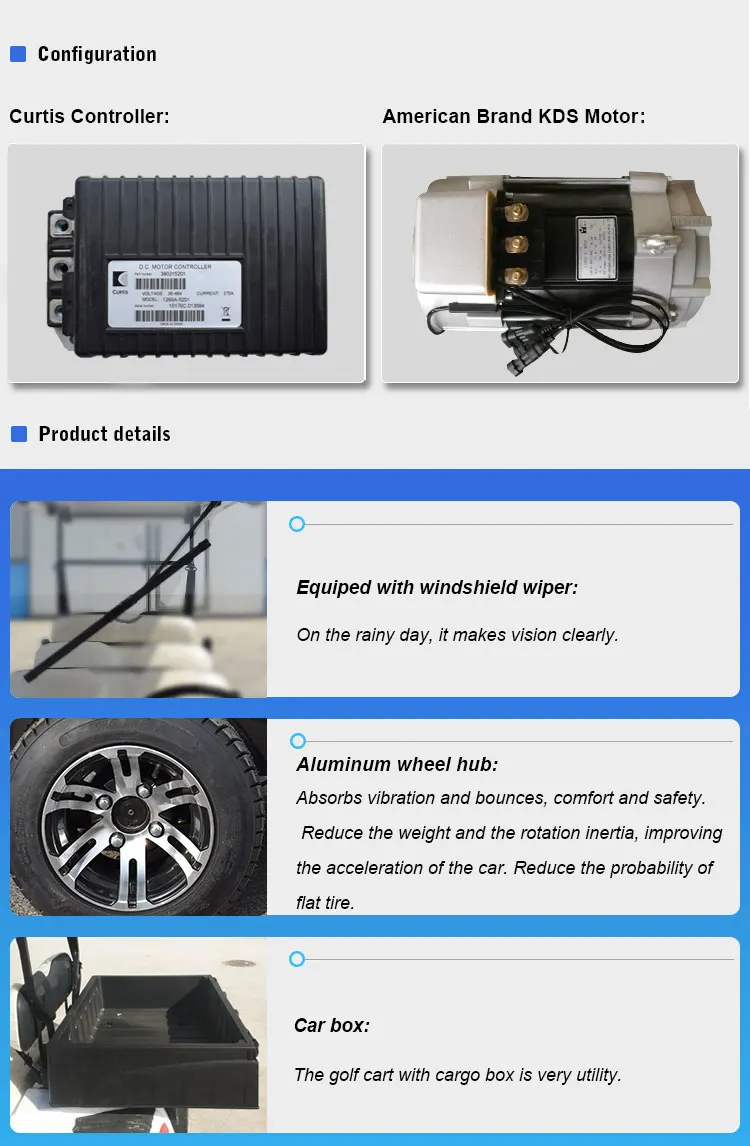

Motor

ADC Brand 3.8KW Motor  (USA brand)

Controller

Curtis Controller (48V 275A) (USA brand)

Battery

Huge capacity deep cycle lead-acid battery  8V/piece  6 pieces

Body & Roof

Injection molding design separable replacement

Windshield

Tempered glass with wiper

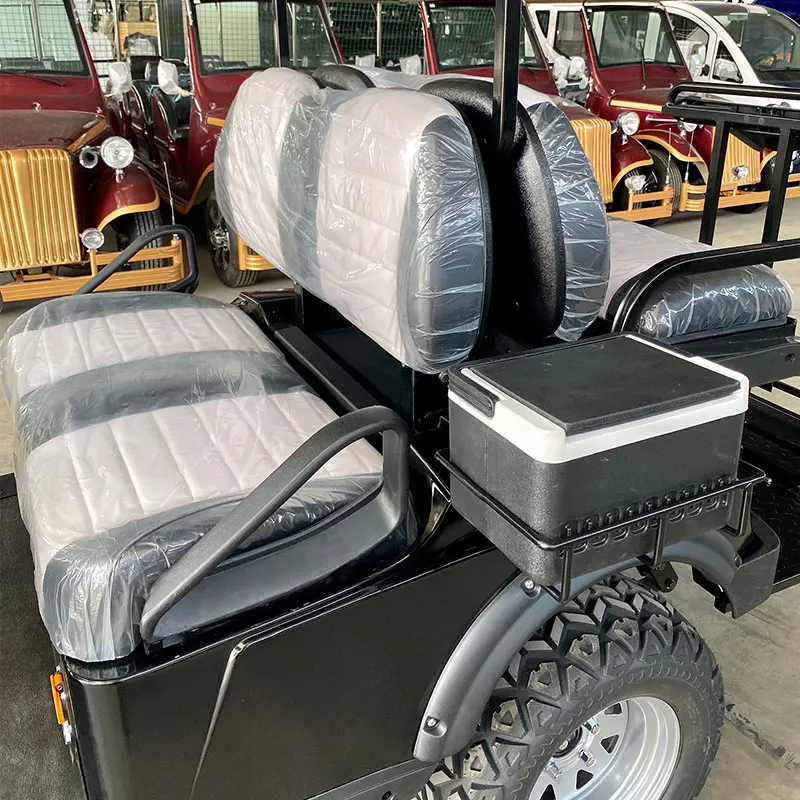

Seats

Sponge&artificial Leather with flexible two-point belt and three-point belt

Rear View Mirror

2 pcs

Bumper

Front and Rear bumper

Tire

Golf tyre AT23X10.5-12

Chassis

High strength structural steel

Steering

Gear steering, auto backlash compensation

Brake System

4 wheels hydraulic brake

Front Axle

Non Independent Suspension, Leaf Spring + Cylindrical Hydraulic Shock Absorb

Rear Axle

Integral Rear Axle, Non Independent Suspension, Spring, Sylinder Type Hydraulic Shock Absorb

Light System

Combination front lighting (turning light, high beam, dipped light) rear lighting (turning light, brake light) driving & reverse buzzer.

Charger

On board charger

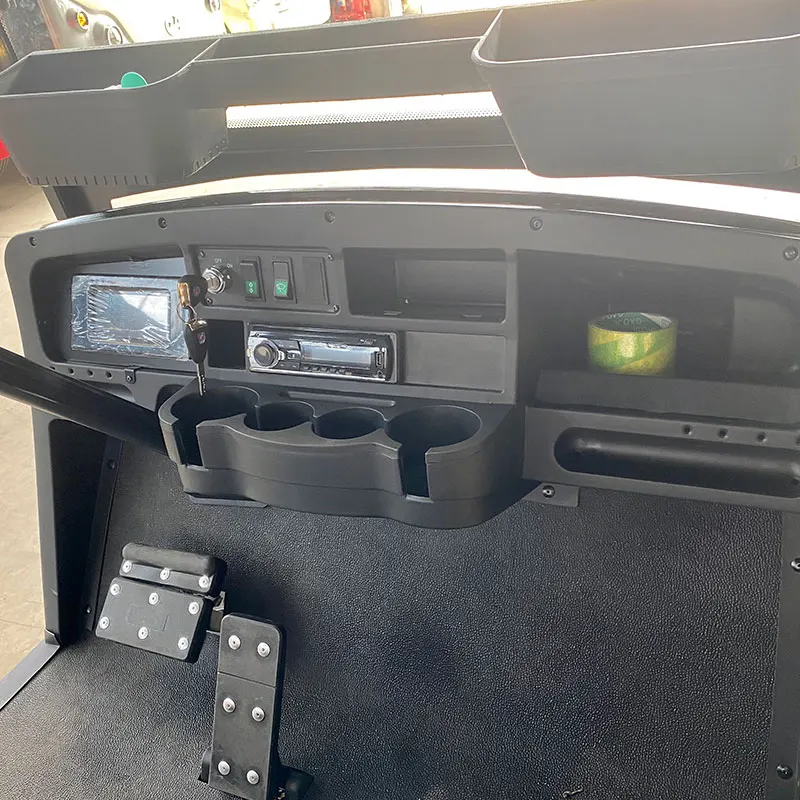

Dashboard

Plastic molding instrument board with volt meter, ammeter,electricity indicator, speedometer,electric key switch, radio with blue tooth, storage box, cup holder,turn signal indicator,forward and Revise indicator.
