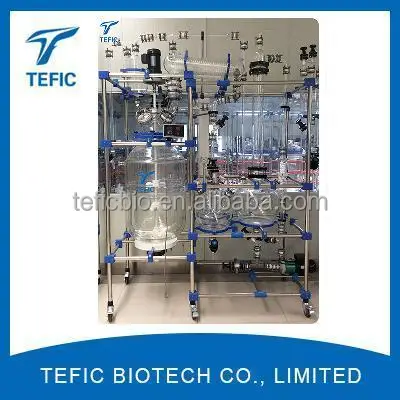

10L Pilot Double Jacketed Reduced Pressure Borosilicate Glass Reactor With Reflux Unit And Condenser

Product Overview

Description

Description of Jacketed glass reactor

  Jacketed glass reactor is with double glass design, the inner layer placed with reaction menstruum can do the mixing reaction, and the interlayer can be added with different cold and heat sources (frozen liquid, hot water or hot oil) to do loop heating or cooling reaction. At a set constant temperature, the mixing reaction can be carried out in the sealed glass reactor according to requirements under atmospheric pressure or negative pressure conditions, and the reflux and distillation of the reaction solution can also be done. It is the ideal pilot and production equipment of modern fine chemicals, biological pharmacy and synthesis of new materials.







Structure of jacketed glass reactor






key features of jacketed glass reactor
1. Integrated stainless steel tube , mobile frame structure, reaction vessel cover with 5 necks for re-fluxing, liquid feeding, temperature measurement, etc.
2. G3.3 borosilicate glass, good chemical and physical properties
3. PTFE seal, to keep high-precision sealing under poor working state
4. Japan technology AC gear reducer motor, strong torsion, no noise

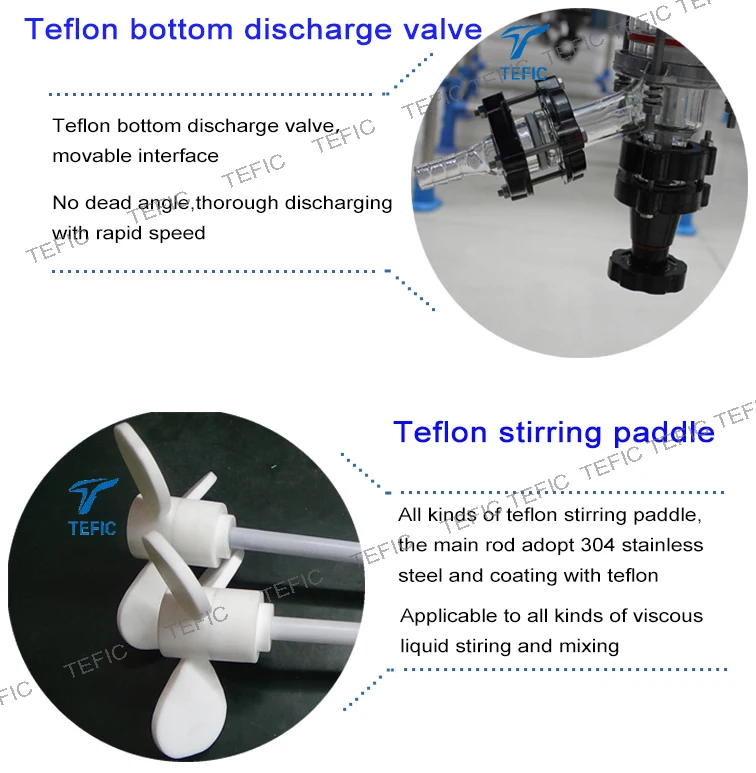

5. PTFE stirring paddle is suitable for stirring and mixing different kinds of materials

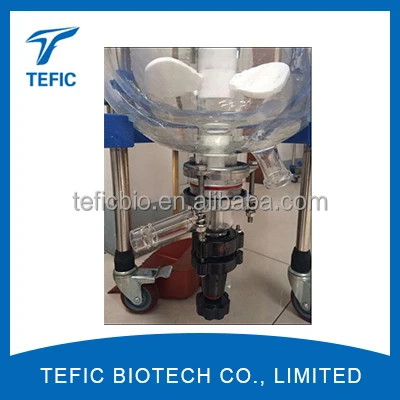

6. PTFE discharge valve can discharge materials thoroughly and quickly

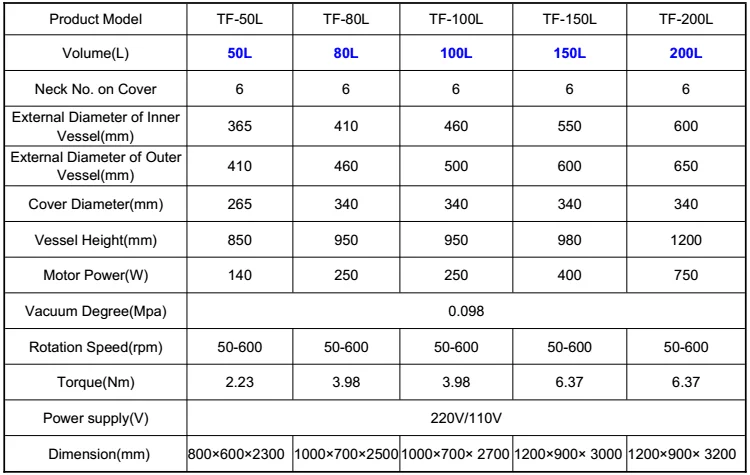

Technical parameters of jacketed glass reactor





































































 FAQ

1. What's the max temperature?

Usually the high borosilicate glass can withstand over 300 degree centigrade and the PTFE stirring bar can withstand about 200 degree centigrade



2. What's the size do you have?

We can offer you 1L, 2L, 5L, 10L, 20L, 30L, 50L, 100L,150L.200L



3. How many kinds of your glass reactor?

Two types: jacketed glass reactor and single layer glass reactor.

Explosion proof is available.



4. What’s the heating mode of single layer glass reactor?

Oil/water bath heating, and heating mantle.



5. Can you offer the supporting facilities?

Yes, we can offer you the vacuum, heating and cooling system as you demand.



6. What's the minimum order quantity?

One set at present.
