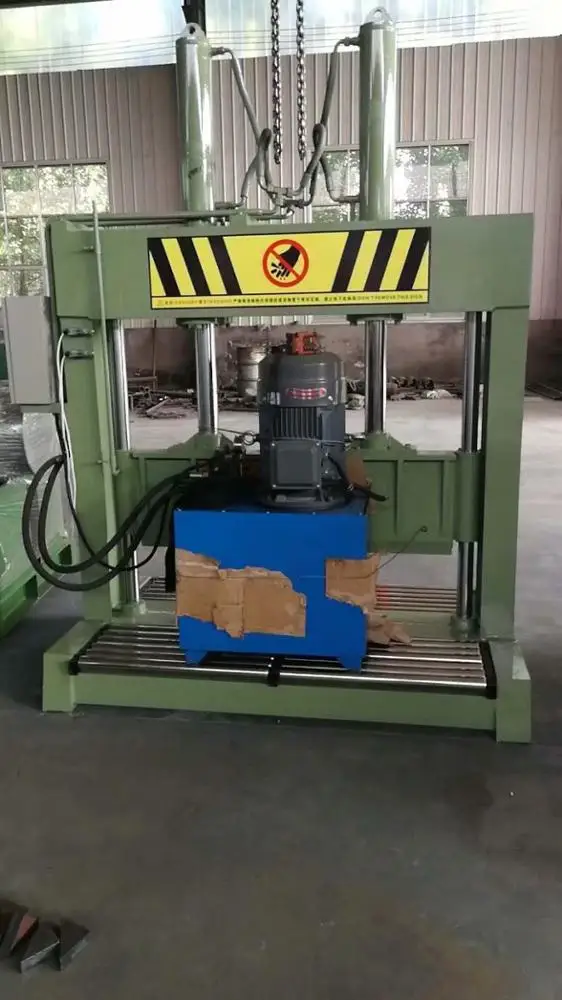

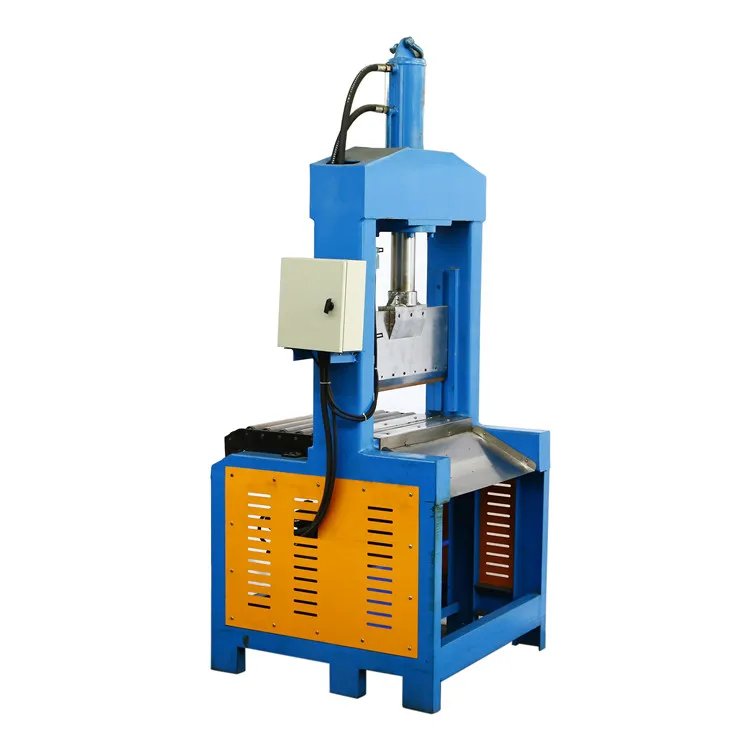

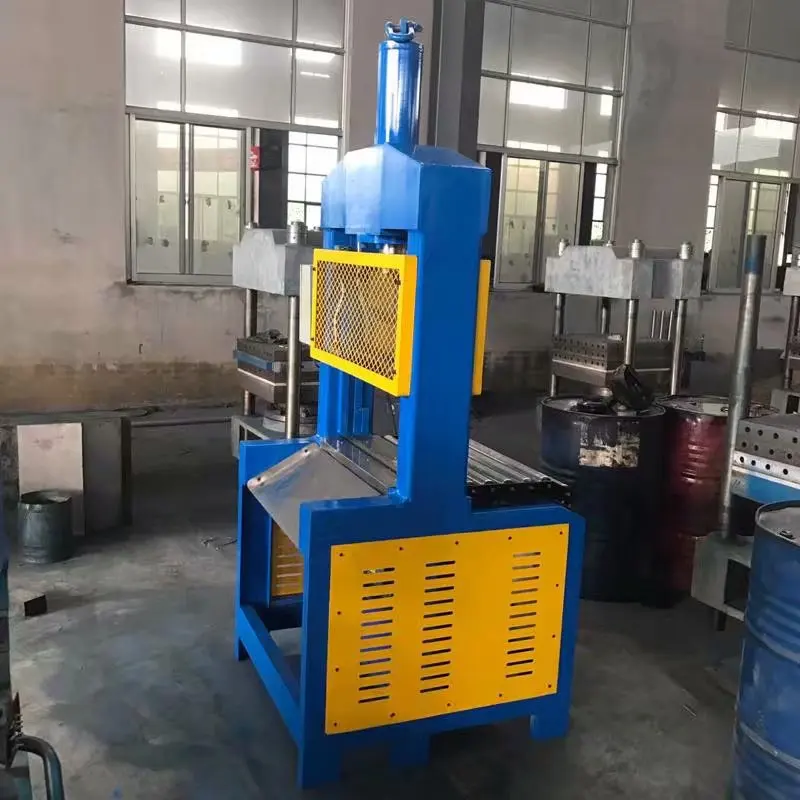

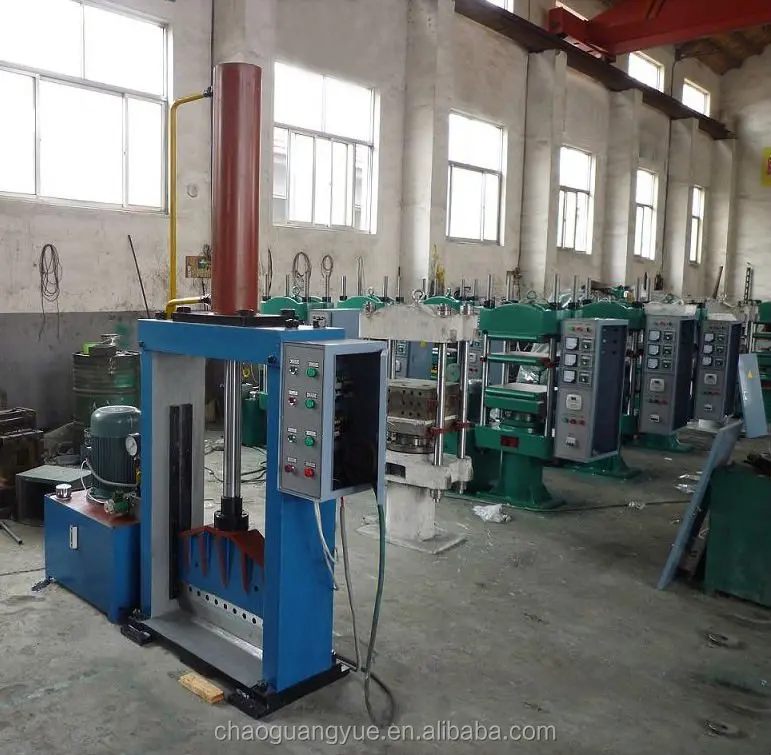

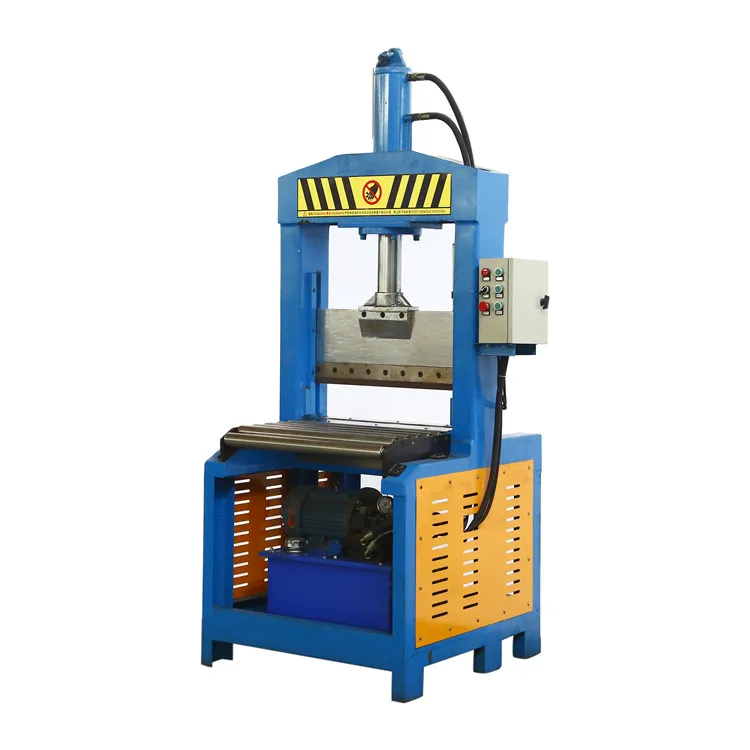

qdgy Natural Rubber Bale Cutter Hydraulic Cutting Machine

Product Overview

Description

 qdgy Natural Rubber Bale Cutter Hydraulic Cutting Machine

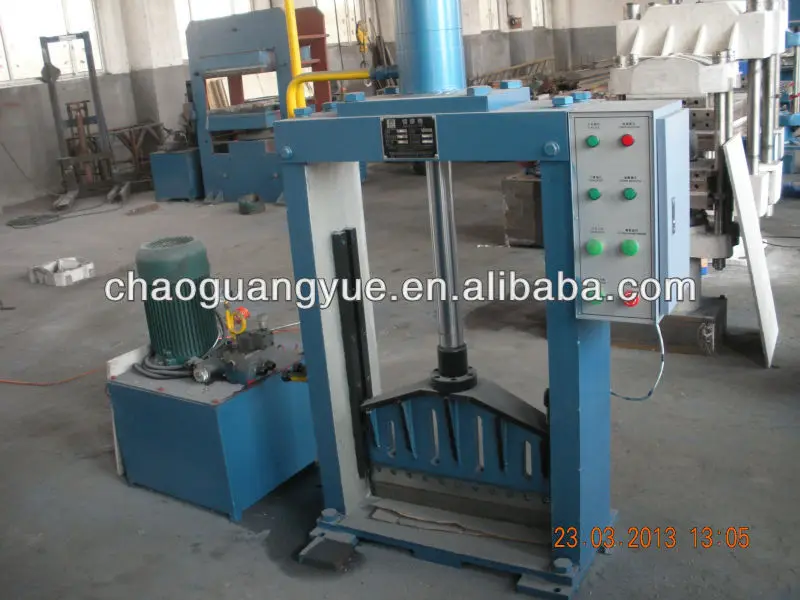

 Vertical rubbe bale cutter



1.Use

  To cut the whole tire, rubber block and rubber board in to rubber strip.
2.Structure and principle

  This machine is composed of a pair of blade, reducer, frame and rotational mechanism etc. The basic principle is: Rotating institutions by reducer to drive two blades and make relative operation, prompting two blades of uniform shear trend, , making the material placed between the two blades onward, in order to achieve forward shear effect.

3.Characteristics

 This equipment shear force big, the effect is good, low energy consumption, use a slow speed, so convenient operation and safety.

4.Parameters of bale cutter

type	XQL-80	XQL-160
Width	660	1000
Stroke	680	680
Diameter of the piston	150	200
Time Taken by the Stroke	16 -- 25	10 -- 16
Power	5.5	5.5
Weight	1500	2000
