New type 3 phase 690V safe power Distribution Terminal Box
- Category: >>>
- Supplier: Linkwell Electric (Shanghai) Co. Ltd.
Share on (60632047284):
Product Overview
Description
Products Discription

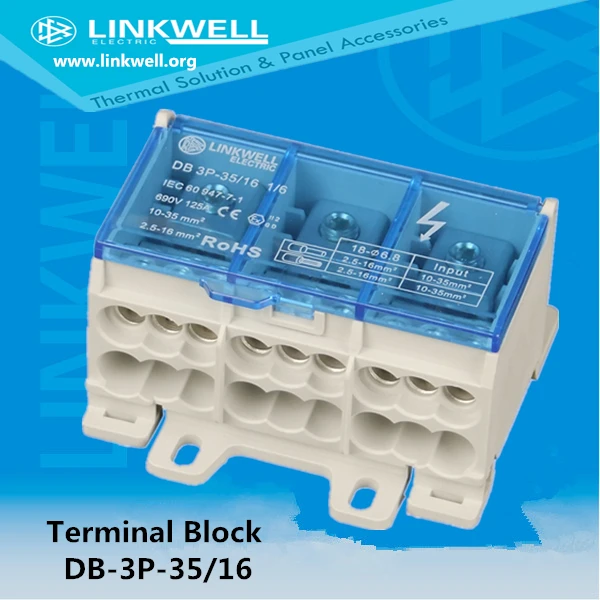

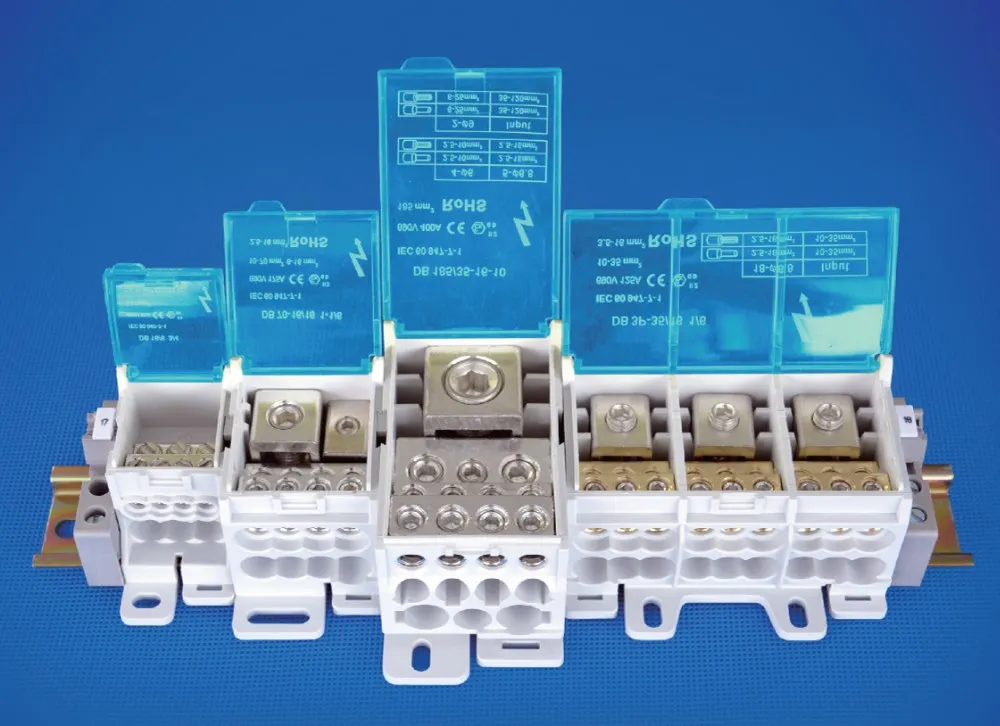

China Manufacture Power Distribution Terminal Blocks DB Series ( DB 3P-35/16 1/6)
• Space saving :compact
• Tinned copper block: high conductivity
• IP 20 protection/UL finger-safe: improved safety
• Cable fixing screw diameters>95% fill ratio: excellent electrical
• contact, safe connections
• Visual inspection of wire: confirmation of connection
• Hinged or removable cover: easy wiring
• Clip-on DIN rail or mount to panel with screws: easy fixing
| Specification | DB 3P/35 16 1/6 |
| Max.Current(A) | 125A |
| Dimensions(mm) | Specification |
| Length/Thickness/Height NS 35:7.5/NS 35:15 | Length Thickness Height NS 35:7.5 75.5 85 50 |
| According to the standard IEC 60 947-7-1 parameters | |
| Rated voltage(V) V | 690 |
| Rated current(A) A | 125 |
| Input/output cable rated cable cross-section (mm2) | 3*35/16 |
| Rated impulse voltage/The pollution grade | 2.5kV/3 |
| UL94 Flammability class | V-0 |
| More data | |
| Peak value of short-current | 30 |
| short current>1 S | 11.8 |
| Input | A |
| Input cable terminal quantity | 3*1 |
| "e"Single stranded solid wire H07V U mm2 | 10...35 |
| "m"Multi-stranded solid wire H07V-U mm2 | 10...35 |
| "f"flexible bus bar H07V-K mm2 | 10...35 |
| "f"flexible with wire-end ferrules acc.DIN46228-1 H07V-R mm2 | 10...35 |
| "f"flexible with wire-end ferrules acc.DIN46228-1,with plastic collars H07V-R mm2 | 10...35 |
| Dia. mm | 10 |
| Tightening Torque (Nm) | 1.5...5 |
| Compression screw type | M8 |
| Stripping length (mm) | 14...15 |
| Screwriver blade Size | SK-S 4.0 |
| Output | A |
| Output cable terminal quantity | 3*6 |
"e"Single stranded solid wire H07V-U mm2 "m"Multi-stranded solid wire H07V-R mm2 "f"flexible bus bar H07V-K mm2 | 2.5...16 |
| "f"flexible bus bar with wire-end ferrules acc.DIN46228-1 H07V-R mm2 | 2.5...16 |
| "f"flexible bus bar with wire-end ferrules acc.DIN46228-1,with plastic collars H07V-R mm2 | 2.5...16 |
| Dia. mm | 6.1 |
| Tightening Torque (Nm) | 3 |
| Compression screw type | M6 |
| Stripping length (mm) | 10...12 |
| Screwriver blade Size/Inner hexagonal spanner | SK-S 3.0 |
UL/CSA parameter Voltage/current/cable size UL Voltage/current/cable size CSA | |
| Product Description color | Model No. Packing Code No. |
| W/Aluminum or copper cable input PA WH | DB 3P-35/16 1/6 1 8606001 |
| DB 3P-35/16 1/6 1 8606002 | |
| W/Flexible bus bar input PA GY | DB 3P-35/16 1/6 1 8606003 |
| DB 3P-35/16 1/6 1 8606004 | |

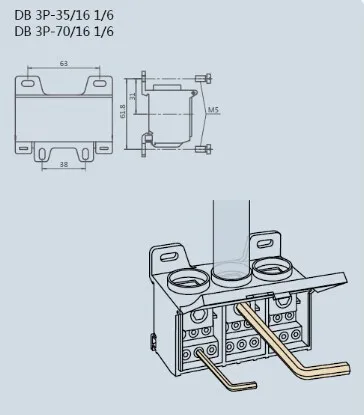

| Attachment screw driver | Model No. Code No. |
| Inner Hexagonal spanner 6 pcs set | SK-S 3.0 8601021 SK-S 4.0 8601022 |
