IP55 RTS Automatic Barrier/ Gate System Safety Protect Wireless Photocell/infraredphoto Beam Sensor Infrared 12V Photocell 940nm
- Category: >>>
- Supplier: Bisen Smart Access Co. Ltd.
Share on (60632105502):
Product Overview
Description
Product Description
12V Photocell,gate photocell
1. For security, please read the use manual carefully before intial operation.
2. This Photocell is without any fuse, so please make sure the power is off before installation.
3. Onlt used this system that do not cause any danger life or property during the running failure or its security risks
eliminated;
4. Please guarantee the photocell used in effective working range
1. For security, please read the use manual carefully before intial operation.
2. This Photocell is without any fuse, so please make sure the power is off before installation.
3. Onlt used this system that do not cause any danger life or property during the running failure or its security risks
eliminated;
4. Please guarantee the photocell used in effective working range
Product Name | 12V Photocell,gate photocell |
Working voltage | 12-24VAC/DC or 1.5V,LR6AA size |
Working current | Emitter:≤8mA Receiver:≤40mA |
Photocell wavelength | 940nm |
Angle of opposite emission | ≤+/-5° |
Receiver range | ≥12m |

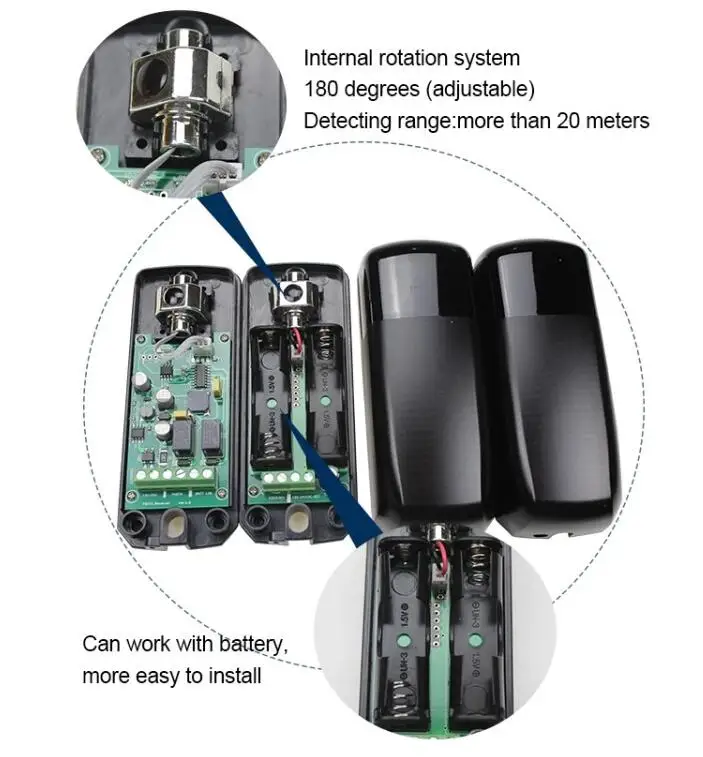

Internal Rotation System Adjusted Angle | 0~180° |
Working temperature | -20℃~+60℃ |
Relay contact loading capacity | 1A/30VDC |
Company Profile
BISEN SMART ACCESS CO,.LTD was established in 1999, located in NanChang, China.
We are the biggest professional manufacturer for parking management system and equipments, gate and door automatic operators in China. more than 70 experienced engineers are engaging in R&D team , and more than 500 employees are working in manufacturer and service. We can provide quality ODM / OEM service for customers.
Our main products: Parking system auto-barrier gate, Sliding gate opener, Swing gate opener, Industrial sectional door opener, anti-terrorism road blocker, Hydraulic bollard, Pedestrian gate, Entrance control system etc.
Exhibition
Certifications
Manufacturing Technique
Testing Equipment
Our Services
1.ODM,OEM Customised for special requirements.2. MOQ: 1 piece
3. Warranty:1 year
4. 24- hour responce.
5. Training
3. Warranty:1 year
4. 24- hour responce.
5. Training
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacurer
Q: How long is your delivery time?
A: Depens upon the quantity.
Q: Do you provide samples ? Is it free or extra ?
A: We could offer the sample for charge, freight collect.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance, balance before shippment.
If you have another question, pls feel free to contact us as.
