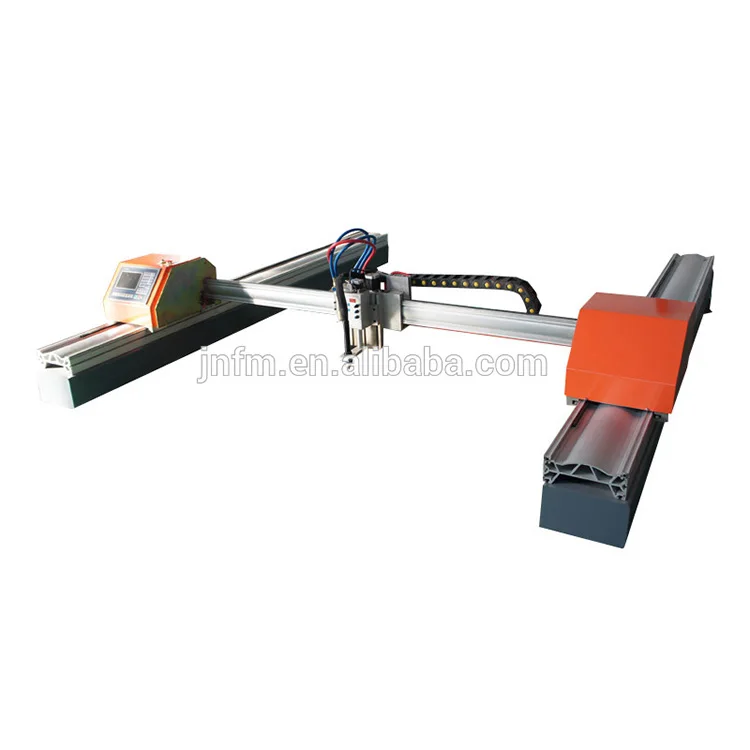

High Accuracy Aluminum Gantry Automatic Gas Cnc Plasma Cutting Machine

Product Overview

Description





cnc plasma cutting machine

Product feature



1. Adopt newest aviation aluminum meticulously, full of The Times flavor, beauty and durable use. Newest transmission structure with precision rack and special reducer to ensure the accuracy of the transmission, Y axis adopts double driver to ensure provide large torque for machine. The control cable is made by importer retardant wear-resisting material.

2. The drive system adopts USA chip control and high precision motor, providing AC power with big torque to ensure running smoothly under the high speed.

3. Control system is 7 "screen, with English and Chinese language. The machine adopt high precision arc pressure automatic THC.

4. Optional function: Plasma/Plasma and flame

5. Optional configuration: Stepper motor/servo motor; linear rail/SBR round rail

6. Machine size: A, 2230: 2200*3000mm;       B, 2260: 2200*6000mm;



Product parameter



Model	FX-LML2230HD
Cutting method	Plasma	Flame
Cutting size	2200*3000mm
Machine size	3300*3500mm
Lifting travel	≤100mm
Max travel speed and cutting speed	18000mm/min 0-15000 mm/min
Running accuracy	≤0.005mm	≤0.1mm
Height control	Are pressure THC	Lifting body
Cutting thickness	According to the power supply, less than 20mm is the best	6-200mm
Cutting gas	Air	Oxygen + ethyne(Propane)
Gas pressure	0.4-0.8Mpa for normal plasma power
Power	220V/380V    50HZ(we suggest 63A,120A,160A,200A, etc)
No. of cutting torch/nozzle	One set of plasma and flame cutting torch, 10pcs nozzles
Software	FASTCAM



Q1: I knew nothing about this machine, what kind of machine I should choose?

Very easy to choose. Just tell us what you want to do by using laser cutting machine, then let us give you perfect solutions and suggestions.



Q2: When I got this machine, but I don’t know how to use it. What should I do?

We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or whatsapp and e-mail.



Q3: If some problems happen to this machine during warranty period, what should I do?

We will supply free parts during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.



Q4: Before sending me an inquiry on our laser cutting machine, it is better for you to provide me the following information

1)Your cutting size. Because in our factory, we have different models according to working area.

2)Your materials: Carbon steel, stainless steel , aluminum, or other materails

3) what’s your cutting thickness?

We will recommend suitable power source to you according to your cutting thickness



Q4: Our Service:

1) 24 Hours online service. my whatsapp: 15165193115

2) 12 months warranty for the whole machine except for wearing parts.

3) Engineers available to service machinery overseas.
