Product Overview

Description

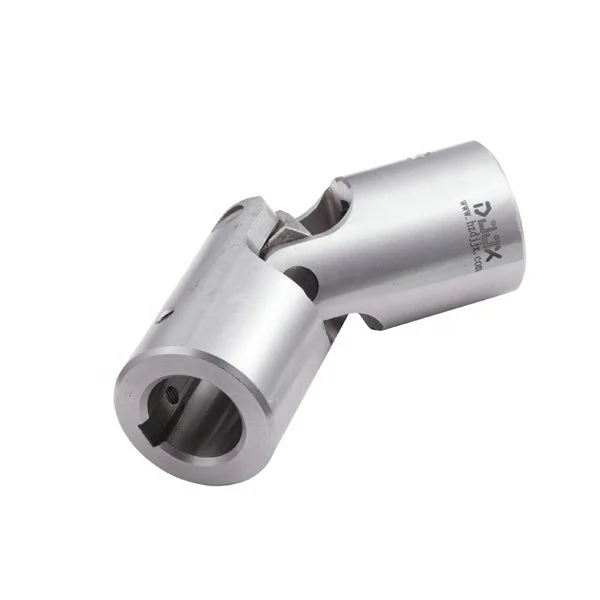

The precise universal joint with needle roller bearing Automobile part Bearing

1.Application to all kinds of general mechanical situation, maximum rotate speed may reach1000r/min

2.Have single -jointed type and bimodal type

3.Each point of the largest rotation angle can be 45^o

4.Needle roller bearing,maintenance-free

 5.The hole of the finshed product tolerance is H7 according to spline , hexagonal and square hole are available as long as you request.

 It widely used in multiaxle drilling machine ,construction machine,packaging machine,automobile.parking facility and paper machine,medical machine,farm machine

Specifications

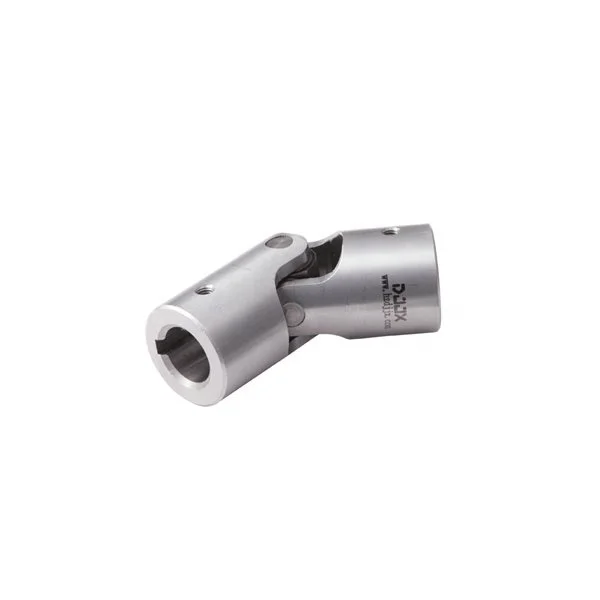

The precise universal joint with rivet&block and pin Automobile part Bearing U joint
According to standar DIN808

Specifications

Max.speed can reach 1000PRM
Static breaking torque can reach 2000N.M

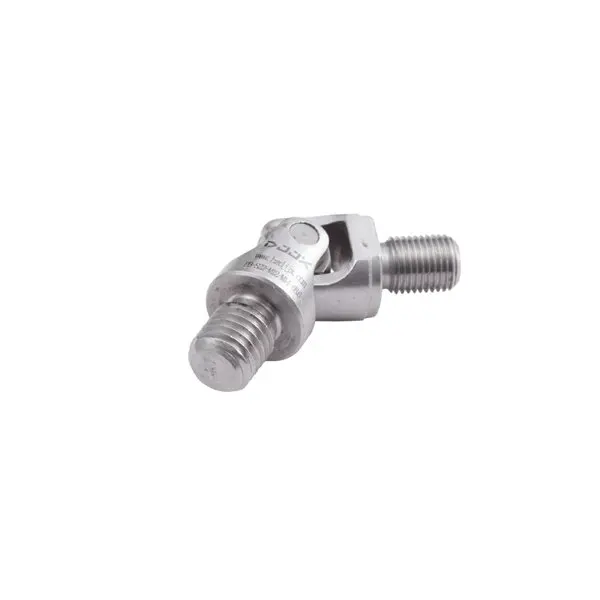

Special Universal joint,PBstyles











PB styles





Typical applications:
Can be used as a linkage, or transmission, between two intentionally misaligned shafts, rather than just as a flexible coupling .Lawn and garden equipment, conveyors and material handling equipment, food processing equipment

Advantages of DJJX’s Universal Joints, over those of other manufacturers:
• Many sizes available
• Max. angle 35 degree
• Available in various materials
• All subcomponents very precisely machined from bar: No cheap castings or powdered metal parts, resulting in better overall and more consistent performance
• Several subtle design innovations that optimize performance and reduce cost
• Could manufacture products according to your provided drawing or samples

Variations offered by DJJX Couplings:
• Materials for midsection: 20Cr,40Cr
• Materials for hub: 40Cr,45#steel

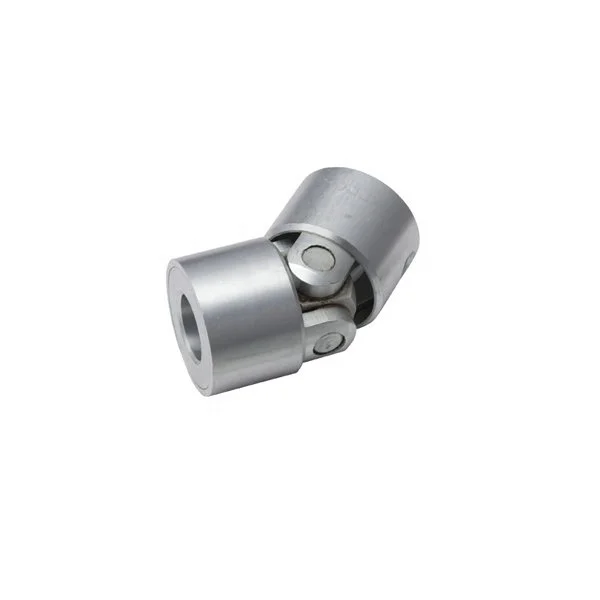

SINGLE

DOUBLE

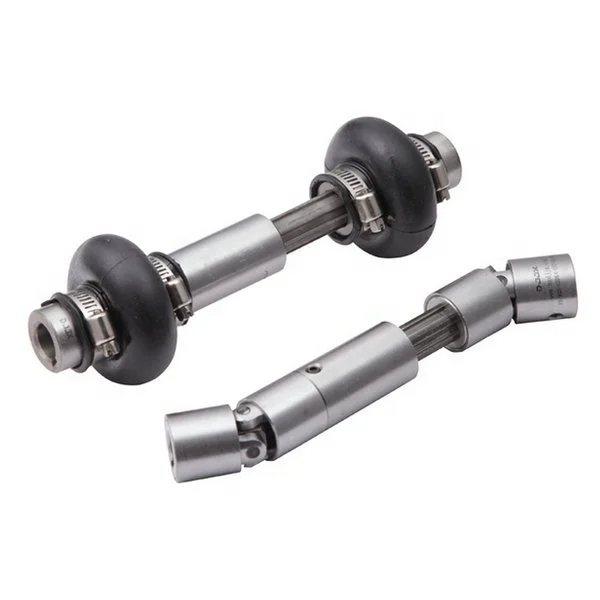

EXTENSION

special
