Product Overview
Description
Preservation Lines shot blaster steel abrator painting drying shot blasting machine for pipes
Product Description

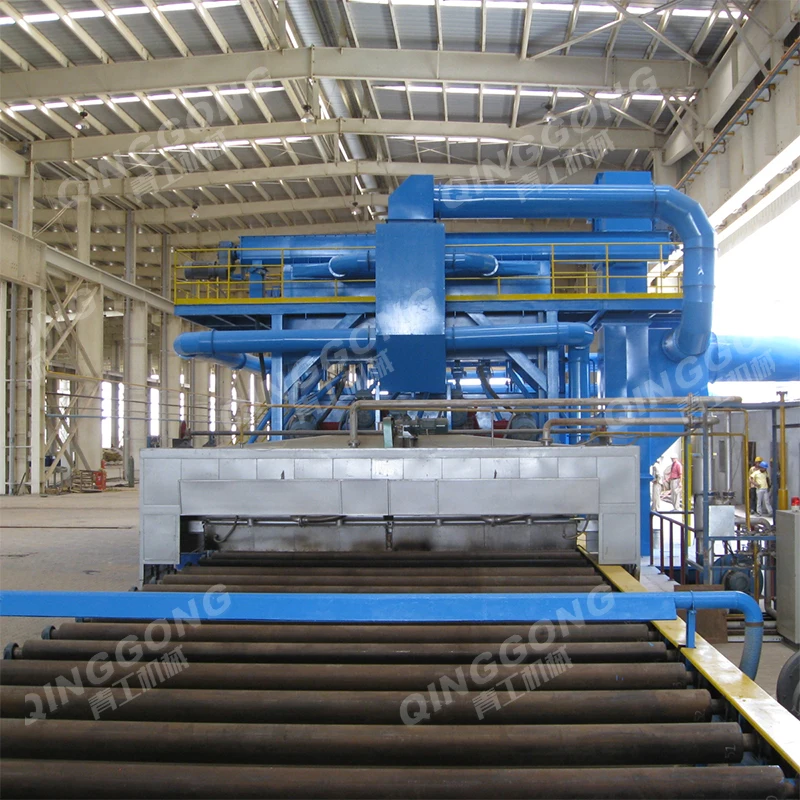

⬤ Transportation system
Roller conveyor system with frequency control step-less speed regulation. Painting chamber: Plate chain conveyor with "^" shaped structure, painted steel short-term exposure to avoid film damage.
⬤ Features
Complete systems quoted
One supplier for all components
Proven technology .
Custom designs - Flexible layouts Simple integration into existing manufacturing processes .
Wide range of system sizes and variants.
⬤ Photoelectric detection
Workpiece detection (measure height) adopted world-famous brand photoelectric detection, workpiece width measurement device send
a signal to PLC so as to automatically adjust abrasive feeding valve opening number.
a signal to PLC so as to automatically adjust abrasive feeding valve opening number.

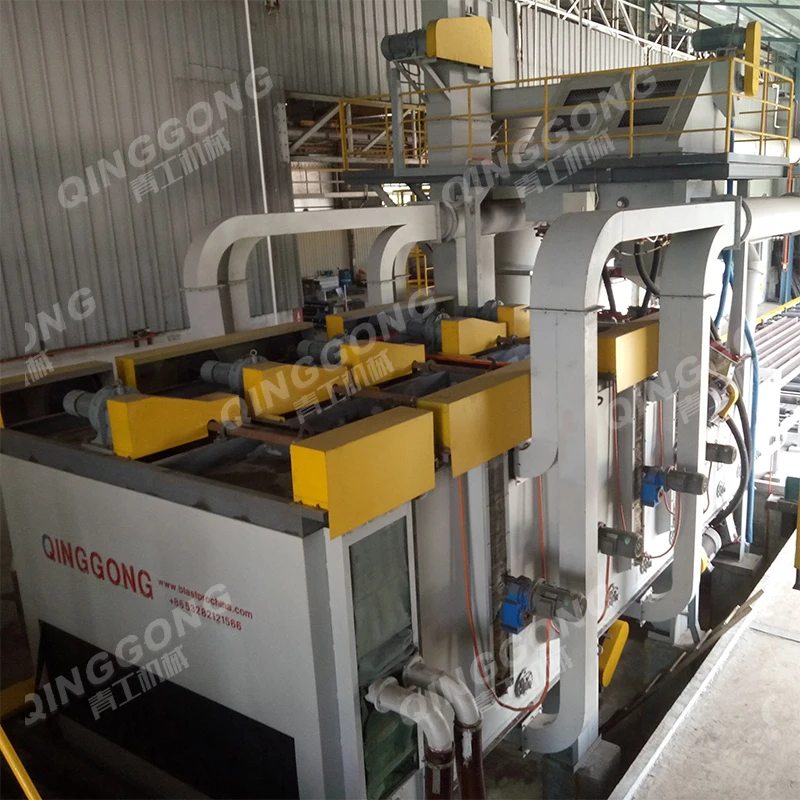

⬤ Blast turbine
Power of motor : 7.5-45 kw
Number of turbine: 4-16
⬤ Intelligent abrasive dosing system
Service time max 20% longer, energy saved max 30%.
⬤ Application Industry
Most industries: aerospace, automotive, construction, foundry, shipbuilding, rail, and many others.

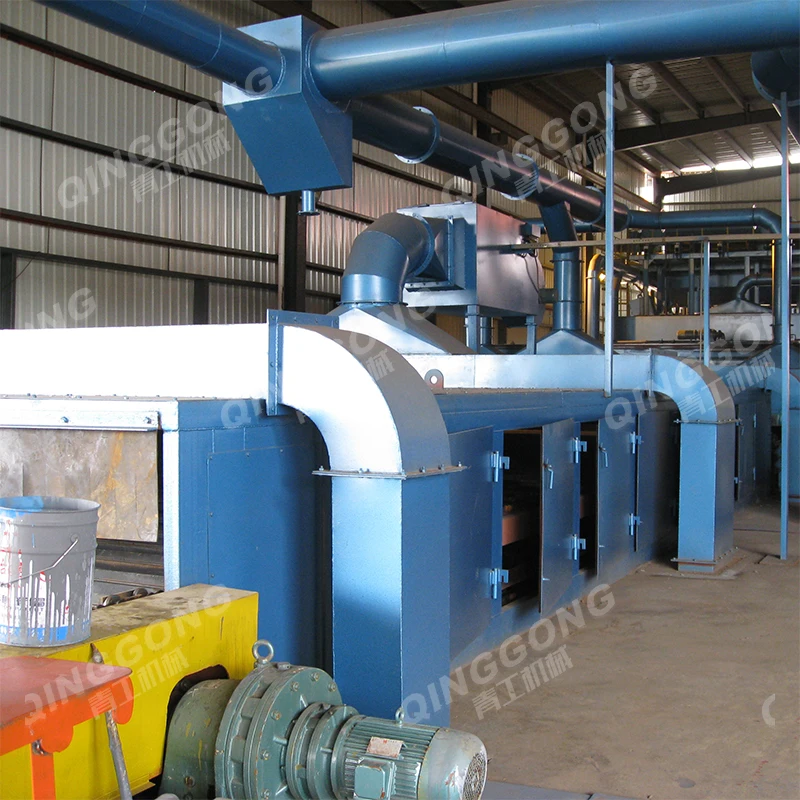

⬤ Spray chamber
Adopting GRACO high-pressure Airless spraying pump Using a standard linear guide trolley, frequency conversion buffer on both ends
of trolley stroke. Workpiece detection and transmission system separated from the spray gun set, paint mist interference-free,
easy to clean paint scale.
of trolley stroke. Workpiece detection and transmission system separated from the spray gun set, paint mist interference-free,
easy to clean paint scale.

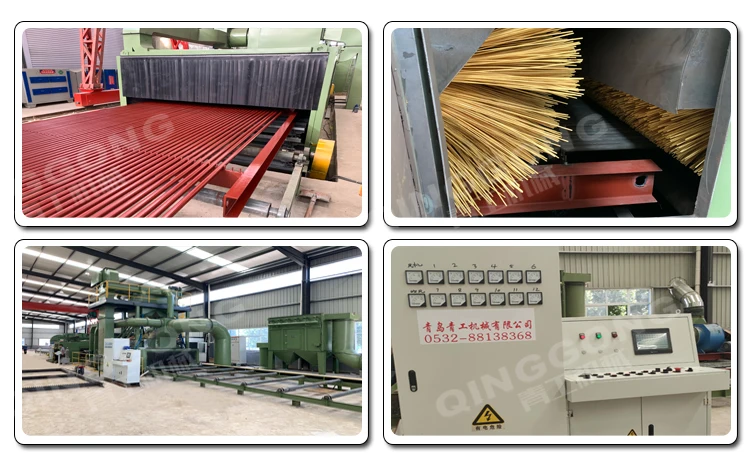

⬤ Abrasive cleaning up

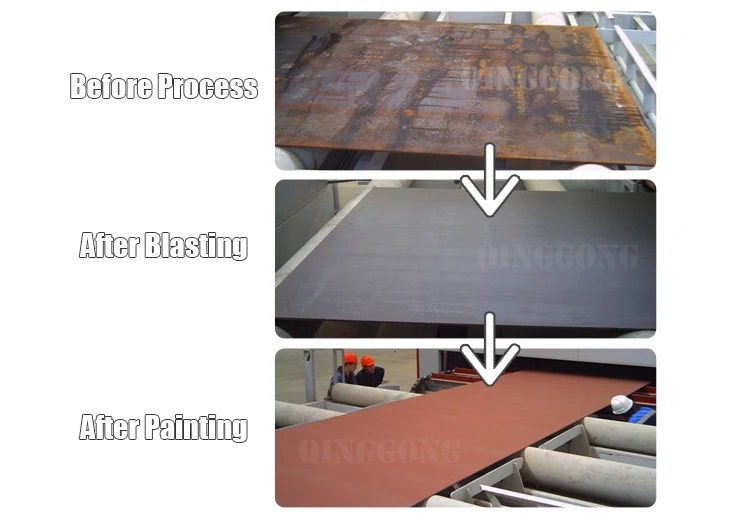

First level: Brush+abrasive reclamation. Second level: high-pressure blower blow the workpiece twice one after another after blast cleaning.
⬤ Workpieces
Sheet steel, profiles, or steel structures, etc.
⬤ Dust collector
Settling chamber + cartridge-type dust collector Cartridge filter service time: 5 years
⬤ Delivery time
18-25 weeks
Specification
model | QGPL300 | QGPL500 | QGPL800 | QGPL1000 | QGPL1200 |
Max. workpiece dimension(mm) | 300*600 | 500*1200 | 800*2000 | 1000*2500 | 1200*3000 |
Work speed(m/min) | 0.5-3 | 0.5-3 | 0.5-3 | 0.5-3 | 0.5-3 |
Number of wheels* power(kw) | 4*7.5/11 | 4*7.5/11/15 | 6*7.5/11/15 | 6*11/15 | 8*11/15 |
Wheels optional | 8*7.5/11 | 6*15/18.5 | |||
Dust collector | HR-12 | HR-12 | HR-16 | HR-24 | HR-24 |
Foundation pit required | No | No | No | Yes | Yes |
Company Profie
With 47 years experience of innovating and producing, QINGGONG machinery is a professional manufacturer of wheel blast/air blast machines.
Qinggong machinery have a R&D team with 30 years experience, 50 workers and a factory covering an area of 30,000 ㎡.
Untill 2022, Qinggong machinery have produced 5000+ sets of various kinds of wheel blast, air blast machines for customers from more than 50 different countries and some major factories in China, like LongGong, SANY, TISCO, etc.
TREATING SURFACE, PEENING FUTURE. has been the spirit of Qinggong machinery for decades. With our determined and responsible attitude, we have the confidence of providing the better surface treatment solutions for your industry.
FAQ
Q:How to choose balst machine type?
A:Please tell the information of your work-piece and productivity, experienced engineer will suggest.
Q:How to choose abrasive?
A:Various kinds abrasive with different size: steel shot, cut wire shot, stainless steel shot, etc. Choose according to workpiece.
Q:Quality warranty?
A:1 year for whole machine, 10 years for blasting chamber
Q:Is foundation pit essential?
A:Up to machine size and workshop
Q:How many workers to operate the machine?
A:1-2, up to the machine.
Q:Install assistance?
A:1-1 install assistance & operation training on site by experienced engineer.
Q:After sale service?
A:Full stock for spare parts, regular after sale service.
