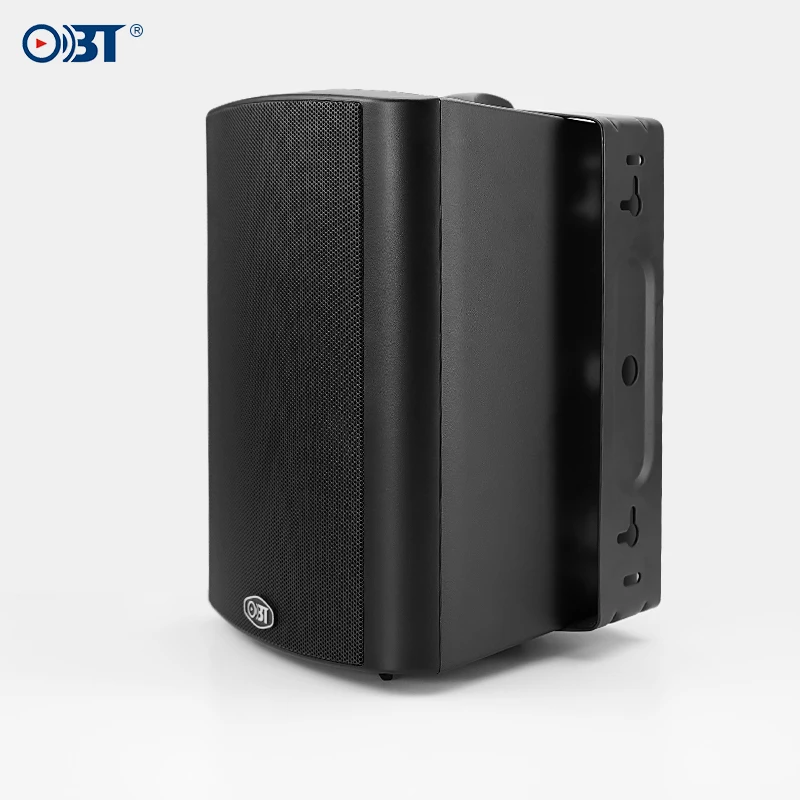

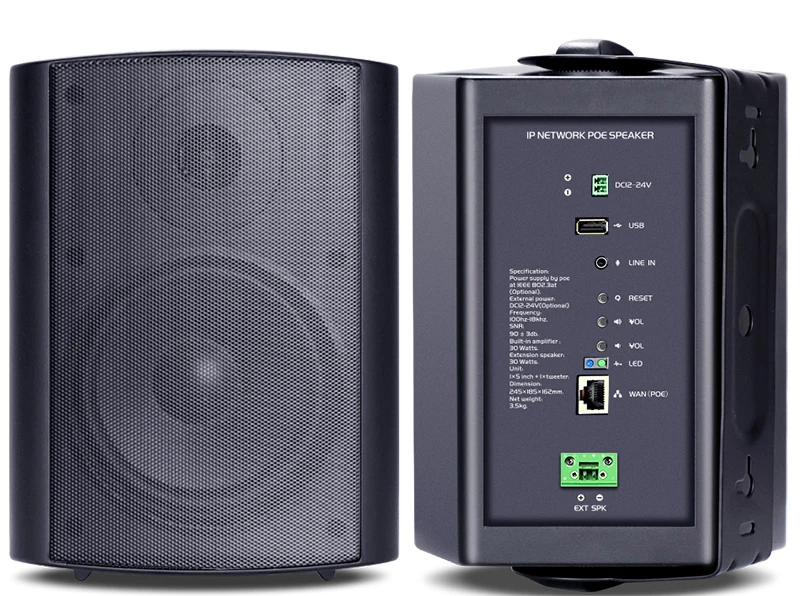

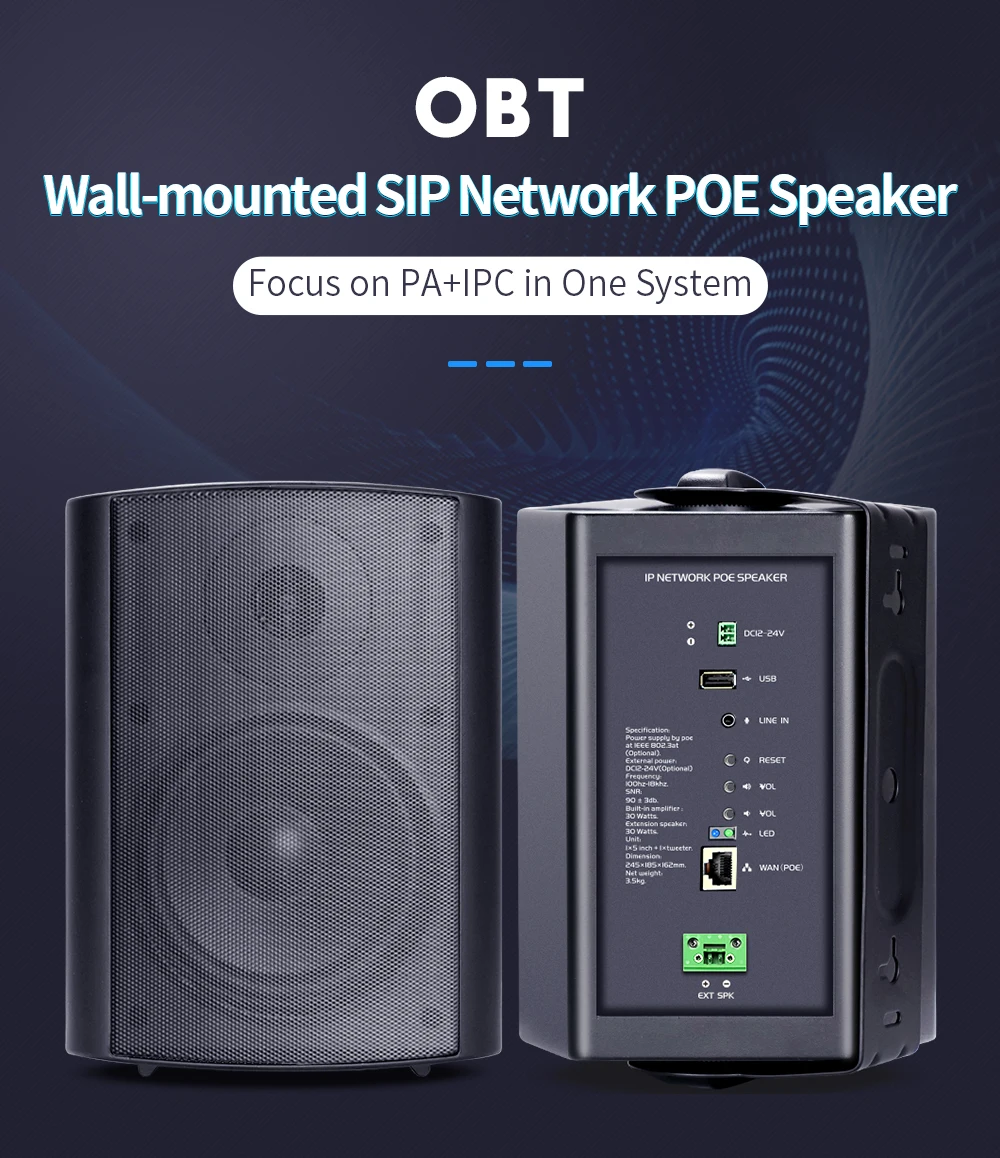

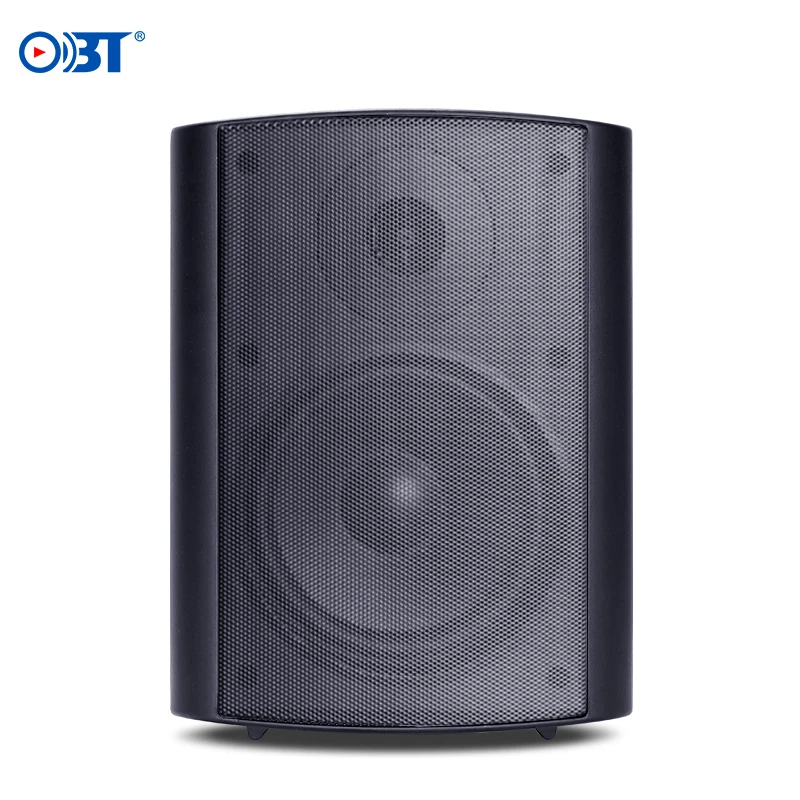

Public address system OBT 9806 10/100Mbps ip software poe speaker crossover network for ip pa system

Product Overview

Description

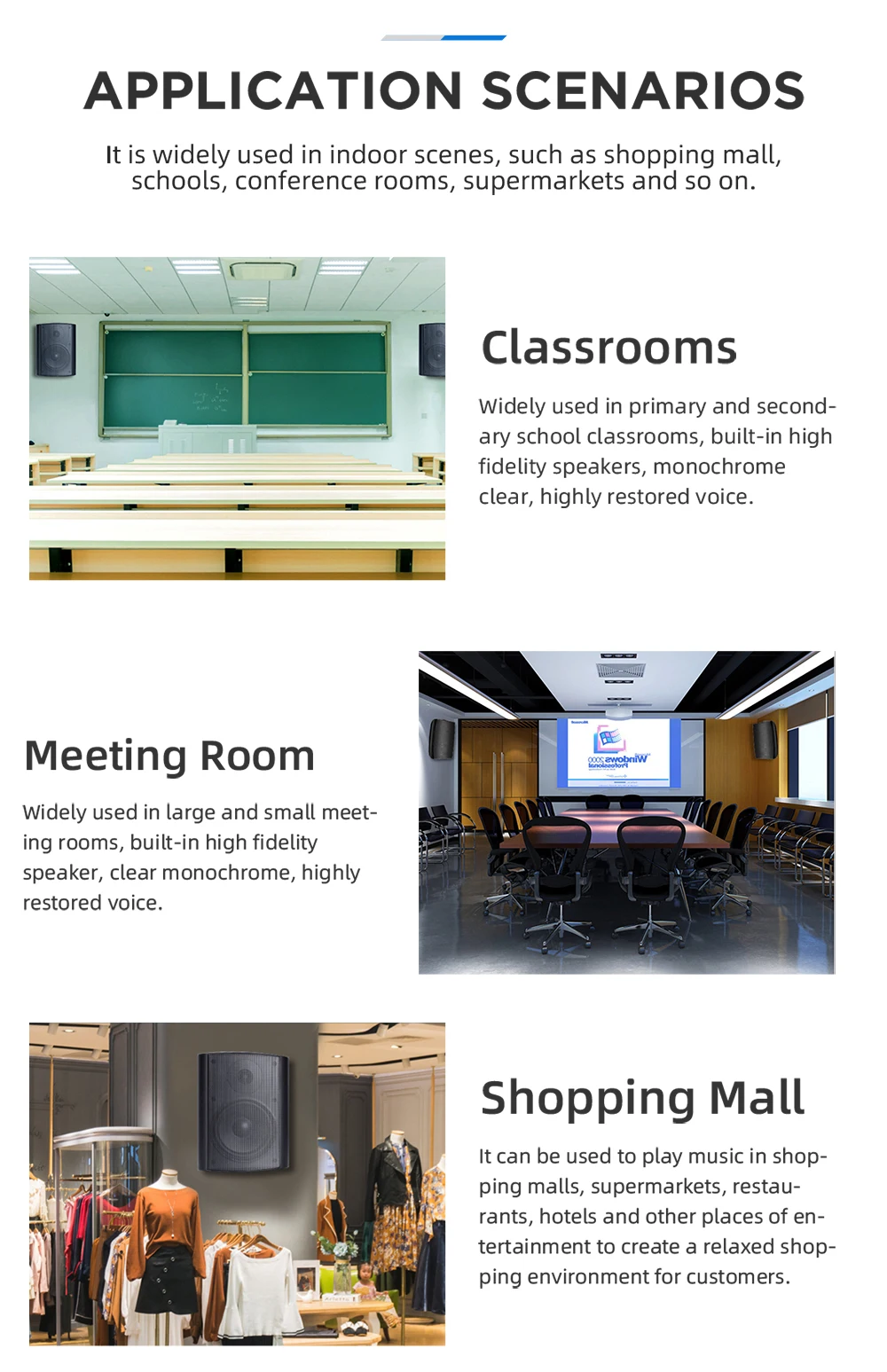

Application:

Used for every public place: Shopping center, School, Airport, Raillway stataion, Building, Mining pool,

Residential area, highway, toll plaza,Factory,Supermarket,Parking,Stadium,Mountain etc.

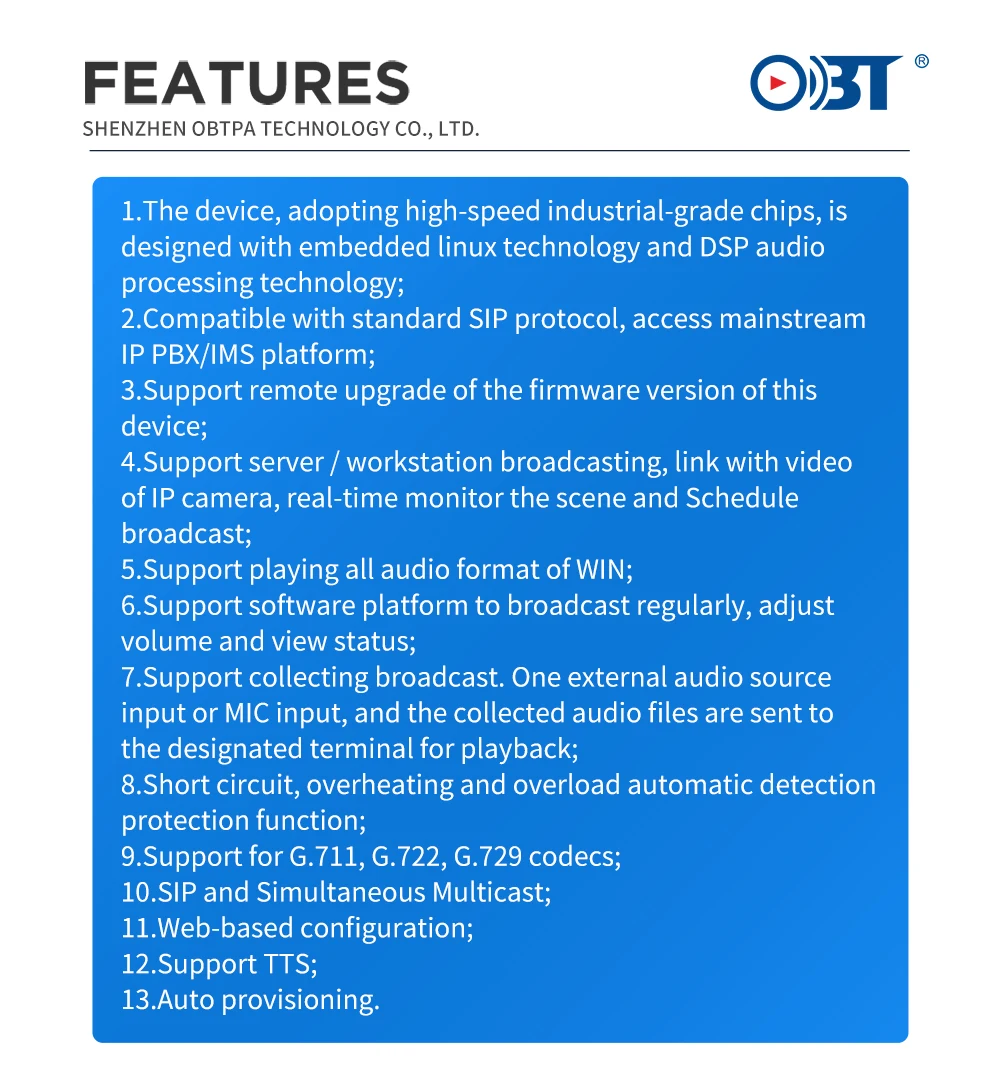

Features:

The device, adopting high-speed industrial-grade chips, is designed with embedded linux technology and DSP audio processing technology.
Compatible with standard SIP protocol, access mainstream IP PBX/IMS platform;
Support remote upgrade of the firmware version of this device.

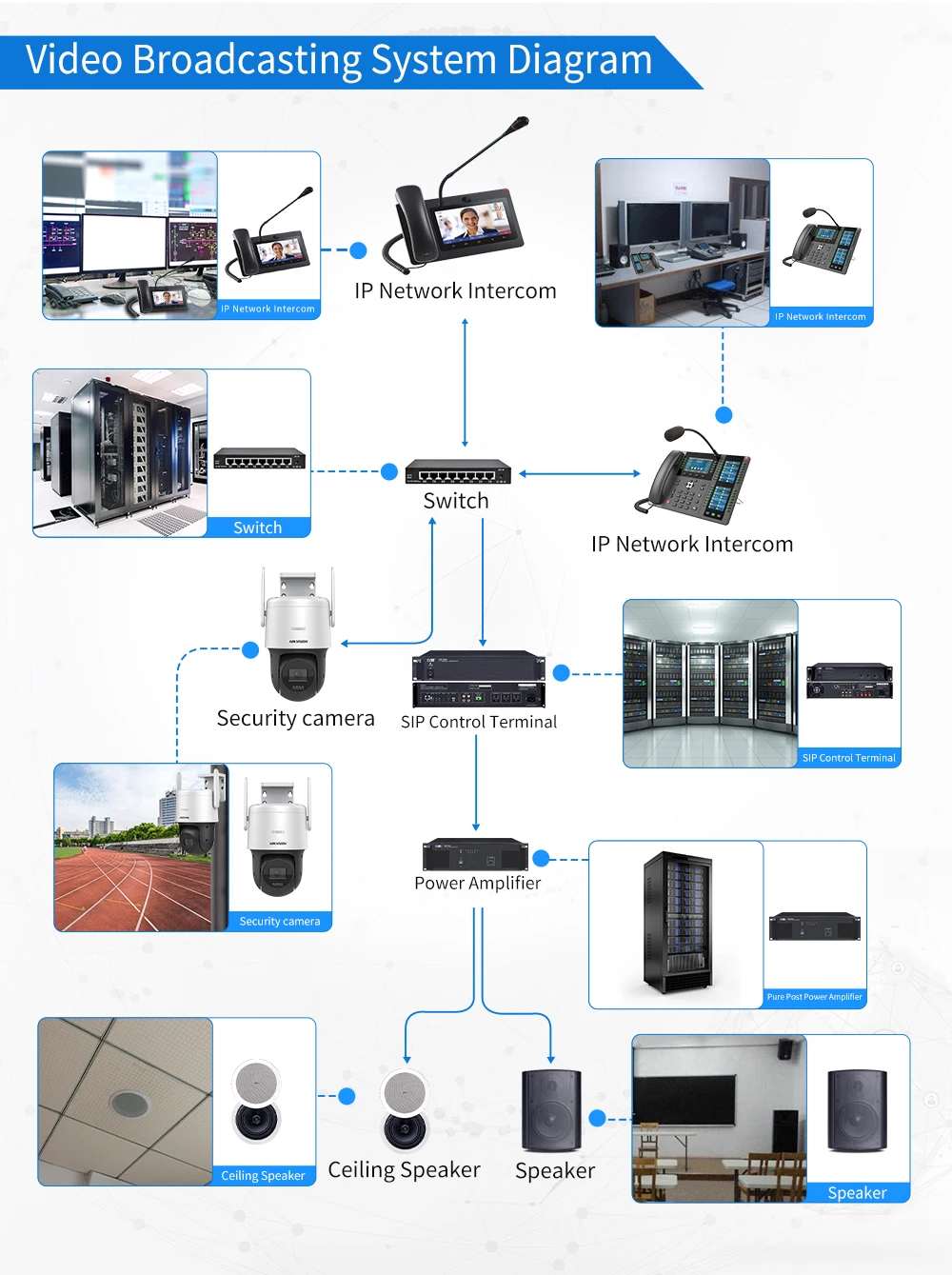

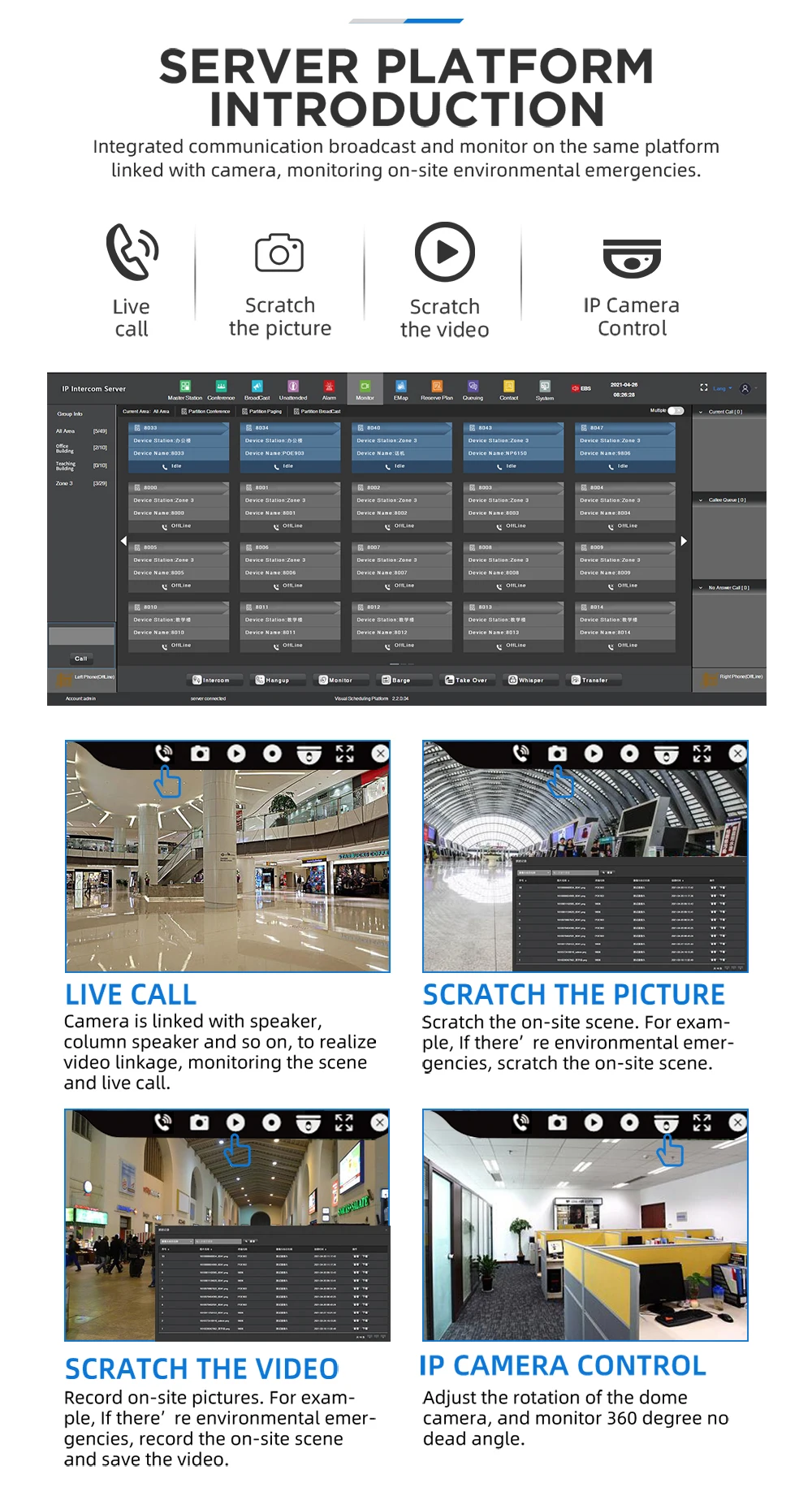

Support server/workstation broadcasting, link with video of IP camera, real-time monitor the scene and Schedule broadcast.
Support playing all audio format of WIN.
Support software platform to broadcast regularly, adjust volume and view status.
Support collecting broadcast. One external audio source input or MIC input, and the collected audio files are sent to the designated terminal for playback.
Short circuit, overheating and overload automatic detection protection function.
Support for G.711, G.722, G.729 codecs.
SIP and Simultaneous Multicast.
Web-based configuration.
Support TTS.
Auto provisioning.

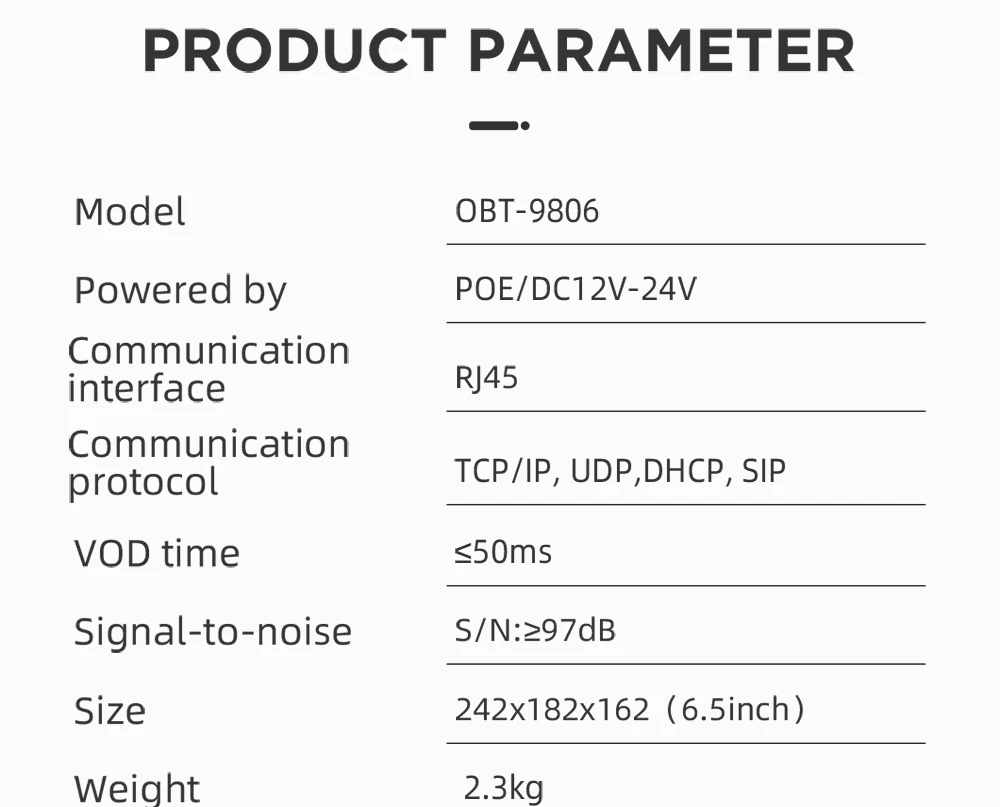

Technical parameters:

Model	OBT-9806
Power Supply	POE Power Supply Or External Connect to DC+12V
Standby Power Consumption	5W
Power Consumption	30W
Network Interface	RJ45
Transmission Speed	10/100Mbps
Support Protocol	TCP/IP,UDP,IGMP(Group Broadcast)
Audio Format	MP3/MP2
Audio Model	16digit stereo CD level
Sample Rate	8K~48K
Bit Rate	8K~512Kbps
Rated Power Consumption	8W
Peak Power Consumption	10W
Sensitivity	92dB
Frequency Response	100Hz~16KHz+1/-3dB
S/N Ratio	≤0.1%
THD	90±3dB;
Dimensions	242X182X162mm
Weight	1.15Kg
